Introduction to Automatic Dry Film Laminator (RBT-650M)

SOAO Industrial Limited is a company specializing in the manufacture of electronic equipment. Its automatic dry film laminator RBT-650M has a wide range of applications in the electronics industry. The following is a detailed introduction to this equipment.

I. Equipment Overview

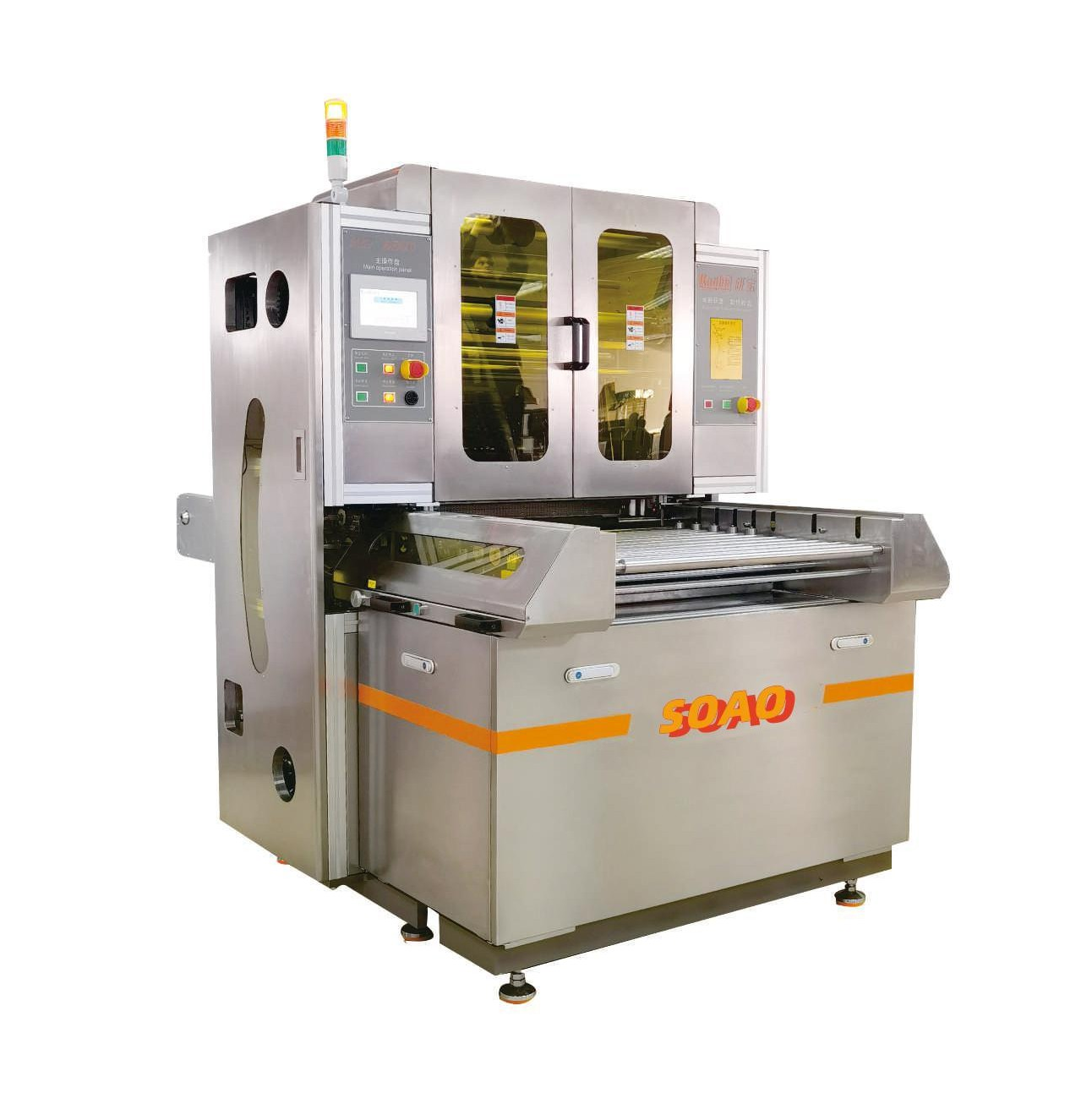

The automatic dry film laminator RBT-650M is an efficient and precise electronic device designed specifically for the lamination of dry films on general, high-precision, and high-density interconnect (HDI) printed circuit boards (PCBs). The equipment adopts advanced technology and high-quality materials to ensure the stability and reliability of the lamination process.

II. Main Features

1. Dual Lamination Rollers System: The RBT-650M features a dual lamination rollers system, which improves adaptability and adhesion strength, ensuring a tight fit between the dry film and the PCB board.

2. Synchronized Moving and Cutting System: The equipment is equipped with a synchronized moving and cutting system that precisely controls the movement and cutting of the dry film during the lamination process, improving production efficiency and product quality.

3. Aluminum Skeleton: The skeleton of the equipment is made of aluminum material, which not only reduces the weight of the equipment but also facilitates maintenance and servicing.

4. Touch Panel Operation: The RBT-650M comes with a touch panel operation interface that is simple and intuitive. Users can easily control the various functions of the equipment through the touch panel.

5. Double Pressure Design: The equipment adopts a double pressure design, ensuring stability and efficiency in the lamination process, and improving the lamination quality of the product.

6. Turnable Tear Conveyor: For the convenience of equipment maintenance and servicing, the RBT-650M is equipped with a turnable tear conveyor. Users can easily turn the conveyor for cleaning and maintenance work when needed.

7. Multi-language Interface: The equipment supports multiple language interface options, meeting the needs of users from different countries and regions.

III. Technical Parameters

The main technical parameters of the RBT-650M are as follows:

• Panel Size: Max W650L650mm, Min W250L250mm

• Panel Thickness: 0.10-5.0mm (special plate thickness optional)

• Dry Film Thickness: 15-55µm

• Copper Retention: Automatic copper retention ±1mm

• Dry Film Width: 350-650mm

• Maximum Diameter: Φ250mm

• Lamination Temperature: Max 0-130℃±3℃

• Conveyor Speed: 0-5.0m/min (adjustable)

• Dry Film Speed: 1.0-4.0m/min (adjustable)

• Hot Press Wheel Size: ∮80X860(L)mm

• Vacuum Suction Cup Range: 330mm, 500mm, 635mm

• Lamination Method: Automatic double roller

• Air Supply: 6-7kg/cm², 120L/min

• Power: Three-phase 200/220V, 50/60HZ, 11KW

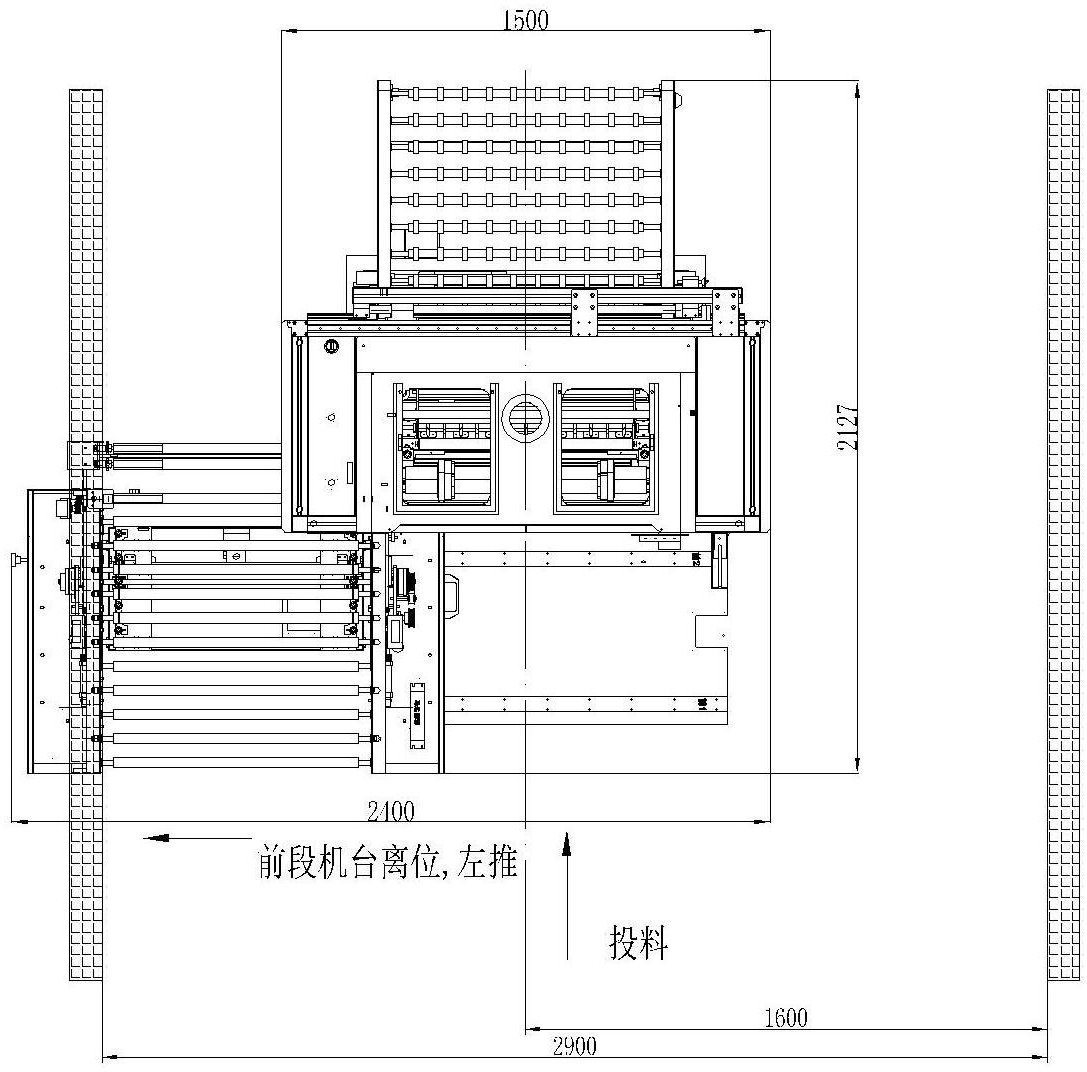

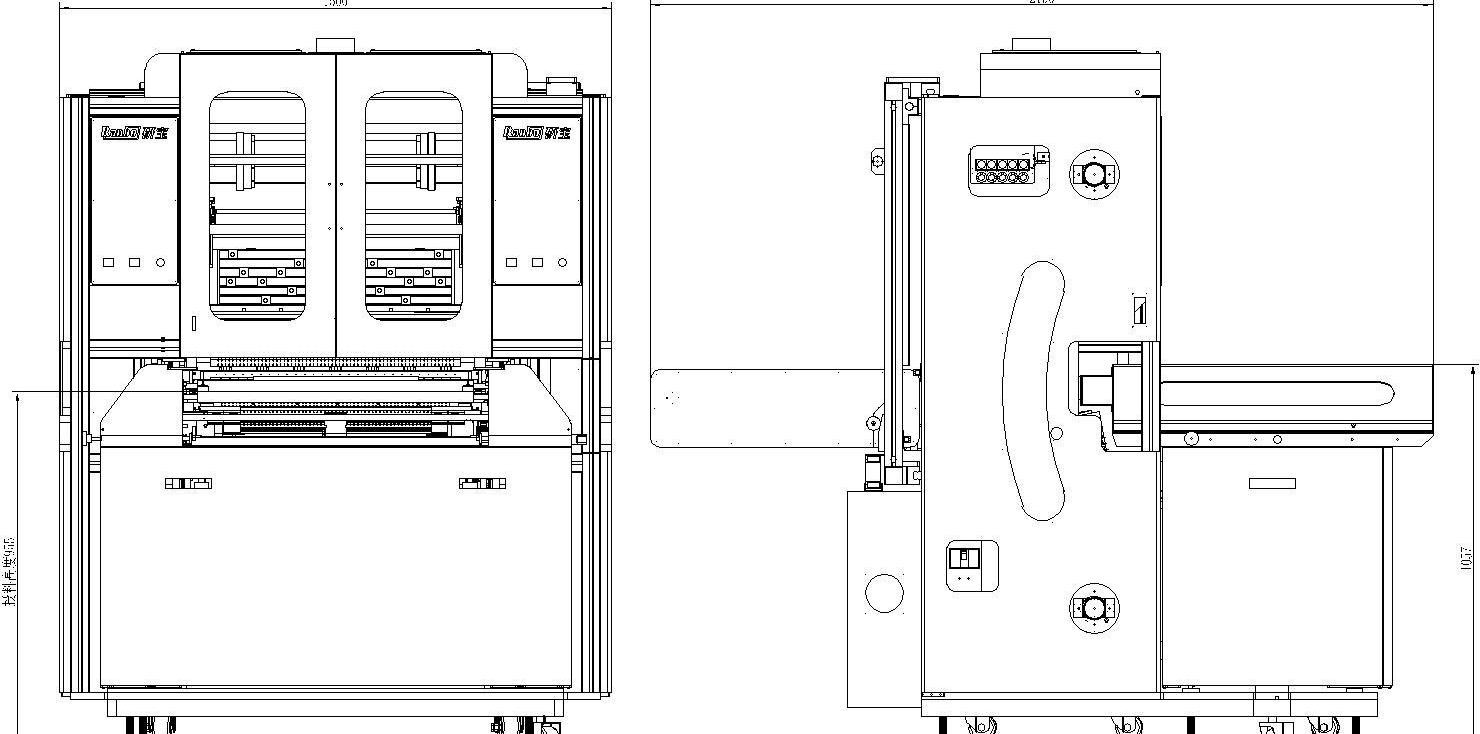

• Dimension: 216515001910mm

• Environment Condition: Dust-free room, temperature 18-25℃, humidity 40-65%RH

• Weight: 1600kg




IV. Main Configuration

The main configuration of the RBT-650M includes:

• Lamination Rollers: RBT-650MJL, Ranbo brand, made in China, one-year warranty

• Stainless Steel Rollers: RBT-650MSL, Ranbo brand, made in China, one-year warranty

• Programmable Logic Controller (PLC): FPXH-60T, Panasonic brand, made in Japan, one-year warranty

• Human-Machine Interface (HMI): PFXGP4402, proface brand, made in Japan, one-year warranty

• Vacuum Pump: DG-330-26, DarGang brand, made in Taiwan, China, one-year warranty

• Air Pump: DG-400-36, DarGang brand, made in Taiwan, China, one-year warranty

• Temperature Controller: FP0-TC4, Panasonic brand, made in Japan, one-year warranty

• Guide Rails: HR1530UU/LBH20UU, THK、PMI brands, made in Japan, one-year warranty

• Induction Heater, Solid-State Relay (SSR), Optoelectronic Switch, Cylinder, Brushless Motor + Driver, Conveyor Motor, Transmission Belt, Guide Rails, Solenoid Valve, Bearings, and other key components are all sourced from well-known brands, ensuring the stability and reliability of the equipment.

V. Application Areas

The automatic dry film laminator RBT-650M is widely used in the electronics manufacturing industry, particularly in the production process of printed circuit boards (PCBs), for the lamination and cutting of dry films. The efficiency, stability, and precision of this equipment make it an indispensable piece of equipment in the electronics manufacturing industry.

VI. Conclusion

The automatic dry film laminator RBT-650M produced by SOAO Industrial Limited has won widespread praise and recognition in the electronics manufacturing industry due to its advanced technology, high-quality materials, and excellent performance. This equipment not only improves production efficiency and product quality but also reduces production costs and maintenance costs, making a significant contribution to the development of the electronics manufacturing industry.
