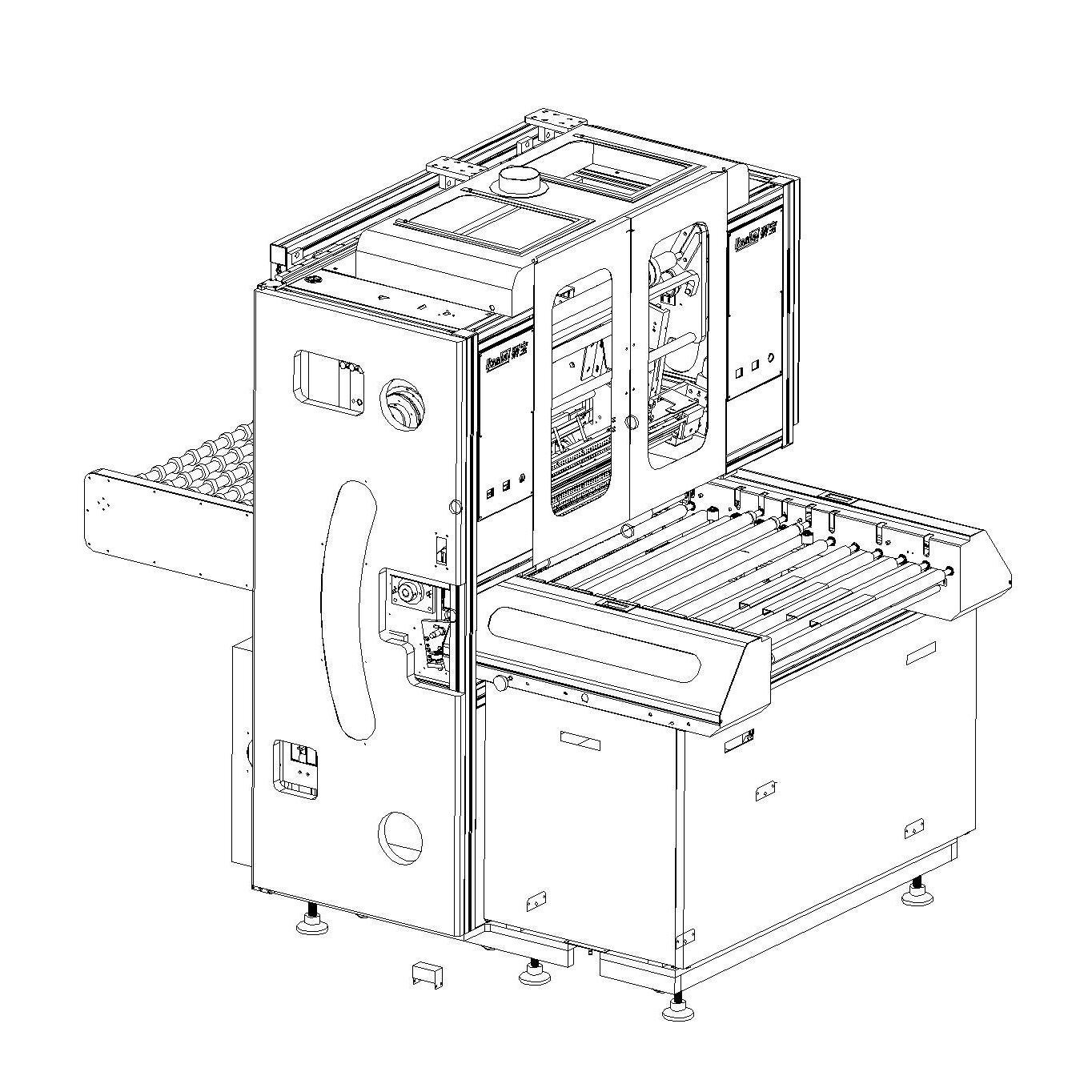

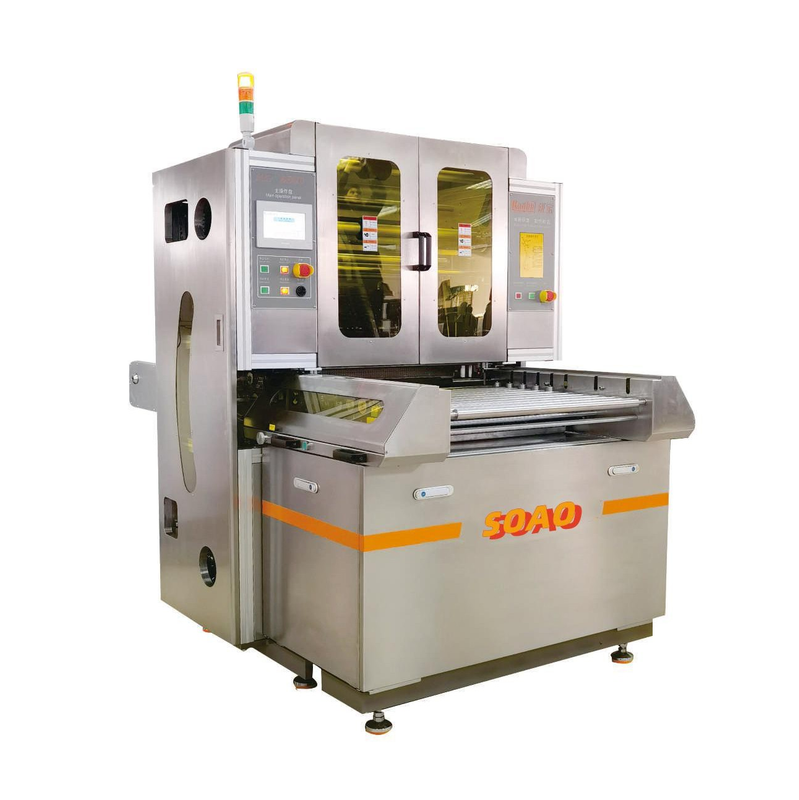

PCB Manufacturing Equipment Automatic Dry Film Laminator Precision Lamination System RBT-650M

Automatic Dry Film Laminator is a machine used primarily in the printed circuit board (PCB) manufacturing process to apply dry film photoresist onto copper-clad laminates. This process is crucial for creating precise circuit patterns during PCB fabrication.
Availability:
Quantity:
Inquire Add to Basket

  • RBT-650M


PCB Manufacturing Equipment Automatic Dry Film Laminator Precision Lamination System

Automatic Dry Film Laminator is a machine used primarily in the printed circuit board (PCB) manufacturing process to apply dry film photoresist onto copper-clad laminates. This process is crucial for creating precise circuit patterns during PCB fabrication.





Machine Technical Parameters：

Panel Size：

Max :W650* L650(mm) Min: W250*L250(mm)

Panel Thickness：

0.10-5.0 mm （Optional special plate thickness）

Film Thickness：

15-55µm

Copper retention:

Automatic copper retention±1mm

Film Width：

350-650mm

Maximum Diameter：

Max:Φ250mm

Lamination Temperature ：

Max.0-130℃± 3℃

Conveyor Speed：

0-5.0m/min. （Adjustable speed）

Film speed：

1.0-4.0m/min（Adjustable speed）

Hot press wheel

∮80X860(L)mm,

Vacuum suction cup range

330mm,500mm,635mm

Press film method

Automatic double roller

Air Supply：

6-7kg/cm² 120L/min

Power：

3-Phase 200/220V,50/60HZ 11KW

Dimension：

2165*1500*1910（mm）

Environment condition：

dust free room, temperature: 18 to 25C,humidity40~65%RH

Weight

1600kg


Features

1.Two lamination rollers system,improved adaptability and adhesion strength 2.Synchronized moving and cutting system

3. Aluminum skeleton for facilitating maintenance

4. Easy to operate through touch panel

5. The equipment adopts double pressure design，the pressure film is stable and efficient.

6. Tear Conveyor can be turned on to facilitate maintenance operations.

7. Multiple languages inter face can be selected

8.Auto-Cut Double Rollers Laminator for General、High Precision and HDI Printed Circuit Board



文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



Deliver Machine

11

Packing

2

Packing

3

Payment

4

Transport

Our PCB Machine Factory

1


222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
