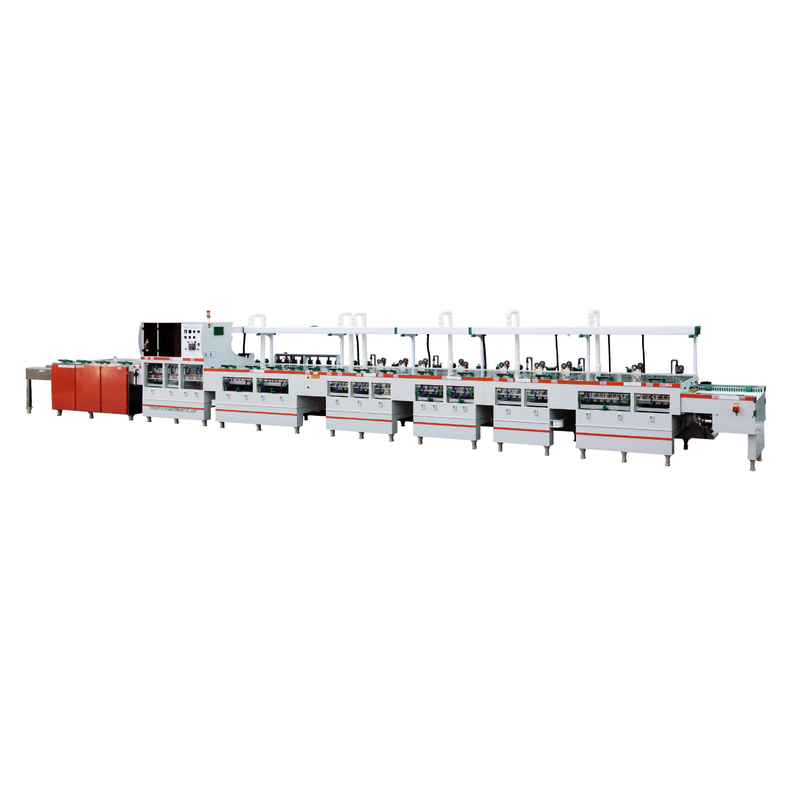

PCB Oxide Replacement Machine

Oxide Replacement Machine is a specialized piece of equipment used in the PCB (Printed Circuit Board) manufacturing process, particularly in the production of multilayer PCBs. Its primary function is to replace the traditional oxide treatment process with a more advanced and reliable surface treatment. This process enhances the bonding strength between the layers of a multilayer PCB, ensuring better reliability and performance.

Brown Oxide replaces the traditionalBlack Oxide to improve the binding of inner-layer boa rd . This process develops a conversion process of brown oxide coxite replacement on even coated copper surface.It ensures to have strengthened the binding force between copper foil and inner layer during the production of multilayer PCB.The conveying system uses the solt material,which is able to prevent the roll prin t from appearing on the surface of PCB.Excellent structure of water jet scalpel and unique spraying design strengthen the binding force;breakaway cotton core filter could eliminatc the block up of flood bar.

Key Functions of an Oxide Replacement Machine

1. Surface Treatment:

• Replaces the traditional oxide treatment with a chemical process that improves the bonding strength between PCB layers.

2. Micro-etching:

• Creates a micro-roughened surface on the copper to enhance adhesion.

3. Chemical Application:

• Applies a thin, uniform layer of oxide replacement chemicals (e.g., organosilane or other bonding agents) to the copper surface.

4. Rinsing and Drying:

• Cleans and dries the PCB surface after treatment to prepare it for lamination.

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
