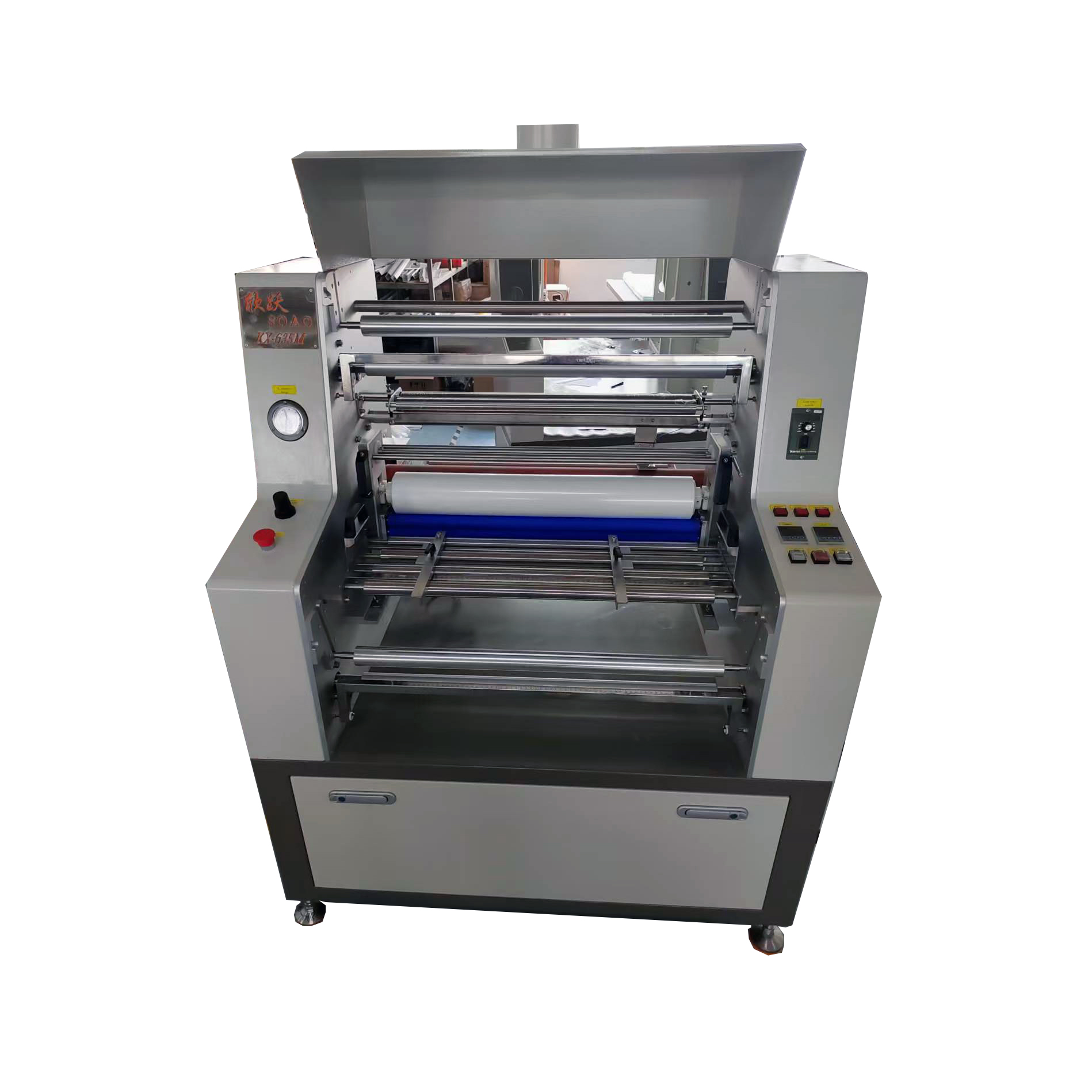

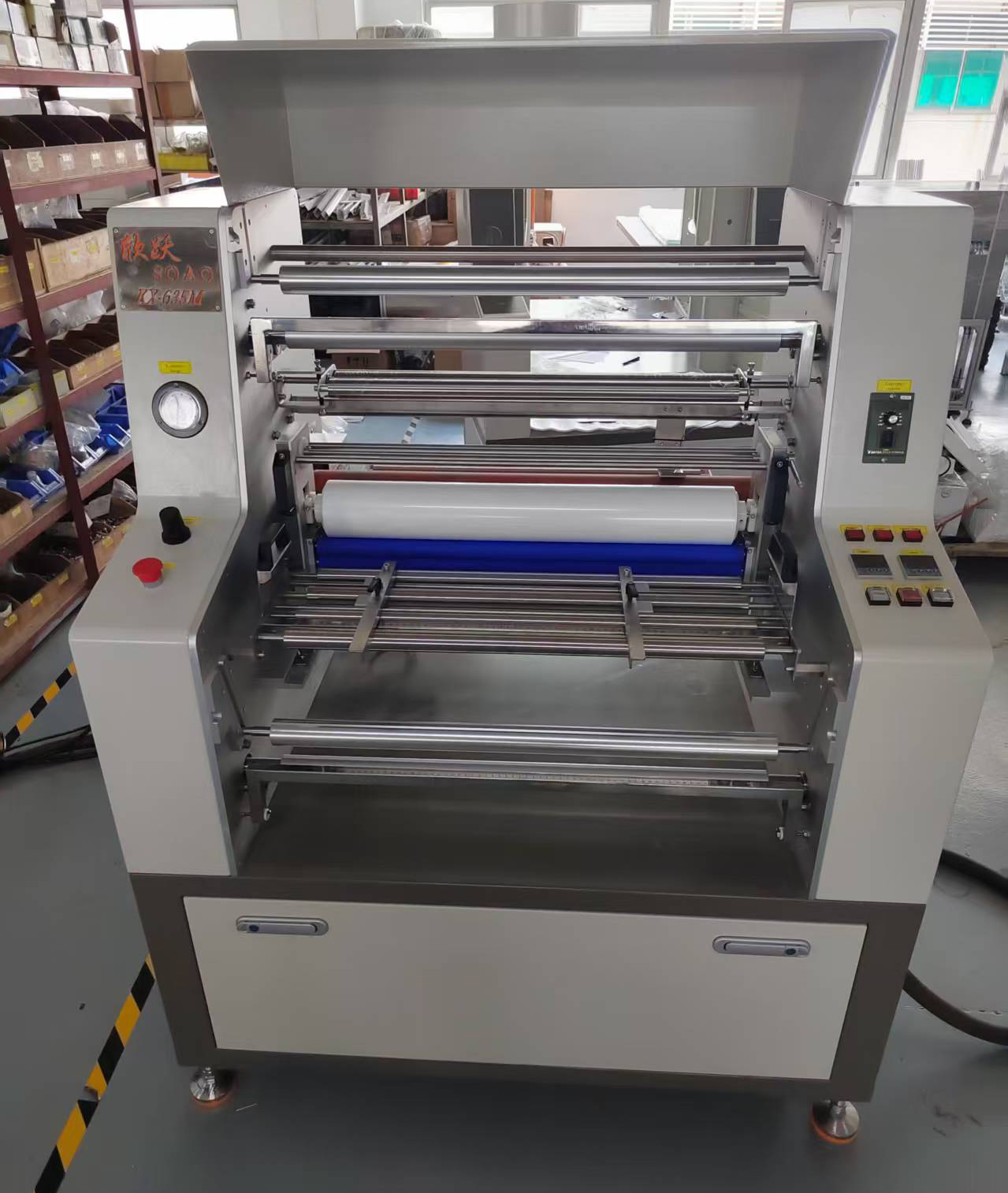

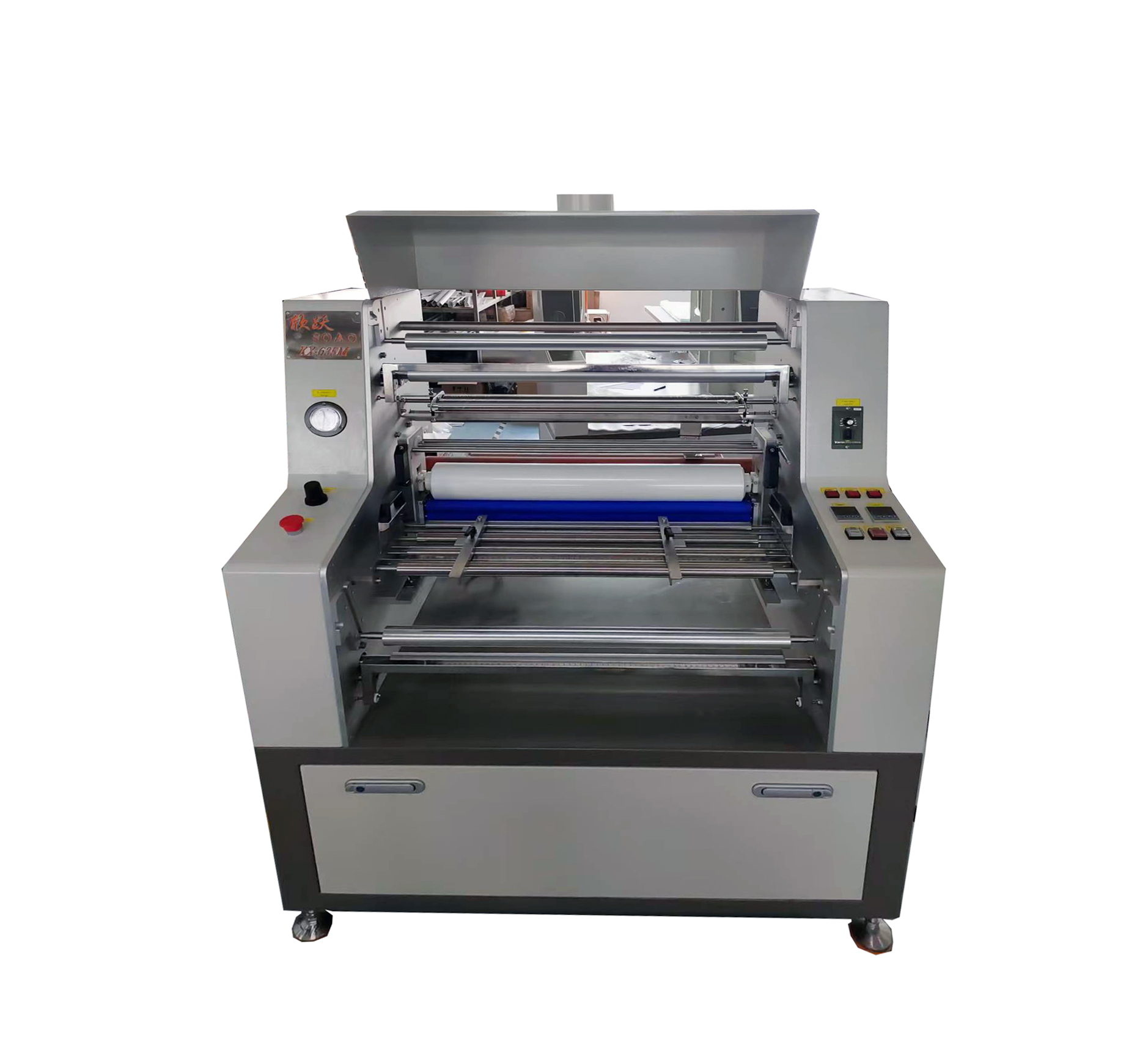

PCB Manual Laminator is a machine used primarily in the printed circuit board (PCB) manufacturing process to apply dry film photoresist onto copper-clad laminates. This process is crucial for creating precise circuit patterns during PCB fabrication.
 |
PCB Manual Laminator is a machine used primarily in the printed circuit board (PCB) manufacturing process to apply dry film photoresist onto copper-clad laminates. This process is crucial for creating precise circuit patterns during PCB fabrication.
| Quantity: | |
|---|---|
Manual Dry Film Laminator is a machine used primarily in the printed circuit board (PCB) manufacturing process to apply dry film photoresist onto copper-clad laminates. This process is crucial for creating precise circuit patterns during PCB fabrication.
Machine Technical Parameters：
Panel Size： | Max :W650* L650(mm) Min: W250*L250(mm) |
Panel Thickness： | 0.10-5.0 mm （Optional special plate thickness） |
Film Thickness： | 15-55µm |
Copper retention: | Automatic copper retention±1mm |
Film Width： | 350-650mm |
Maximum Diameter： | Max:Φ250mm |
Lamination Temperature ： | Max.0-130℃± 3℃ |
Conveyor Speed： | 0-5.0m/min. （Adjustable speed） |
Film speed： | 1.0-4.0m/min（Adjustable speed） |
Hot press wheel | ∮80X860(L)mm, |
Vacuum suction cup range | 330mm,500mm,635mm |
Press film method | Automatic double roller |
Air Supply： | 6-7kg/cm² 120L/min |
Power： | 3-Phase 200/220V,50/60HZ 11KW |
Dimension： | 2165*1500*1910（mm） |
Environment condition： | dust free room, temperature: 18 to 25C,humidity40~65%RH |
Weight | 1600kg |
Features

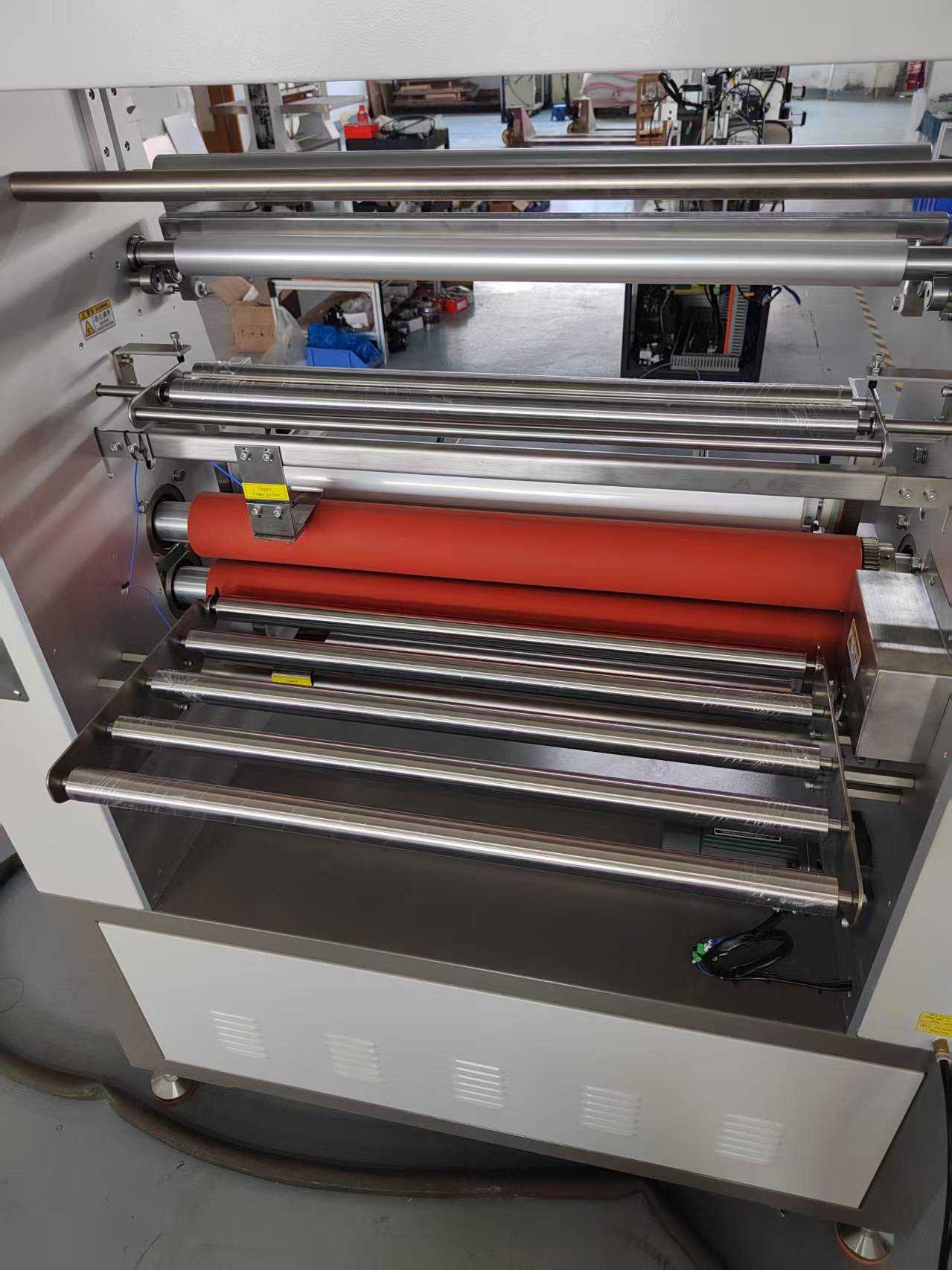

1.Two lamination rollers system,improved adaptability and adhesion strength 2.Synchronized moving and cutting system
3. Aluminum skeleton for facilitating maintenance
4. Easy to operate through touch panel
5. The equipment adopts double pressure design，the pressure film is stable and efficient.
6. Tear Conveyor can be turned on to facilitate maintenance operations.
7. Multiple languages inter face can be selected
8.Auto-Cut Double Rollers Laminator for General、High Precision and HDI Printed Circuit Board
