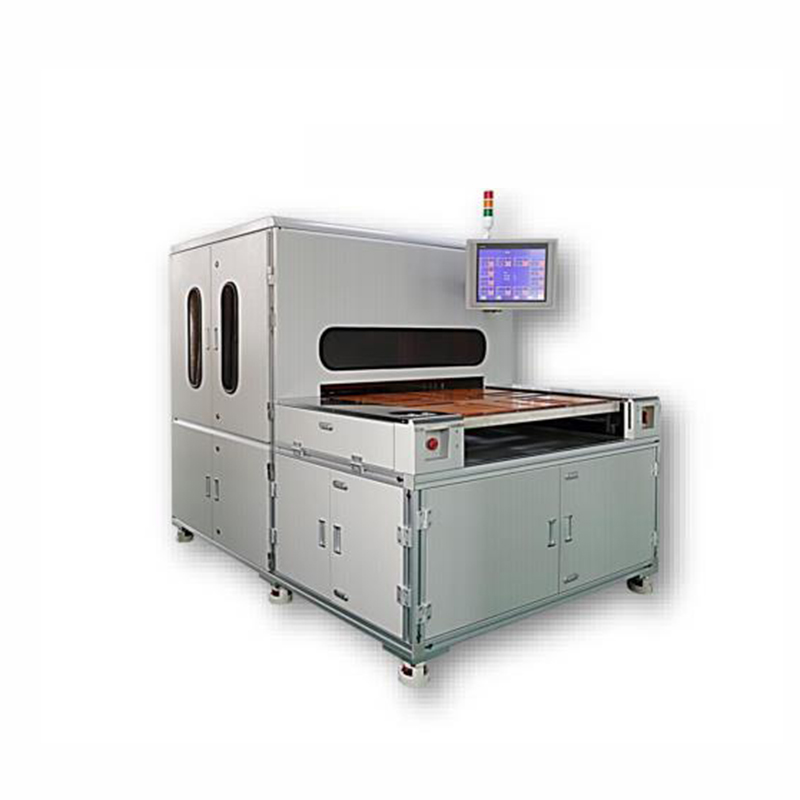

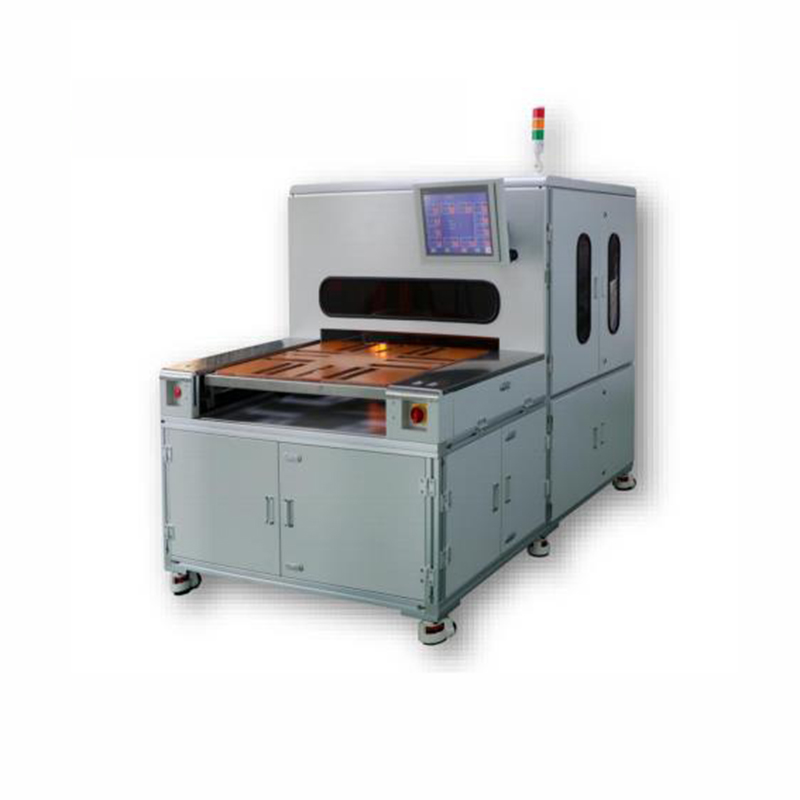

PCB Making Machine Automatic Perfect Double Platform Bonding Machine for PCB

• Using the principle of electromagnetic induction heating, the hot melt area and semi-curing of each inner plate are fused
together, replacing the traditional electric heating and rivet fixing methods

• Electromagnetic heating is a new, safe, efficient and energy-saving heating method

• Heats up faster than conventional electric heating,

• High temperature control accuracy,

• Thermal efficiency up to more than 90%.

• Uniform heating, independent of plate thickness
Availability:
Quantity:
Inquire Add to Basket

PCB Making Machine Automatic Perfect Double Platform Bonding Machine for PCB

• Using the principle of electromagnetic induction heating, the hot melt area and semi-curing of each inner plate are fused
together, replacing the traditional electric heating and rivet fixing methods

• Electromagnetic heating is a new, safe, efficient and energy-saving heating method

• Heats up faster than conventional electric heating,

• High temperature control accuracy,

• Thermal efficiency up to more than 90%.

• Uniform heating, independent of plate thickness


1

6

5

Features：

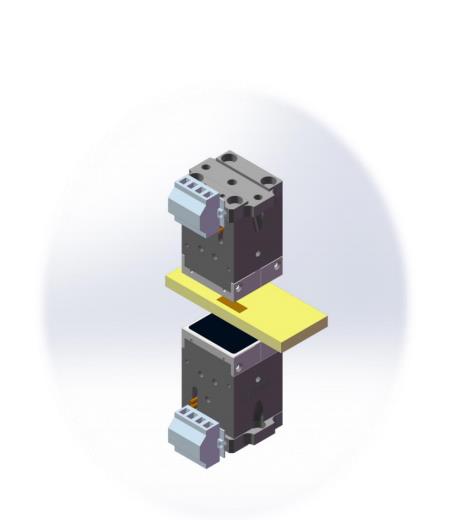

• Rapid heating by high-frequency electromagnetic induction



• 12 hot melting points

• Double table design, PIN positioning

• Stacked countertops have a pressure plate design

• Programming of production parameters


Machine Technical Parameters：

Equipment model XJ-712
Size 2095mm*1455mm*1760mm (L*W*H)
Plate size Minimum size 350mm*390mm, maximum size 680mm*780mm, can be customized
according to demand

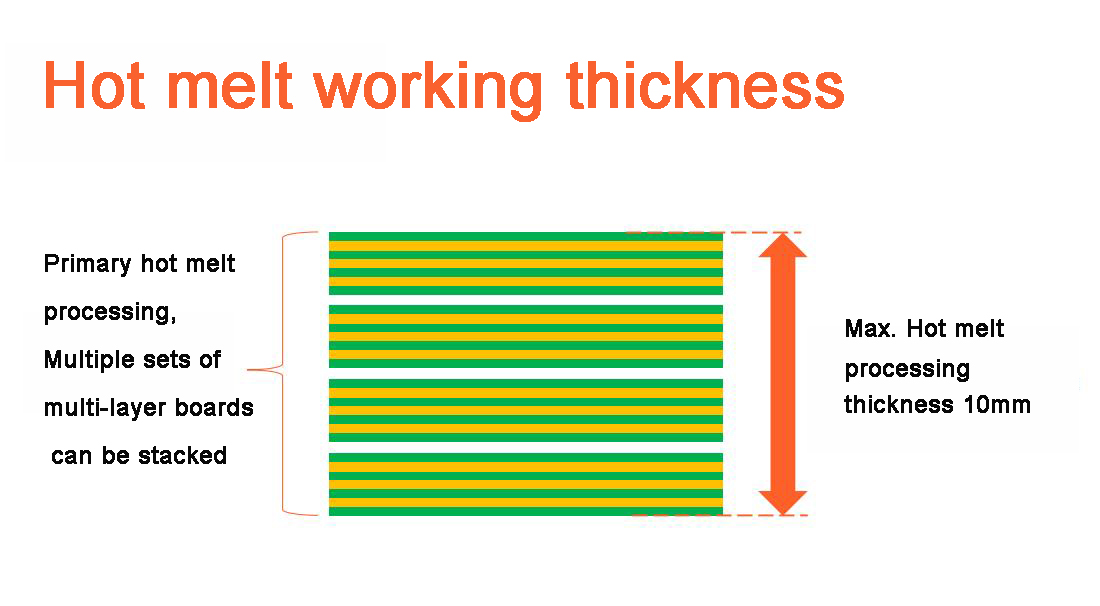

Plate thickness 0.2mm-10mm
Hot melt method High-frequency electromagnetic induction

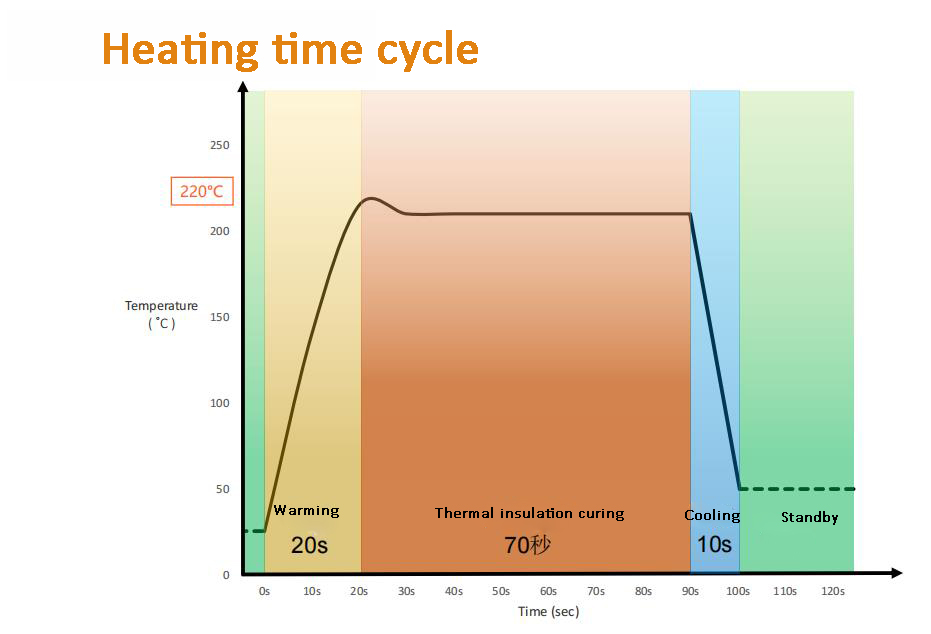

Hot melt parameters Temperature 50°℃-350°C
Input power 380V/3PH/2KW
Input air supply 8mm tubing, 6-7 bar, 200 L/min






文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

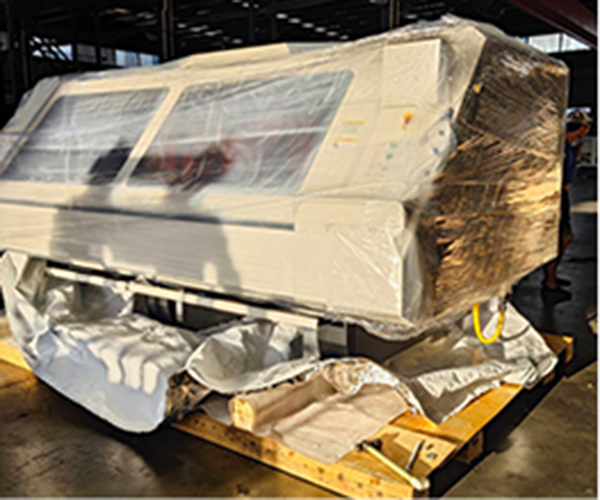

Deliver Machine

11

Packing

2

Packing

3

Payment

4

Transport

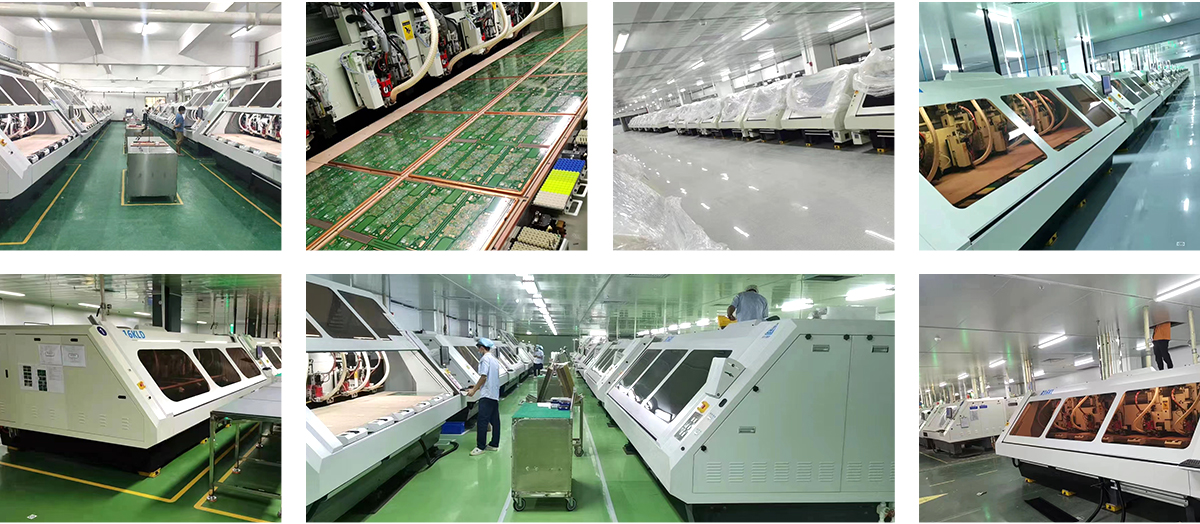

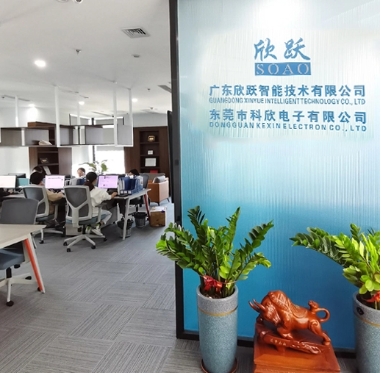

Our PCB Machine Factory

1


222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
