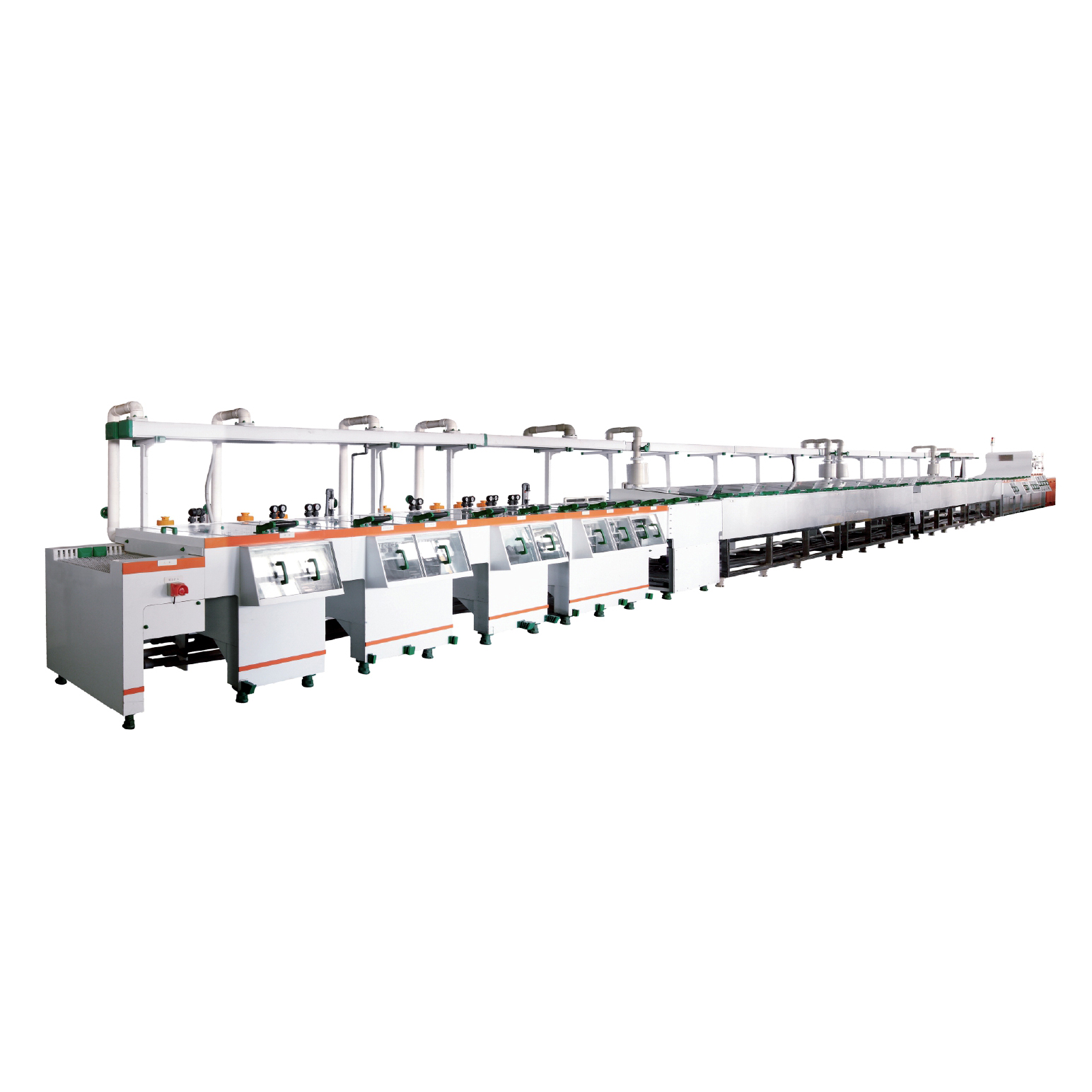

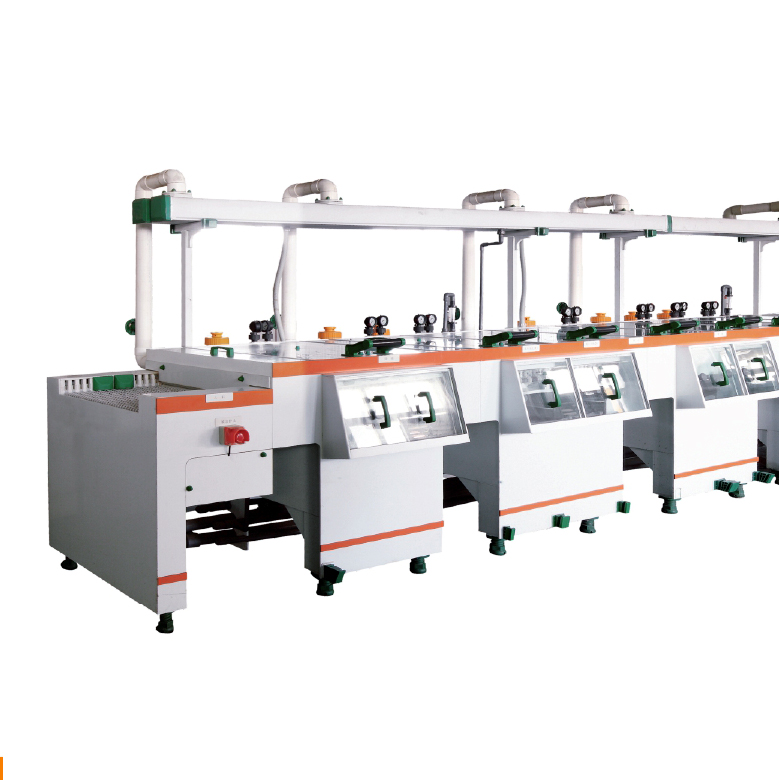

Level chemistry sink tin Machine

Level Chemistry Sink Tin Machine is a specialized piece of equipment used in the PCB (Printed Circuit Board) manufacturing process for applying a tin (Sn) coating to the copper surfaces of a PCB. This process, known as immersion tin plating, is a surface finishing technique that protects the copper from oxidation and enhances solderability. The Level Chemistry Sink Tin Machine is designed to provide a uniform and reliable tin coating, making it suitable for high-density and high-reliability PCBs.

Key Functions of a Level Chemistry Sink Tin Machine

1. Immersion Tin Plating:

• Deposits a thin, uniform layer of tin onto the copper surfaces of the PCB through a chemical immersion process.

2. Oxidation Prevention:

• Protects the copper from oxidation, ensuring good solderability during assembly.

3. Surface Preparation:

• Cleans and micro-etches the copper surface to ensure proper adhesion of the tin layer.

4. Rinsing and Drying:

• Rinses off residual chemicals and dries the PCB surface after plating.

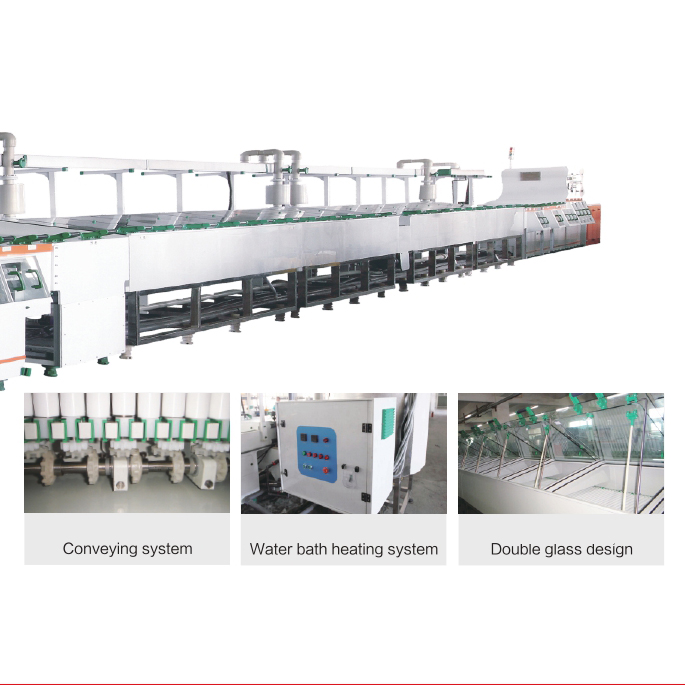

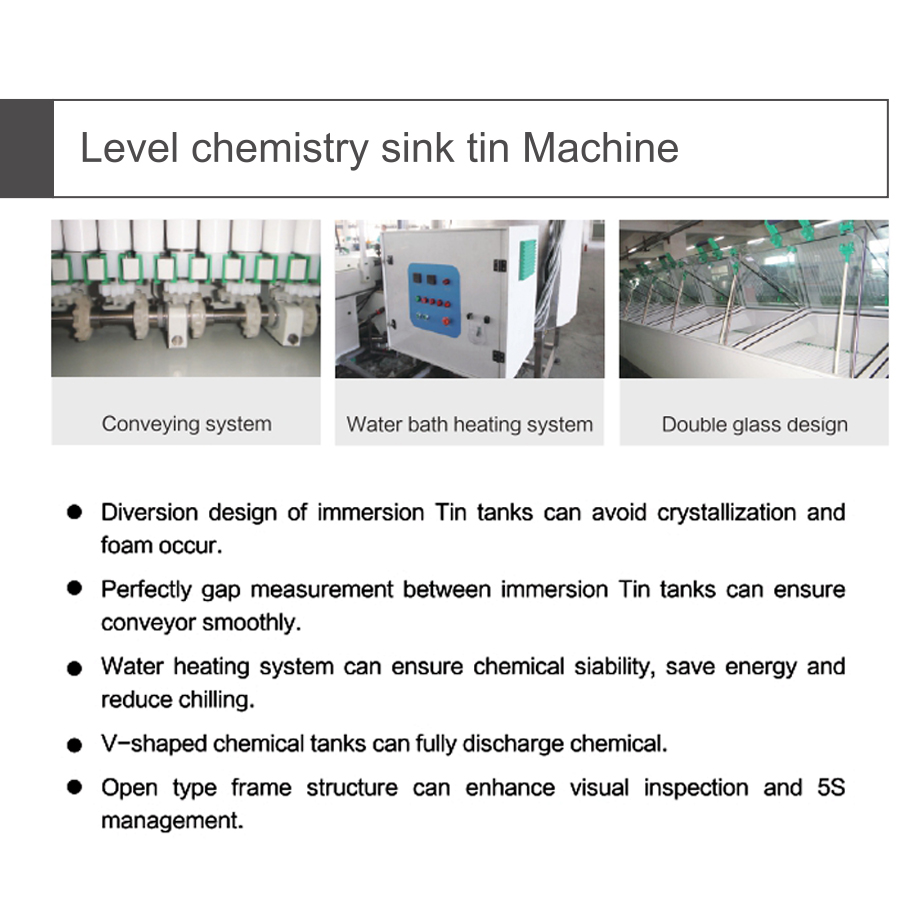

1. Diversion design of immersion Tin tanks can avoid crystallization and foam occur.

2. Perfectly gap measurement between immersion Tin tanks can ensure conveyor smoothly.

3. Water heating system can ensure chemical siability, save energy and reduce chilling.

4. V-shaped chemical tanks can fully discharge chemical.

5. Open type frame structure can enhance visual inspection and 5S management.

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
