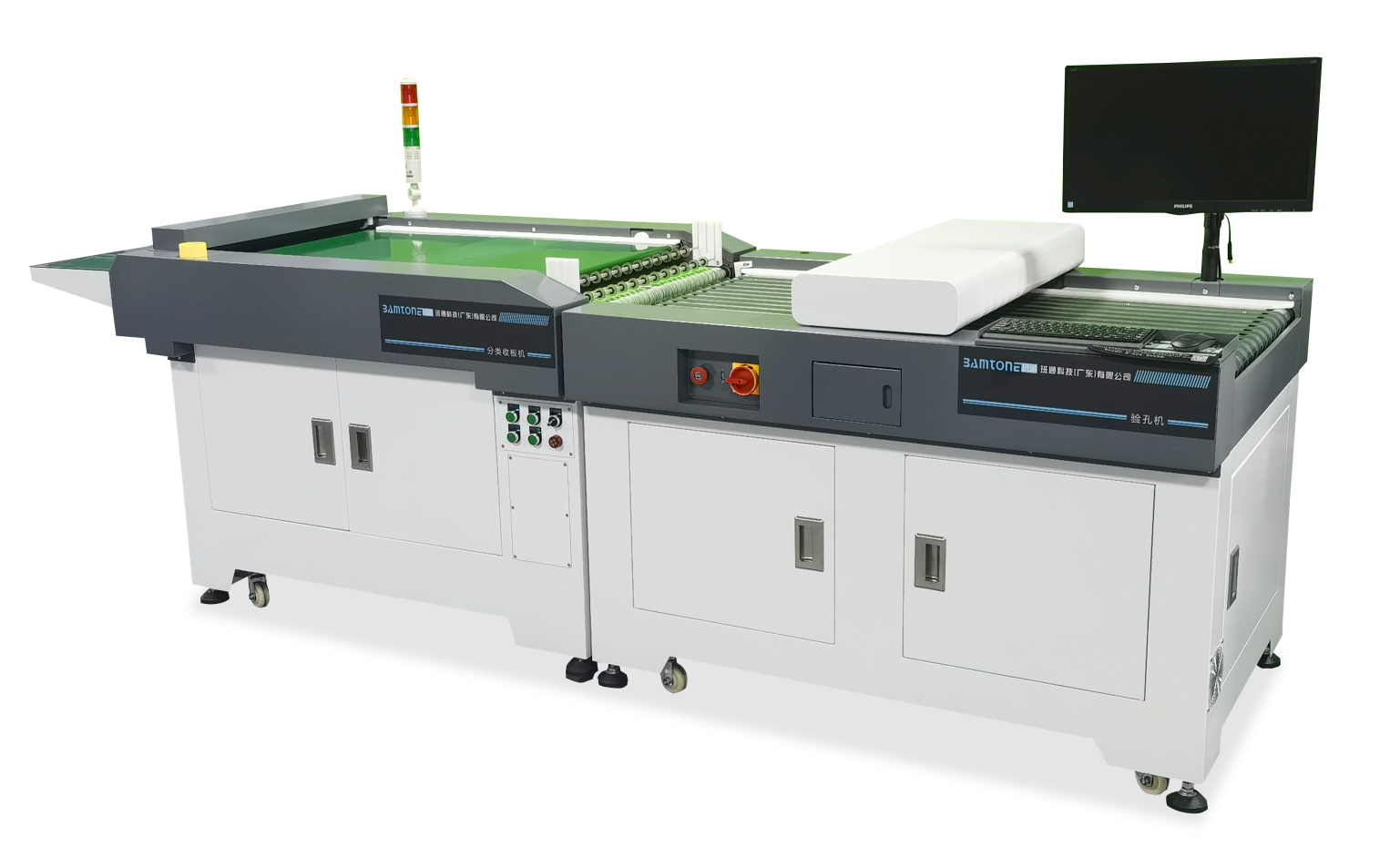

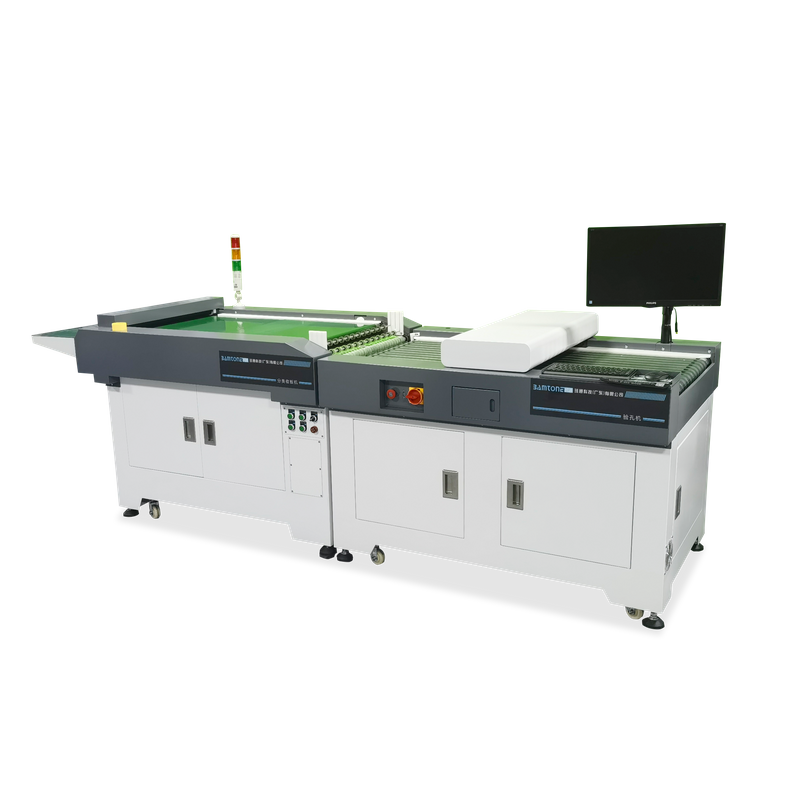

Measure the PCB aperture

Min 0.1mm,Max 10.0mm

Measure plate thickness

0.3-10mm

Effective intake width

750mm

Measurement accuracy

Aperture tolerance: ±0.05mm; The minimum detection capacity of shape defects (concave, protruding) : 0.10mm

Minimum hole margin

0.1mm

Maximum depth ratio

20:1

Check hole number

Unlimited

Check speed

Double speed 4m/min, double speed 8m/min, triple speed 12m/min, quadruple speed 16m/min

repeatability

Round hole repetition accuracy:

Double speed 4m/min: ±15μm

Double speed 8m/min: ±20μm

Triple speed 12m/min: ±25μm

Quadruple speed 16m/min: ±30μm

Light source

LED penetrates light

Optical depth of field

0.5mm

Detection ability of round hole residue (burr, copper tumor) (within optical depth of field)

Double speed minimum detection: ≧3*3mil

Double speed minimum detection: ≧5*5mil

Triple speed minimum detection: ≧7*7mil

Quadruple speed minimum detection: ≧9*9mil

Notch contour (sag, bulge), residue (burr, copper tumor) detection ability (optical depth of field, contour limit shape variation defects)

Double speed minimum detection: ≧4*4mil

Double speed minimum detection: ≧7*7mil

Triple speed minimum detection: ≧10*10mil

Four times speed minimum detection: ≧13*13mil

Abnormal hole contour (depression, bulge), residue (burr, copper tumor) detection ability (optical depth of field, contour limit shape variation defects)

Double speed minimum detection: ≧6*6mil

Double speed minimum detection: ≧9*9mil

Triple speed minimum detection: ≧12*12mil

Four times speed minimum detection: ≧15*15mil

Edge defects (sag, bulge) detection ability (optical depth of field, limit shape variation defects

Double speed minimum detection: ≧6*6mil

Double speed minimum detection: ≧9*9mil

Triple speed minimum detection: ≧12*12mil

Four times speed minimum detection: ≧15*15mil

One slot hole length/width repetition accuracy

Doubling speed: ±40μm; Double speed: ±60μm; Triple speed: ±80μm; Four times speed: ±100μm

Angle accuracy of slotted hole

±3 degrees (aspect ratio ≧2:1)

Check plate channel

Single line

Spacing of plates

≧50mm

Working face height (mm)

860±20mm

Overall equipment size

L2180mm*W1080mm*H1640 mm

Direction of line body

Right in, left out (operator facing display)

Inspecting items

•  Hole diameter  (bigger or smaller than standard )

•  Hole numbers  (more holes or missing holes )

•  Hole Types can be inspected  (Irregular hole,slotted holes,long holes,Abnormal hole )

•  Residual filaments in the hole

• Edge defects inspection

Power supply

AC220V 50/60Hz  1.5KW  good ground line

Air source pressure

c6 kg/c㎡ Ø8mm trachea

Weight of equipment

About 400KG
