With the rapid development of electronic products, printed circuit boards (PCBs), as the core components of electronic devices, have a direct impact on the performance and reliability of products. In the PCB manufacturing process, drilling is a critical step, and the hole inspection machine is an essential equipment for ensuring drilling quality. This article provides a detailed introduction to the functions, working principles, and importance of PCB hole inspection machines in the industry.
PCB hole inspection machines are primarily used to detect the quality of drilled holes on PCBs, including the following aspects:
Hole Diameter Inspection: Measuring whether the actual diameter of the drilled hole meets design requirements.
Position Accuracy: Checking whether the center position of the hole is accurate to avoid misalignment affecting interlayer connections.
Hole Wall Quality: Detecting defects such as burrs, cracks, or residual debris on the hole walls.
Blockage Inspection: Identifying whether there are foreign objects (e.g., drill residue or dust) blocking the holes.
Multilayer Board Alignment: Ensuring that holes in multilayer PCBs are aligned across layers to prevent misregistration.

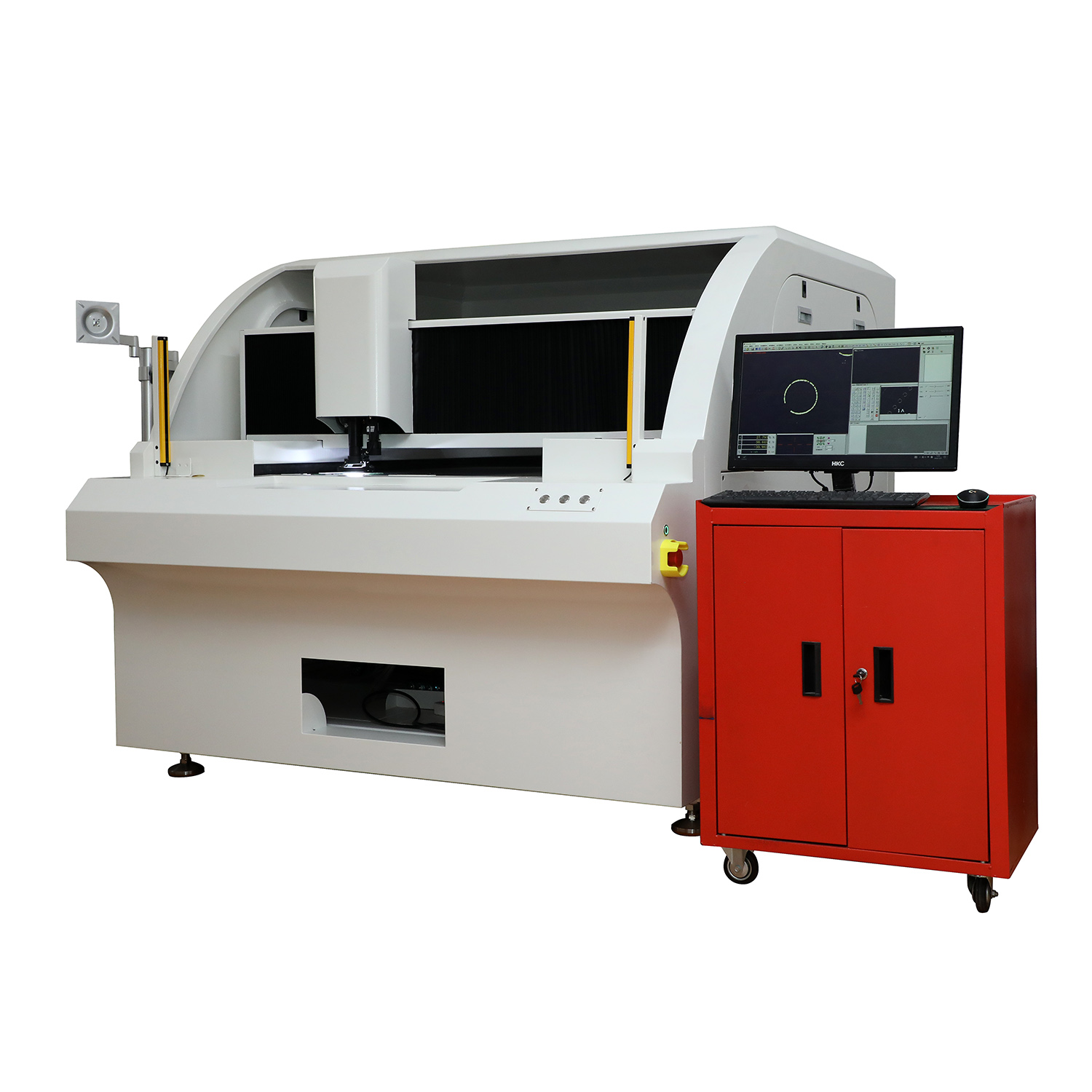

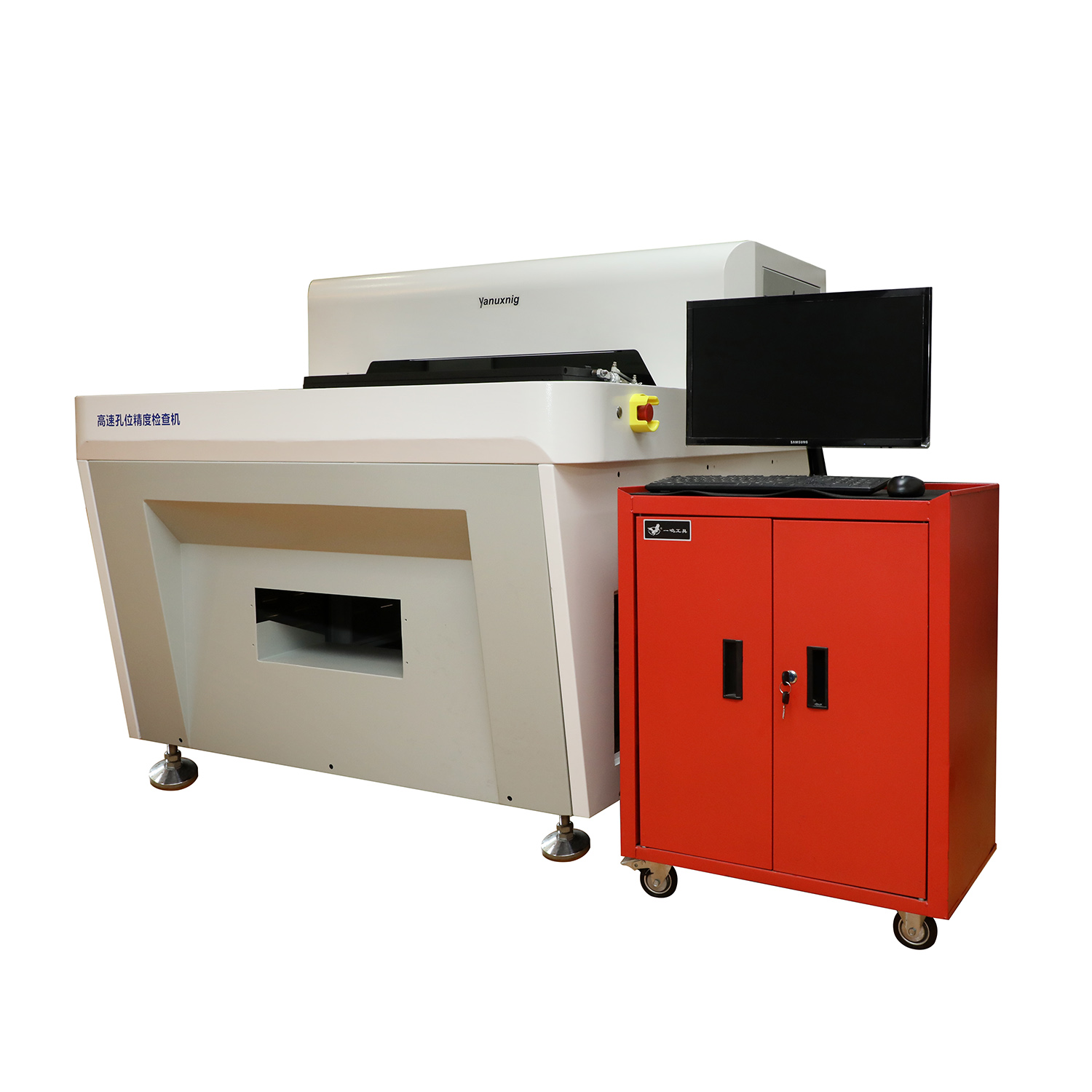

PCB hole inspection machines use high-resolution optical imaging technology (e.g., CCD cameras or laser scanning) to capture high-definition images of drilled holes. Image processing algorithms are then employed to analyze the size, shape, and position of the holes. The machine compares the inspection results with design files (e.g., Gerber files) to automatically determine whether the holes meet specifications. Additionally, the machine is equipped with automated motion control systems to quickly complete full or sample inspections.
Based on application scenarios, PCB hole inspection machines can be categorized as follows:
Offline Inspection Machines: Independent of production lines, suitable for small-batch or R&D-stage inspections.
Online Inspection Machines: Integrated into production lines, providing real-time inspection and feedback, ideal for mass production.
3D Inspection Machines: Using 3D scanning technology to detect parameters such as hole depth and taper, suitable for high-precision requirements (e.g., HDI boards).
High-Precision Optical Systems: Cameras with micron-level resolution ensure the accuracy of micro-hole inspections.
Intelligent Software: AI algorithms reduce false judgments and improve inspection efficiency.
Multi-Angle Lighting: Eliminates shadows and enhances image clarity through lighting from different angles.
Rapid Data Processing: Adapts to high-speed production lines, with inspection speeds reaching hundreds of holes per minute.
PCB hole inspection machines are widely used in the following fields:
Post-Drilling Quality Inspection: Immediate inspection after the drilling process to prevent defective products from entering subsequent processes.
Final Product Inspection: Ensuring that PCBs meet customer standards before shipment.
High-Density Interconnect (HDI) Board Production: Inspecting microvias, blind vias, and other complex structures.
Automotive/Aerospace Electronics: Fields with extremely high reliability requirements, requiring 100% full inspection.
Advantages:
Improves inspection efficiency, replacing manual visual inspection.
Reduces scrap costs caused by hole quality issues.
Enables traceable data, facilitating process optimization.
Challenges:
Highly reflective surfaces (e.g., copper foil) may cause imaging interference.
Ultra-micro holes (<0.1mm) require extremely high equipment precision.
High equipment costs necessitate a balance between investment and output.
With the rapid development of 5G, IoT, and AI technologies, PCB hole inspection machines are evolving toward higher precision and efficiency. AI-driven inspection machines are becoming increasingly popular, using machine learning to improve defect recognition accuracy. Additionally, domestic manufacturers are continuously introducing cost-effective equipment, driving technological advancements in the industry.
As a critical equipment in the PCB manufacturing process, PCB hole inspection machines not only enhance the efficiency of drilling quality inspections but also ensure the reliability of electronic products. With continuous technological advancements, hole inspection machines will play an increasingly important role in the PCB manufacturing industry.
