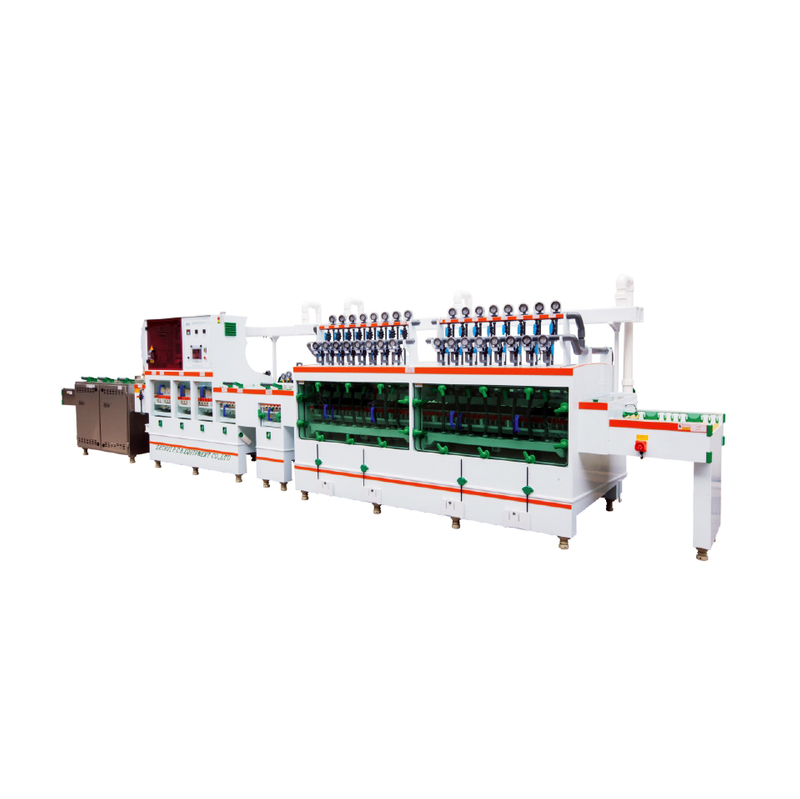

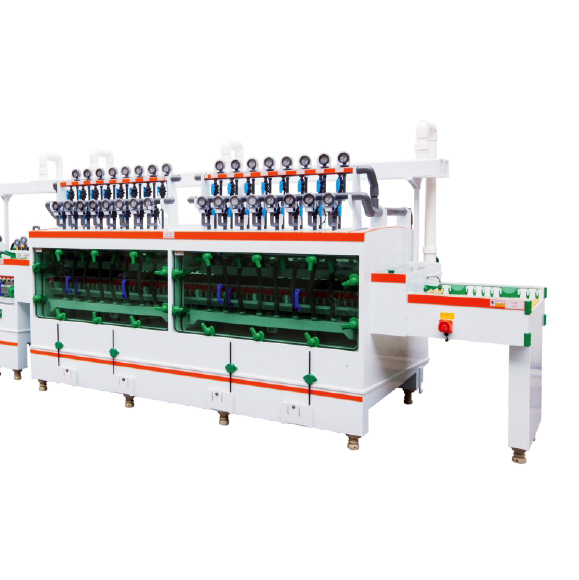

PCB Board Developing Machine

Developing Machine is a critical piece of equipment in the PCB (Printed Circuit Board) manufacturing process, specifically used in the photolithography stage. Its primary function is to develop the exposed photoresist on the PCB surface, revealing the desired circuit pattern after UV exposure. The developing process is essential for transferring the circuit design onto the PCB before etching or plating.

Key Functions of a Developing Machine

1. Photoresist Development:

• Removes the soluble portions of the photoresist (either positive or negative) to reveal the circuit pattern.

2. Precision:

• Ensures accurate development of fine lines and spaces, critical for high-density interconnect (HDI) PCBs.

3. Rinsing:

• Washes away residual developer solution and dissolved photoresist.

4. Drying:

• Dries the PCB surface after development to prepare it for the next step (e.g., etching or plating).

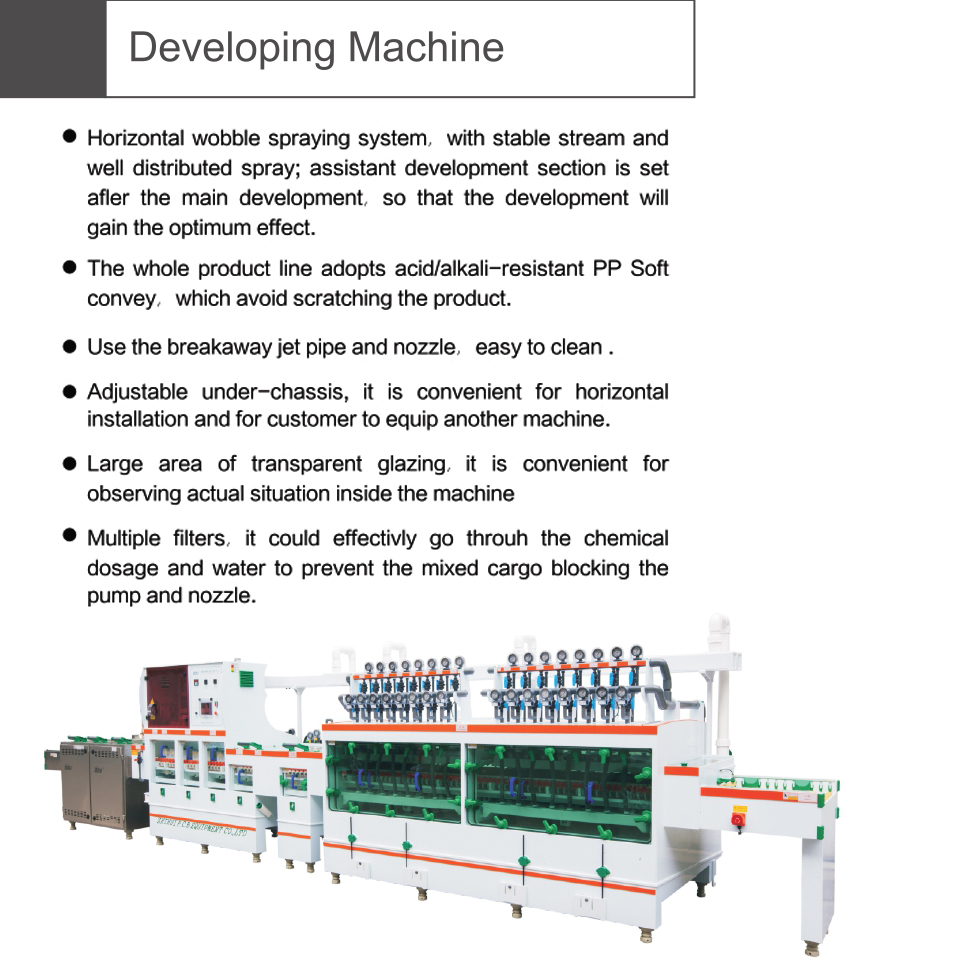

• Horizontal wobble spraying system, with stable stream andwell distributed spray; assistant development section is set afler the main development,so that the development will gain the optimum effect.

• The whole product line adopts acid/alkali-resistantPPSoft convey, which avoid scratching the product.

• Use the breakaway jet pipe and nozzle, easy to clean .

• Adjustable under-chassis,it is convenient for horizontal installation and for customer to equip another machine.

• Large area of transparent glazing, it is convenient for observing actual situation inside the machine.

• Multiple filters, it could effectivly go throuh the chemical dosage and water to prevent the mixed cargo blocking the pump and nozzle.

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
