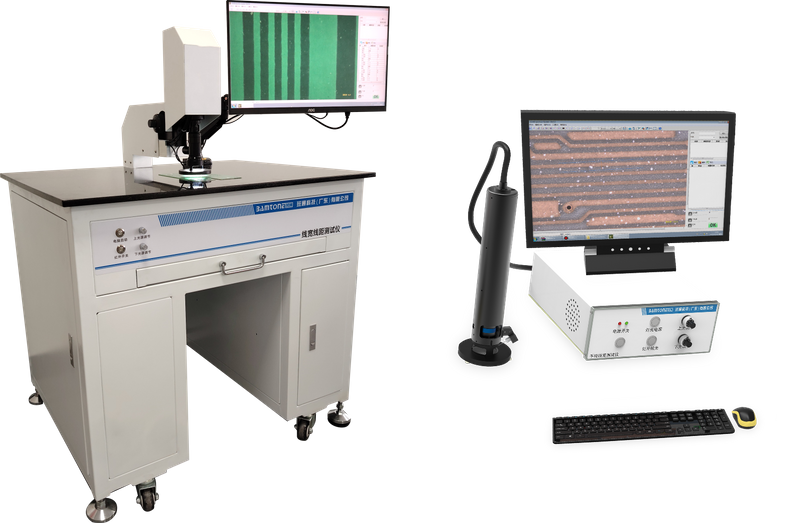

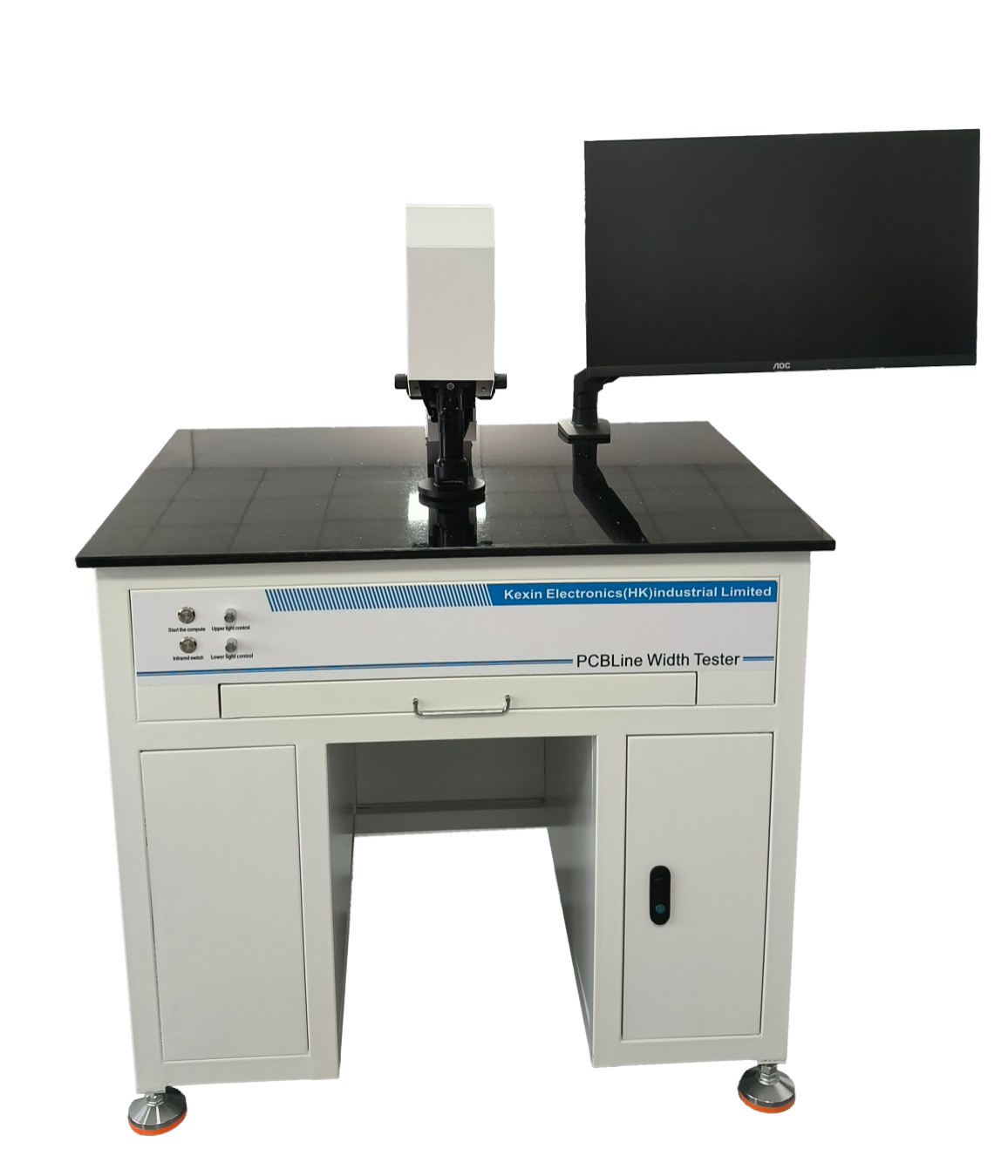

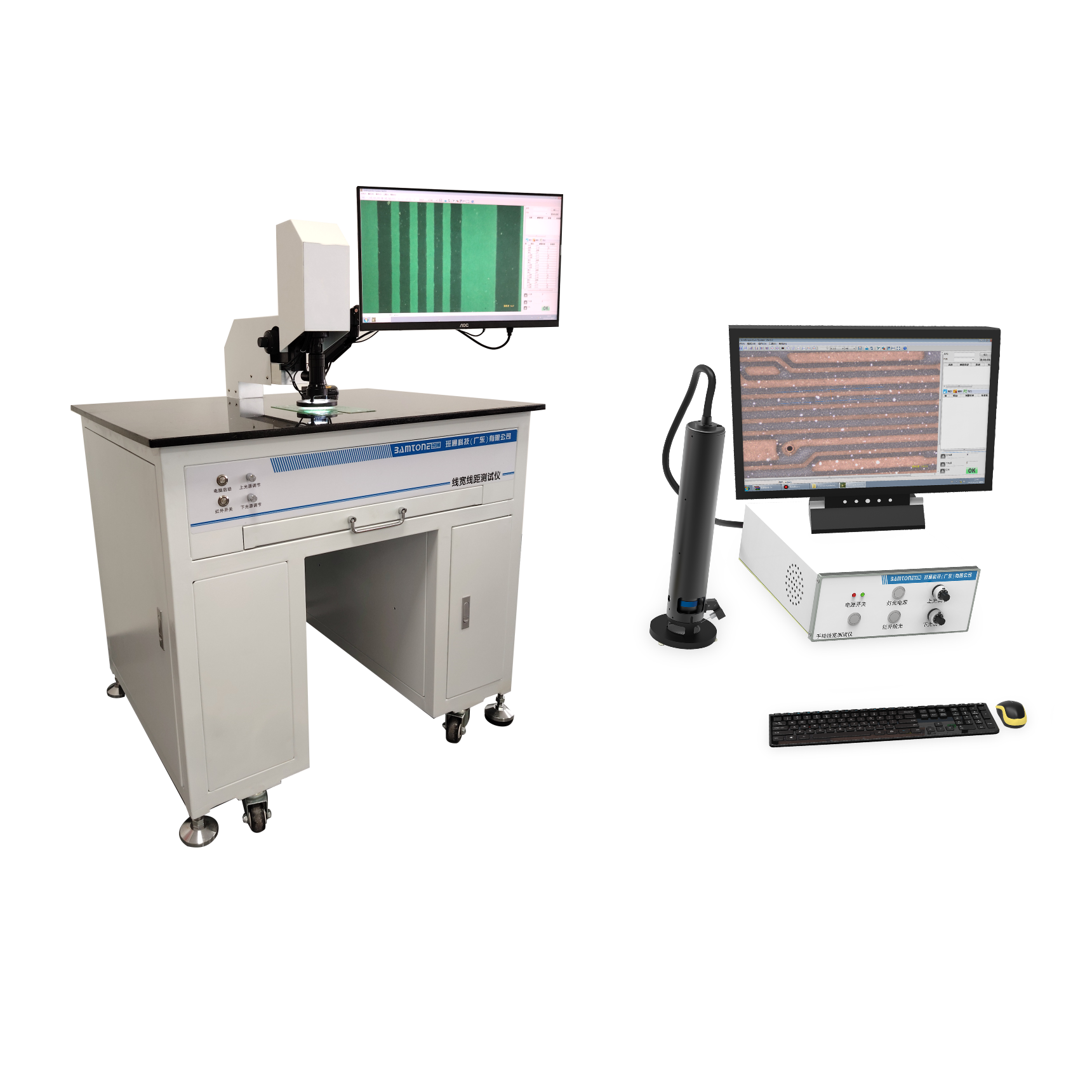

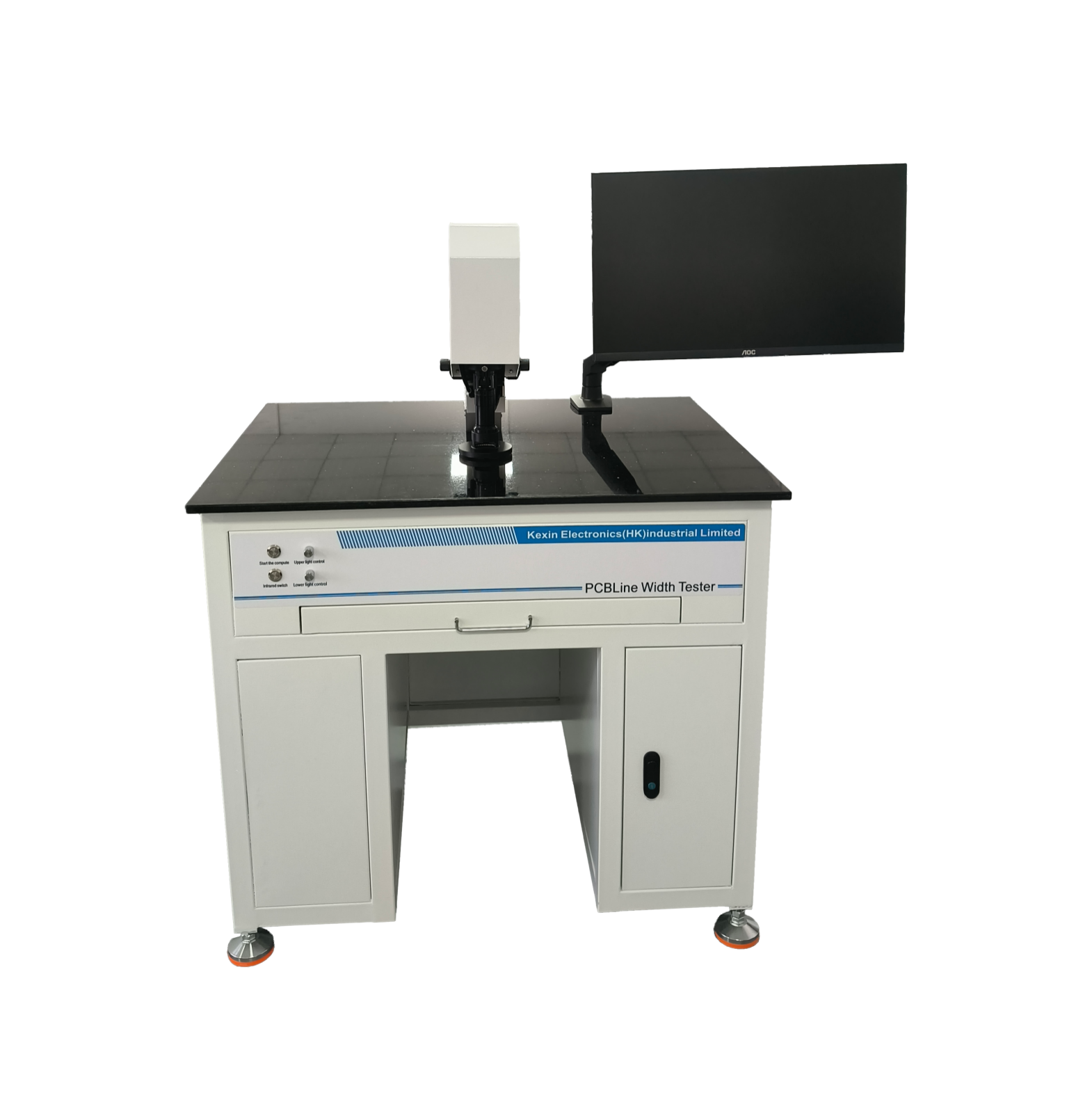

Line Width Measuring Instrument PCB Line Width Measuring Instrument PCB Line Width Tester

Line width detector is an implementation of precision detection of optical measuring instruments, is mainly designed for testing inside the printed circuit board, the outer semi-finished products after enhancement etching line (green oil before) amplitude and width, on market basically satisfy the different thickness of the finished and semi-finished PCB line width detection. It adopts advanced technology at home and abroad and spare parts, and form a complete set of clear interface, easy to learn the operation of the software.

Features：

1.  Red LED positioning, can quickly determine the measurement area;

2. At the same time equipped with adjustable ring light source intensity, so that in the case of different test plate can show clear picture;

3. The imaging quality is clear, the signal transmission through special processing, filtering the noise, strong anti-jamming capability;

4. Fixed PCB board, moving lens, flexible operation, large detection range;

5. Special data processing method, the rough area selected cases with manual and automatic edge function, convenient operation;

6. With the mouse operation, the three key of originality in the largest extent, improve the work efficiency;

7.  Marble work table, smooth, stable and strong with automatic seismic foot cup;

Machine Technical Parameters：

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

Deliver Machine

Packing

Packing

Payment

Transport

Our PCB Machine Factory

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
