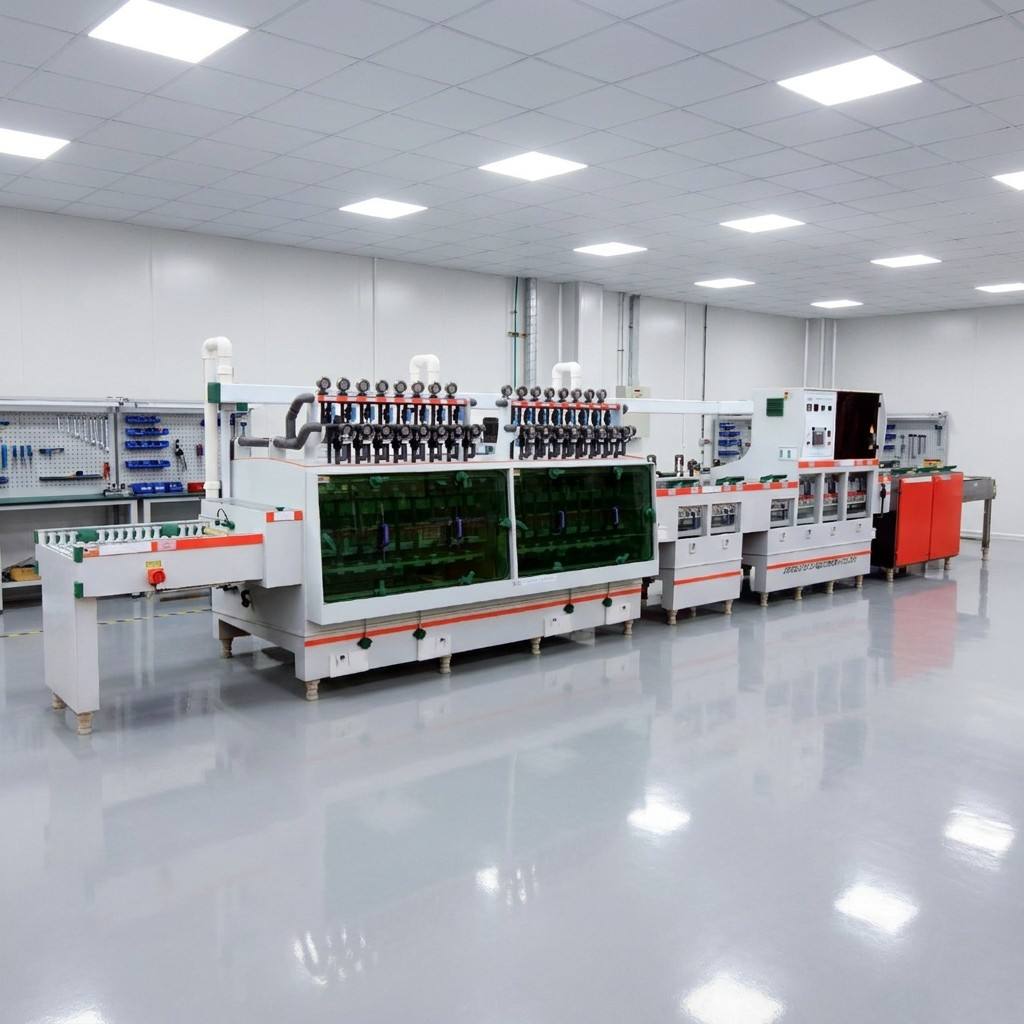

Industrial PCB Etching Machine with High-Precision Spray System for Uniform Copper Removal

Copper etching is the defining moment in PCB fabrication — where circuit patterns emerge from raw copper-clad laminate. A poorly controlled etching process produces undercut, over-etch, and uneven line widths that cascade into electrical failures downstream. The difference between acceptable yield and industry-leading yield rests squarely on the etching machine's engineering.

Spray Dynamics: The Core of Etch Uniformity

At the center of this wet process etching machine is a high-density spray nozzle array engineered for uniform etchant distribution across the full panel width. Unlike immersion-based etching — which suffers from puddle effects and slow replenishment kinetics — spray etching continuously delivers fresh etchant to the copper surface at controlled pressure and angle. The result is consistent etch rates from panel center to edge, minimizing the "etch factor" variation that compromises fine-line circuits below 3 mil trace/space.

The spray chamber uses corrosion-resistant materials throughout — PVC, polypropylene, and titanium alloy components — ensuring long service life even under continuous exposure to cupric chloride or alkaline etchant chemistries at elevated temperatures.

Conveyor Precision and Process Control

Panel transport speed directly governs etch time, and etch time governs line width. This etching line integrates a variable-speed roller conveyor with anti-slip surface treatment, maintaining consistent panel feed even with thin-core laminates prone to warpage. Paired with digital temperature regulation of the etchant bath and real-time ORP (oxidation-reduction potential) monitoring capability, operators can lock in process parameters and reproduce them across production batches — a critical requirement for ISO 9001-certified facilities.

Built for Production-Grade Throughput

The machine bed accommodates multiple panels simultaneously, supporting high-volume throughput without sacrificing process consistency. The open-frame design facilitates quick access for routine maintenance — nozzle inspection, sump cleaning, and filter replacement can be performed with minimal downtime, directly impacting overall equipment effectiveness (OEE).

Application Versatility

From single-sided consumer electronics boards to multilayer HDI panels for telecommunications, this etching machine handles a broad range of substrate thicknesses and copper weights. Its compatibility with both acidic (cupric chloride) and alkaline etching chemistries provides manufacturing flexibility without hardware modification — a practical advantage for job-shop environments serving diverse customer specifications.

A Strategic Investment in Yield

Every percentage point of etching yield improvement flows directly to the gross margin. By combining precision spray dynamics, rigid corrosion-proof construction, and repeatable digital process control, this machine delivers the three things PCB manufacturers value most: tighter tolerances, higher throughput, and fewer rejected panels.
