VMA-761KCNC

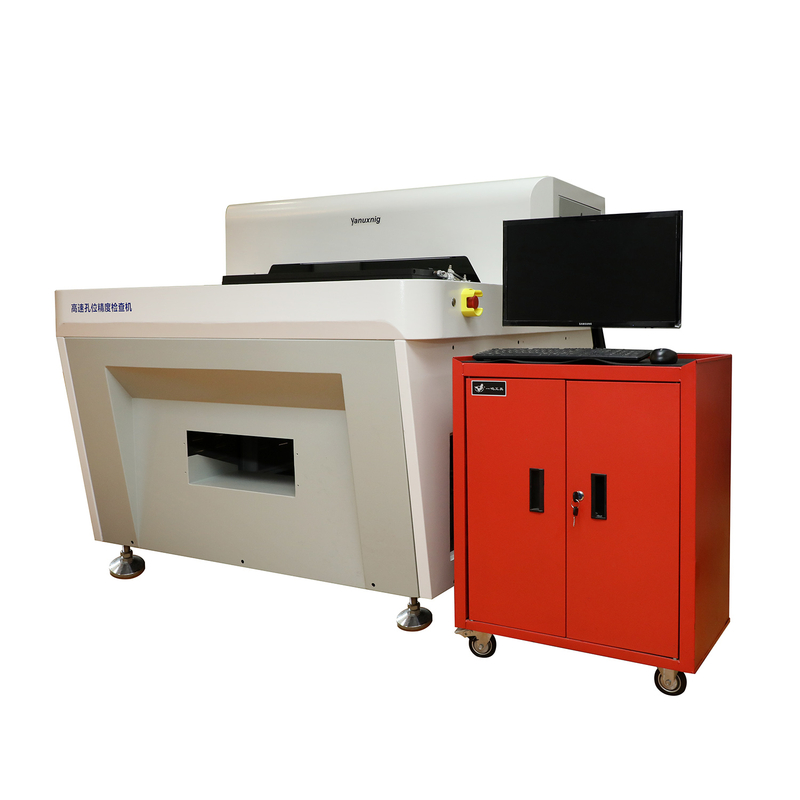

High-speed Bit Hole Inspection Machine PCB Measuring Machine
With the rapid development of electronic products, printed circuit boards (PCBs), as the core components of electronic devices, have a direct impact on the performance and reliability of products. In the PCB manufacturing process, drilling is a critical step, and the hole inspection machine is an essential equipment for ensuring drilling quality. This article provides a detailed introduction to the functions, working principles, and importance of PCB hole inspection machines in the industry.
1. Powerful offline SPC analysis software tool, fast and effective lifting drill Pore quality.
2. The analysis function of the service life of the drill needle can save the decision-making basis for the consumption of the drill needle for customers.
3. The strong penetration effect of the lower light source can be measured by the back drilling plate.
4. The import of drill strip data is fast and convenient for making programs.
Product parameters
| Model | VMA--761KCNC |
| Machine Size | 1850*1500*1550(L'WxH) |
| Machine Size | 2.2T |
| Working Area | 650x730 mm |
| Camera | Line CCD + Verification |
| Light Source | Controllable Bar Light |
| CAM Format | odb++ , excellon, gerber |
| Material for Inspection | Copper Foil |
| Throughput (650x730 mm) | 40 sec |
| Board Thickness | 0.05~8mm |
| Minimum Hole Diameter for Detection | 0.075 mm |
| Upper Cover Glass Pressure System | Pneumatic Automatic Pressure Plate Switch Function |
| Y-axis Servo | Panasonic High-Inertia Servo Motor |
| Y-axis Encoder Resolution | Imported Metal Scale with 0.5um Resolution |
| Number of Holes | Unlimited |
| Hole Depth Ratio | 20:01 |
| Hole Position Accuracy | ±5um |
| Hole Diameter Accuracy (Based on High-Precision Glass) | ±5um |
| Inspection Items | Hole Diameter, Hole Position Accuracy, Roundness, Hole Plugging, Missing Holes, Slot Hole Defects |
| SPC Analysis | Online Analysis, Offline Database Analysis, Excel Analysis |
| Operating System | Windows 10 64-bit, I7 Processor, 32GB RAM, 1TB Hard Drive |
| Air Pressure | 5-6 kg/cm2, Flow Rate: 60L/min |
| Power Supply | AC 220V, 1P, 60/ 50Hz, 1KW, Max.10A |
