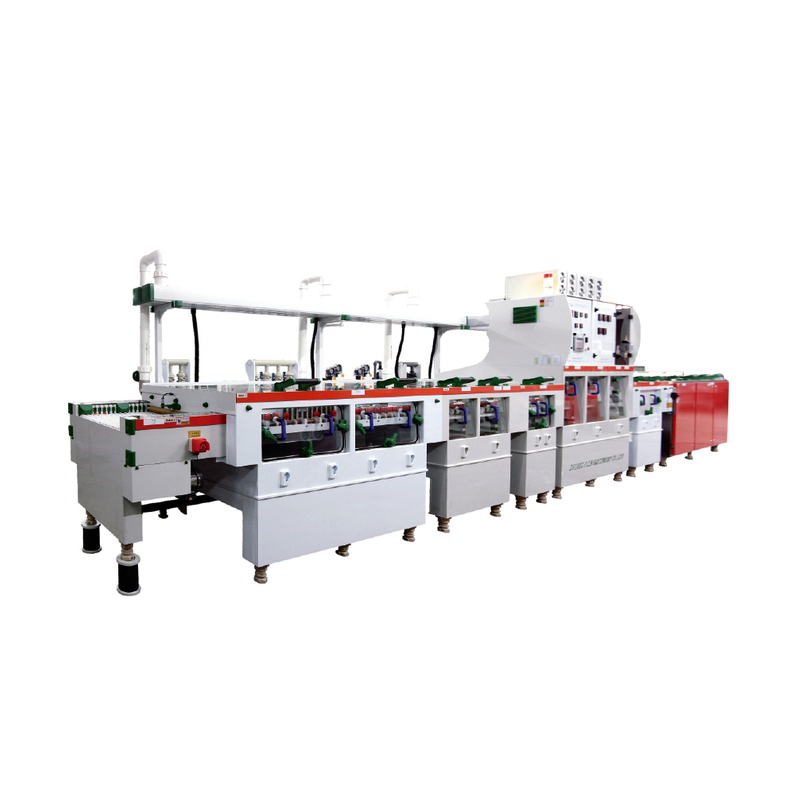

Chemical Pre-treatment Machine for pcb board

A Chemical Pre-treatment Machine is a critical piece of equipment in the PCB (Printed Circuit Board) manufacturing process. It is used to prepare the PCB surface before subsequent steps such as etching, plating, or soldering. The pre-treatment process ensures that the PCB surface is clean, free of contaminants, and properly conditioned to achieve optimal adhesion and performance of subsequent layers or coatings.

  Chemical Pre-treatment Machine is to enhance the adhesive force between dry film and copper foil;we will usually have the chemical treatmen before plastering the film .We provide a series of solution.that can achieve this process,which include conveying design on conveying sheet,special conveying rule design.These solutions provide stable and smooth conveying which make the PCB, would not be blocked because of the unbalance support .Select proper material according to the different chemical dosage.the quality could be easier to control in the stable and proper working condition .Spraying is vertical to PCB, which could avoid the unbalance support. The roll is close to each other to ensure the stable conveying.

Key Functions of a Chemical Pre-treatment Machine

1. Cleaning:

• Removes oils, dust, oxides, and other contaminants from the PCB surface.

2. Micro-etching:

• Creates a slightly roughened surface to improve adhesion of coatings or plating.

3. Surface Activation:

• Prepares the surface for chemical reactions, such as electroless plating or soldering.

4. Rinsing:

• Removes residual chemicals and particles after each treatment step.

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
