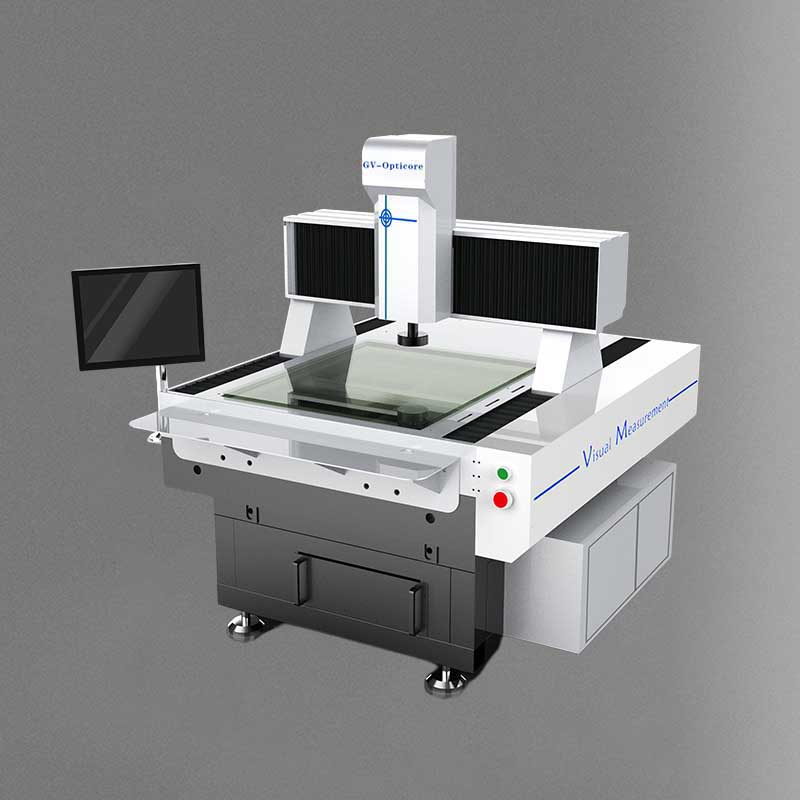

1. Large stroke granite main structure, high stability and high precision.

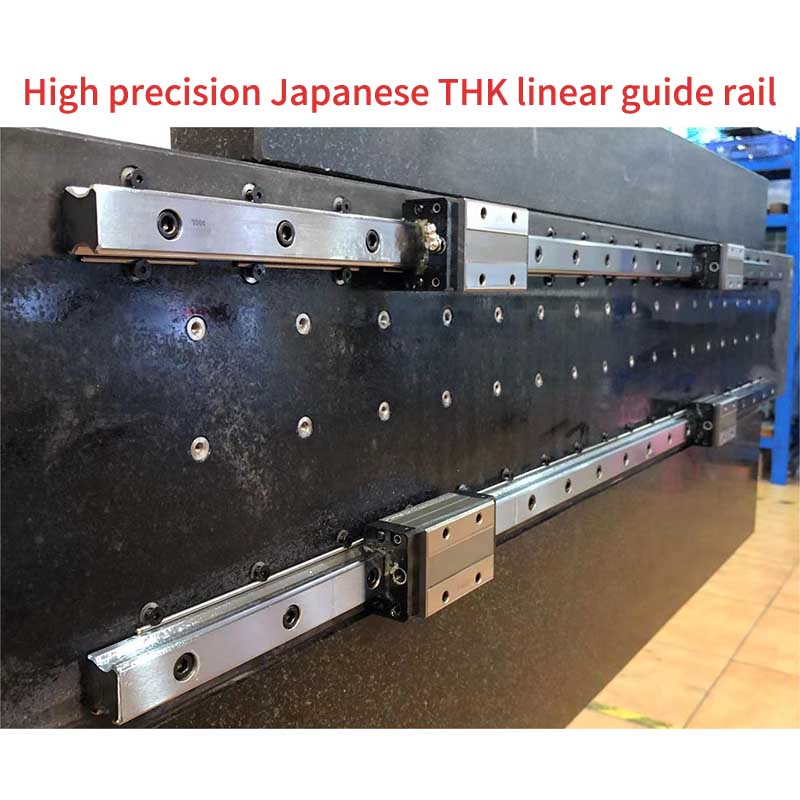

2. Three axis THK precision linear guide rail ensures machine accuracy and stability.

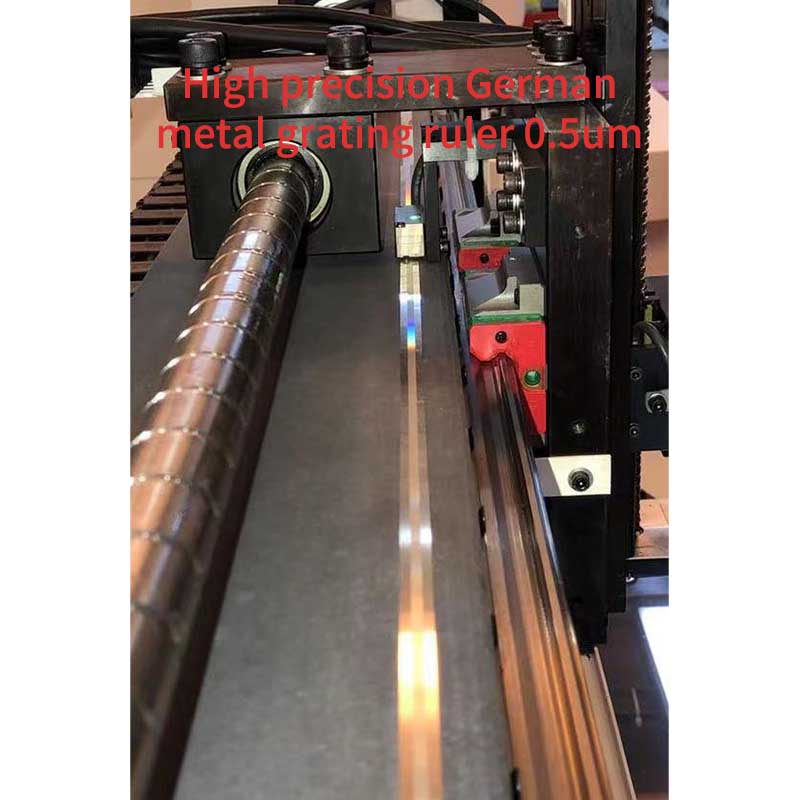

3.0.1um RSF micro expansion coefficient high-precision grating ruler.
4. 6.5:1 high-definition automatic zoom navigation lens, dual CCD programming is faster.

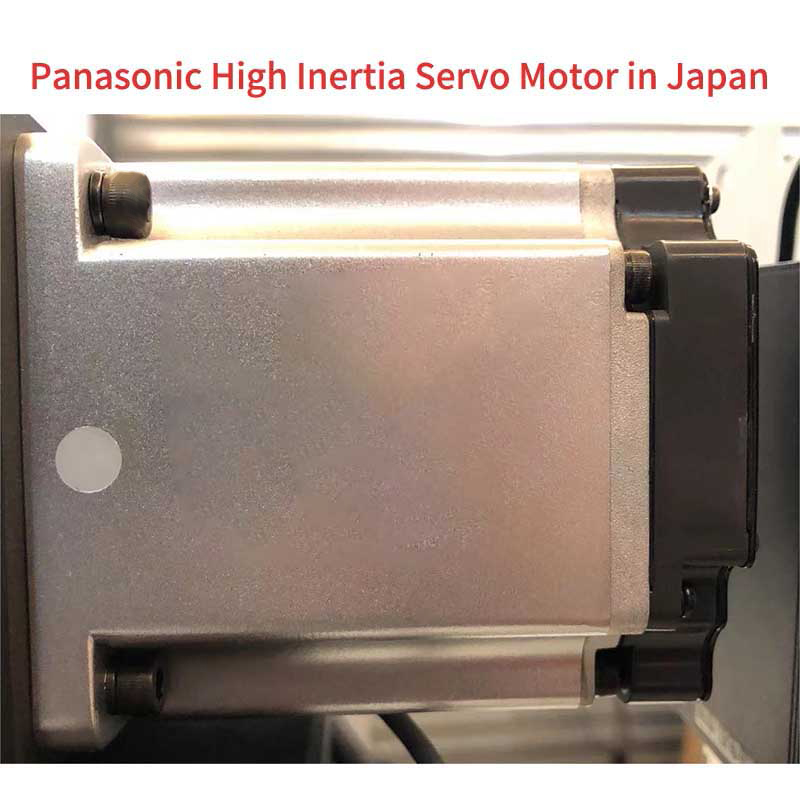

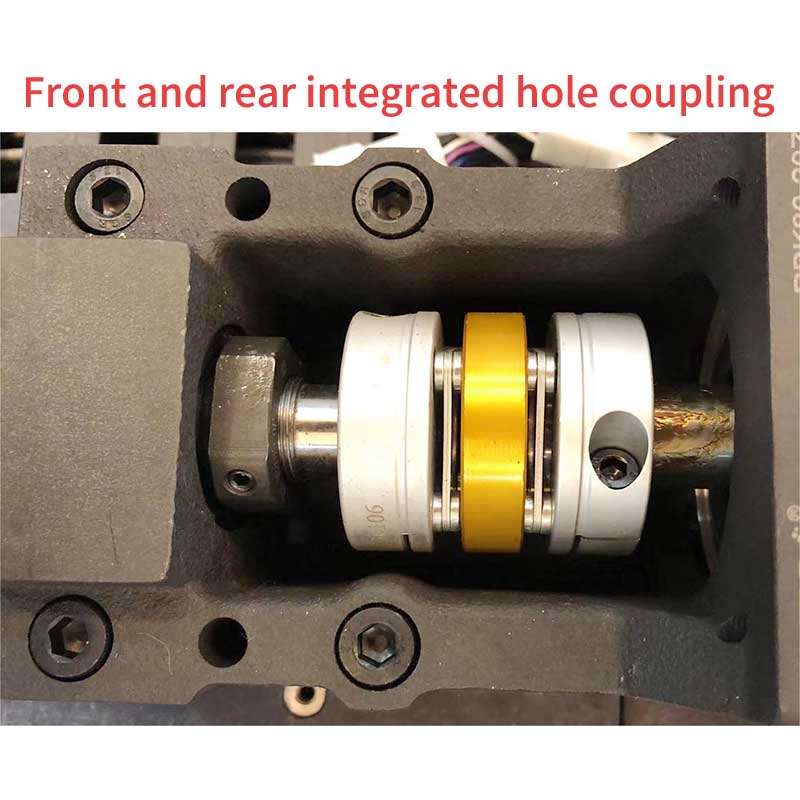

5. Four axis CNC servo control system, three axis motion control+lens zoom automatic
6.5 Ring 8 zone circular light source, LED parallel transmission light source.

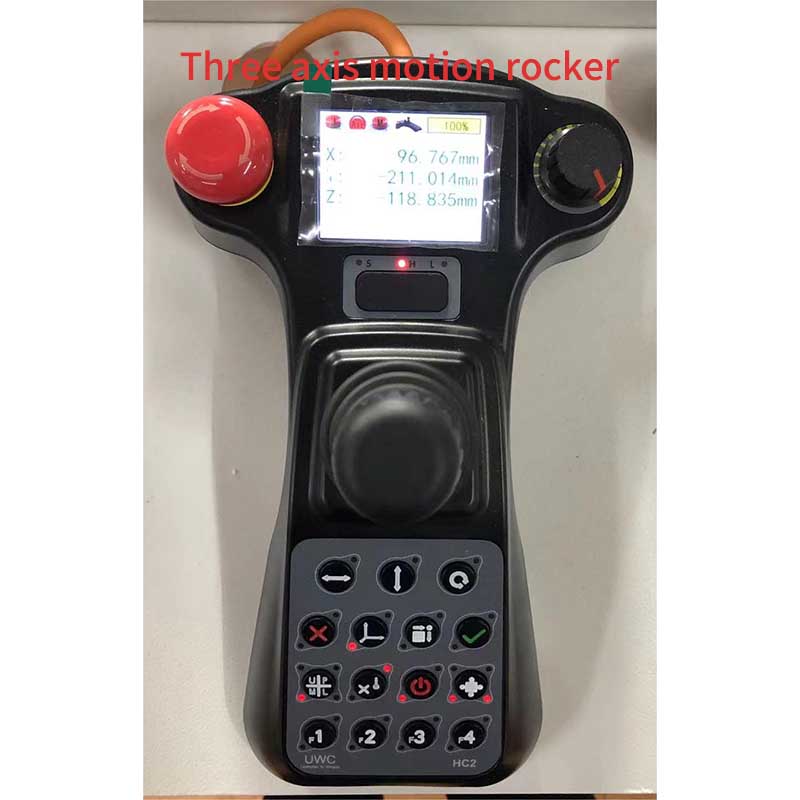

7. Reliable joystick control machine, fast and slow switching, convenient for on-site use
8. Working stroke 600X500X200mm
9. Accuracy (X.Y): (2.0+L/200) um, repeatability: 2. um
Product parameters
| Instrument model | YVM-652CNC | YVM-872CNC | YVM-1082CNC | YVM-120102CNC |
| Measurement stroke (mm) | 600x500x200 | 800x700x200 | 1000x800x200 | 1200x1000x200 |

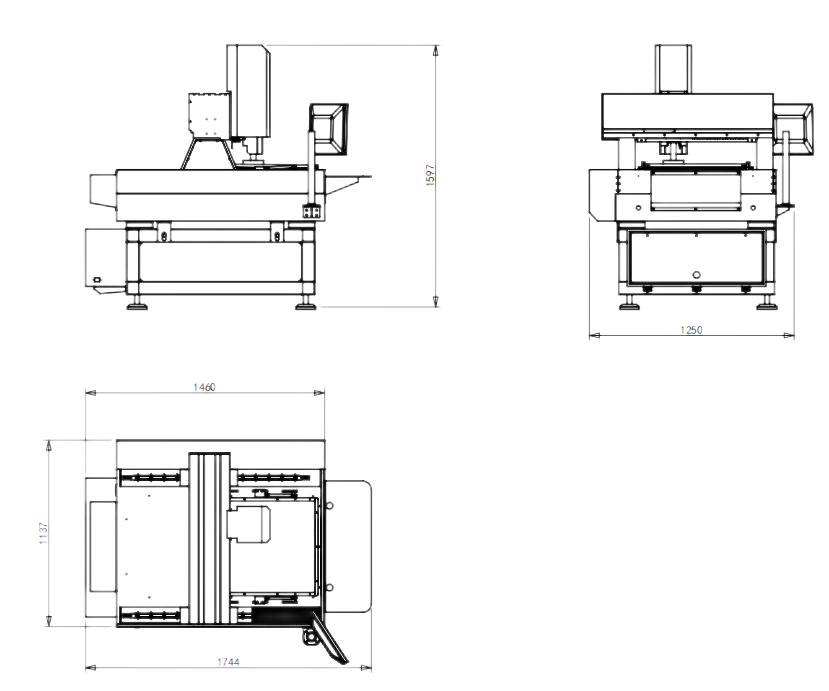

| Overall dimensions (mm) | 1200x1700x1760 | 1500x1900x1760 | 1700x2000x1760 | 1900x2200x1760 |
| Glass load-bearing capacity (kg) | 50 | 50 | 50 | 50 |
| Instrument weight (kg) | 1500 | 2000 | 3200 | 4000 |
| measurement accuracy | X/Y axis: (2.2+L/200) μ m. Z-axis: (4.0+L/200) μm | |||
| measurement accuracy | 3μm | |||
| Raster scale resolution | 0.1μm | |||
| Magnification rate | Optical magnification 0.7 X to 4.5 X, image magnification 20 to 210 X | |||
| Software | YR-CNC fully automatic measurement software | |||
| Software | Mouse+joystick control | |||
| Light source | Surface light: 5-ring 8-zone LED cold light source, 256 level brightness adjustable Contour light: LED parallel cold light source, 256 level brightness adjustable | |||
| Choose | DXF offline programming module, 12:1 automatic zoom lens, platen mechanism, spectral confocal laser, 3D line laser, coaxial light, contact probe. | |||
