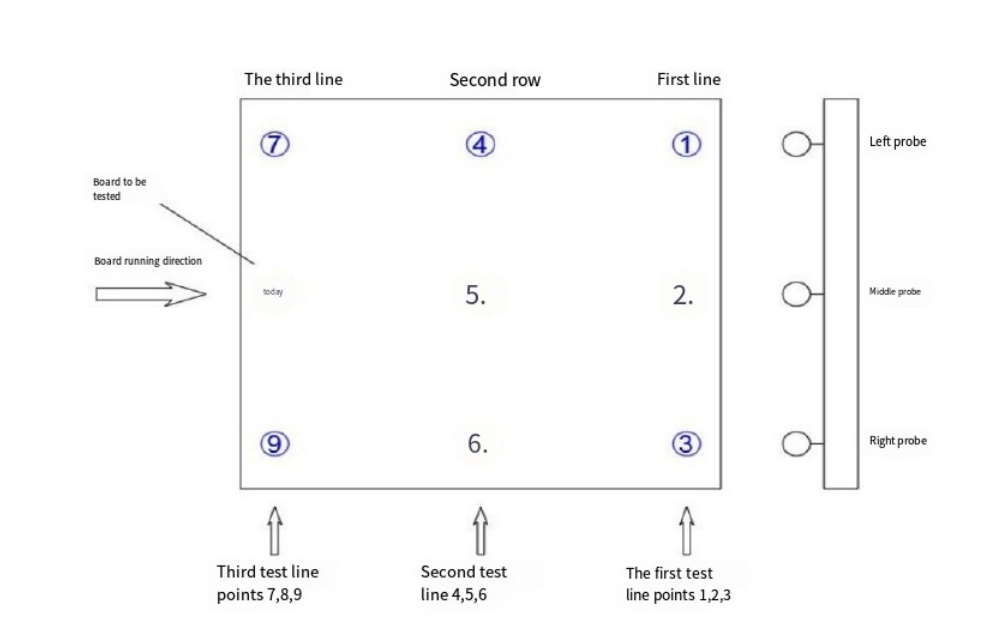

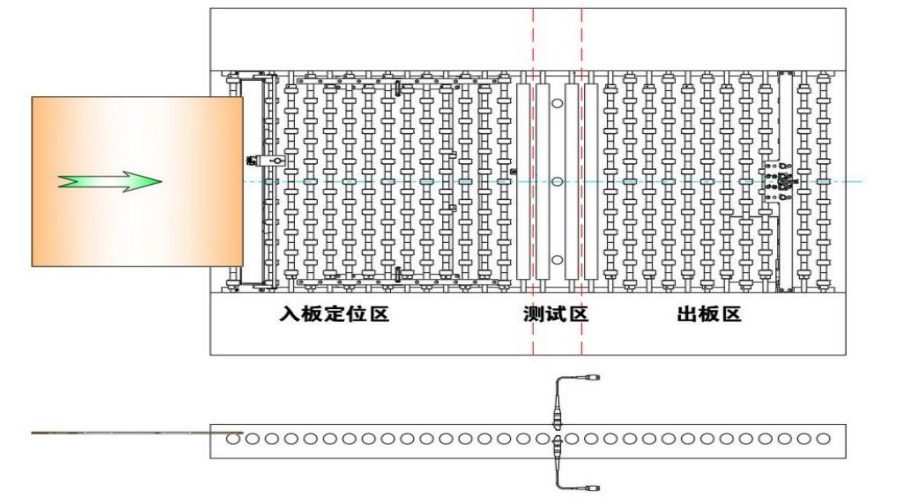

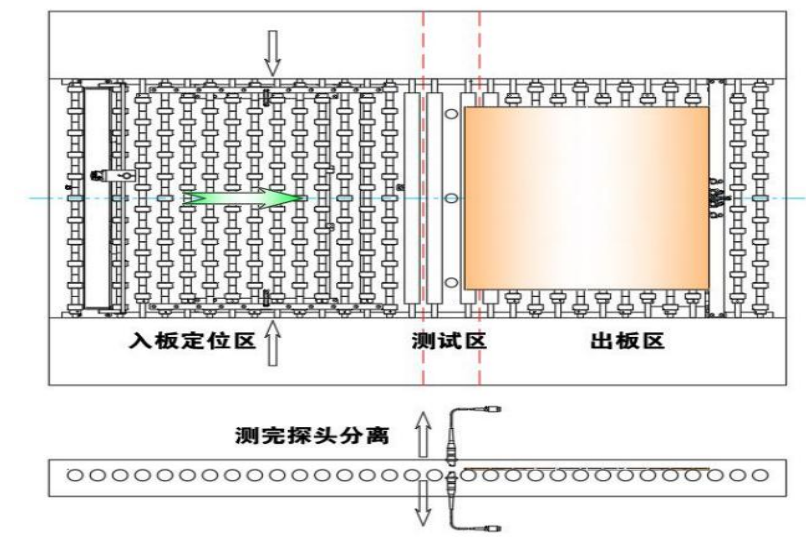

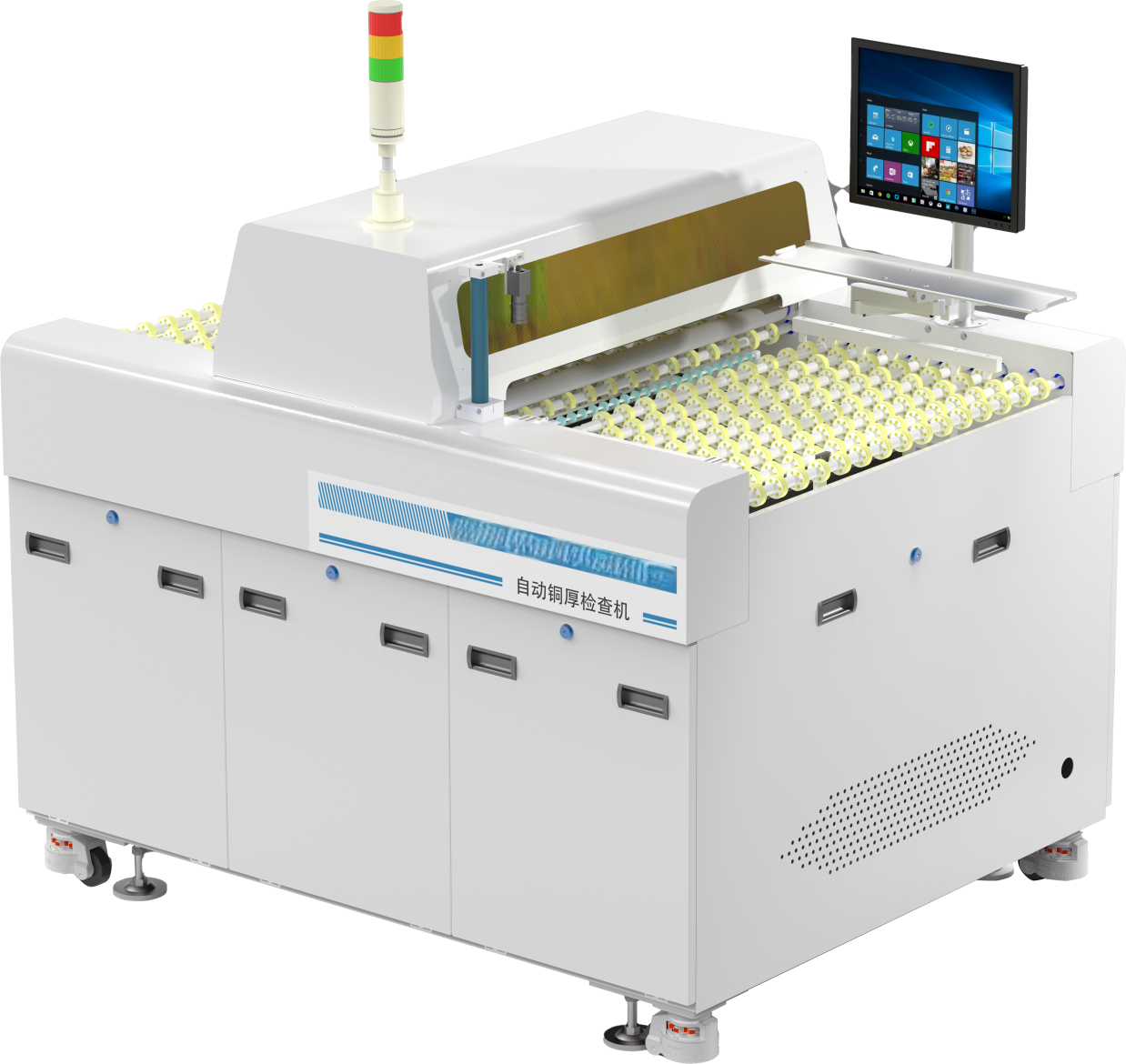

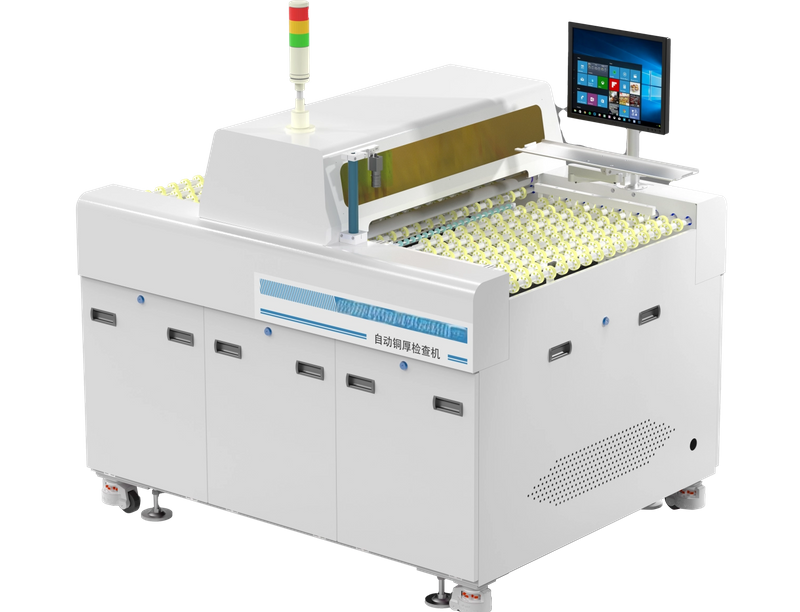

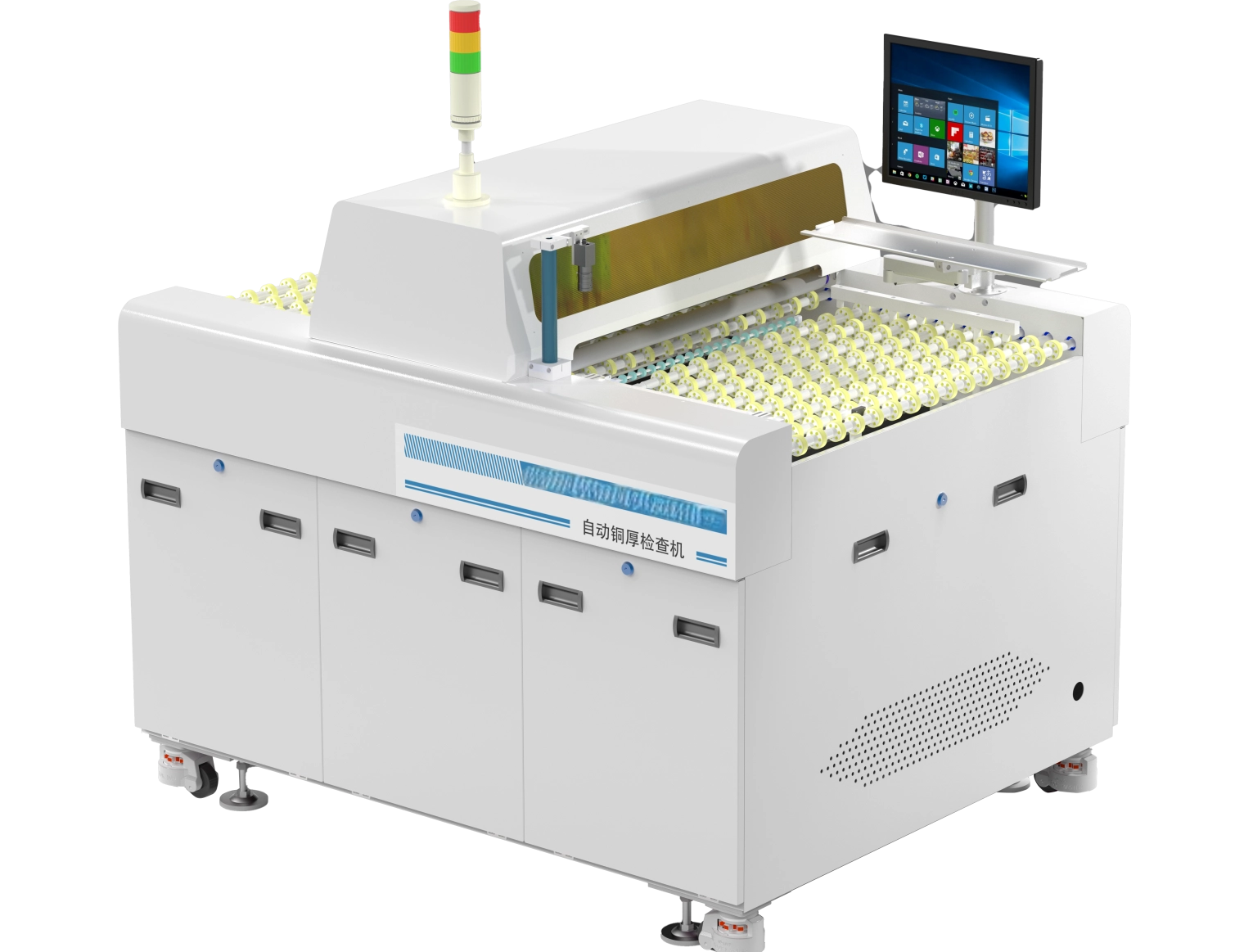

The board entry into the test equipment from the front end, after the clapper mechanism is set, it continues to be transported forward, divided into three carry tests (each test line of three points), and the test is at the same time. After the board completes the test, it enters the exit board area and flows into the back board retracting machine.
1.First step:The board flows into the front end of the device, the upper camera takes pictures, reads the board's code and calls the test data sheet.

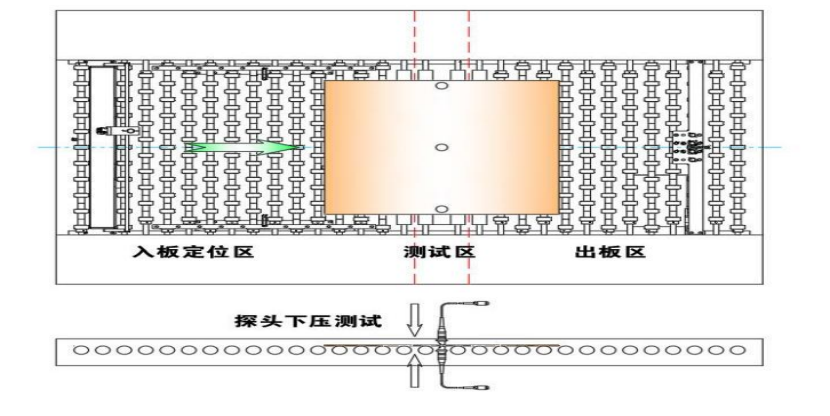

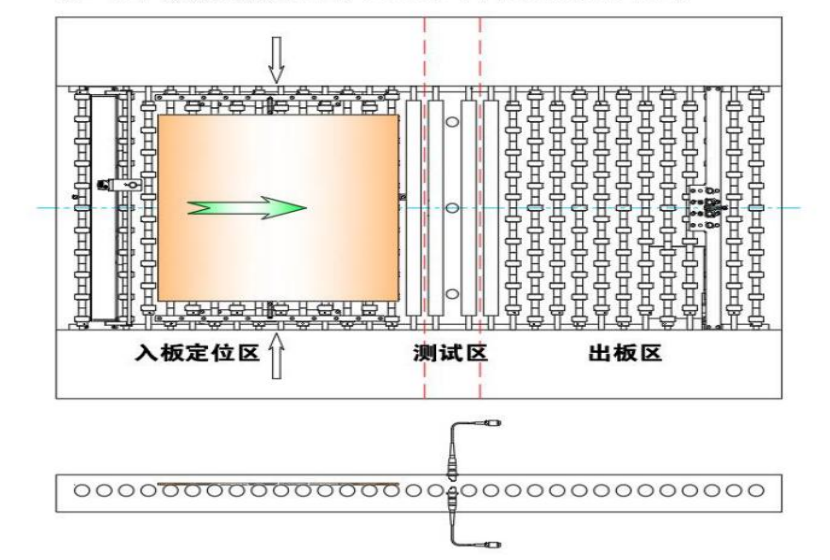

2.Second step :The plate flows into the positioning area, and the centering mechanism on both sides is positioned by clapping
3.
4.
Features：
The equipment has intelligent characteristics, provides drilling data to the machine, the machine can automatically identify, automatically find the right point, avoid the hole position for measurement; The test point can also be set manually for measurement.
You can freely adjust the direction of the plate for testing.
test data can be stored according to each batch/shift/day for traceability to meet the quality requirements of end customers
the leakage switch is installed in the machine to cooperate with correct grounding measures to protect personal safety
the control system is humanized, ergonomic, with automatic alarm prompt function;
can be optional scanning gun scanning code identification LOT number, product model, docking with MES system to retrieve data, and upload MES database
Machine Technical Parameters：
Equipment size: | 1600(L)×1200(W)×1300(H) |
Equipment weight: | 950kg |
Power requirements: | AC220V, 50Hz,2kw |
Ambient temperature: | 0 ~ 40℃ |
Platform speed: | 3M/MIN |
Test speed: | 4 ~ 5PCS/MIN |
Working height: | 1000±20mm |
Positioning mode: | Central positioning |
Applicable PCB size | 300(L)×300(W)mm ~ 720(L)×720(W)mm |
Applicable PCB thickness: | 0.1 ~ 6mm |
Test method: | Test with 3 pairs of test heads, each side of the PCB board can be selected straight 3 points, 6 points or 9 points,Dot test, both sides at the same time |
Test range | 0.2-250um |
Test point positioning accuracy: | about ±1.5mm |
Measurement accuracy: | ± 3% (standard board verification) |
Copper thickness test area: | minimum 10*15mm |
Copper Thickness Measuring instrument: | Bamtone/T66(6 channels) |
Copper thickness test probe: | MT01 tungsten steel probe |
MES function | supports data transmission and remote operation (optional) |
Statistical functions | YES |
Unloading function | (optional) |
Conveying method | Horizontal line conveying |
