An Overview of Common Machinery Used in PCB Production

The production process of PCB (Printed Circuit Board) is intricate and precise, involving a variety of specialized machinery. These machines play pivotal roles in every stage of PCB production, from raw materials to finished products.

At the initial stage of PCB production, raw material preparation involves equipment such as cleaning machines and ovens to ensure the cleanliness and dryness of the base material (e.g., FR-4). During the inner layer patterning phase, equipment like coating machines, exposure units, developing and etching lines, and stripping machines are used to create intricate inner layer circuitry through precise coating, exposure, and etching processes.

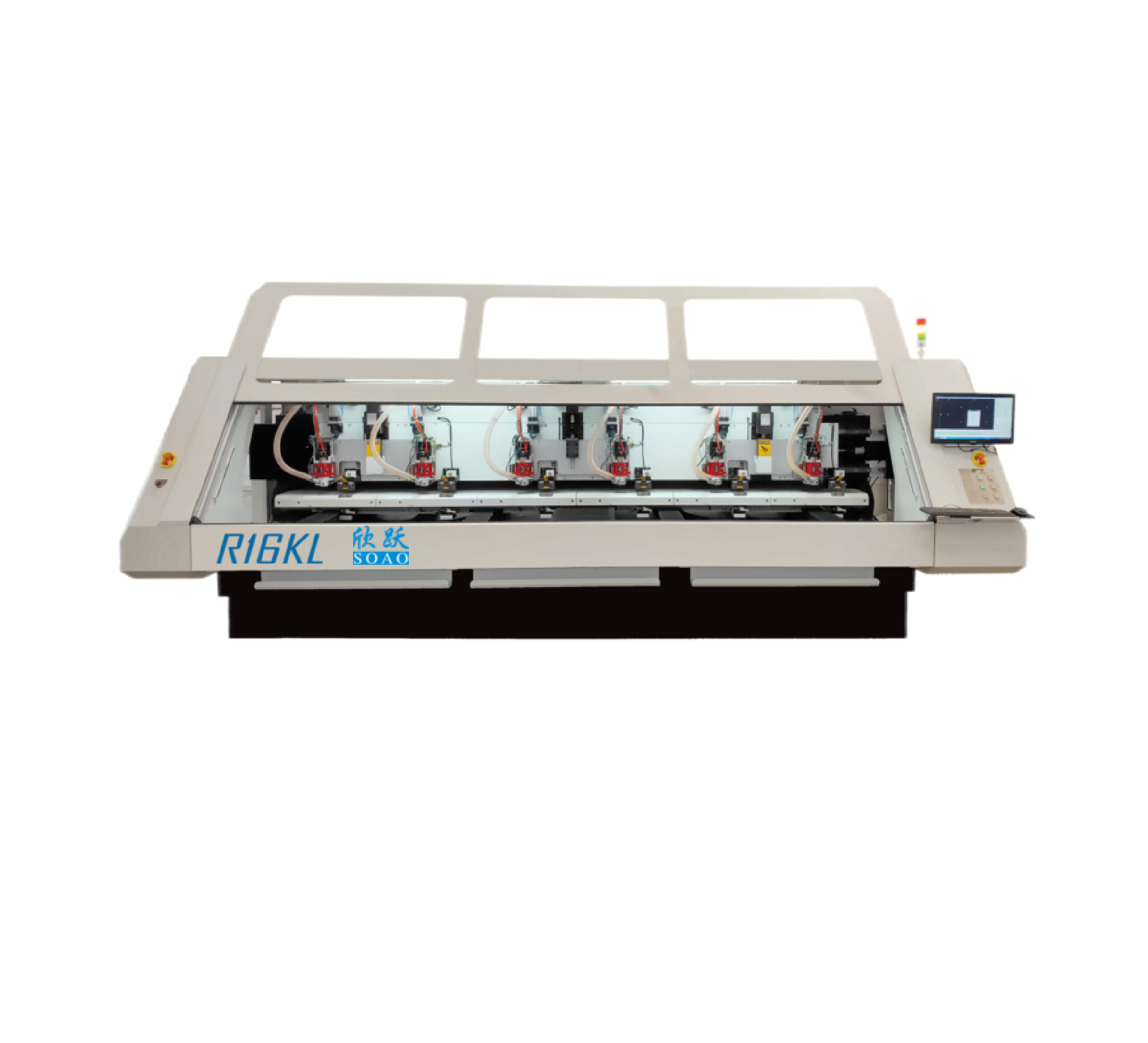

pcb drilling machine

For interlayer connection, drilling machines are essential for accurately drilling holes in the PCB board, providing channels for subsequent connections. Following drilling, the plating line is utilized to form a conductive copper layer within the holes, enabling electrical connections between layers.

During outer layer patterning, similar equipment to the inner layer process is employed, with the addition of lamination presses to ensure precise outer layer copper foil patterning. For solder mask application and silkscreening, silkscreen printers, ink mixing machines, and other devices are used to cover the PCB surface with solder mask ink and print markings, texts.

Surface finishing stages involve plating lines, hot tin spray machines, and other equipment that enhance the PCB's solderability and corrosion resistance through gold plating, tin spraying, and other processes. Assembly stages require welding machines, mounting machines, and other devices to precisely attach components to the PCB board.

pcb exposure machine

Testing and quality inspection involve Automated Optical Inspection (AOI) equipment and test machines that conduct optical and electrical tests to ensure PCB performance and quality meet design specifications. Finally, packaging and shipping stages utilize packaging machines, packing lines, and other equipment to encapsulate the qualified PCB products, ready for delivery to customers.

These machinery, each fulfilling its unique role, collectively form an efficient and precise PCB production line. With continuous technological advancements, these machines are constantly being upgraded and replaced, infusing new vitality into the PCB industry's development.
