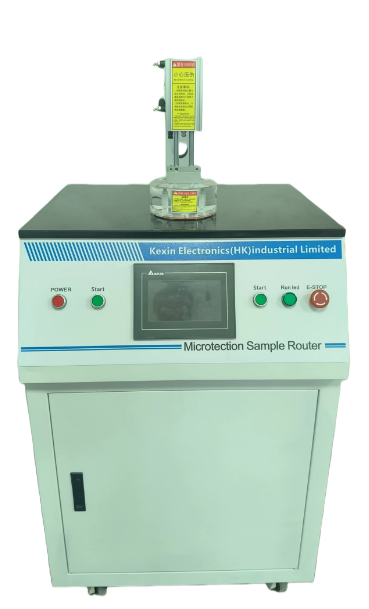

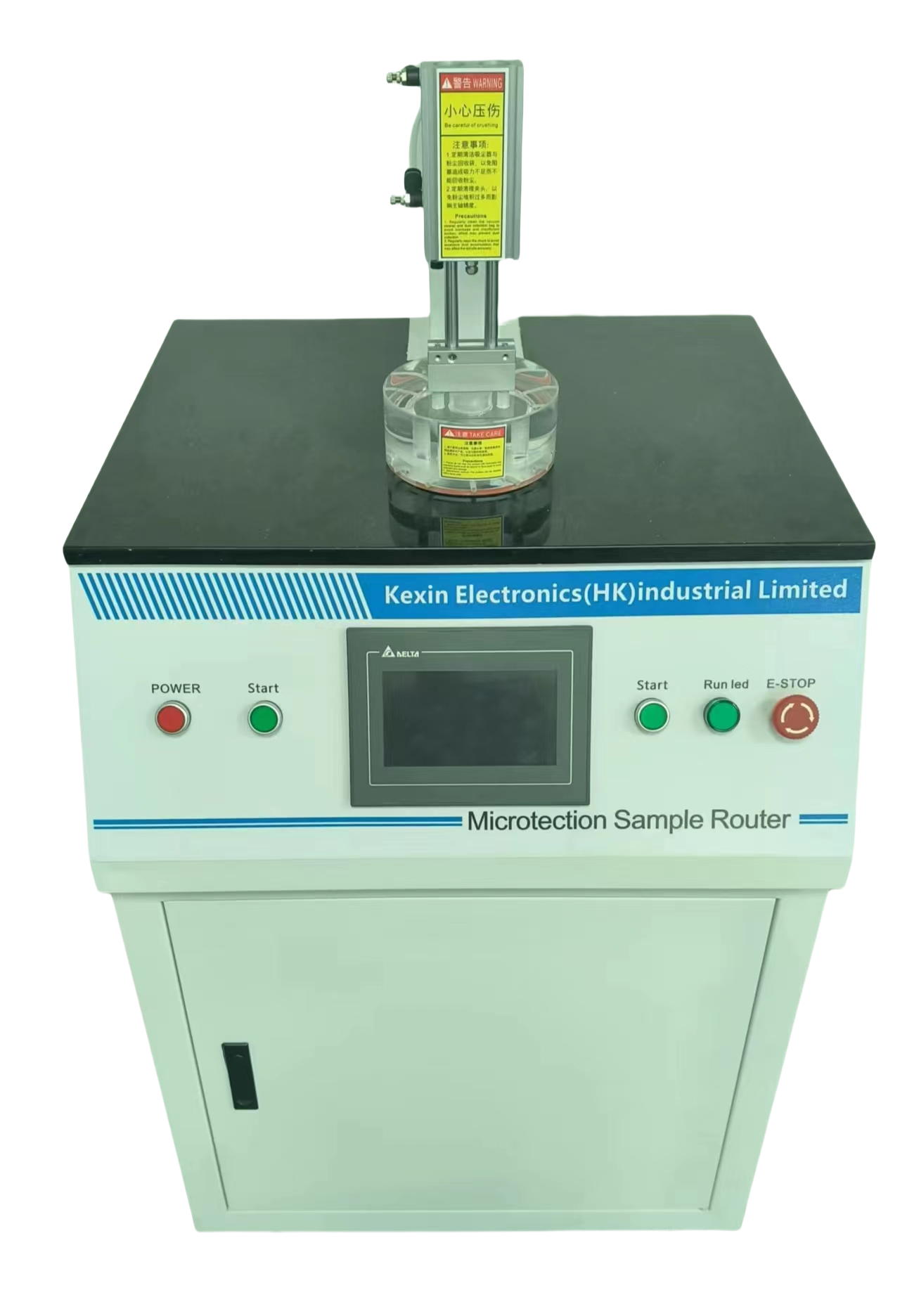

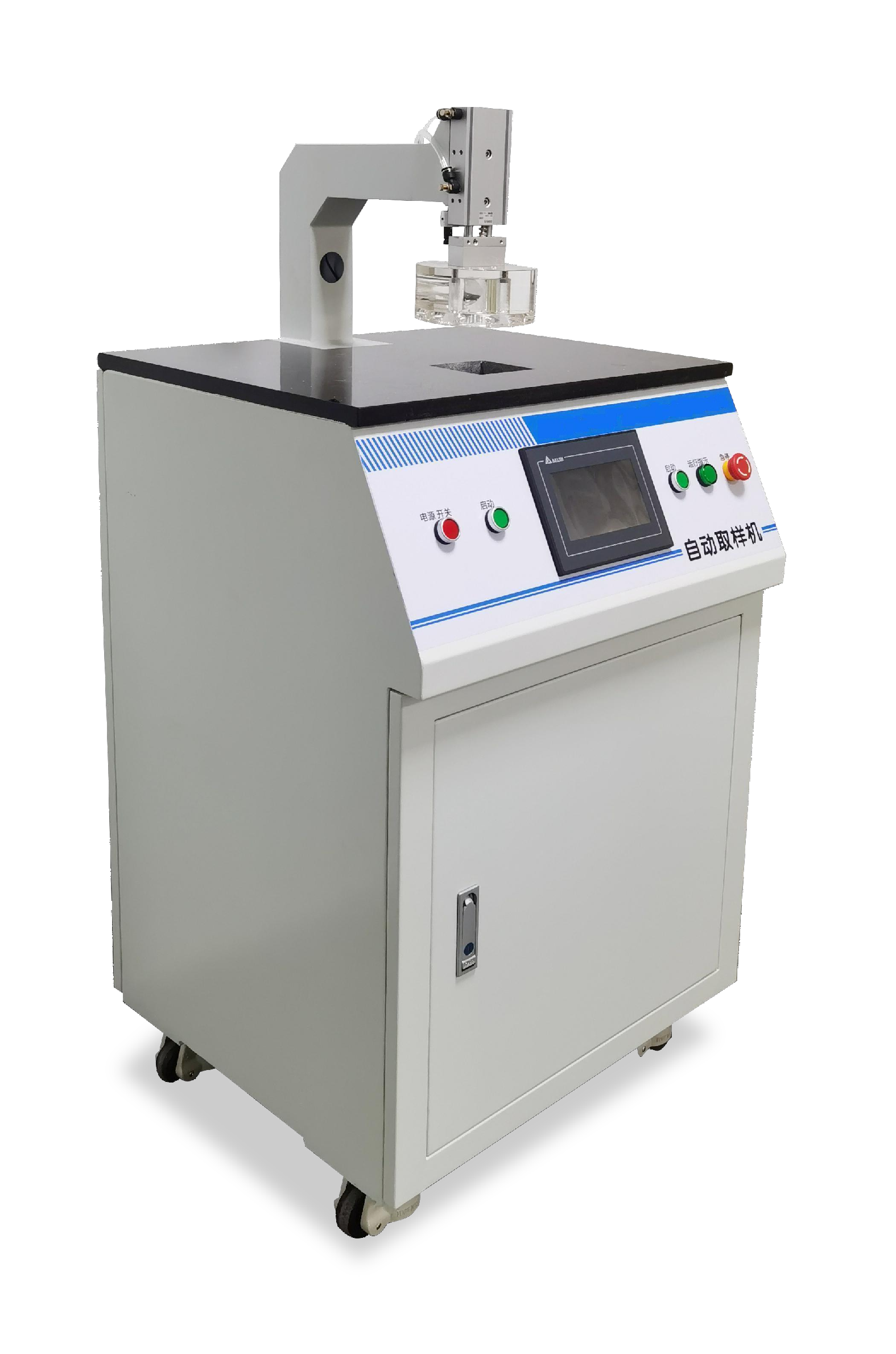

SOAO Micro Section Sampler Router KX-S275

  • high-speed electric spindle, high precision
  • Sample size range is adjustable, wide applicability.
  • The sample thickness up to 8mm(including copper layer below 16 layers),applicable to different manufacturers of multi-layer circuit board .If the copper layer is more than 16 layers,a drilling machine pre-drilled holes can be used to achieve.
Availability:
Quantity:
Inquire Add to Basket

  • KX-S275

  • SOAO



SOAO Micro Section Sampler Router KX-S275

This machine used in CCL, rigid printed circuit board production technology and production progress of the metallographic analysis of micro cutting slices required sampling.


Equipment Characteristics:

  • high-speed electric spindle, high precision

  •  Sample size range is adjustable, wide applicability.

  •  The sample thickness up to 8mm(including copper layer below 16 layers),applicable to different manufacturers of multi-layer circuit board .If the copper layer is more than 16 layers,a drilling machine pre-drilled holes can be used to achieve.


Machine Technical Parameters

Model KX-S275
Maximum sampling size 50*50*8mm
Maximum sample width 500mm
Board thickness 0.5-8mm
Spindle Speed : 30000 RPM
Milling Cutter Specification 2.0mm
Punching Precision: ±0.015mm
Punching Speed ≤0.4s / Holes
Power: AC240V±10℅/60Hz/12A
Air Pressure 0.6-0.8mpa
Machine Size: 600*500*1180mm



文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.





Deliver Machine

11

Packing

2

Packing

3

Payment

4

Transport

222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
