SEMI-Automatic UV-LED Double Side Exposure Machine for PCB Process

  • Double-Side Exposure With High Output
  • High Resolution:2.0mil/2.0mil
  • 4CCD Adopts High-Resolution Visual Alignment System
  • Less Than 5kWh Of Electricity/ Hour ,Energy Saving
Availability:
Quantity:
Inquire Add to Basket

  • KX-SA2421-OL

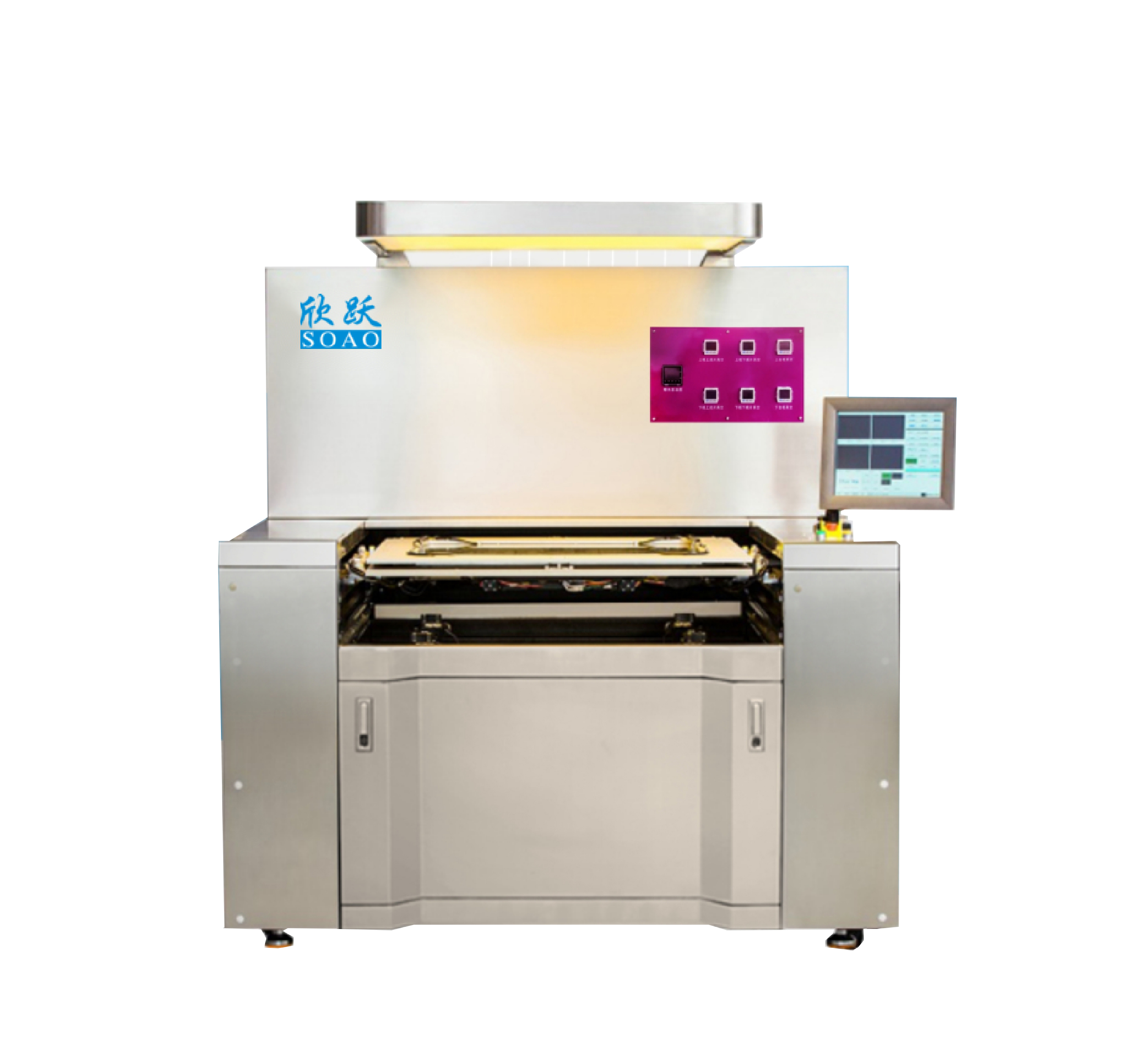

SEMI-Automatic UV-LED Double Side Exposure Machine for PCB Process

PCB exposure machines are critical equipment that use ultraviolet light to transfer circuit patterns from film onto copper-clad boards, widely used in PCB manufacturing and the semiconductor industry.


1

Features：

◆ Double-Side Exposure With High Output

◆ High Resolution : 2.0mil/2.0mil

◆ 4CCD Adopts High-Resolution Visual Alignment System

◆ Less Than 5kWh Of Electricity / Hour ,Energy Saving

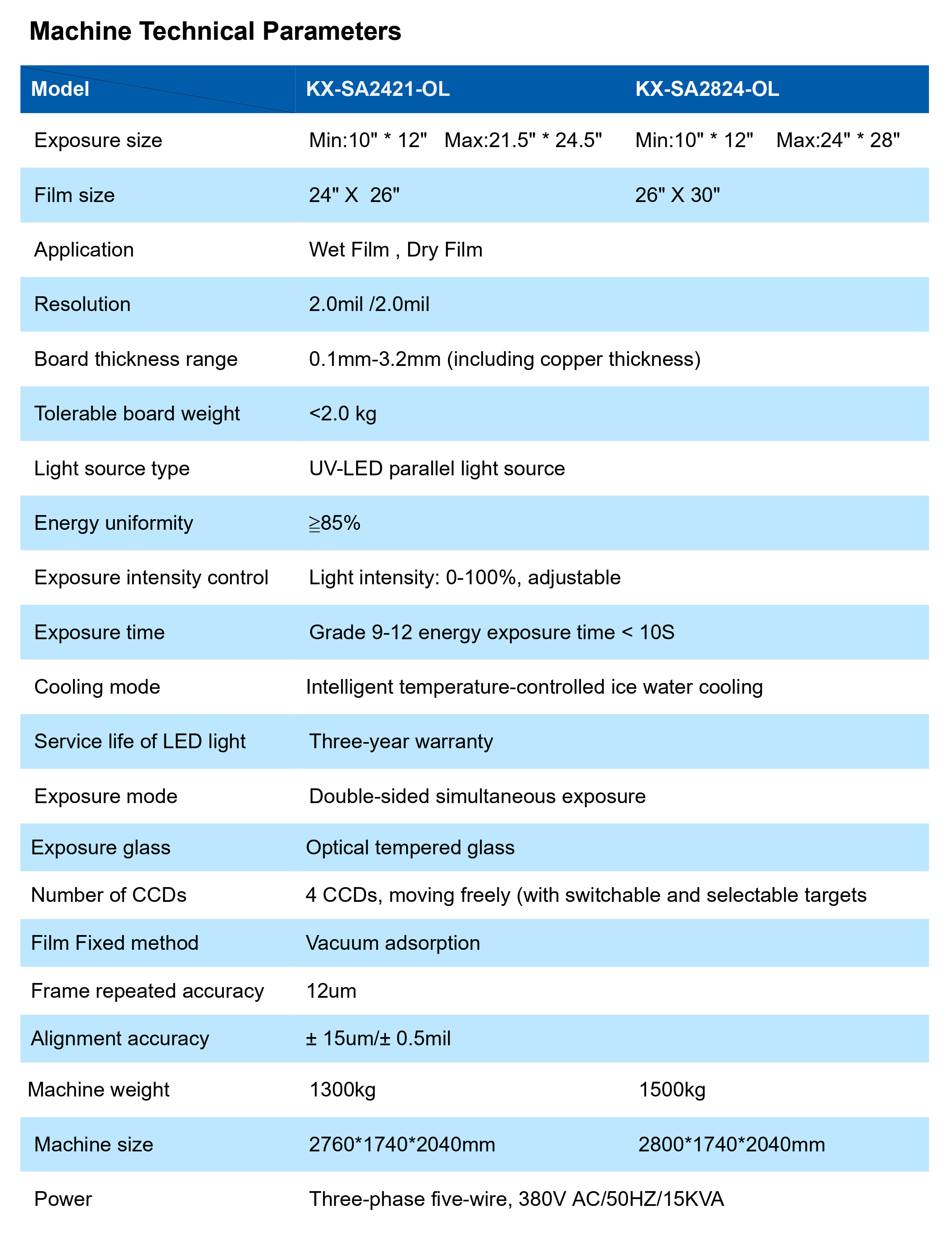

Machine Technical Parameters：

Model

KX-SA2421-OL                            KX-SA2824-OL
Exposure size Min 10" * 12" Max:21.5" * 24.5"           Min:10" * 12" Max:24" * 28"

Film size

24" X  26"                                          26" X 30"

Application

Wet Film , Dry Film

Resolution

2.0mil /2.0mil

Board thickness range

0.1mm-3.2mm (including copper thickness)

Tolerable board weight

<2.0 kg

Light source type

UV-LED parallel light source

Energy uniformity

85%

Exposure intensity control

Light intensity: 0-100%, adjustable

Exposure time

Grade 9-12 energy exposure time < 10S

Cooling mode

Intelligent temperature-controlled ice water cooling

Service life of LED light

Three-year warranty

Exposure mode

Double-sided simultaneous exposure

Exposure glass

Optical tempered glass

Number of CCDs

4 CCDs, moving freely (with switchable and selectable targets

Film Fixed method

Vacuum adsorption

Frame repeated accuracy

12um

Alignment accuracy

± 15um/± 0.5mil

Machine weight

1300kg                                              1500kg

Machine size

2760*1640*2040mm                       2800*1740*2040mm

Power

Three-phase five-wire, 380V AC/50HZ/15KVA


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
