The process of etching PCBs using an etching machine is a precise and multi-step flow
1、Designing the PCB Layout:
Using CAD software, the PCB layout is designed based on the circuit design requirements.
During the design process, factors such as the routing, width, spacing, and positions of pads are considered to ensure the PCB meets the intended needs.
2、Creating the Photoresist Film:
A photoresist film is applied to the base material of the PCB.
The PCB layout is placed on the photoresist film, and through exposure and development processes, a photoresist pattern is formed.
The photoresist film serves to protect the areas that are not to be etched, allowing for accurate etching of the desired patterns.
3、Acid Washing and Cleaning:
The photoresist-treated PCB is placed in an acid solution for cleaning.
This step removes surface oxides and impurities, ensuring smooth etching in the subsequent steps.
4、Etching Process:
The photoresist-treated and acid-cleaned PCB is then placed in an etching machine.
The etching machine uses a chemical solution to etch away the unwanted areas.
During the etching process, the etching time and temperature are carefully controlled to ensure precision and consistency.
The chemicals in the etching solution react with the copper on the PCB, dissolving the uncovered copper to create the desired circuit patterns.
5、Removing the Photoresist:
After etching, the PCB is placed in a photoresist removal solution.
This step removes the residual photoresist, leaving a clean PCB surface.
The PCB is then dried to ensure a dry surface.
6、Inspection and Repair:
The etched and cleaned PCB is inspected for any defects.
The integrity of the circuits and the quality of the pads are checked, and any issues are promptly repaired.
7、Surface Treatment:
The PCB undergoes surface treatments such as anti-oxidation coating or tin spraying.
These treatments protect the PCB surface and enhance its soldering performance.

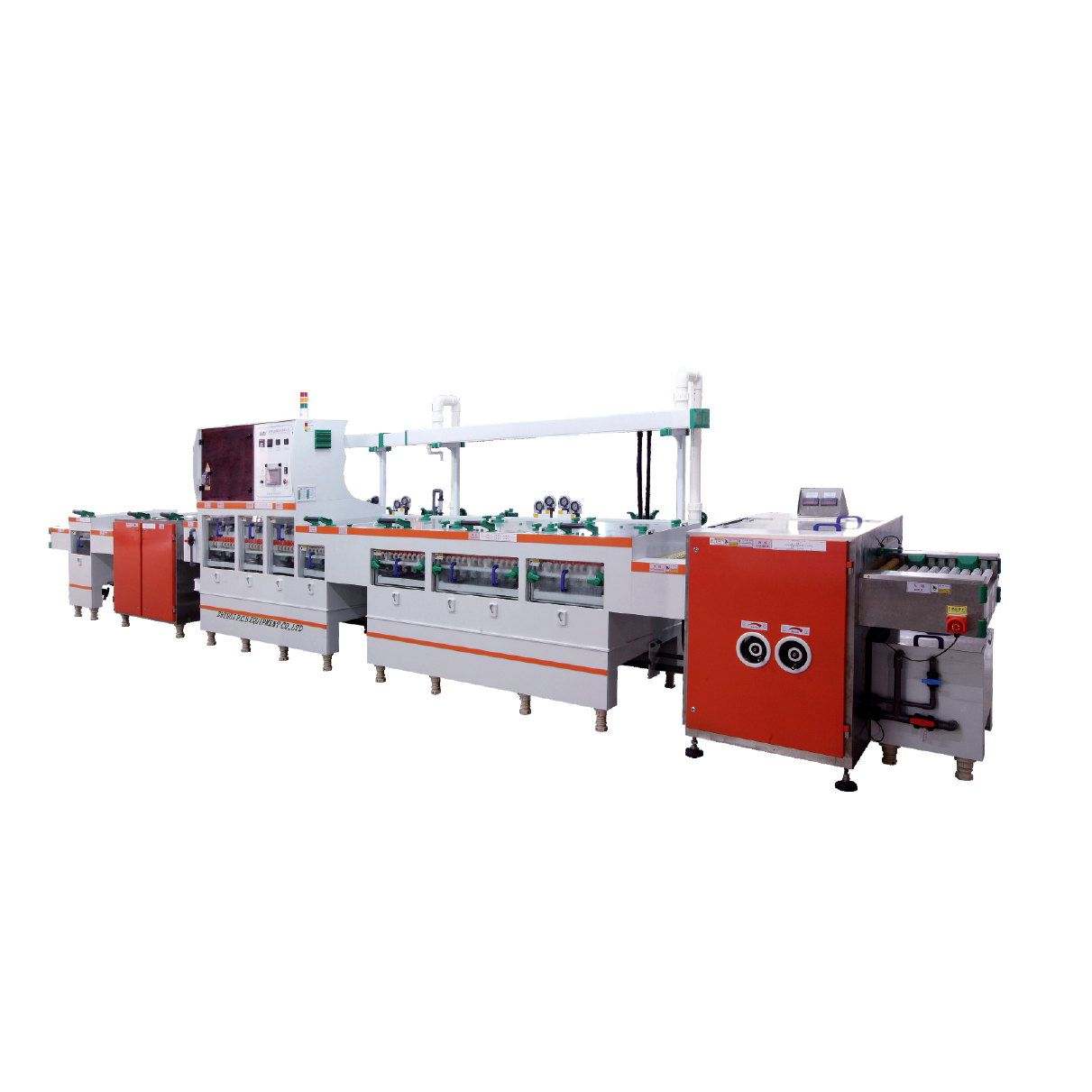

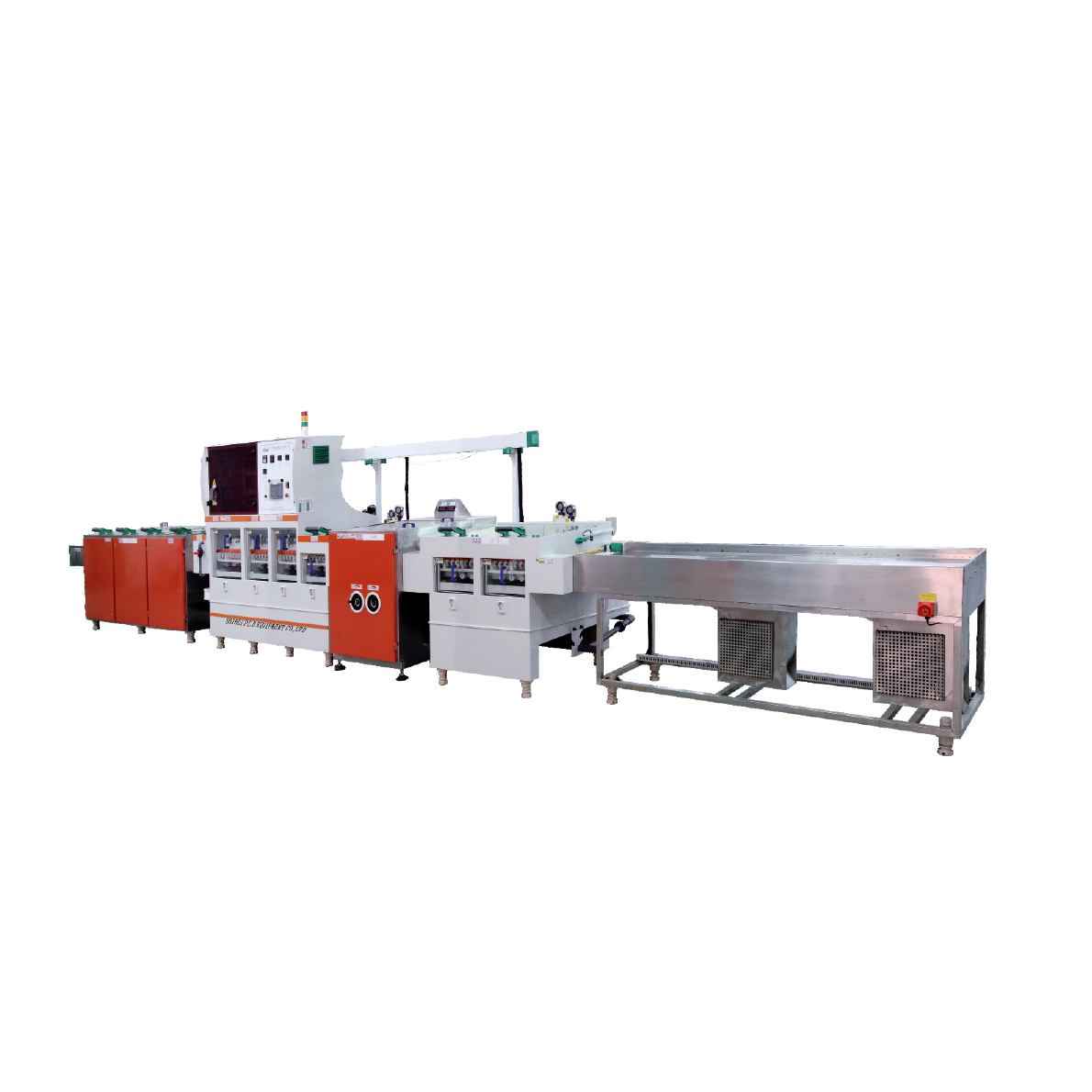

In the entire PCB etching process, the etching machine is a crucial piece of equipment. It utilizes precise control systems and transmission mechanisms, along with chemical etching techniques, to achieve high-precision PCB processing. Strict control of parameters and quality throughout the process ensures the stability and quality of the PCB.
