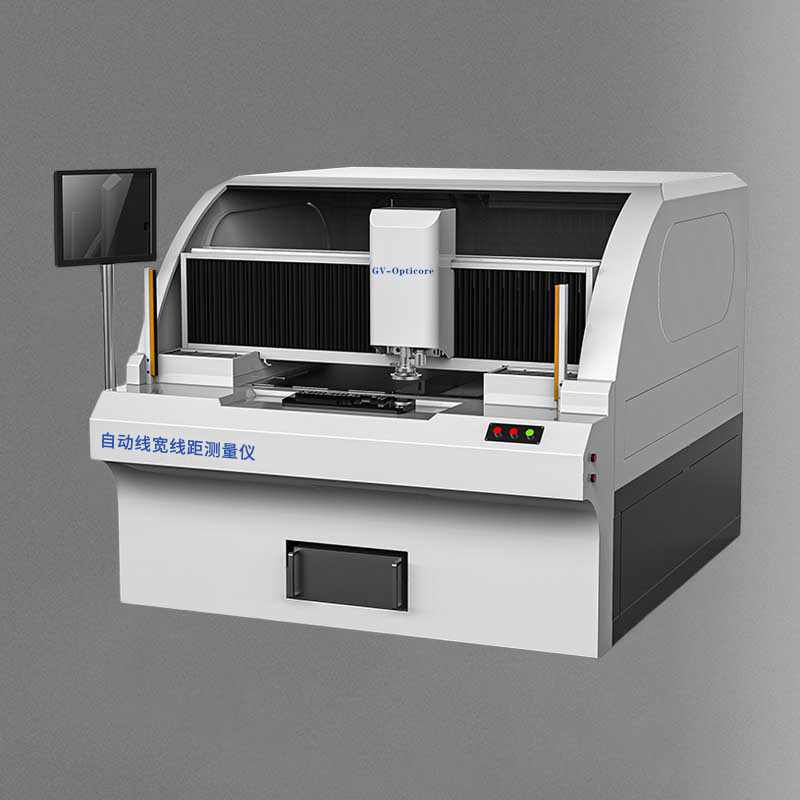

PCB Testing Machine Automatic Line Width And Distance Measuring Instrument

The PCB line width measuring instrument is a high-precision inspection device used to measure the width, spacing, and pattern dimensions of traces on printed circuit boards (PCBs). Utilizing optical imaging, laser scanning, or microscopic magnification technology, it quickly and accurately measures key parameters such as trace width, spacing, and pad dimensions on PCBs, ensuring that the graphic accuracy meets design requirements during the manufacturing process, thereby improving product quality and reliability.

Features：

1.From the VMA-XK series automatic line width and distance measurement equipment , the self-developed PCB automatic line width and distance measurement software is combined with the perfect programming technology of Cgeber/odb++engineering files.

2. The PCB vacuum adsorption platform is constructed to automatically measure the PCB line width, line distance, and PAD upper and lower scale measurement instrument.

Product parameters

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
