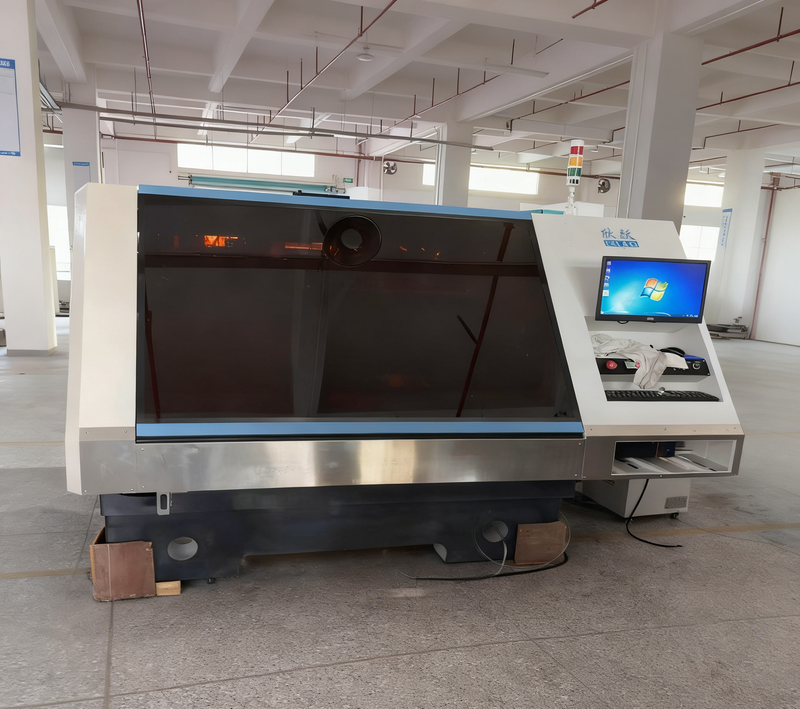

PCB Prototyping Machine for Electronics Production 2 Spindle PCB Router Machine

KXseriesCNC drilling and milling machine, all basic body, Gantry, base, slide block, table are made of high quality natural granite material, high precision, no deformation, stable and reliable. Using Japan NSK/THK, Taiwan on the silver belt mute device linear guide rail, greatly extend the service life and maintenance cycle, improve the use efficiency.
Availability:
Quantity:
Inquire Add to Basket

  • kexin

  • SOAO

PCB Prototyping Machine for Electronics Production 2 Spindle PCB Router Machine

KXseriesCNC drilling and milling machine, all basic body, Gantry, base, slide block, table are made of high quality natural granite material, high precision, no

deformation, stable and reliable. Using Japan NSK/THK, Taiwan on the silver belt mute device linear guide rail, greatly extend the service life and maintenance cycle,

improve the use efficien

抠图操作 (2)

1

f0f78fd4df1a8ca60wechat_2025-11-18


PCB Routing Machine Features

  1. Trusted drilling and milling machine control software

  2. Real-time Cutter Break Detection (optional)

  3. Inspection of the finished product of the two-dimensional projector


Main Parameters

Technical specification parameter table
Model KX-AS-2
Construction Granite
Spindle speed 60000/min
Spindle number 2
System type The closed system
Machining table X570*Y690*Z100(mm)
Applicable tool size 0.4mm-6.4mm
Maximum moving speed 30mmmin
Screw guide Japan THK/Taiwan hiwin
Tool change Automatic tool changer
Unloading mode stripping
Motor type Servo control system
Positionmg accuracy 0.01/300mm
Repeat positioning accuracy 0.003mm
Machine dimensions 2000(W)mm X 1900(D)mm X 1800(H)mm
Equipment weight 2000kg
Working voltage AC 220V 3KW
work environment 25° C ±5° C
Air pressure 6kg/cm3以上
Applicable industry PCB、ICT/PCB、ICT Fixture



文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.



Deliver Machine


11

Packing

2

Packing

3

Payment

4

Transport


Our PCB Machine Factory

钻铣机车间(1)


222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
