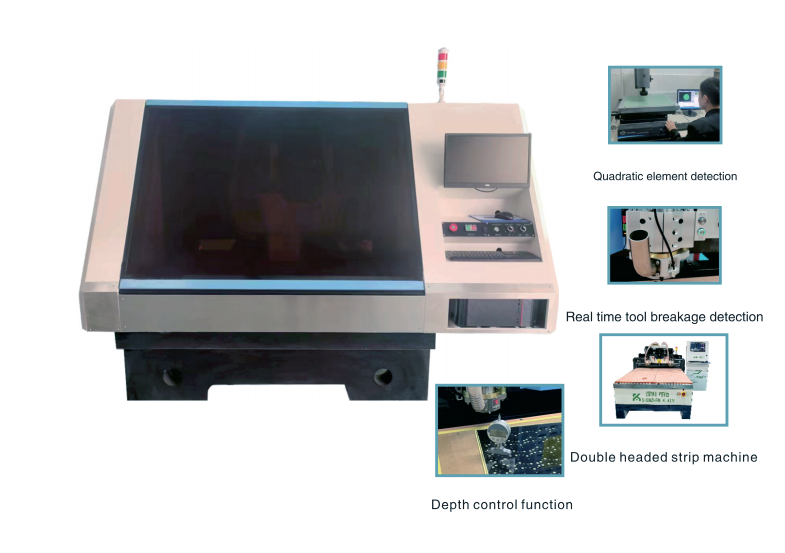

KXseriesCNC drilling and milling machine, all basic body, Gantry, base, slide block, table are made of high quality natural granite material, high precision, no deformation, stable and reliable. Using Japan NSK/THK, Taiwan on the silver belt mute device linear guide rail, greatly extend the service life and maintenance cycle, improve the use efficiency.
The whole machine adopts Delta Motor and Servo Control System, Xianlong60,000 turn high-power spindle, and uses the reliable and self-developed operating interface with windows feature and digital module, and can support a variety of data format conversion of the full closed-loop control software system, easy to operate, flexible, fully functional, high-precision, fast, stable is well loved by the majority of PCB enterprises.
V10.0 is developed for the convenience, simplicity and flexibility of users. The software has the characteristics of window and digital module operation interface, and can support a variety of data format conversion. With powerful editing and graphics processing functions, intelligent lock origin, support a variety of ways to optimize the path and a variety of information records, full-featured, high precision, fast, stable!
the cutter break detection device adopts imported infrared photoelectricity induction device, high precision, good sensitivity and strong stability. Adopt induction light embedded design, not easy to damage, long life, easy maintenance. The cutting tool can be detected accurately and timely when the cutting tool is raised, thus improving the quality and production efficiency.
The two-dimensional projector uses CCD optical camera system with high detection accuracy and small error. After the equipment is assembled and the function is adjusted, we will use the standard board to process each group of spindle and the corresponding working platform according to the precision testing data, and use the two-dimensional projector to test the precision of the processed standard board, ensure the good quality of the factory equipment!
