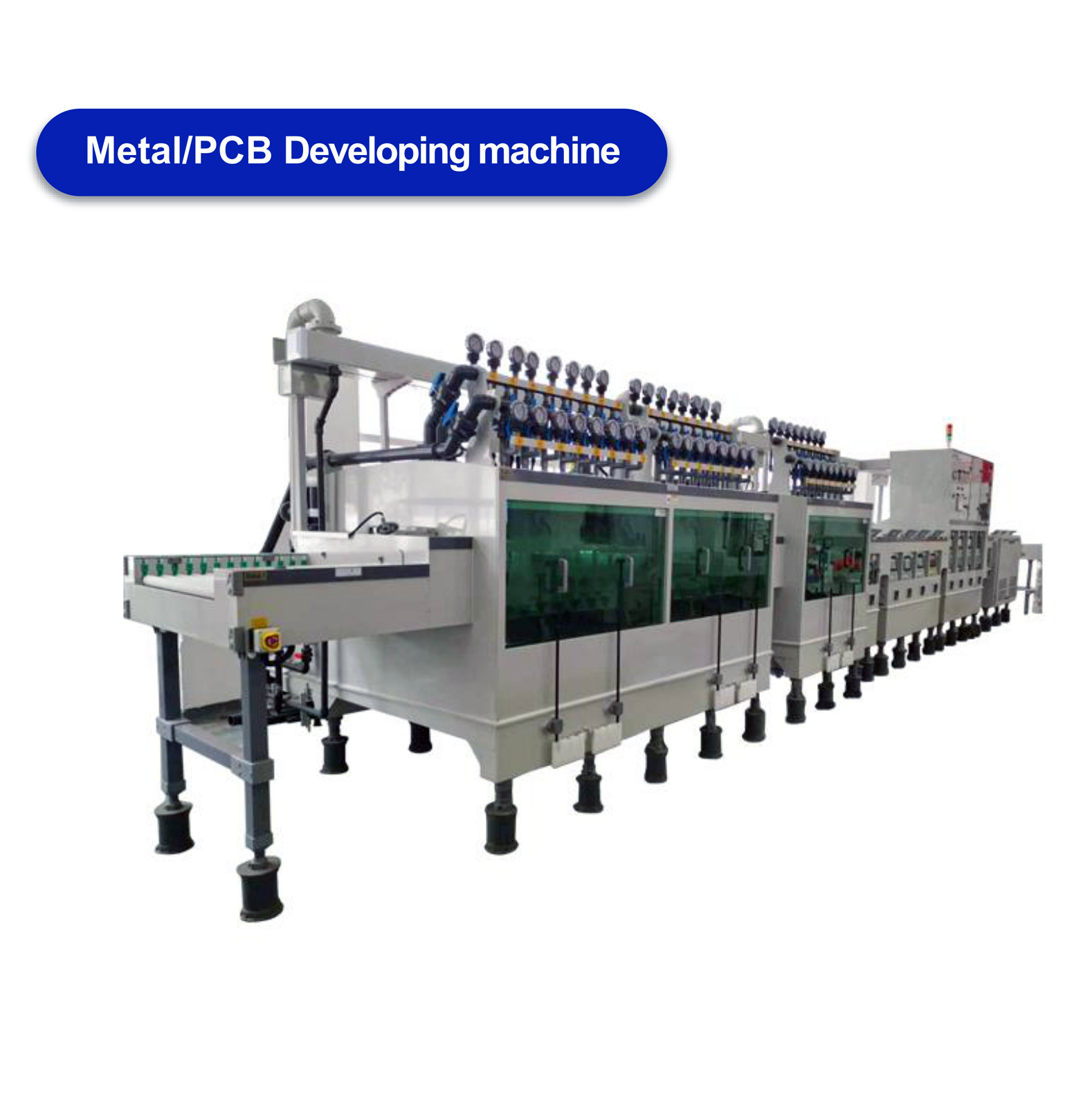

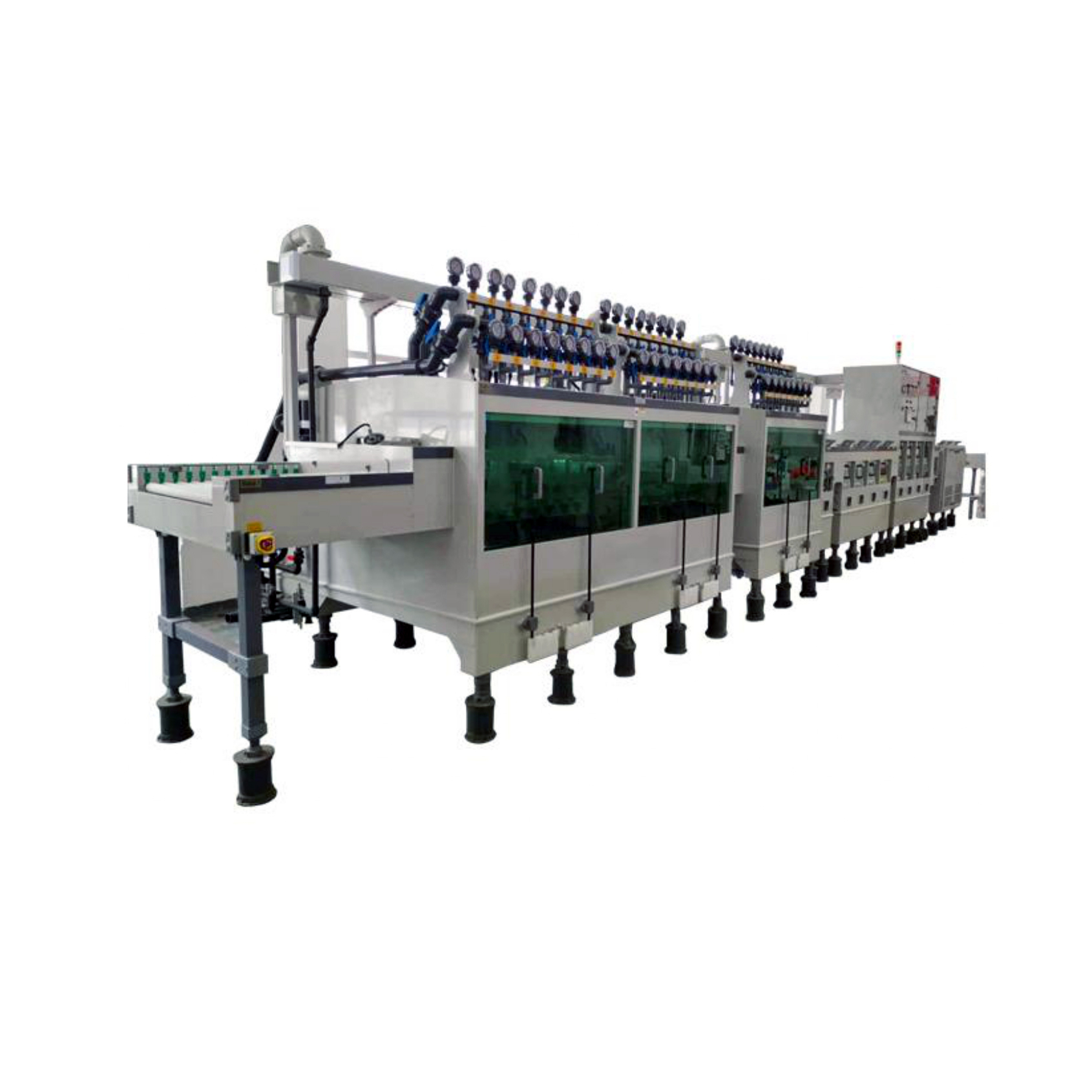

Metal/PCB Developing Machine
Features:
1. No board shutdown function, free to set the boardless shutdown time, which helps to save water and electricity;
2. Overheating protection' function, when the heating section exceeds the set temperature, an alarm will be issued;
3. Liquid level alarm 'function, the liquid level is too high to send an alarm;
4. The swing is upgraded, the diameter is thickened, the wear-resistant sheet is added, the swing is stable, and the spraying is more uniform.

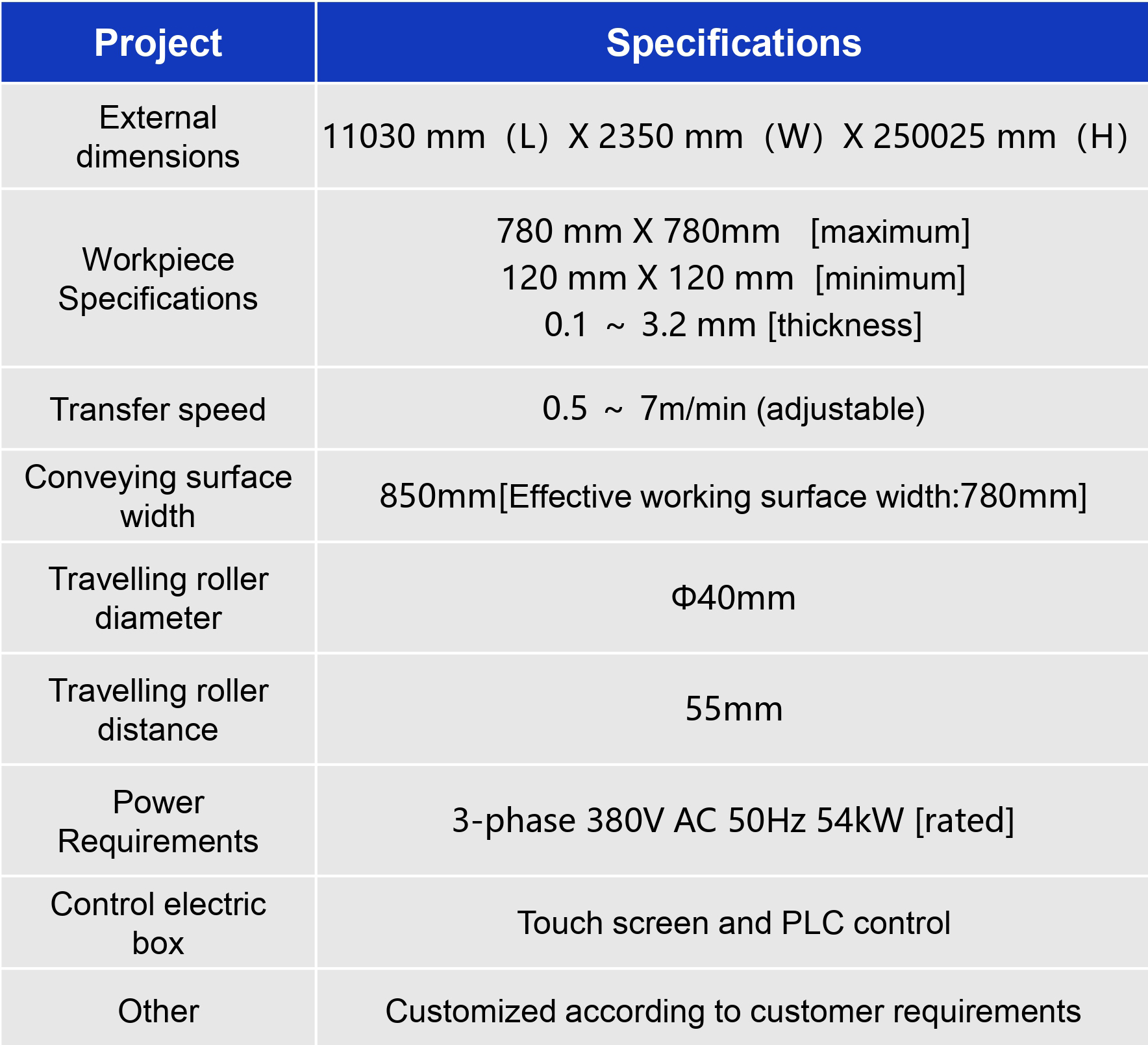

| Project | Specifications | |
| External dimensions | 11030 mm (L) X 2350 mm (W) X 250025 mm (H) | |
| Workpiece Specifications | 780 mm X 780mm [maximum] 120 mm X 120 mm [minimum] 0.1 ~ 3.2 mm [thickness] | |
| Transfer speed | 0.5 ~ 7m/min (adjustable) | |
| Conveying surface width | 850mm[Effective working surface width:780mm] | |
| Travelling roller diameter | 40mm | |
| Travelling roller distance | 55mm | |
| Power Requirements | 3-phase 380V AC 50Hz 54kW [rated] | |
| Control electric box | Touch screen and PLC control | |
| Other | Customized according to customer requirements | |

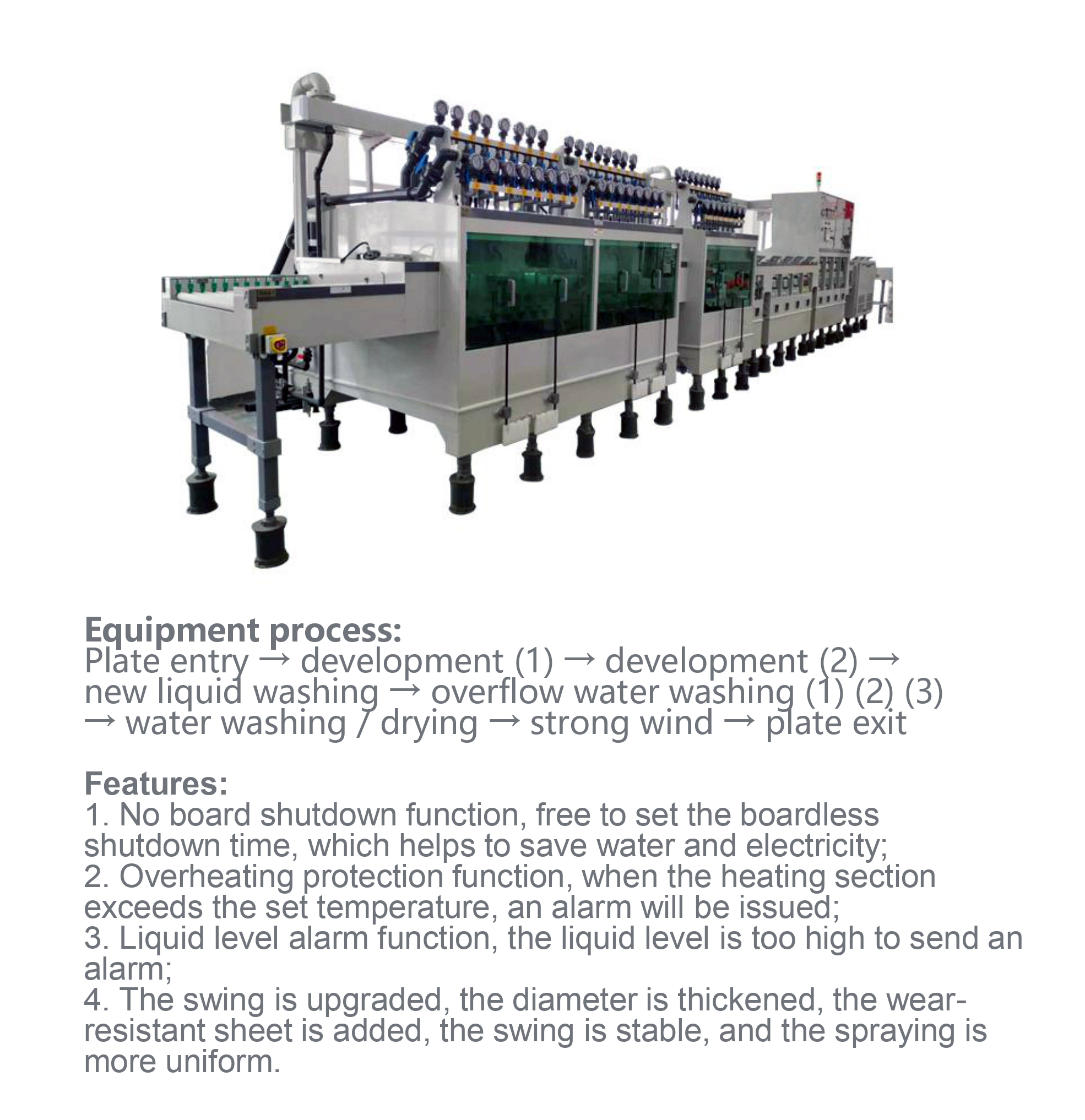

Equipment process:
Plate entry →development(1)→development(2)一new liquid washing → overflow water washing (1) (2) (3)→ water washing /drying →strong wind→plate exit
Features:
1. No board shutdown function, free to set the boardless shutdown time, which helps to save water and electricity;
2. Overheating protection' function, when the heating section exceeds the set temperature, an alarm will be issued;
3. Liquid level alarm 'function, the liquid level is too high to send an alarm;
4. The swing is upgraded, the diameter is thickened, the wear-resistant sheet is added, the swing is stable, and the spraying is more uniform.
| Project | Specifications | |
| External dimensions | 11030 mm (L) X 2350 mm (W) X 250025 mm (H) | |
| Workpiece Specifications | 780 mm X 780mm [maximum] 120 mm X 120 mm [minimum] 0.1 ~ 3.2 mm [thickness] | |
| Transfer speed | 0.5 ~ 7m/min (adjustable) | |
| Conveying surface width | 850mm[Effective working surface width:780mm] | |
| Travelling roller diameter | 40mm | |
| Travelling roller distance | 55mm | |
| Power Requirements | 3-phase 380V AC 50Hz 54kW [rated] | |
| Control electric box | Touch screen and PLC control | |
| Other | Customized according to customer requirements | |
Equipment process:
Plate entry →development(1)→development(2)一new liquid washing → overflow water washing (1) (2) (3)→ water washing /drying →strong wind→plate exit
