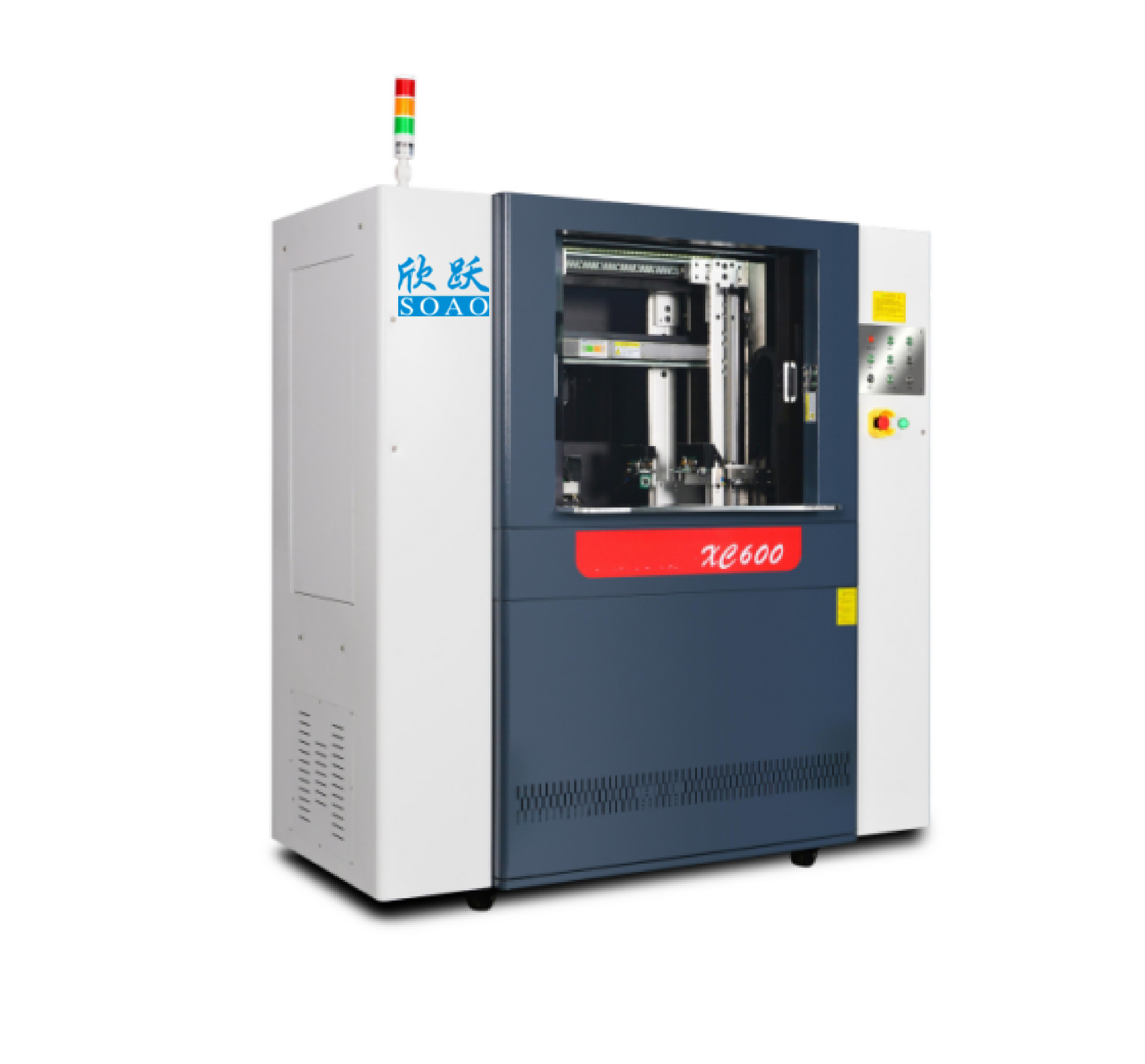

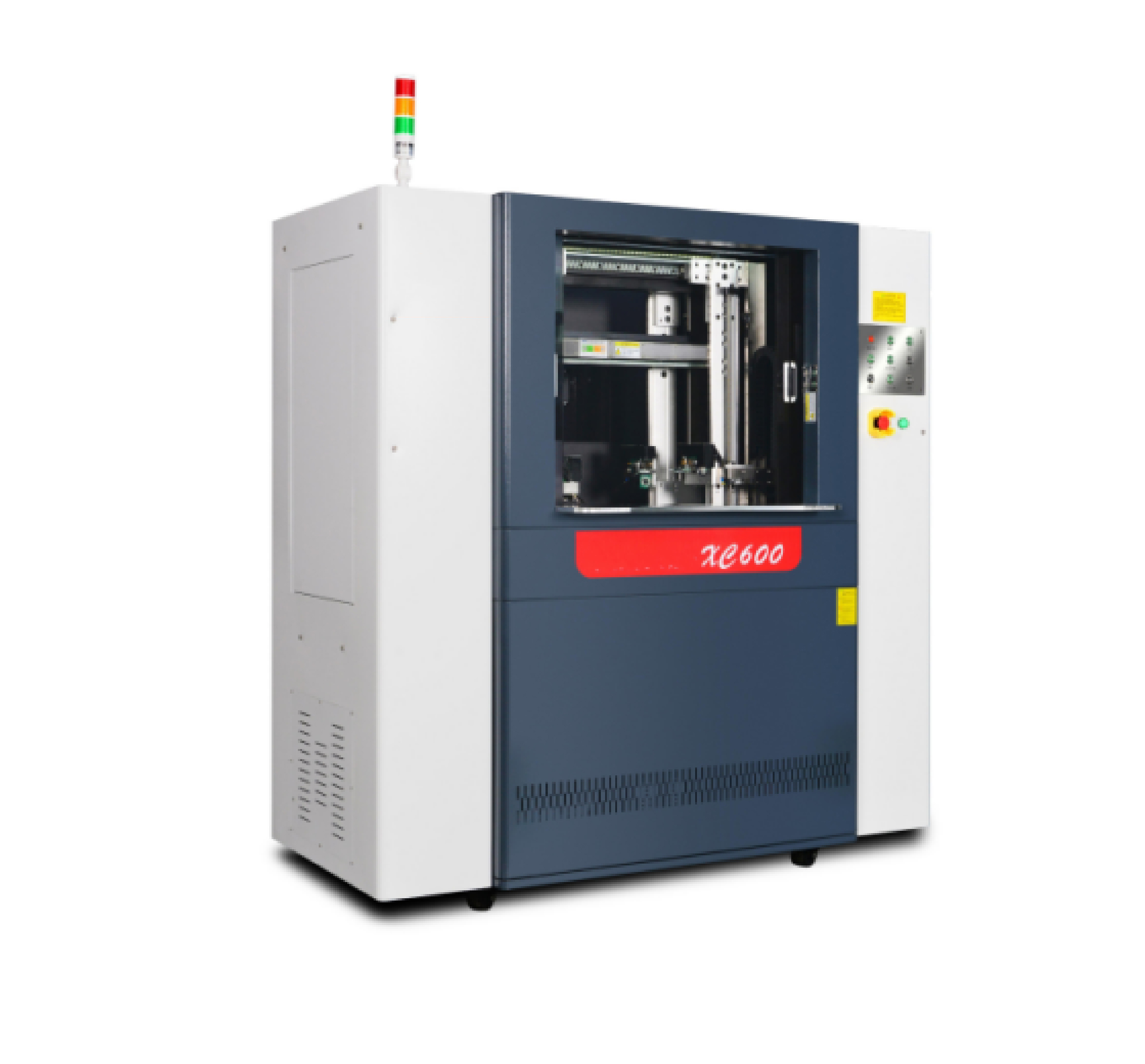

PCB Making Machine PCB Flying-Probe Tester High Speed Flying Probe Testing Machine KX-XC600

The flying probe tester has many advantages in PCB and PCBA testing by probing the high-voltage insulation and low-resistance conduction test of the circuit board, which is not only suitable for samples and small trial production, but also plays an important role in high-density circuit board testing, semiconductor testing and other fields
Size:
FPT
Availability:
Quantity:
Inquire Add to Basket

  • FPT Machine XC600

PCB Making Machine PCB Flying-Probe Tester High Speed Flying Probe Testing Machine KX-XC600



The flying probe tester has many advantages in PCB and PCBA testing by probing the high-voltage insulation and low-resistance conduction test of the circuit board, which is not only suitable for samples and small trial production, but also plays an important role in high-density circuit board testing, semiconductor testing and other fields

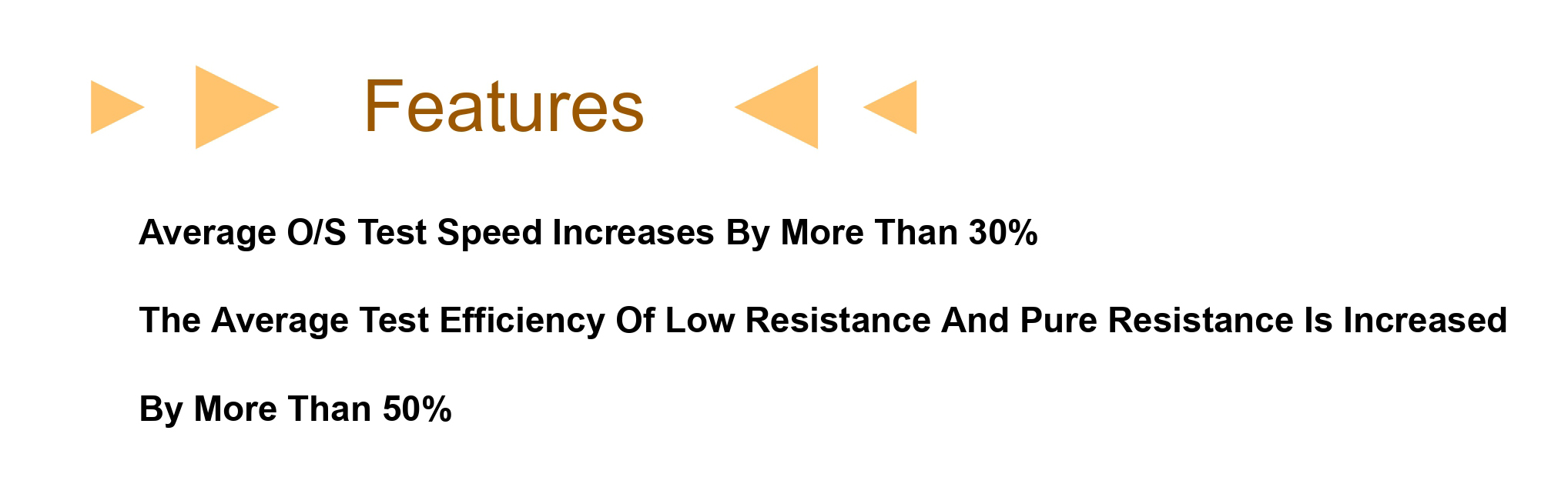

Feature

Average O/S Test Speed Increases By More Than 30%

The Average Test Efficiency Of Low Resistance And Pure Resistance Is Increased By More Than 50%

1

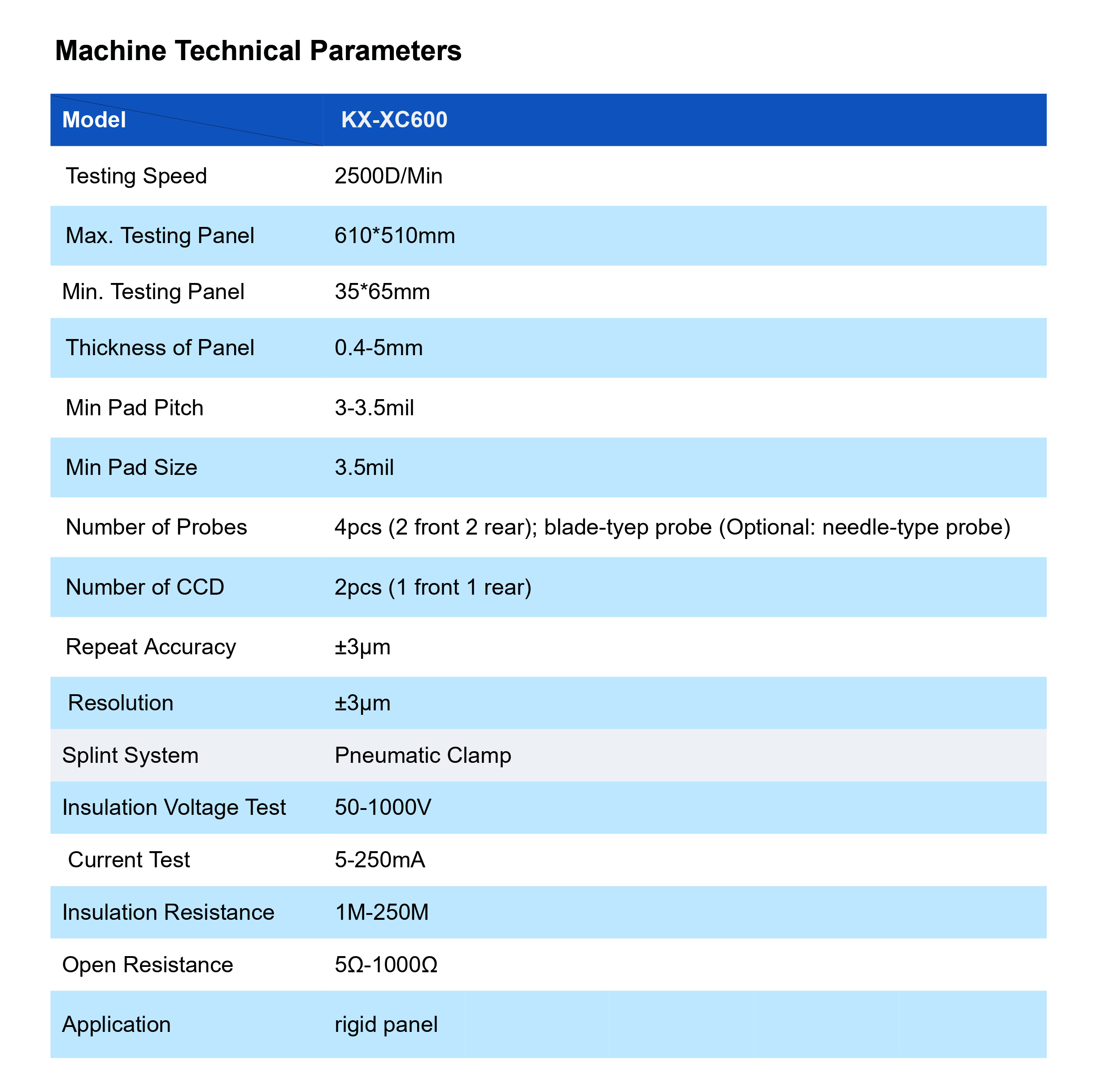

Product parameters


Model KX-XC600
Testing Speed 2500D/Min
Max. Testing Panel 610*510mm
Min. Testing Panel 35*65mm
Thickness of Panel 0.4-5mm
Min Pad Pitch 3-3.5mil
Min Pad Size 3.5mil
Number of Probes 4pcs (2 front 2 rear); blade-tyep probe (Optional:needle-type probe)
Number of CCD 2pcs (1 front 1 rear)
Repeat Accuracy ±3μm
Resolution ±3μm
Splint System Pneumatic Clamp
Insulation Voltage Test 50-1000V
Current Test 5-250mA
Insulation Resistance 1M-250M
Open Resistance 5Ω-1000Ω



文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.







Deliver Machine

11

Packing

2

Packing

3

Payment

4

Transport

Our PCB Machine Factory

1


222 OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
