Desmearing is an important process in printed circuit board manufacturing. After drilling, resin residues may remain inside PCB holes and affect subsequent chemical treatment and interconnection quality. A reliable PCB desmear machine helps remove these residues and prepares the hole surface for the next production stage.

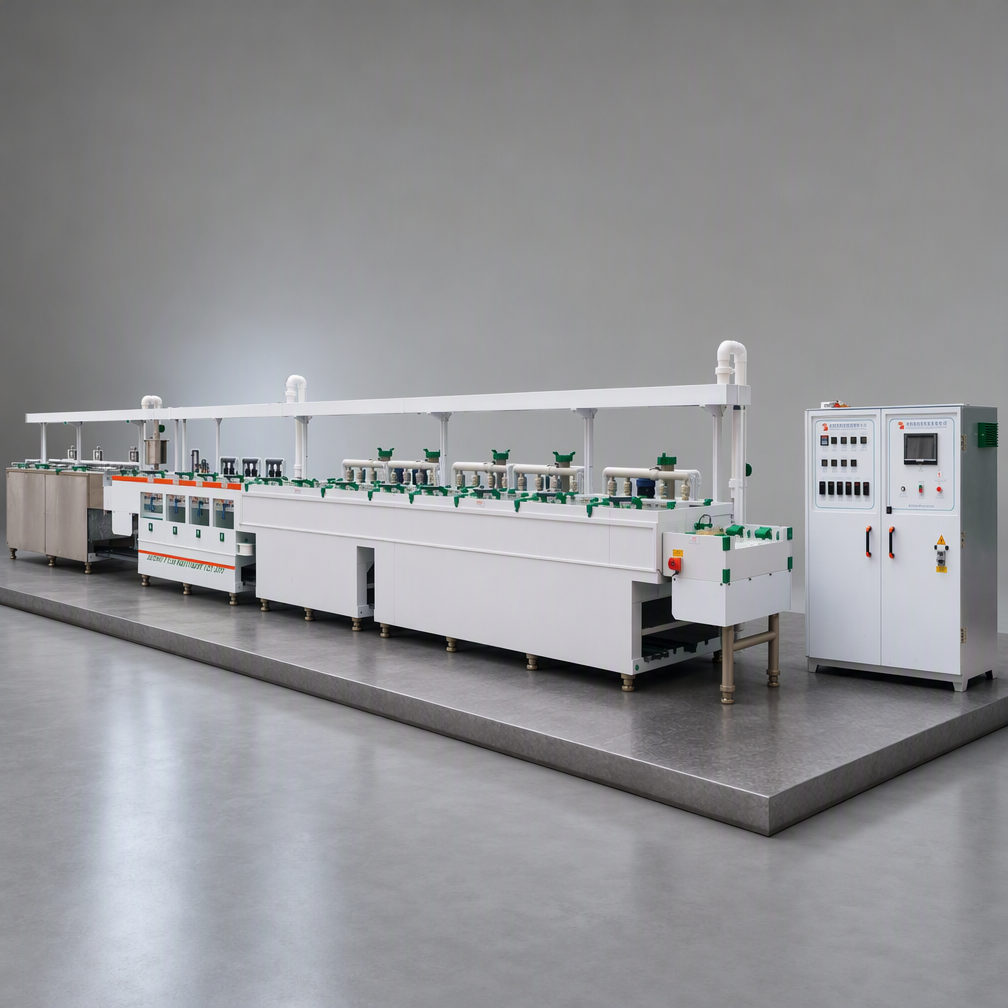

This chemical desmear machine is designed for stable hole treatment through a coordinated process that includes sweller, permanganate, initiator, rinsing, regeneration, filtration, and conveying sections. By integrating these functions into one production line, PCB manufacturers can maintain a more consistent workflow while making routine operation and maintenance more convenient.
The equipment uses a Slot+V H flood bar design developed especially for hole treating. This structure supports the delivery of process solution into the treatment area, helping improve contact with PCB holes as panels move through the machine. Consistent solution distribution is essential for achieving dependable desmearing results across different production batches.
A quick lock design is also included to simplify access during maintenance. Operators can open and service the relevant section more conveniently, which helps reduce unnecessary downtime during inspection, cleaning, or component adjustment.
The roller disc used in the sweller and permanganate sections is designed to resist high temperature and abrasion. These sections operate under demanding chemical and thermal conditions, so durable conveying components are valuable for maintaining stable panel movement over extended production periods.
The roller disc structure is also designed for easier cleaning and maintenance. A practical maintenance design can help production teams keep the treatment line in suitable operating condition and reduce the time required for routine service.
Recycle rinsing is provided for the sweller, permanganate, and initiator sections. By recycling rinse water within the process, the system can help reduce wastewater discharge while supporting continuous chemical processing. This design is suitable for PCB factories that are seeking a more efficient use of process water.
The machine also includes a regeneration system with high regeneration efficiency, with Mn6+ below 15 g/L according to the documented specifications. In addition, permanganate filtration helps remove unwanted particles from the process solution and can reduce maintenance time related to solution circulation and treatment components.
A well-organized desmear line can support more predictable production planning. Stable conveying helps panels pass through each treatment section in sequence, while accessible components make it easier for operators to carry out inspections and scheduled cleaning. Recycle rinsing and filtration also help production teams manage process resources more effectively without adding unnecessary manual handling. For manufacturers producing multilayer boards or panels with demanding hole-treatment requirements, these design features can contribute to a cleaner, more manageable, and more consistent chemical processing workflow.
When selecting PCB hole treatment equipment, manufacturers should consider solution distribution, chemical resistance, rinse-water management, filtration, and maintenance access. This PCB desmear equipment combines a specialized Slot+V H flood bar, durable roller discs, recycle rinsing, regeneration, and permanganate filtration in one integrated solution.
For PCB manufacturers looking to improve desmear process stability and simplify daily maintenance, this chemical desmear machine offers a practical foundation for modern PCB production. Contact an engineering team to discuss panel requirements, process layout, and suitable PCB desmear machine configuration.
