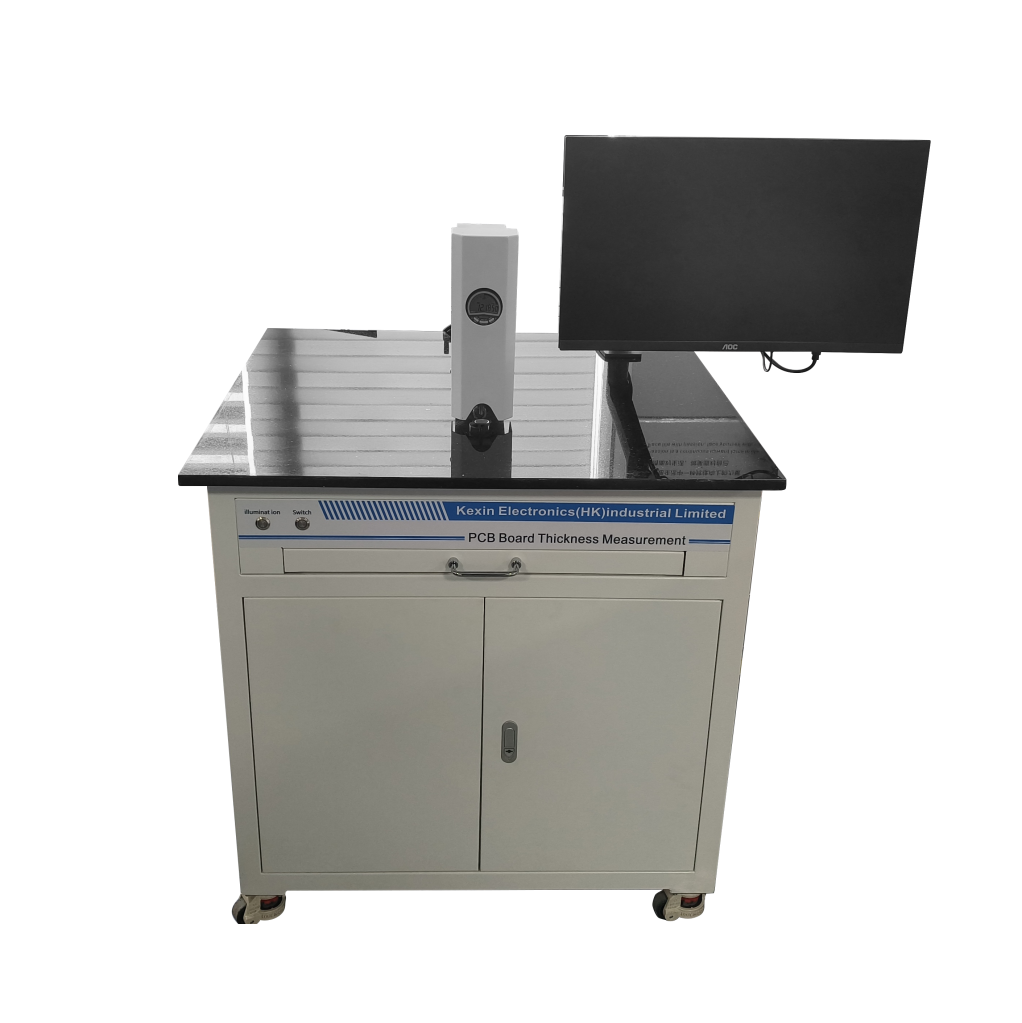

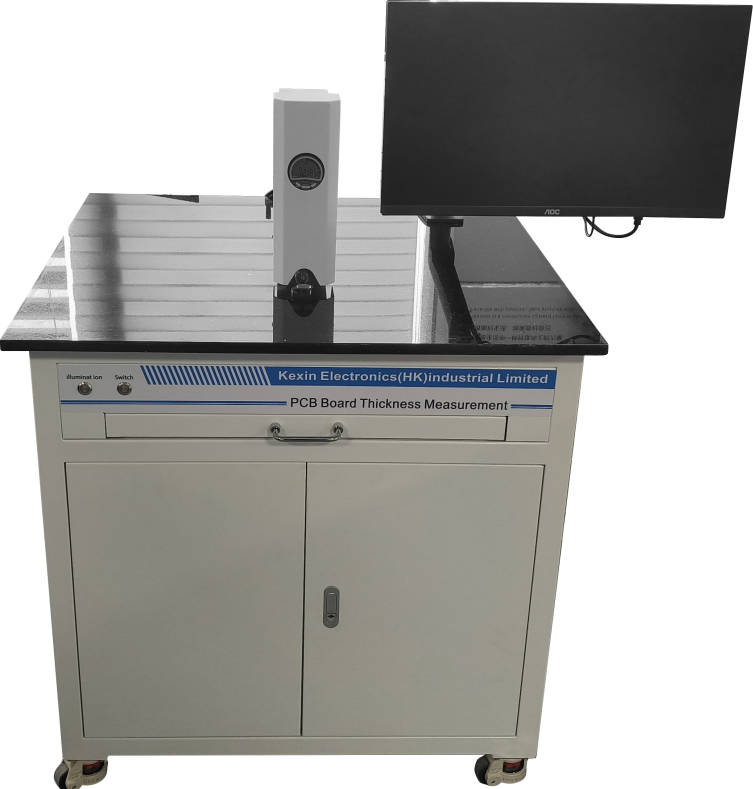

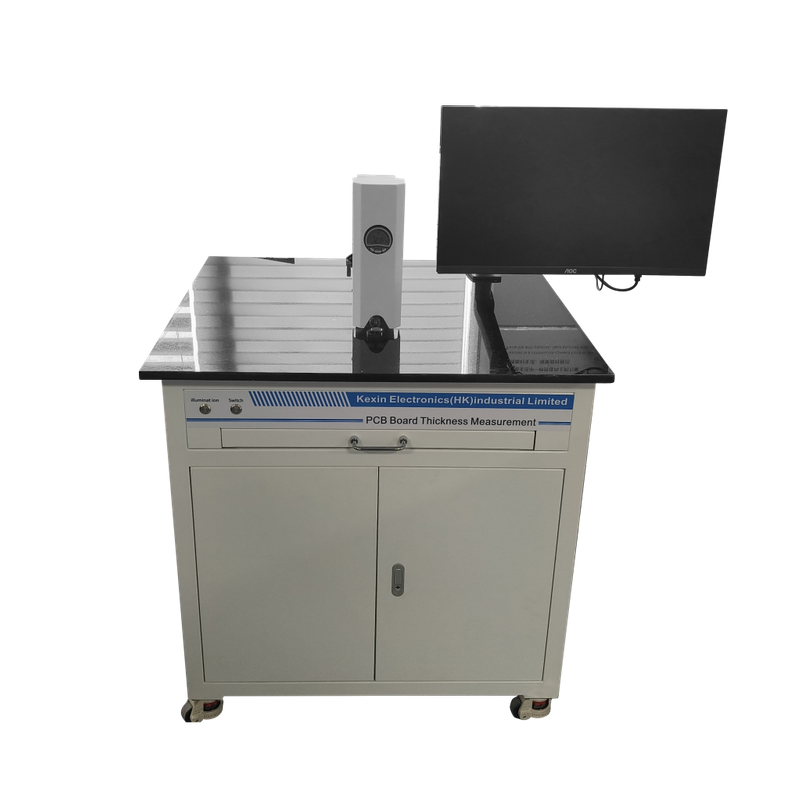

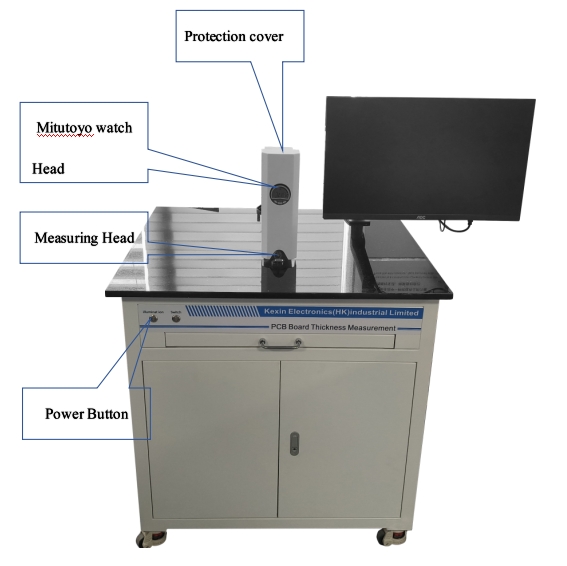

Director arm plate thickness tester is mainly used for copper clad laminate and multi-layer laminate thickness measurement, as well as other plate thickness measurement. High precision Japanese original imported Mitutoyo dial meter, can be measured data for a full range of process control data analysis.
Features：
1. The throat depth is large, can measure the thickness of the middle part of the large plate.
2. Using the original imported Japanese Mitutoyo measuring dial meter, high measurement accuracy.
3 .It can switch between mm/inch metric system and English system. It can "set zero" at any position.
4. Measurement data LCD screen display, very intuitive.
5. The desktop is granite, beautiful, high-grade, wear-resistant surface.
6 .Stable and reliable performance, simple operation, supporting data analysis software.
Machine Technical Parameters：
Project | Specifications |
Model number | KX-L550 |
Profile (width * depth * height) | 940(L)*890(W)*1208(H)mm |
Throat depth | 580 |
Plate thickness measuring range (mm) | 0 ~ 12.7 mm |
Table top size (mm) | 900 x 850 |
Measuring accuracy (mm) | + / - 0.003 mm |
Rated voltage/rated power | AC220V50~60Hz/500W |
Weight (Kg) | 160 |
Air source (Mpa) | 0.25-0.35 |
