In modern electronics manufacturing, precise board thickness control is critical to ensuring signal integrity, impedance stability, and mechanical reliability. The High-Precision PCB Board Thickness Measurement Machine (Deep Throat Plate Thickness Tester) is engineered to deliver rapid, non-destructive, and micron-level thickness verification for copper-clad laminates (CCL) and multi-layer printed circuit boards.

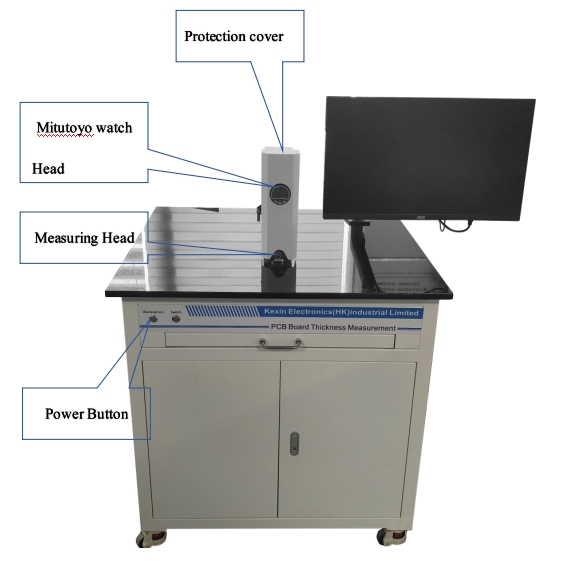

Extra-Deep Throat Design (580 mm): Designed with an extended direct-arm structure, allowing operators to effortlessly measure the center and edges of oversized panels and motherboards without physical obstruction.
Micron-Level Measuring Accuracy (±0.003 mm±0.003 mm): Equipped with an authentic Japanese Mitutoyo digital dial indicator, providing ultra-precise resolution across a 0−12.7 mm0−12.7 mm measuring range.
Wear-Resistant Granite Desktop (900×850 mm900×850 mm): Built on a heavy-duty natural granite base that ensures zero thermal deformation, excellent vibration dampening, and long-term dimensional stability.
Intuitive Digital Interface & Metric/Inch Switching: Features instant zero-setting at any position, seamless switching between millimeters and inches, and a high-contrast LCD display for clear data readouts.
Process Control & SPC Data Analysis: Supports integrated data communication software for real-time statistical process control (SPC), batch data logging, and quality traceability.
Copper Clad Laminate (CCL) Manufacturing: Accurate thickness grading and dielectric uniformity checks for rigid and flexible substrate sheets.
Multi-Layer PCB Lamination & Quality Control: Verifying board thickness consistency after pressing, etching, and surface finishing processes.
Incoming Material Quality Inspection (IQC): Fast, reliable batch sampling of incoming raw PCB panels in electronics assembly and SMT facilities.
Metrology & Reliability Laboratories: Precision dimensional verification for high-density interconnect (HDI) and automotive-grade circuit boards.
Combining robust granite construction with industry-leading digital metrology, this thickness measurement machine minimizes human measurement error, accelerates inspection cycle times, and ensures compliance with strict IPC quality standards.
Contact our technical engineering team today to request detailed specifications, customized testing fixtures, or a competitive quote.
