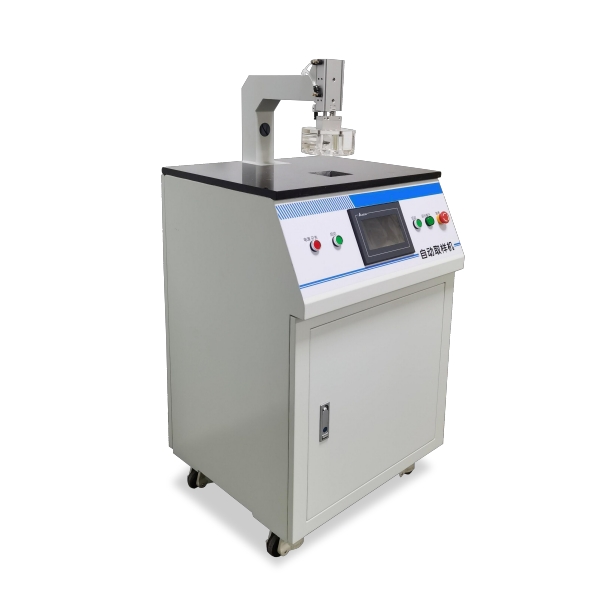

KX-S275
Product features:
1) Adopt high-quality pneumatic components and precision X-Y working platform for transmission, with high accuracy, small vibration and low noise.
2) The precision high-speed motorized spindle is prepared with high precision.
3) Full touch screen operation panel, which can store 1-12 groups of data at a glance.
4) The sample size range is adjustable and the applicability is wide.
5) The thickness of the sample is as high as 8mm (the copper layer is less than 16 layers), which can be applied to various multilayer circuit board manufacturers. If there are more than 16 copper layers and the total thickness of copper layers is not more than 1mm, a drilling machine can be used to pre-drill.
6) The sampler adopts drilling and milling method, which avoids the deformation of the sample and ensures the test accuracy.
7) Flexible design, can be manufactured according to the special size requirements of customers.
Technical parameters：
| Projects | Specifications |
| Maximumsampling size | 50*50*8mm |
| Maximum sample width | 500mm |
| Spindle speed | 30000r/min |
| Milling Cutter Specification | 2.0 |
| Power supply | AC110V 50Hz |
| Apparent size | 600*500*1180mm |
| Vacuum cleaner | 1000W |
