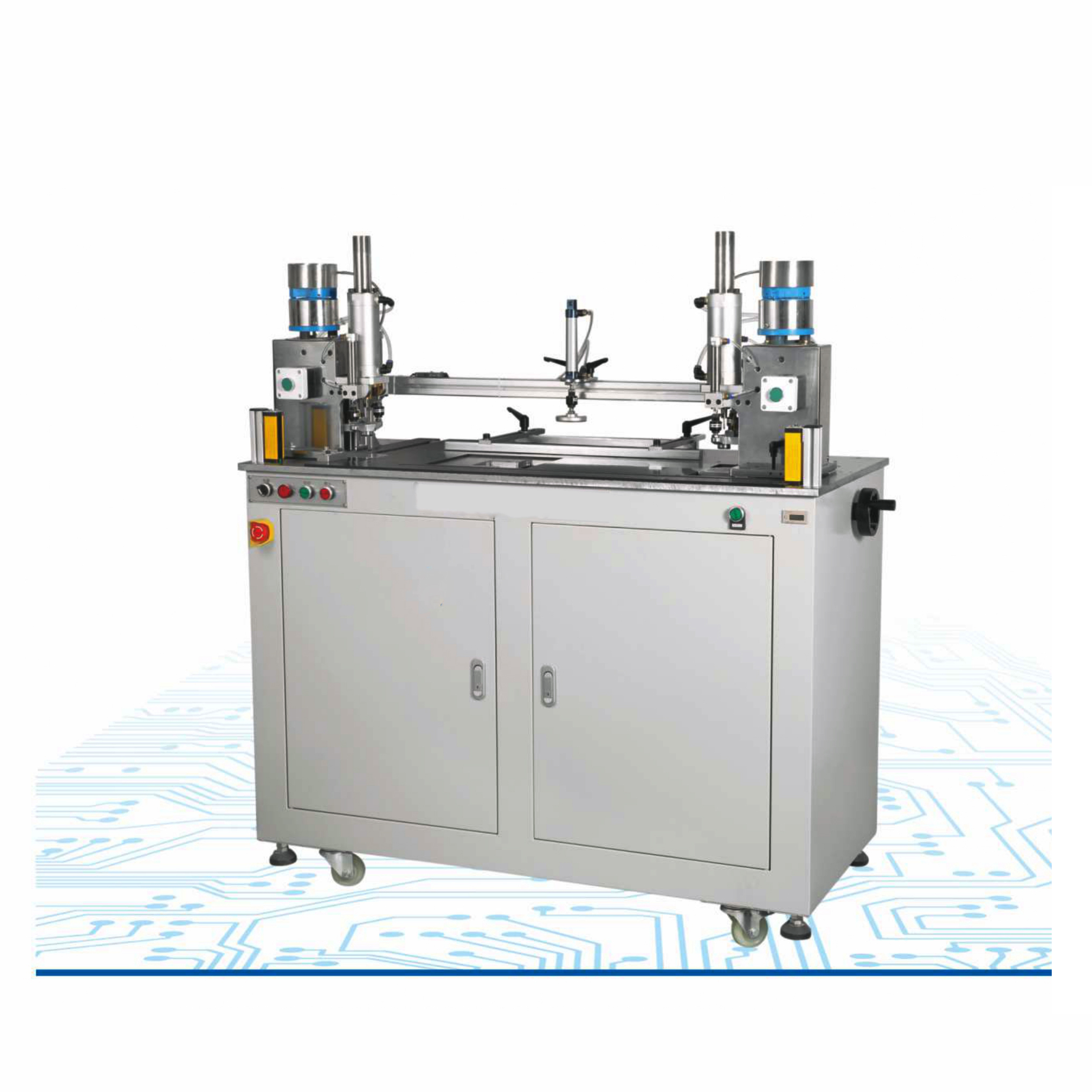

Multilayer Board Two Pin Mounting Machine Electronic Products Machinery

1.Using Japan Mitsubishi(PLC) control performance is stable, safe and reliable, delicate vibration plate system automatically send PIN,quality to the level of similar foreign products.
2.The supporting table is steel plate plated and covered with imported anti-static insulation board.
3.Easy and fast operation, the left and right dimension adjustment of the processing plate adopts precision joint venture linear slide rail or ball screw drive.
4.Upper PIN height can be adjusted according to production needs.
5.Dual-hand button operation and safe light screen.
6.Sending PIN The vibration panel automatically sends a PIN or manually sends a PIN.
Availability:
Quantity:
Inquire Add to Basket

  • Multilayer Board Two Pin Mounting Machine


Multilayer Board Two Pin Mounting Machine Electronic Products Machinery

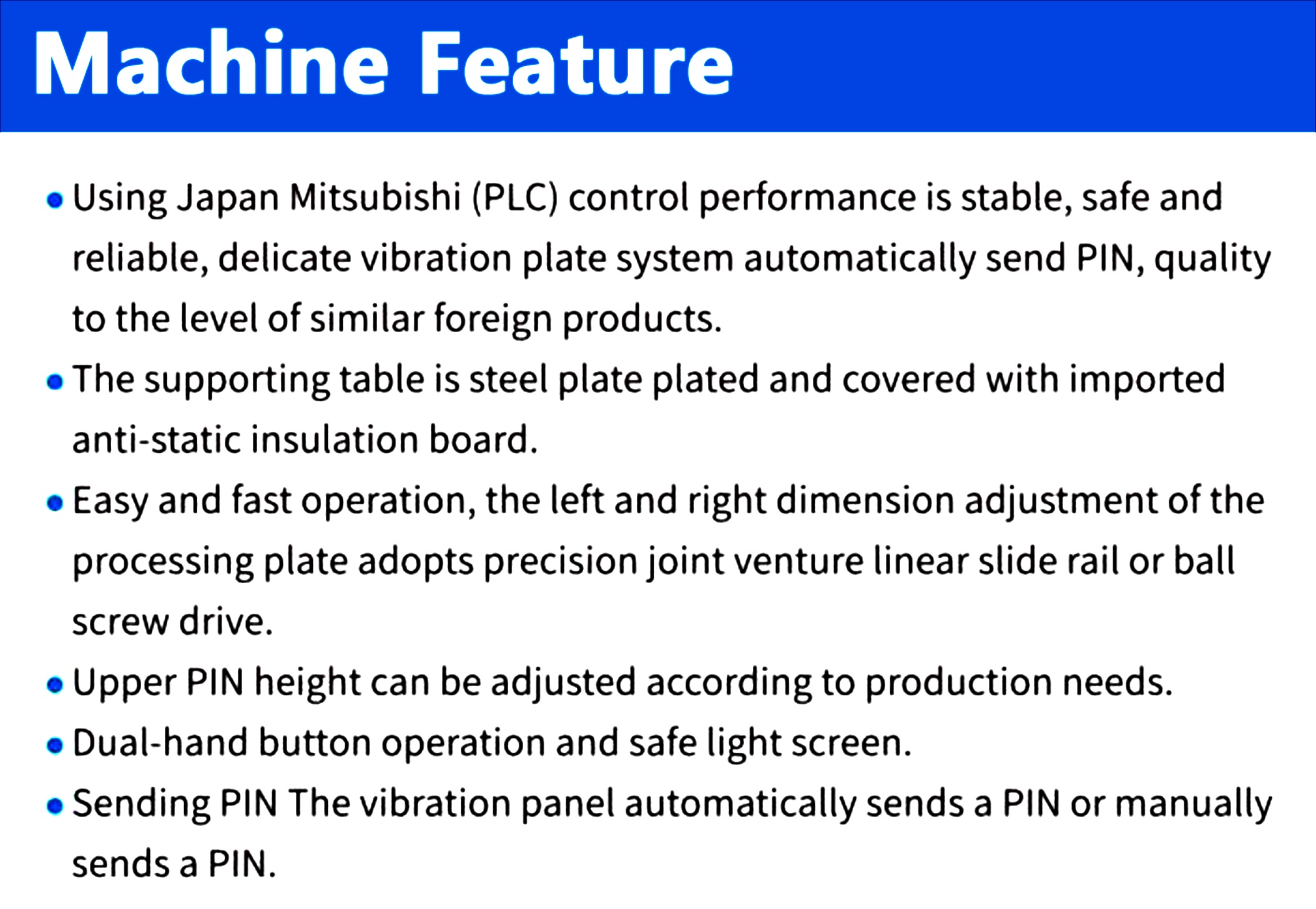

Features:

  1. Using Japan Mitsubishi(PLC) control performance is stable, safe and reliable, delicate vibration plate system automatically send PIN,quality to the level of similar foreign products.

  2. The supporting table is steel plate plated and covered with imported anti-static insulation board.

  3. Easy and fast operation, the left and right dimension adjustment of the processing plate adopts precision joint venture linear slide rail or ball screw drive.

  4. Upper PIN height can be adjusted according to production needs.

  5. Dual-hand button operation and safe light screen.

  6. Sending PIN The vibration panel automatically sends a PIN or manually sends a PIN.


2revizepic_1756801902944

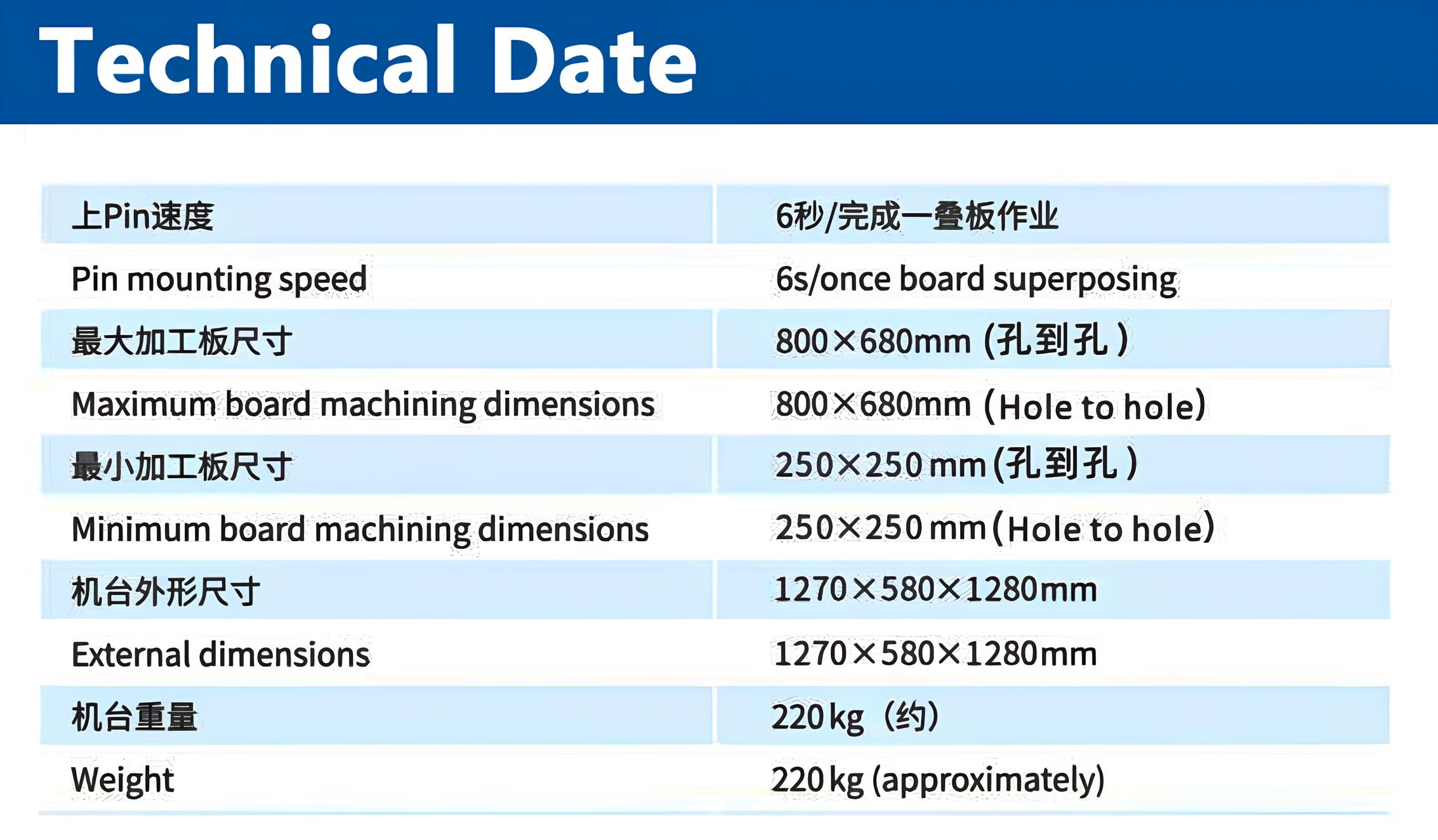

                                                                PCB Pin Machine Technical Date
Pin mounting speed 6s/once board superposing
Maximum board machining dimensions 800×680mm (Hole to hole)
Minimum board machining dimensions 250×250mm (Hole to hole)
External dimensions 1270×580×1280mm
Weight 220kg (approximately)


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



222 OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
