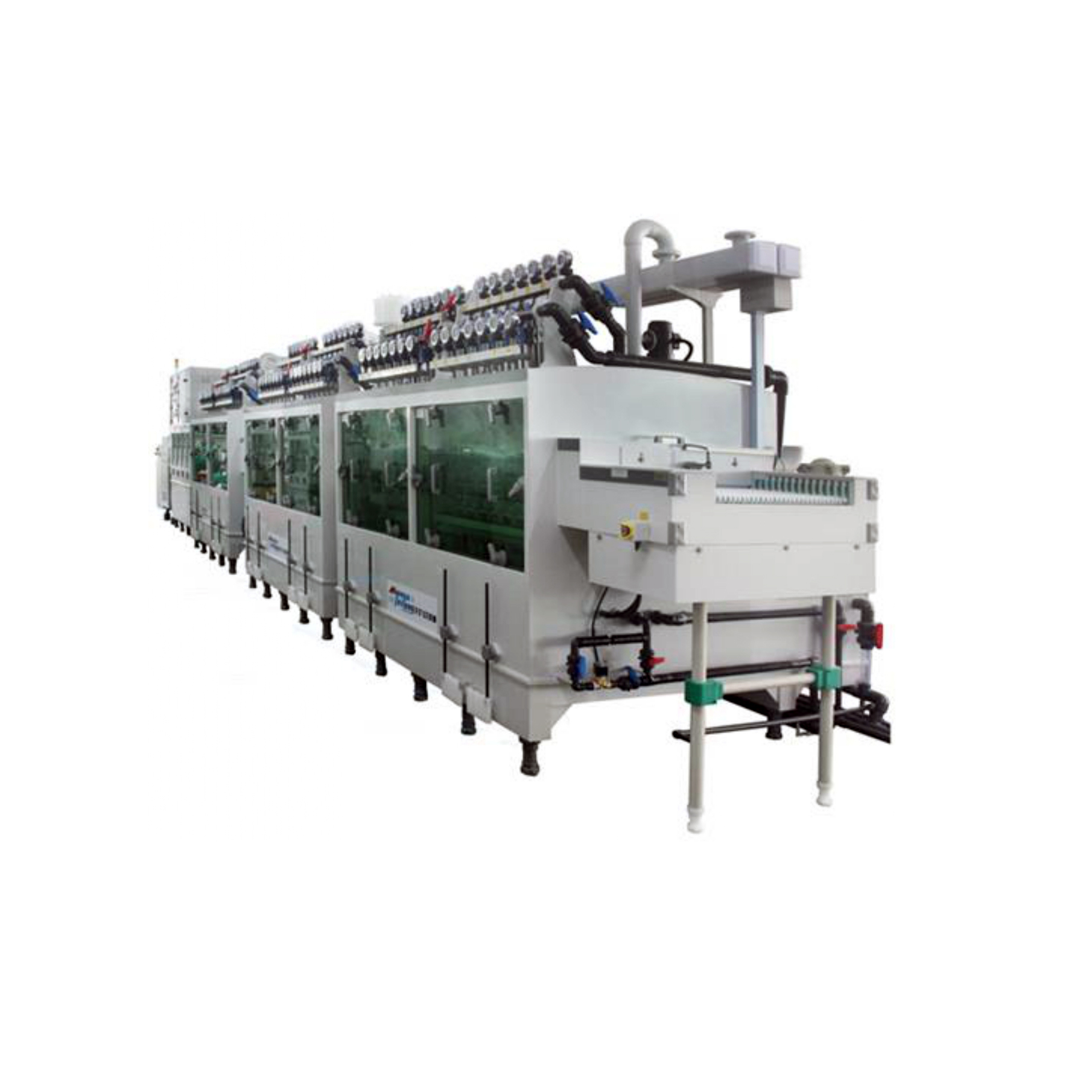

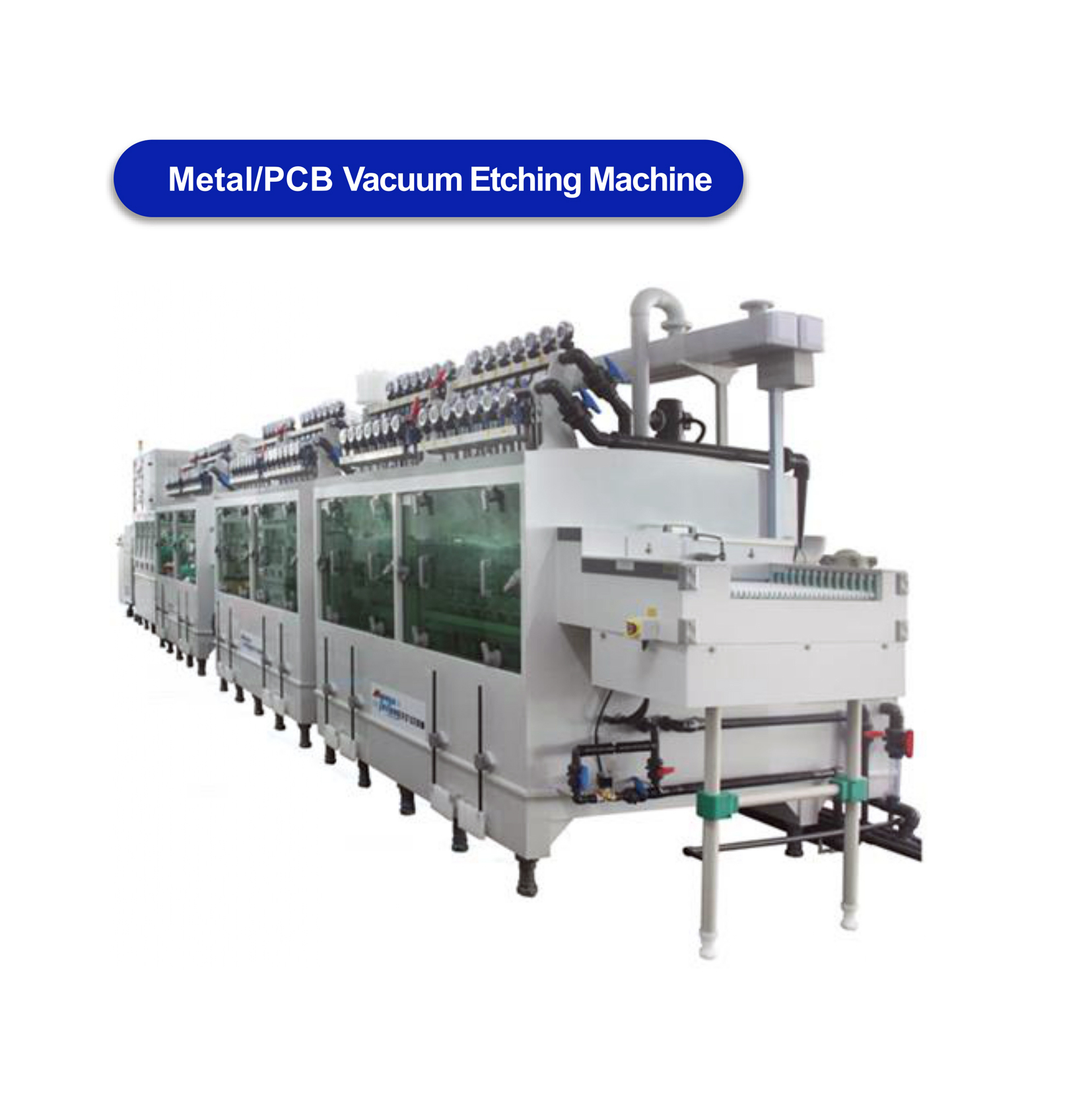

Metal/PCB Vacuum Etching Machine
Features:
1. No board shutdown function, free to set the boardless shutdown time,which helps to save water and electricity;
2. Overheating protection function, when the heating section exceeds the set temperature, an alarm will be issued;
3. Liquid level alarm function, the liquid level is too high to send an alarm;
4. The swing is upgraded, the diameter is thickened, the wear-resistant sheet is added, the swing is stable, and the spraying is more uniform.

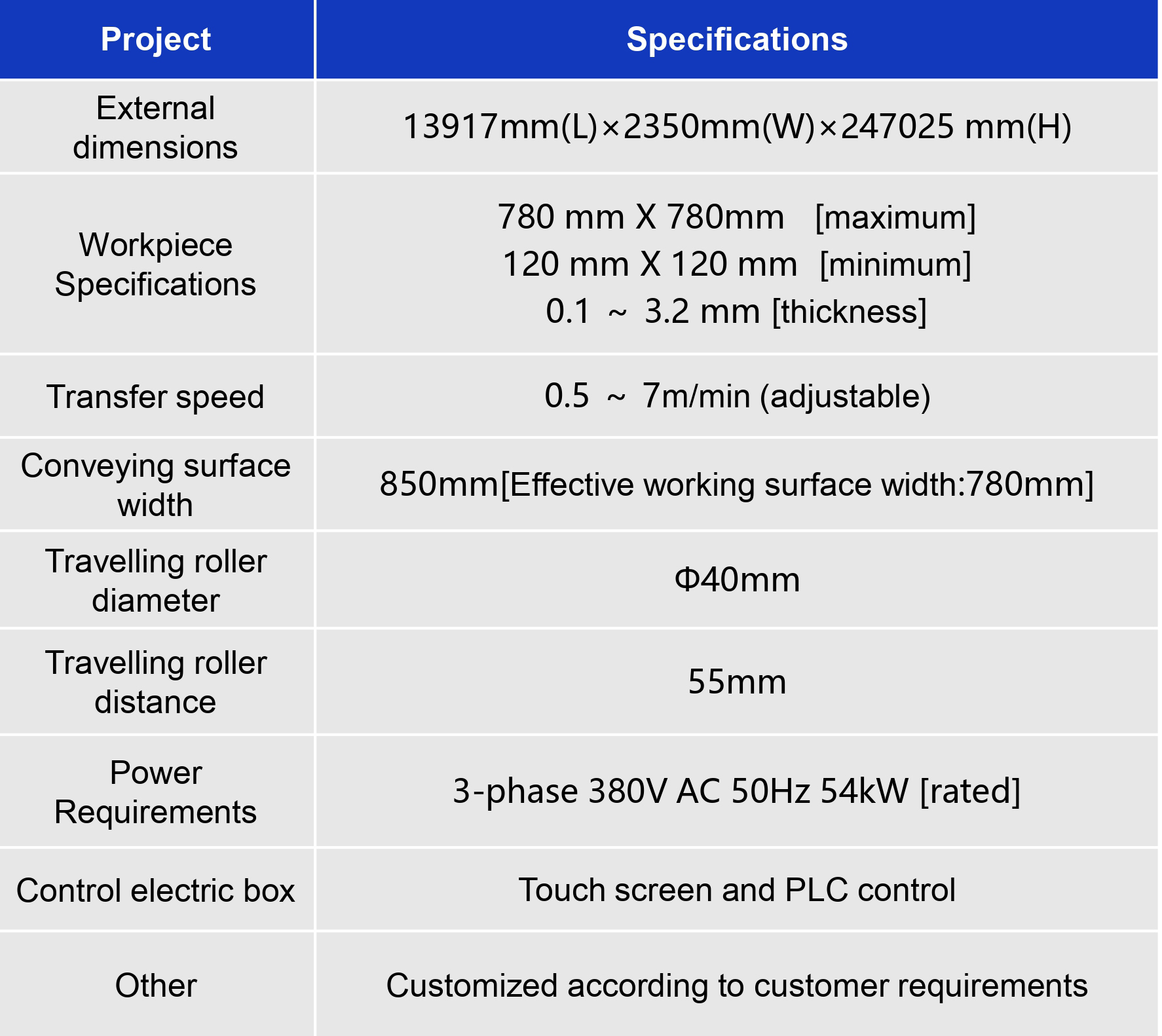

| Project | Specifications |
| External dimensions | 13917mm(L)x2350mm(W)x247025 mm(H) |
| Workpiece Specifications | 780 mm X 780mm [maximum] 120 mm X120 mm [minimum] 0.1 ~ 3.2 mm [thickness] |
| Transfer speed | 0.5 ~ 7m/min (adjustable) |
| Conveying surface width | 850mm[Effective working surface width:780mm] |
| Travelling roller diameter | 40mm |
| Travelling roller distance | 55mm |
| Power Requirements | 3-phase 380V AC 50Hz 54kW [rated] |
| Control electric box | Touch screen and PLC control |
| Other | Customized according to customer requirements |

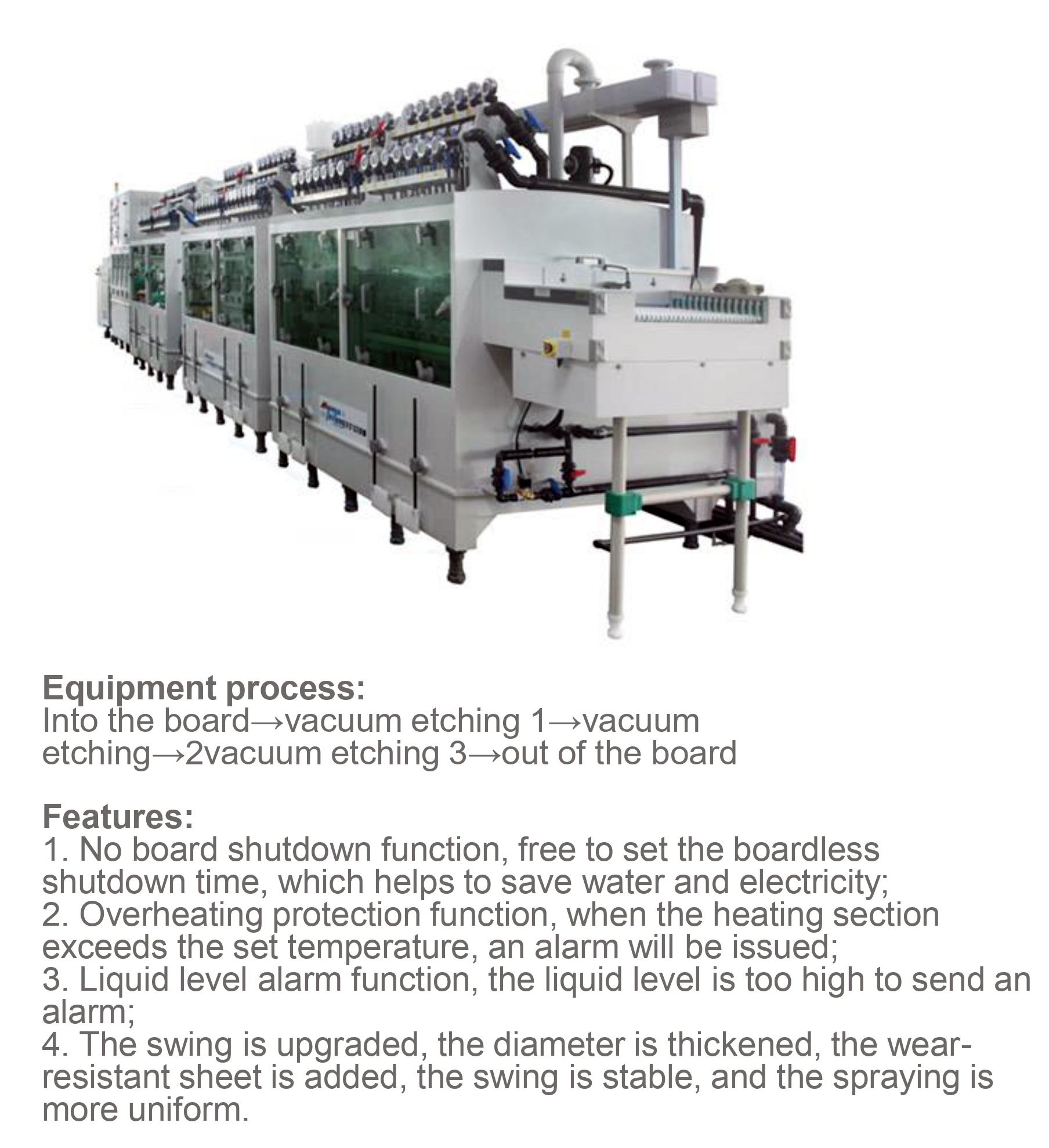

Equipment process:
Into the board→vacuum etching1→vacuum etching→2vacuum etching 3→out of the board
Features:
1. No board shutdown function, free to set the boardless shutdown time,which helps to save water and electricity;
2. Overheating protection function, when the heating section exceeds the set temperature, an alarm will be issued;
3. Liquid level alarm function, the liquid level is too high to send an alarm;
4. The swing is upgraded, the diameter is thickened, the wear-resistant sheet is added, the swing is stable, and the spraying is more uniform.
| Project | Specifications |
| External dimensions | 13917mm(L)x2350mm(W)x247025 mm(H) |
| Workpiece Specifications | 780 mm X 780mm [maximum] 120 mm X120 mm [minimum] 0.1 ~ 3.2 mm [thickness] |
| Transfer speed | 0.5 ~ 7m/min (adjustable) |
| Conveying surface width | 850mm[Effective working surface width:780mm] |
| Travelling roller diameter | 40mm |
| Travelling roller distance | 55mm |
| Power Requirements | 3-phase 380V AC 50Hz 54kW [rated] |
| Control electric box | Touch screen and PLC control |
| Other | Customized according to customer requirements |
Equipment process:
Into the board→vacuum etching1→vacuum etching→2vacuum etching 3→out of the board
