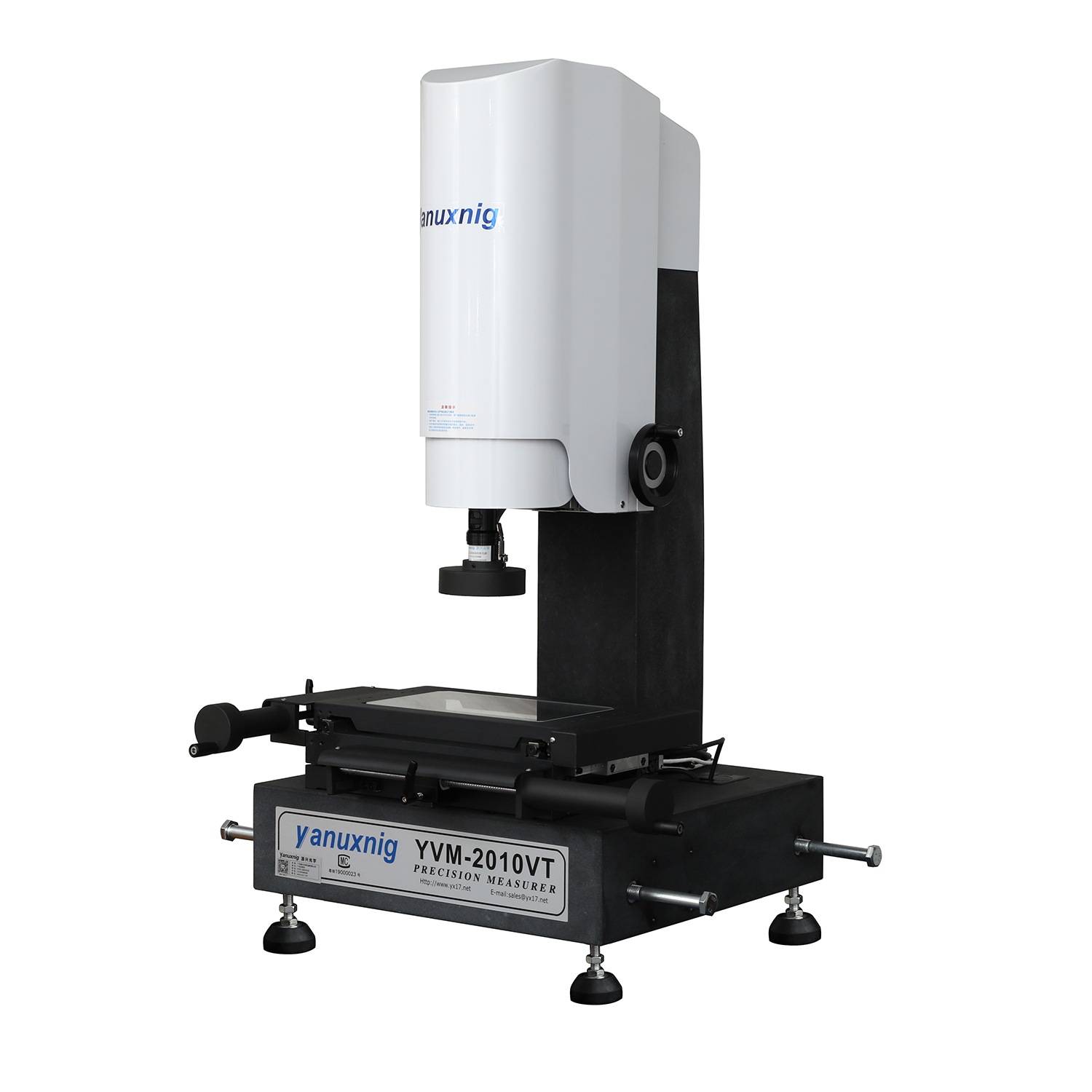

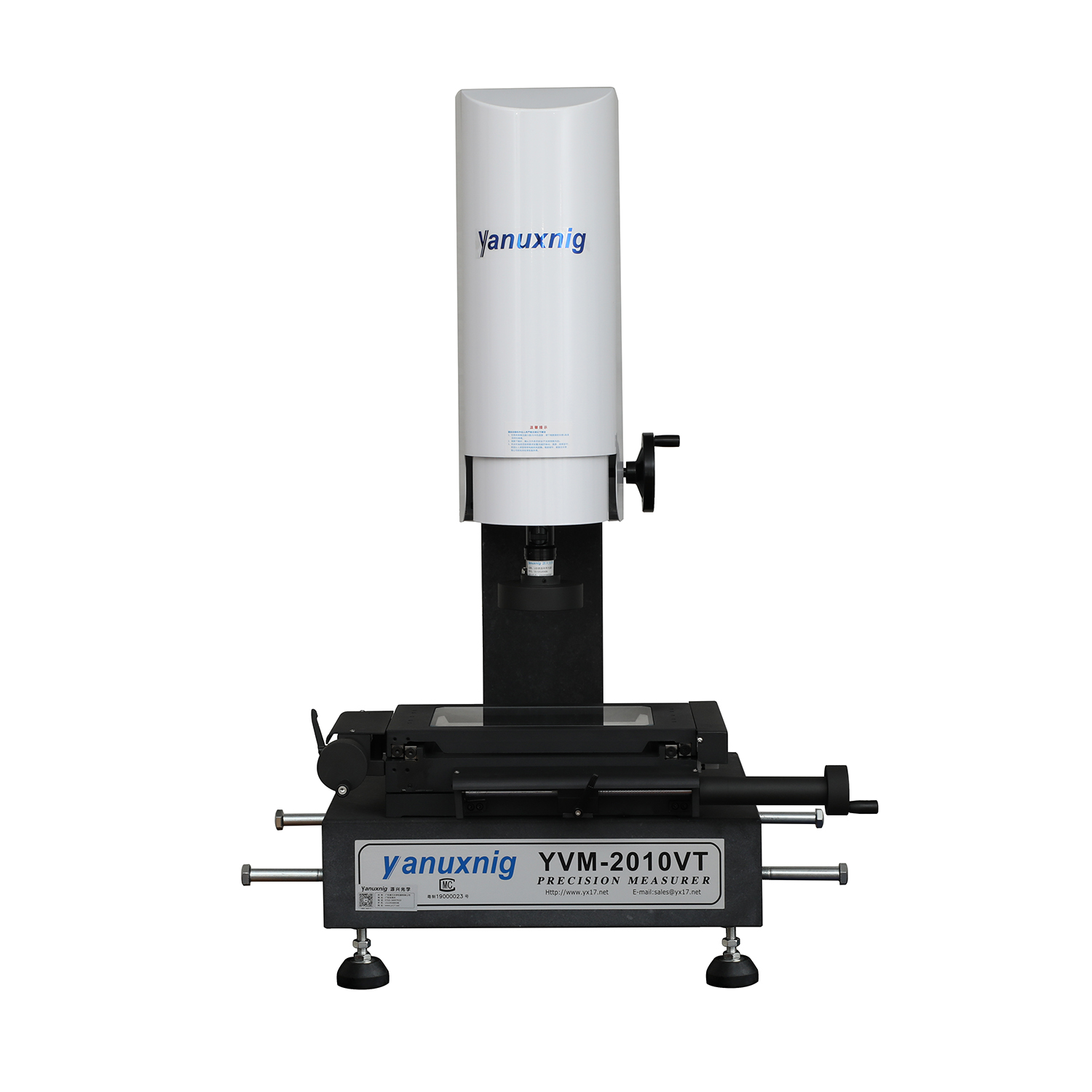

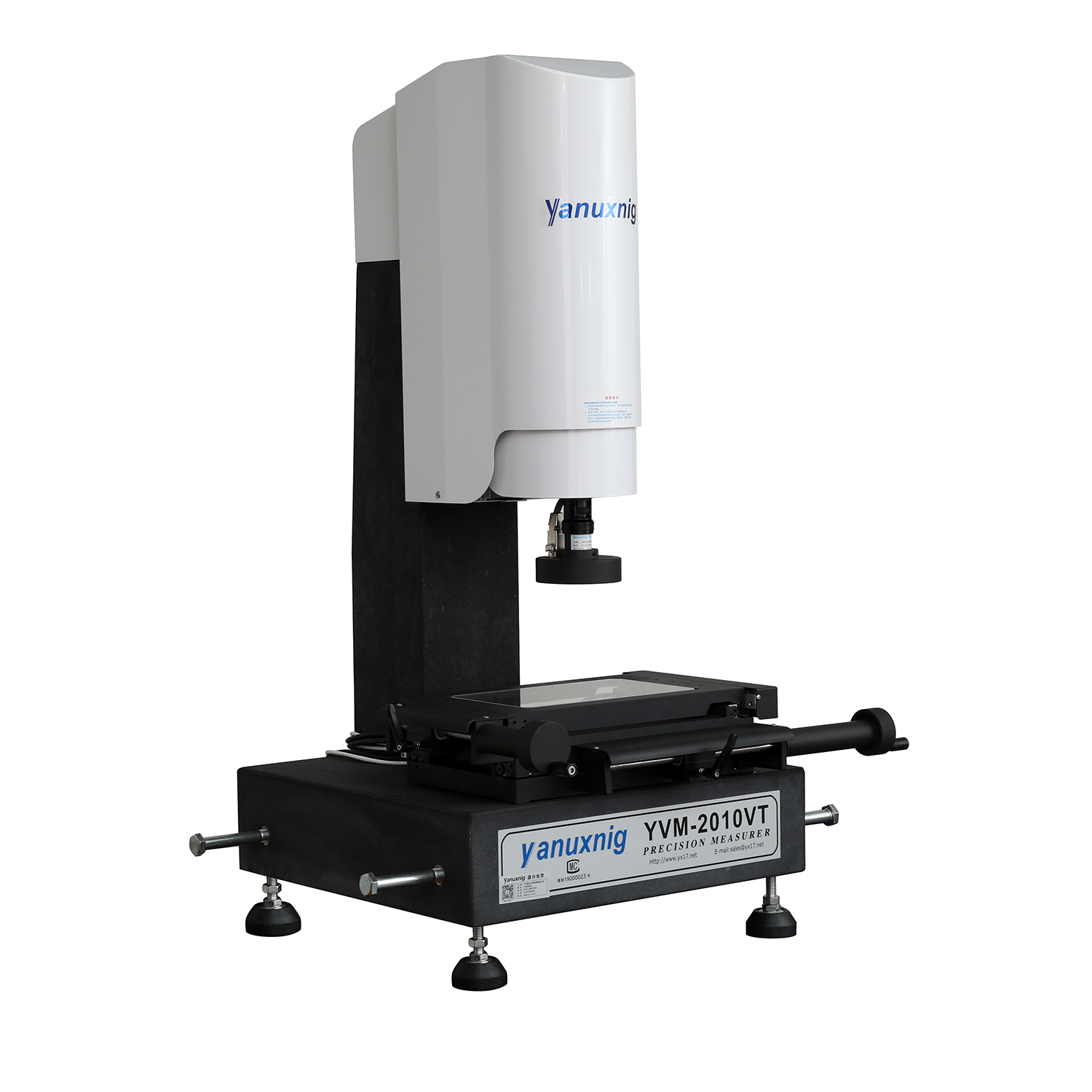

Manual Image Measuring Instrument PCB Measuring Machine

Image Measuring Instrument is widely used in industries such as precision metalwork, mobile phone glass, electronics, mold making, and plastics for efficient and accurate large-scale work measurements.
YVM:
2010VT
3020VT
4030VT
5040VT
Availability:
Quantity:
Inquire Add to Basket

  • YVM-

Manual Image Measuring Instrument

0X9A02410X9A0246


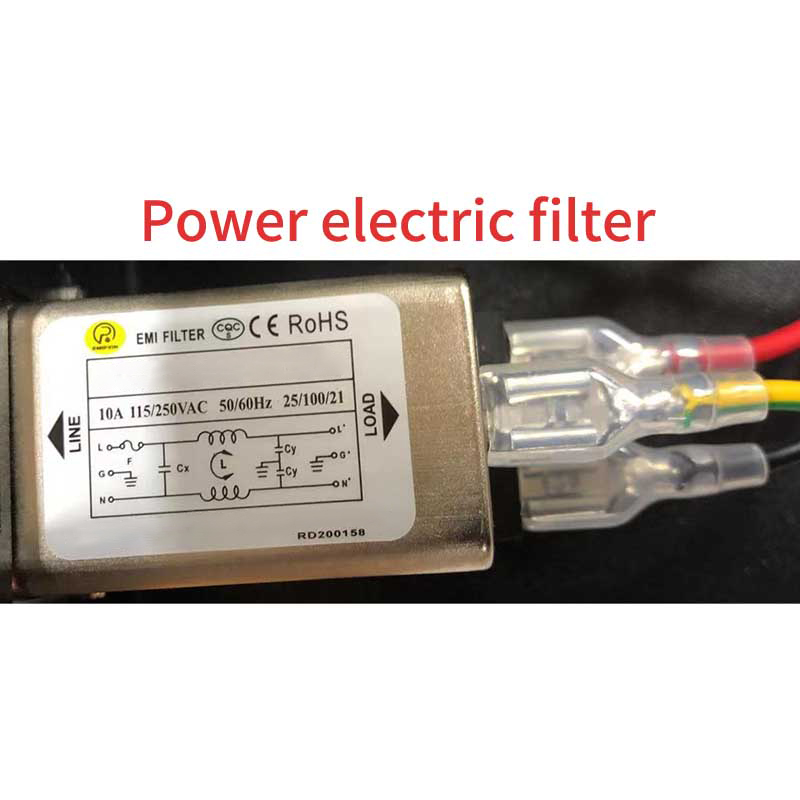

ca9200300addaed411ac3bcc787ba275

9a3ca44debc625c980cf022d3f785229

161d1113c96d5bf3bd92792c36fa4d29

cf03c95e7f87f7786112aa9a10ccb1d7

Manual Image Measuring Instrument Feature

  1. Specialized YR-CSPC measurement software.

  2. The machine is constructed with granite, ensuring excellent stability, temperature resistance, and corrosion resistance.

  3. The workbench features a grade 000 marble platform, offering excellent wear resistance and deformation resistance.

  4. Glass grating scale with 0.5μm accuracy.

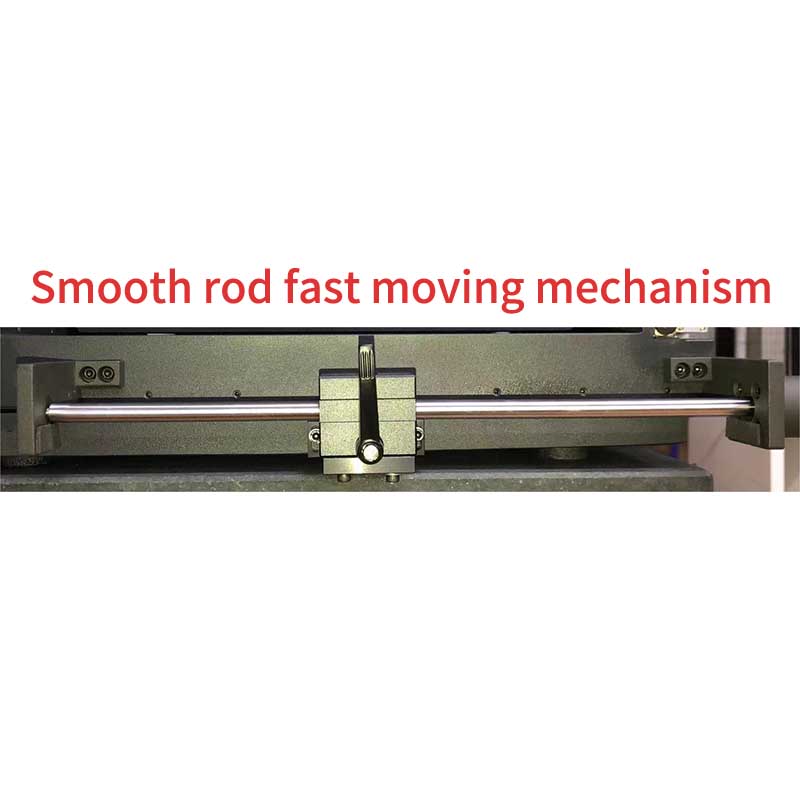

  5. The three axes employ V-shaped guides and lead screws.

  6. Equipped with a 0.7-4.5X manual zoom lens.

  7. A contact probe can be installed for Z-axis measurement


 Measuring Machine Main Parameters

Project Main                                                Technical Parameters
Instrument Model YVM-2010VT YVM-3020VT YVM-4030VT YVM-5040VT
Measurement Range 200x100x200 300x200×200mm   400x300x200mm   500×400x200mm
Overall Dimensions 600x550x950 650x600x1650mm  850x800x1650mm   950x850x1650mm
Instrument Weight 160kg 180kg  250kg  350kg
Measurement Accuracy X,Y-axis: (3+L/200)μm Z-axis: (5+L/200)μm
Repeatability Accuracy  3μm
Glass Bearing Capacity 50 kg
Magnification Optical Magnification 0.7~4.5X Image Magnification 24～156X (expandable to 30-312X)
Resolution Glass Scale Resolution 0.5μm

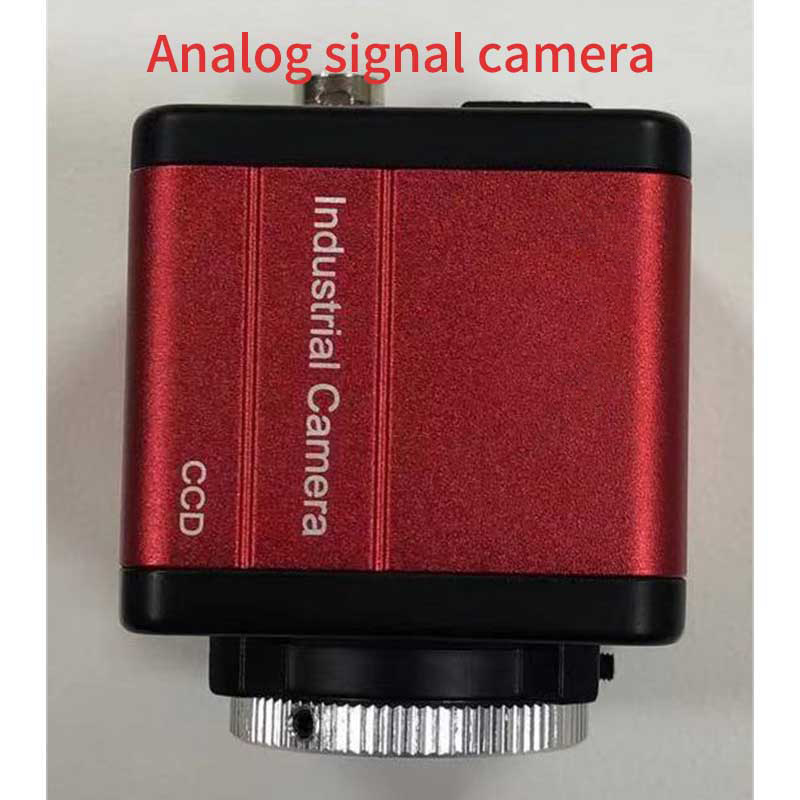

 CCD  760-line HD color camera

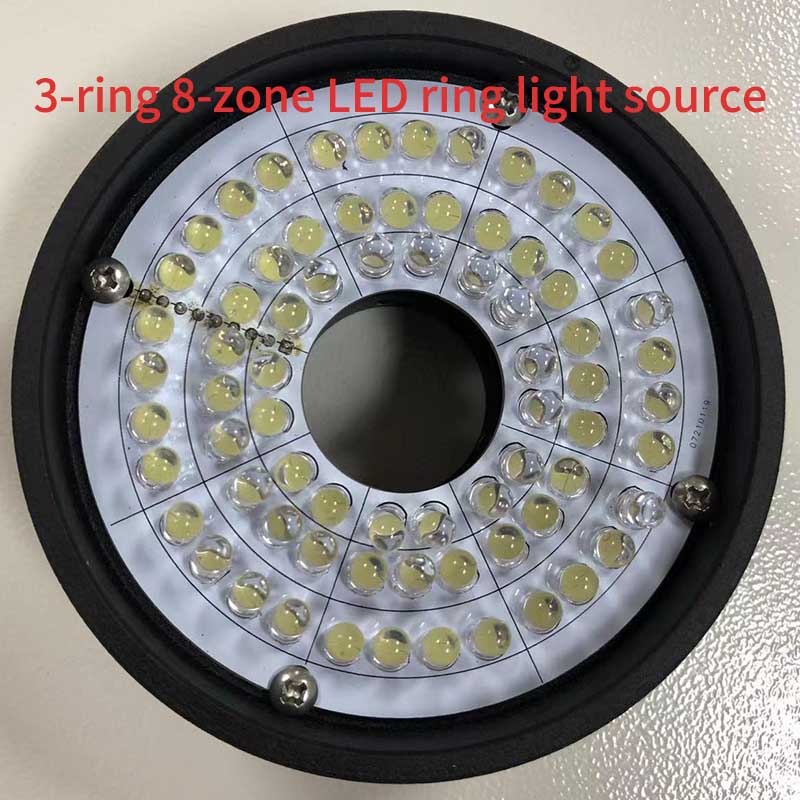

Upper Light Source Triple-ring eight-zone LED cold light source, adjustable brightness
Lower Light Source Parallel light path LED cold light source, adjustable brightness
Measurement Software YR-CSPC
Optional Components MCP probe, coaxial lens, doubled objective lens
Power Supply   220V/50Hz/10A


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.
