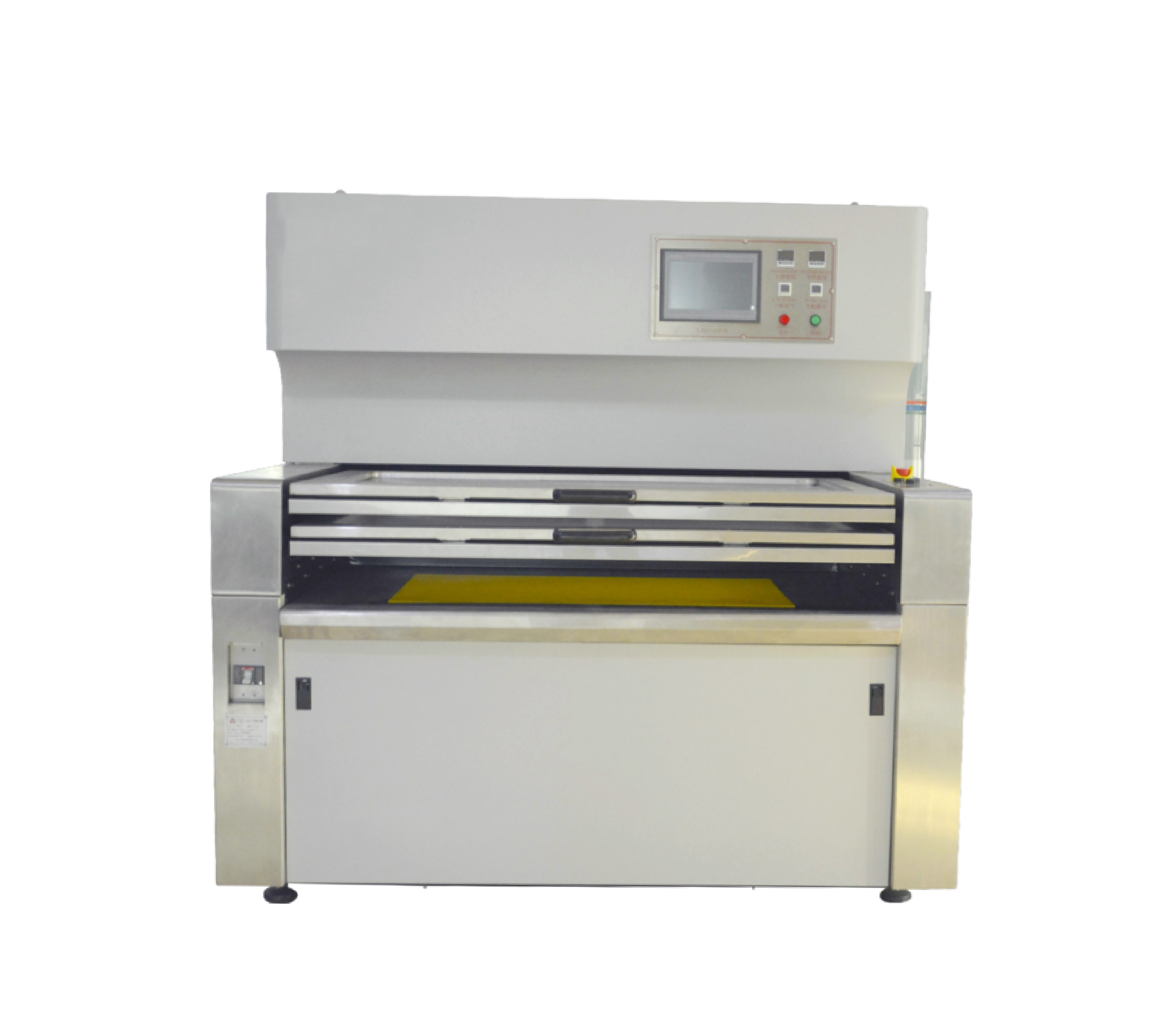

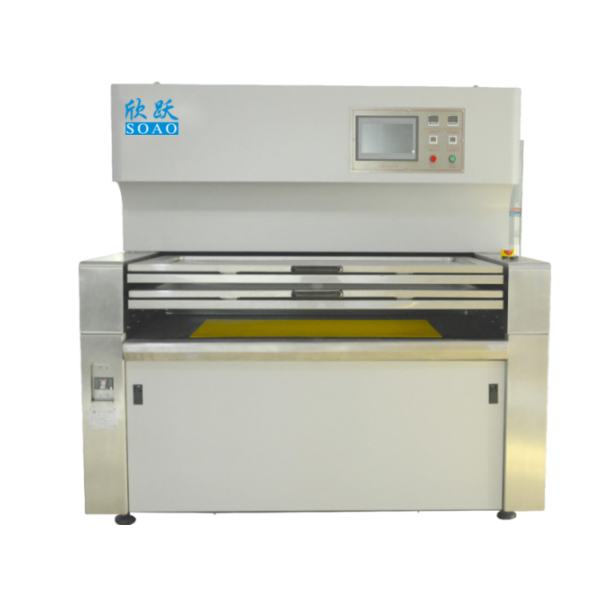

MANUAL UV-LED Double Side EXPOSURE MACHINE

◆ Suitable For : Dry Film,Wet Film,Solder Mask

◆ High Resolution: 75μm

◆ High Resolution 3mi/3mil(75um/75um).

◆ English And Russian Operating System
Availability:
Quantity:
Inquire Add to Basket


MANUAL UV-LED  Double Side EXPOSURE MACHINE

1



Features：


◆ Suitable For : Dry Film,Wet Film,Solder Mask

◆ High Resolution: 75μm

◆ High Resolution 3mi/3mil(75um/75um).

◆ English And Russian Operating System

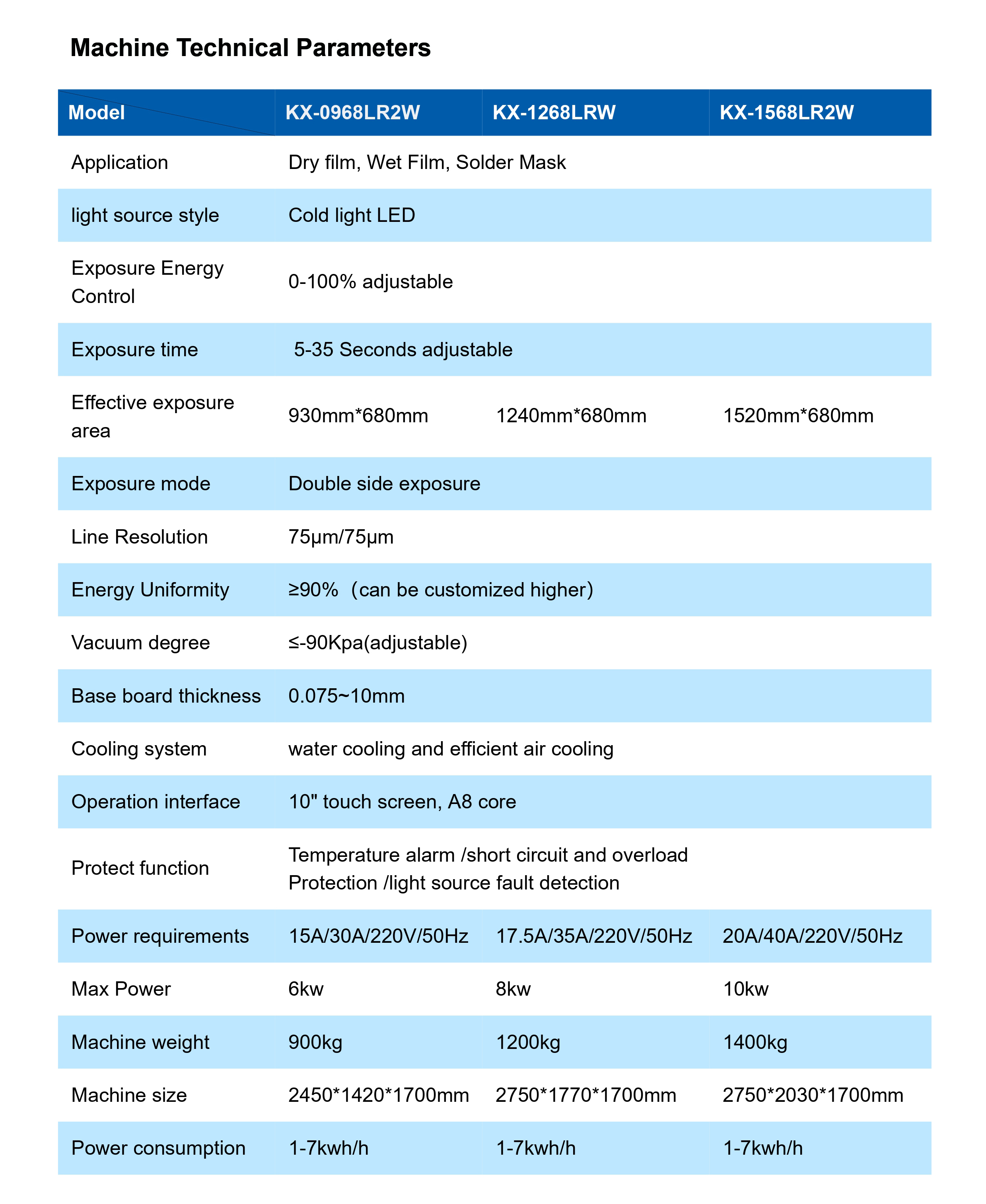

Machine Technical Parameters：

Model

KX-0968LR2W                 KX-1268LRW                   KX-1568LR2W

Application

Dry film, Wet Film, Solder Mask

light source style

Cold light LED

Exposure Energy

Control


0-100% adjustable

Exposure time

5-35 Seconds adjustable

Effective exposure

area


930mm*680mm              1240mm*680mm               1520mm*680mm

Exposure mode

Double side exposure

Line Resolution

75μm/75μm

Energy Uniformity

≥90%（ can be customized higher）

Vacuum degree

≤-90Kpa(adjustable)

Base board thickness

0.075~10mm

Cooling system

water cooling and efficient air cooling

Operation interface

10" touch screen, A8 core


Protect function

Temperature alarm /short circuit and overload

Protection /light source fault detection

Power requirements

15A/30A/220V/50Hz      17.5A/35A/220V/50Hz         20A/40A/220V/50Hz

Max Power

6kw                                 8kw                                    10kw

Machine weight

900kg                             1000kg                                1100kg

Machine size

2450*1420*1700mm       2750*1770*1700mm          2750*2030*1700mm

Power consumption

1-7kwh/h                         1-7kwh/h                             1-7kwh/h
