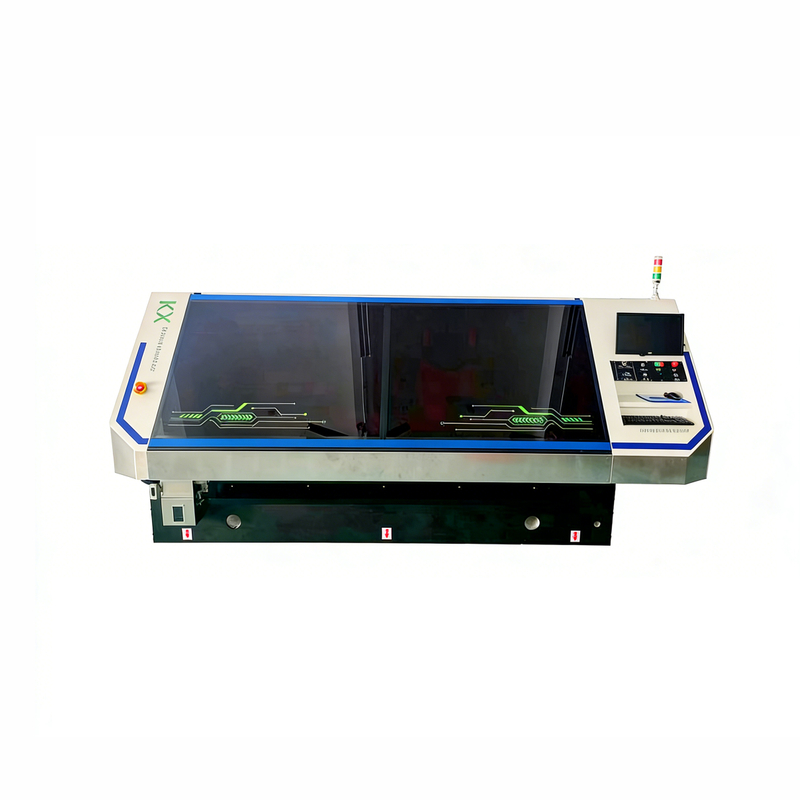

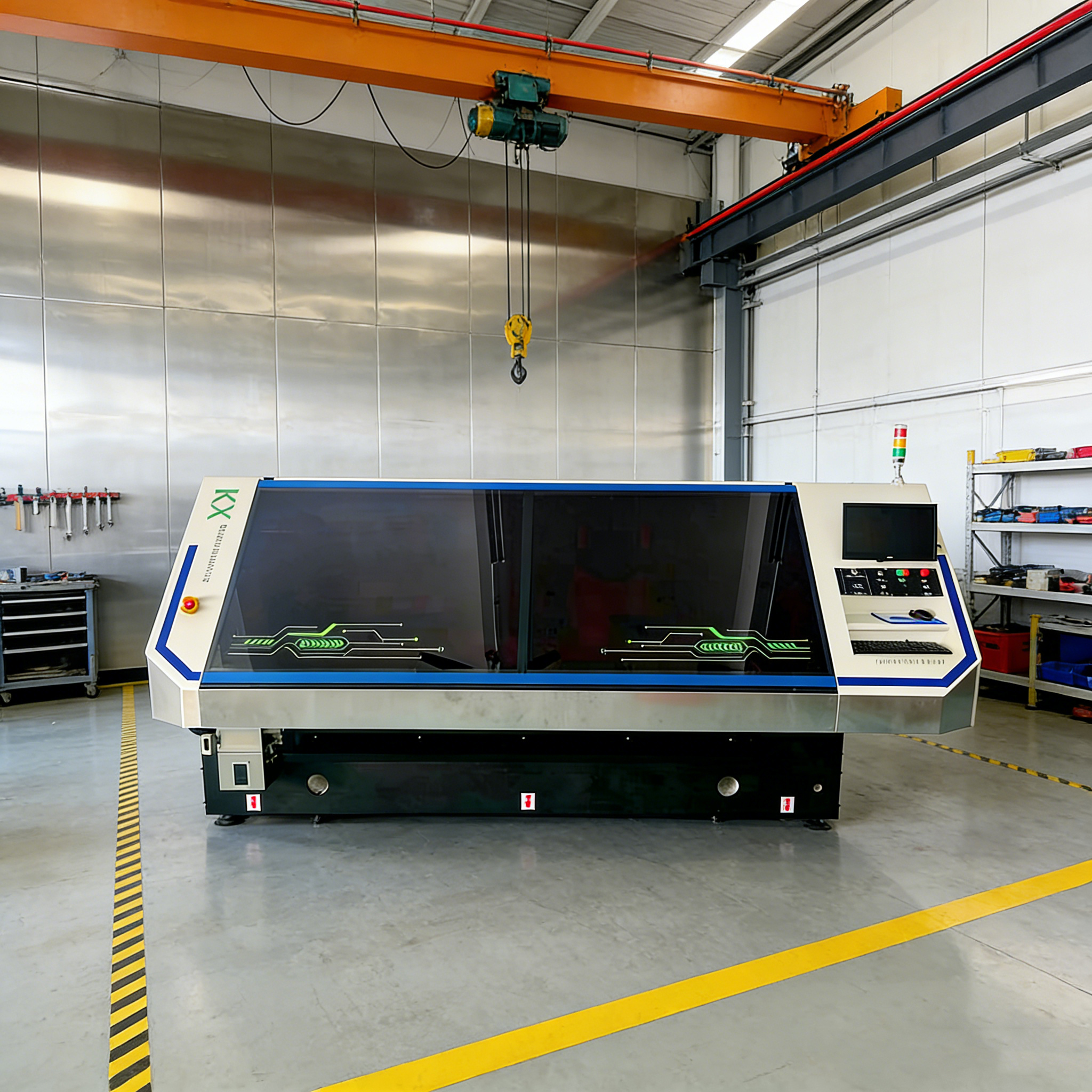

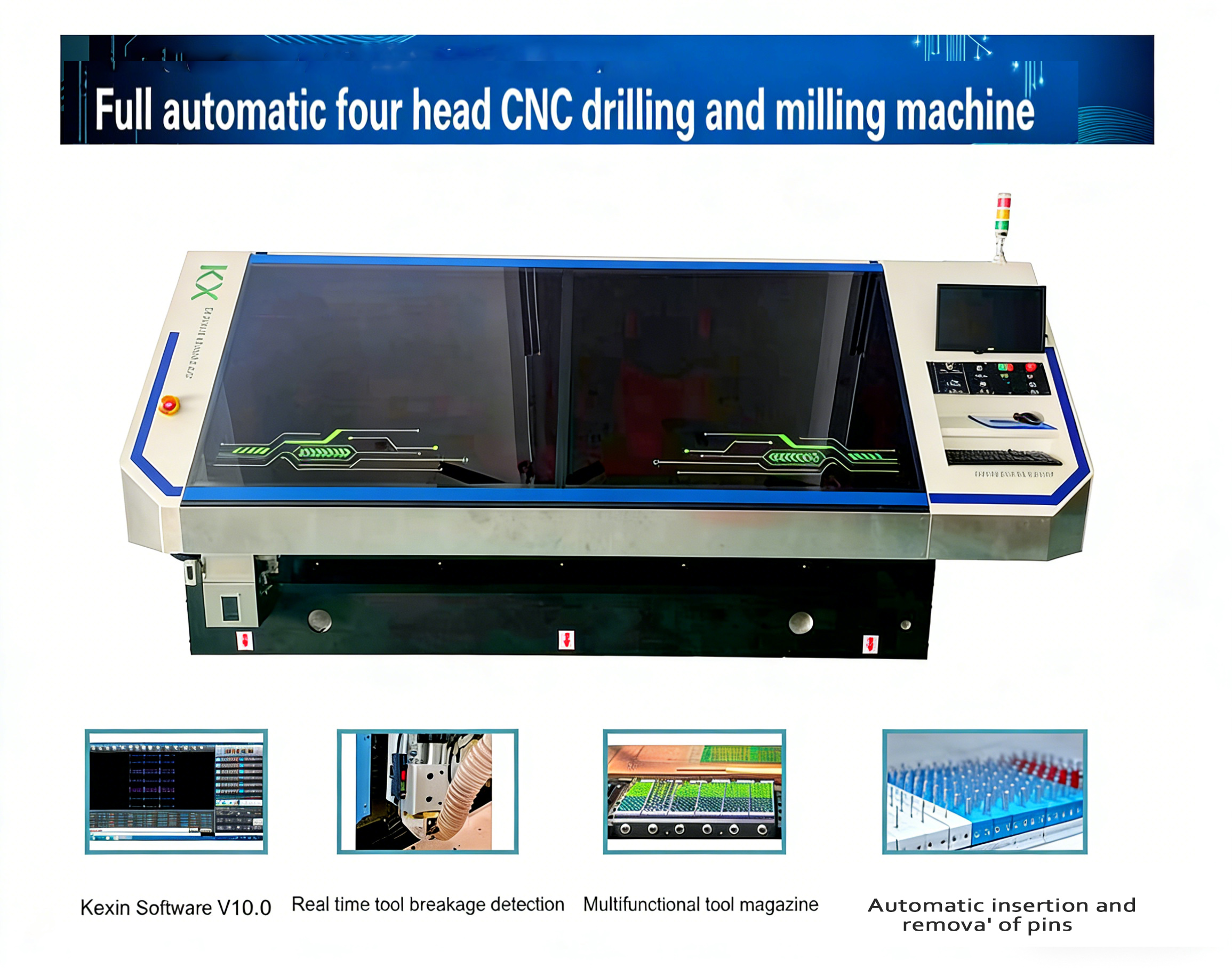

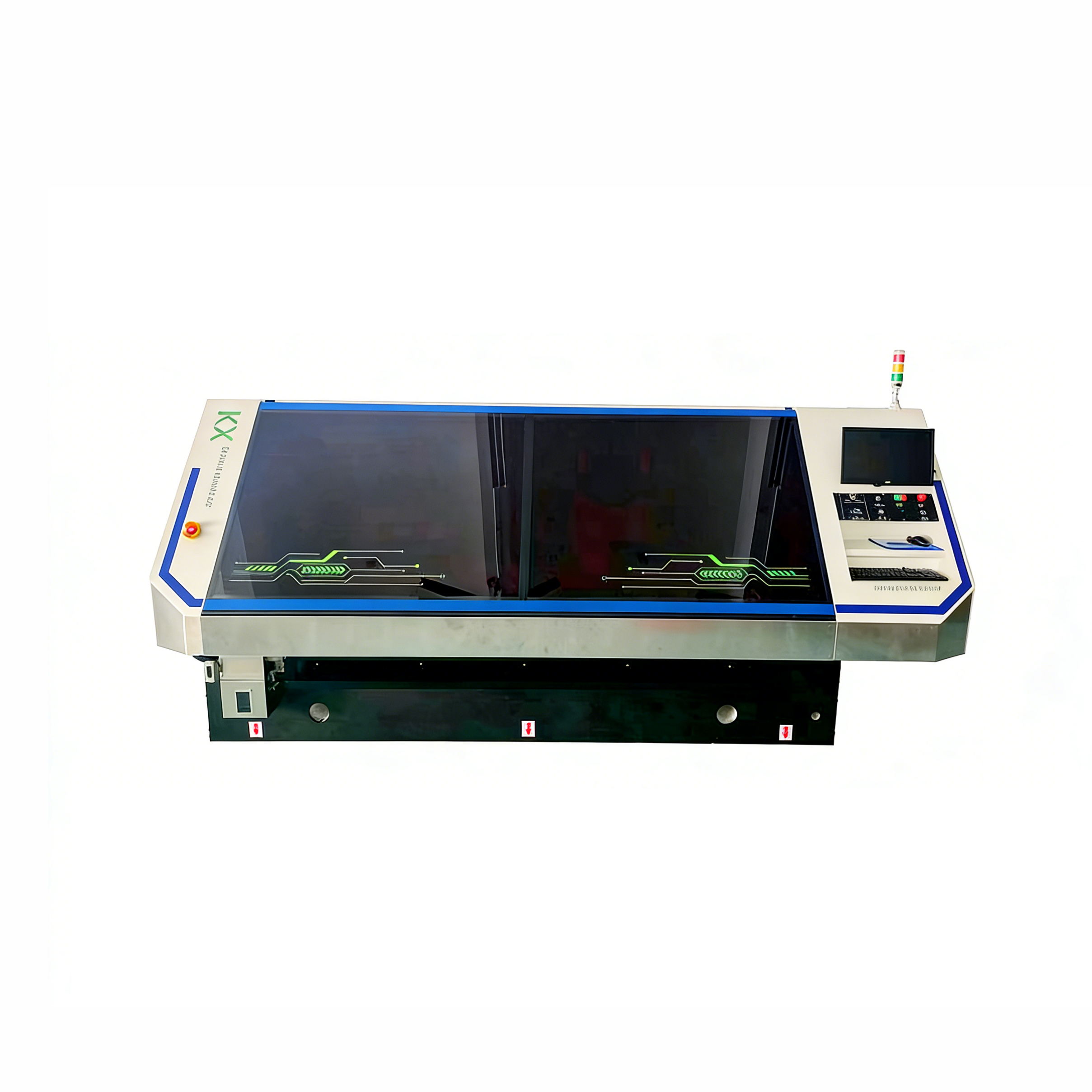

KX 4 Spindle CNC Routing Machine PCB Process Equipment

KXseries CNC drilling and milling machine, all basic body, Gantry, base, slide block, table are made of high quality natural granite material, high precision, no deformation, stable and reliable. Using Japan NSK/THK, Taiwan on the silver belt mute device linear guide rail, greatly extend the service life and maintenance cycle, improve the use efficiency.The whole machine adopts Delta Motor and Servo Control System, Xianlong 60,000 turn high-power spindle, and uses the reliable and self-developed operating interface with windows feature and digital module, and can support a variety of data format conversion of the full closed-loop control software system, easy to operate, flexible, fully functional, high-precision, fast, stable is well loved by the majority of PCB enterprises.
Availability:
Quantity:
Inquire Add to Basket

  • KX-4

4 Spindle Routing Machine

PCB CNC Routing machines, for PCB manufacturers to achieve better results with high throughput, high accuracy and high quality.PCB router, also known as PCB curve board separator or stamp hole PCB separator, is mainly used for separating PCBs (printed circuit boards) with stamp hole connections. It precisely cuts through the PCBs with routers to ensure their quality and shape meet requirements, serving as an indispensable device in the electronics manufacturing industry.

23


Machine Technical Parameters

Model KX-4 Parameters
Construction High-quality granite
Control system Full closed loop control system
Guide rail/screw Japan THK Taiwan hiwin
Motor/drive Delta Servo control system
Working Table 690 X 570 X 100 mm
Outside dimension of machine 3300 X 1900 X 1900mm,
Spindle speed Carina spindle; 60000rpm/s
Knife Gage FIBER-OPTIC KNIFE TESTER, automatic measurement of knife length and diameter
Tool storage capacity 10PCS/(50 ~ 300 PCS)
Tool change and discharge Lattice type automatic stripping, automatic tool change
Temperature and dust collection Intelligent management of vacuum cleaner
Front door opening and closing mo Manual elevator door
Positioning accuracy +/-0.005 mm
Repeatable positioning accuracy 0.003 mm
Applicable tool size 0.4 ~ 6.4 mm
No-load speed 45m/min
Control Software Trusted Control Software System V10.0 for drilling and milling machine
Display unit 19-inch color display, industrial computer
Machine weight 6000KG
Working Power supply Rated Power: AC 380V 8KVA,
Air Pressure 6 KG/CM 3 or above
Working Environment 25°C ±5°C


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.



Deliver Machine

11

Packing

2

Packing

3

Payment

4

Transport


Our PCB Machine Factory




钻铣机车间(1)


222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
