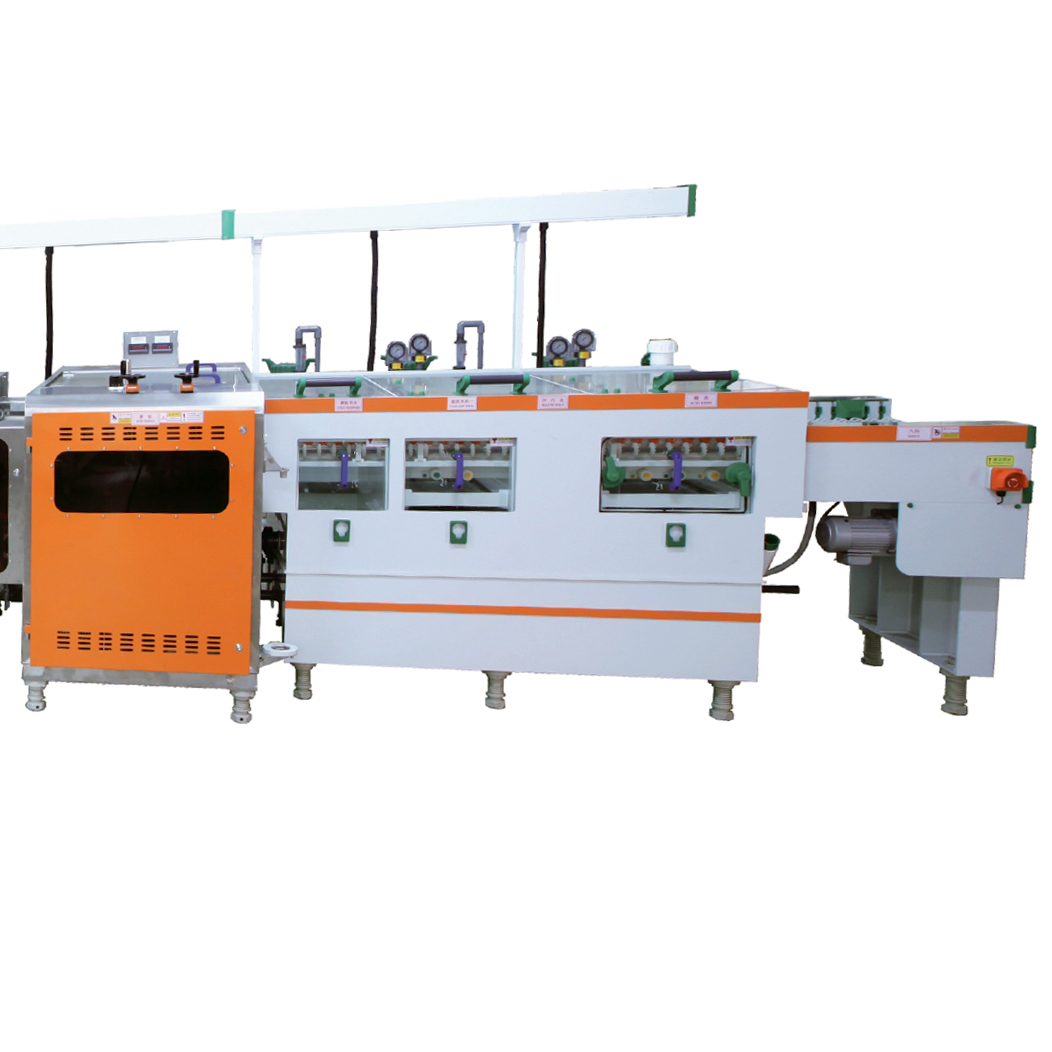

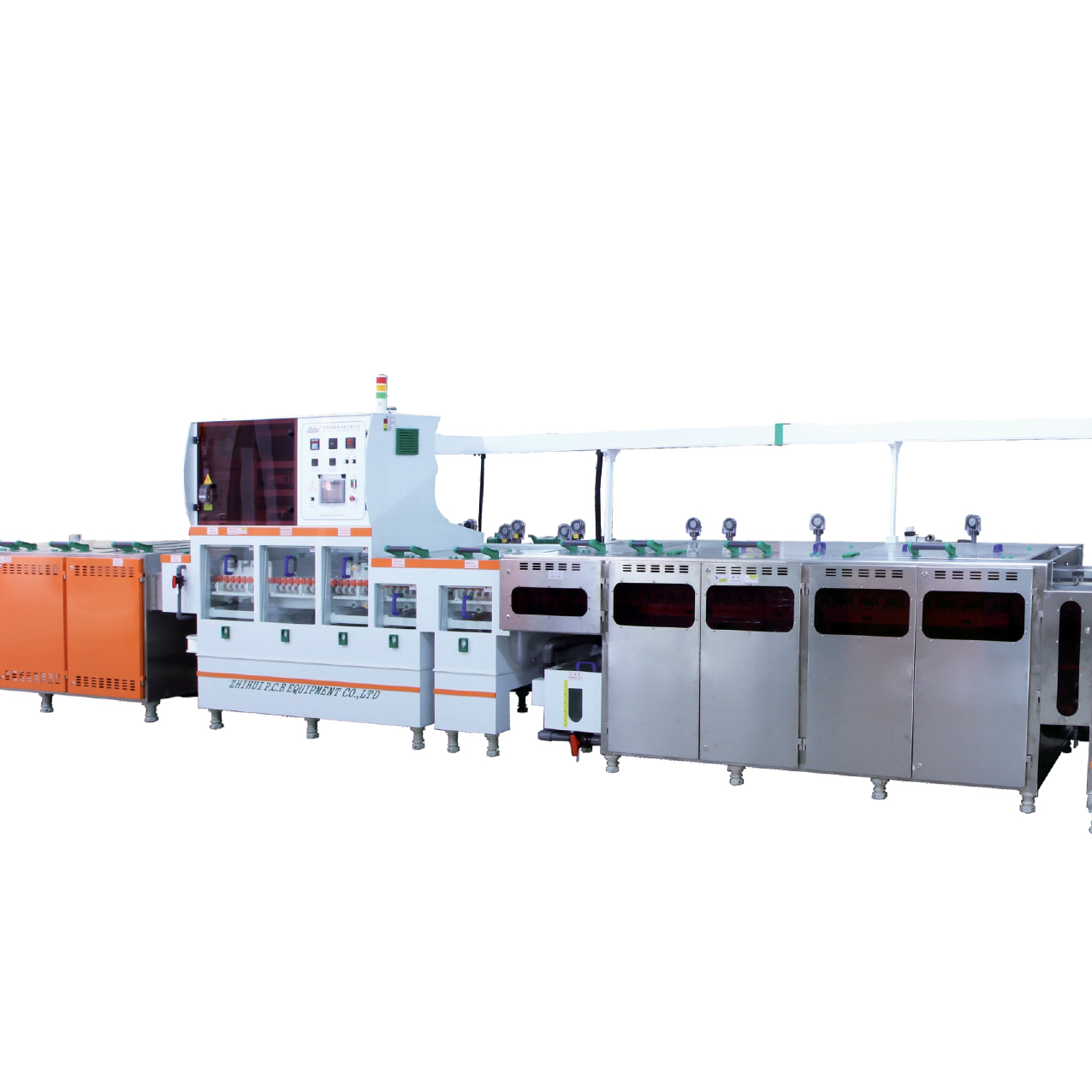

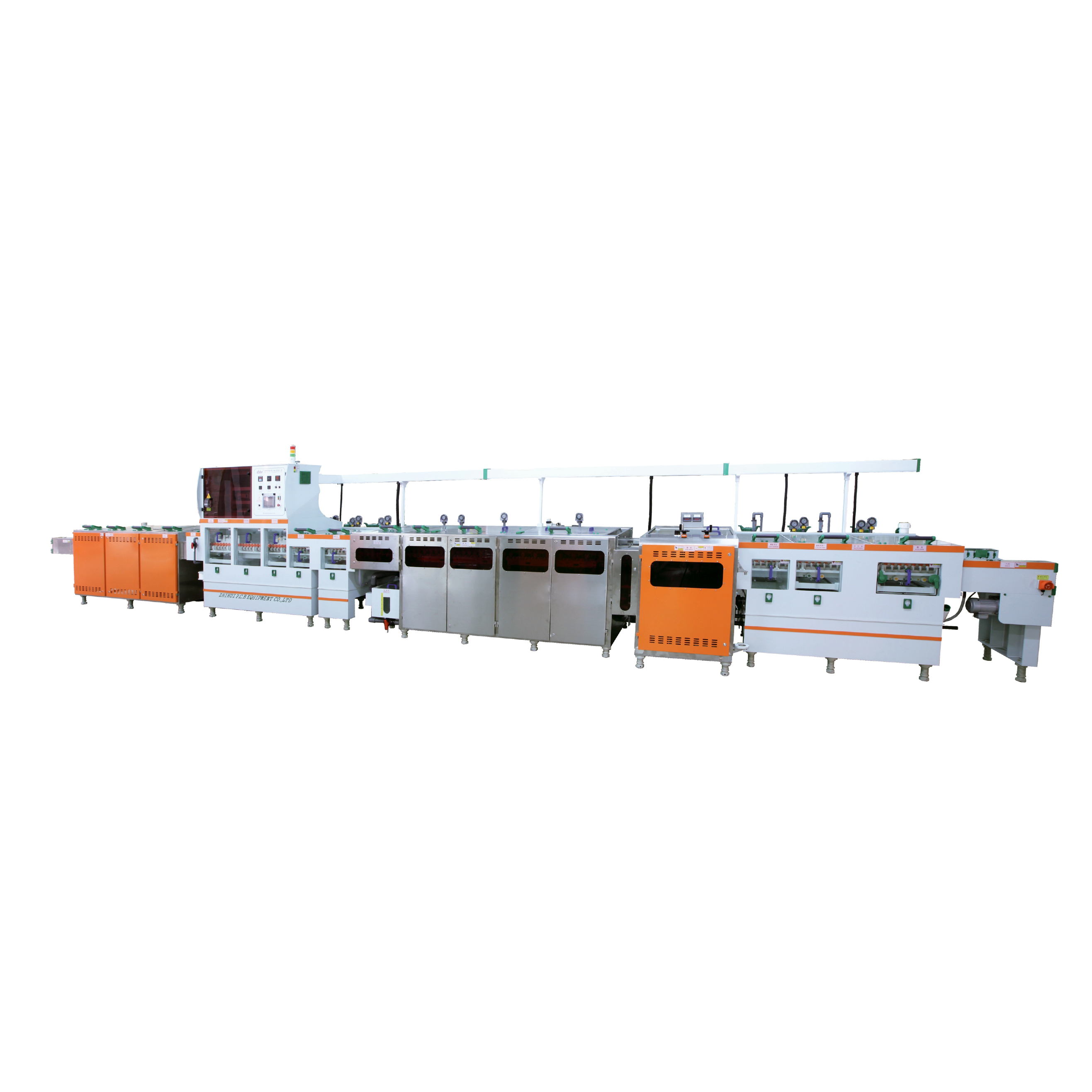

JetMaster Machine for Pcb Process

The JetMaster Machine is a type of advanced PCB etching machine widely used in the printed circuit board (PCB) manufacturing industry. It is known for its high precision, efficiency, and ability to handle fine-line etching requirements. The JetMaster Machine typically employs a spray etching mechanism, which ensures uniform etching across the PCB surface, making it suitable for high-density interconnect (HDI) boards and other complex PCB designs.

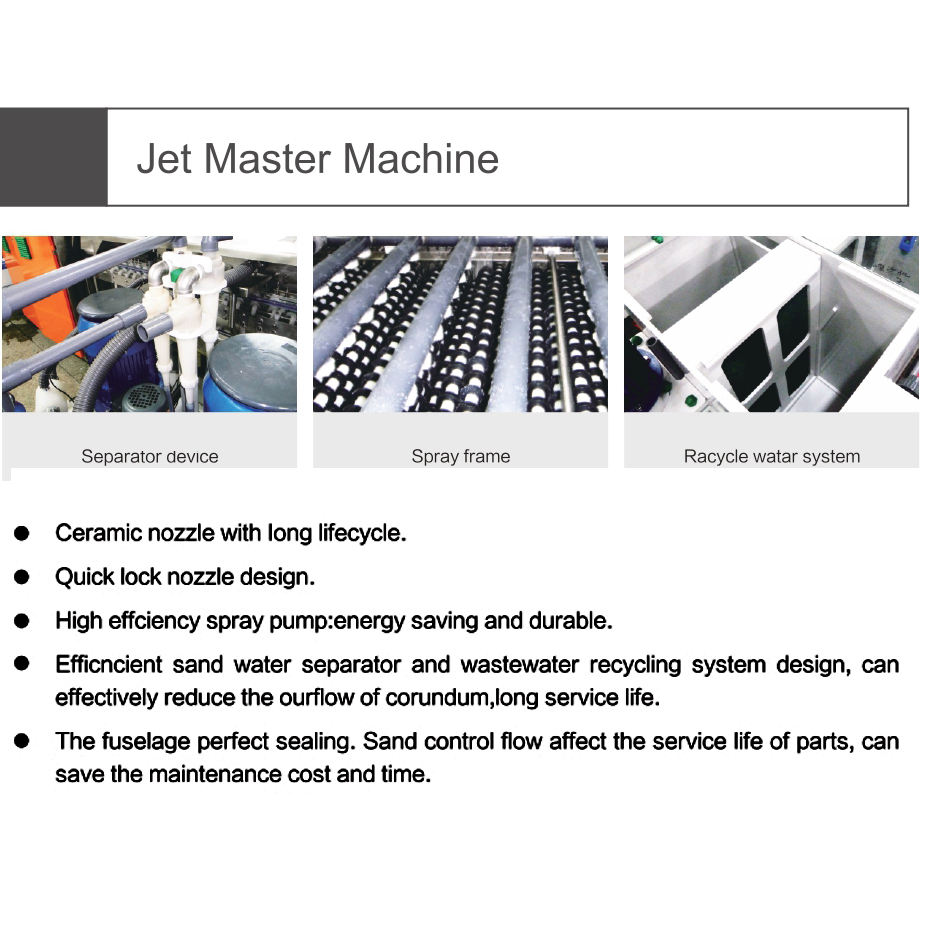

1. Ceramic nozzle with long lifecycle.

2. Quick lock nozzle design.

3. High effciency spray pump:energy saving and durable.

4. Efficncient sand water separator and wastewater recycling system design, can effectively reduce the ourflow of corundum,long service life.

5. The fuselage perfect sealing. Sand control flow affect the service life of parts, can save the maintenance cost and time.

Key Features of JetMaster Machine

1. High Precision Etching:

• Capable of etching fine lines and spaces, making it ideal for advanced PCB designs with high-density components.

2. Spray Etching Technology:

• Uses high-pressure spray nozzles to evenly distribute etching chemicals (e.g., ammonium persulfate or cupric chloride) across the PCB surface, ensuring consistent etching results.

3. Adjustable Parameters:

• Allows operators to control etching speed, chemical concentration, temperature, and spray pressure for optimal results.

4. Automated Operation:

• Equipped with advanced automation systems to reduce manual intervention and improve production efficiency.

5. Environmental Considerations:

• Designed with waste treatment systems to minimize chemical waste and environmental impact.

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
