Hot Air Leveling Machine Specifications Table

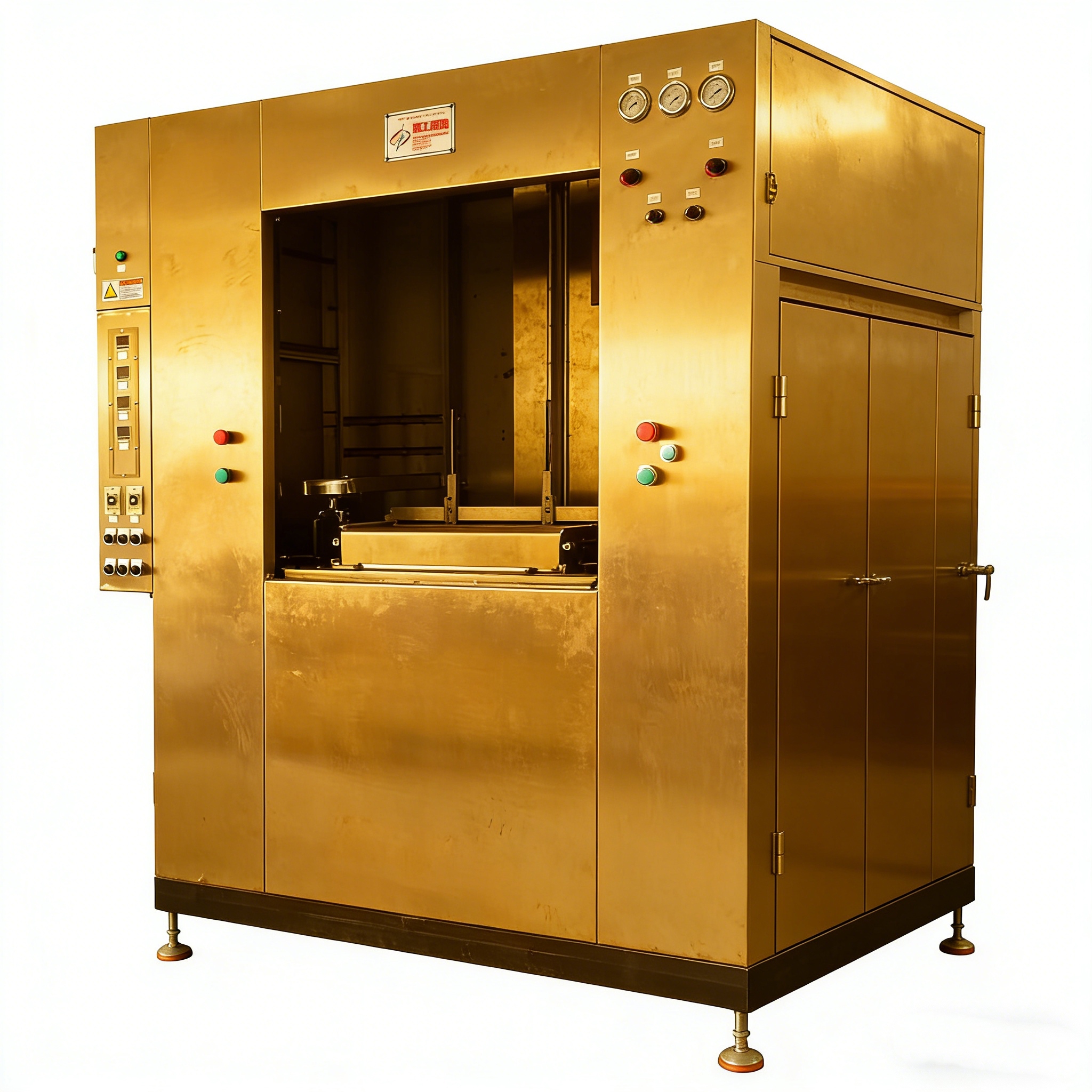

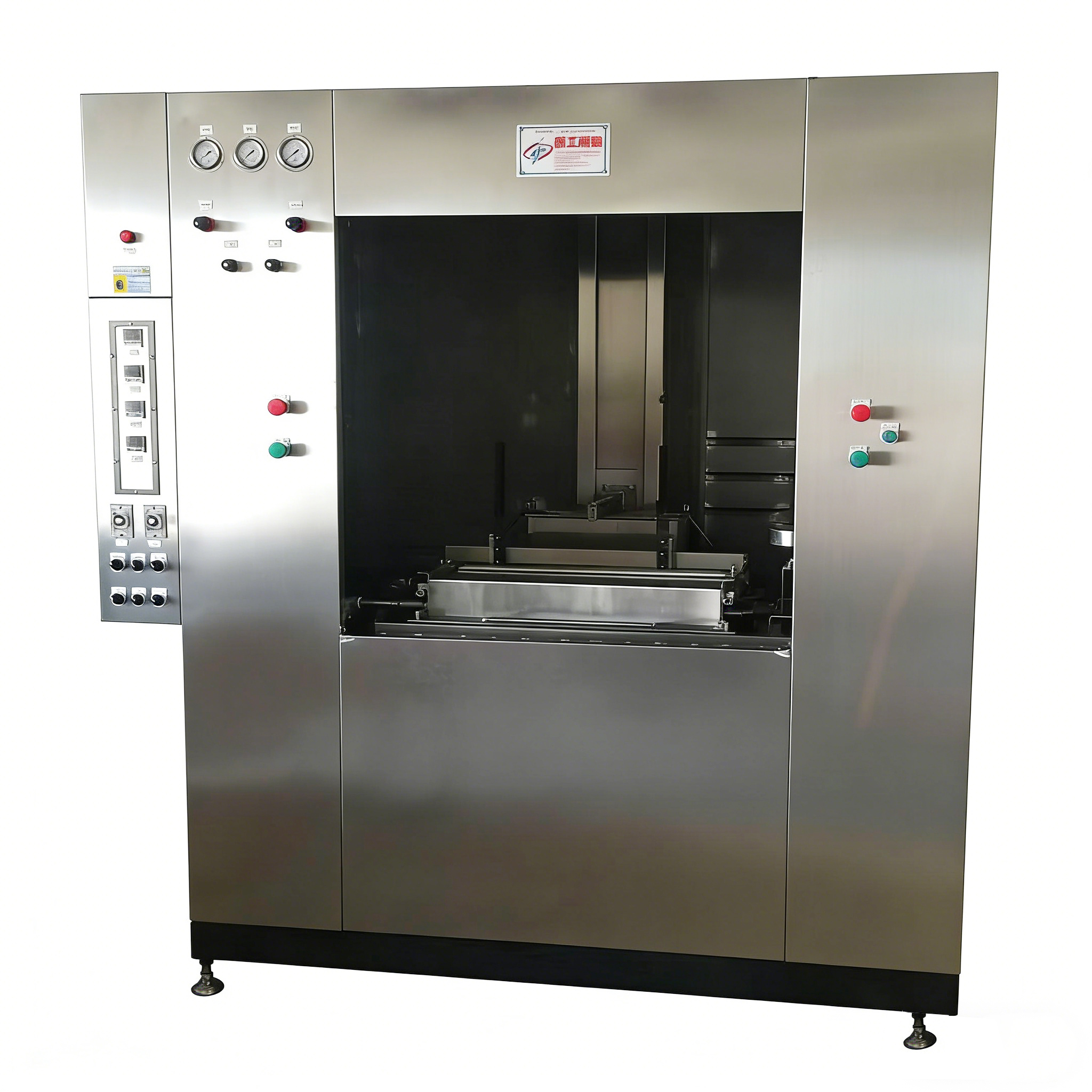

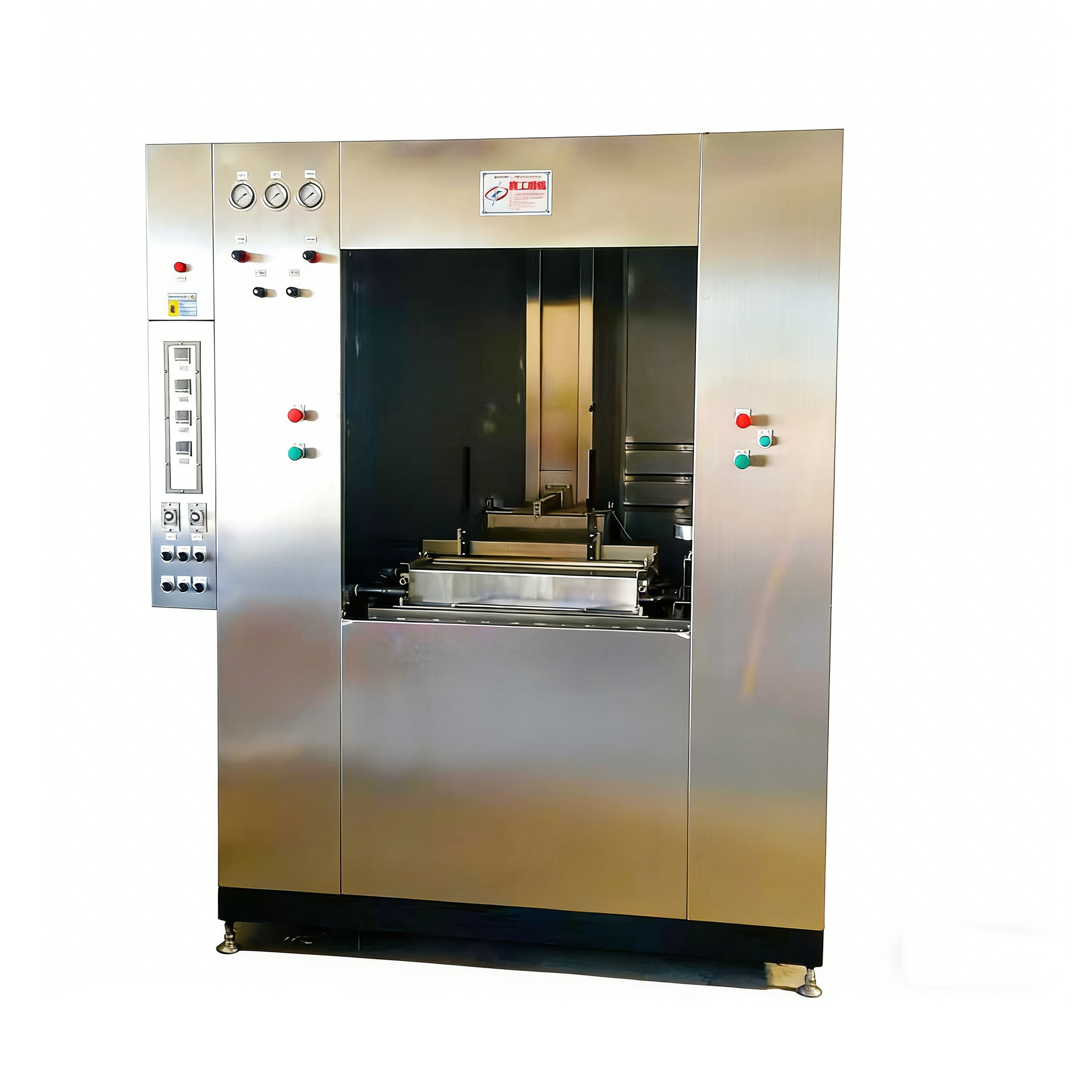

This HAL-2424 Hot Air Leveling Machine by Kexin Electronic is crafted with SS41 chassis, SUS304 outer body and 10MM SUS316 tin tank. Measuring 1900*1500*2400mm and weighing 1000kg, it has a 400KG solder pot capacity. Its working area ranges 150*200-610*610mm for 0.8-3.2mm PCBs. With adjustable temps and times, it runs on 380V 63KW, boasting 4-8 pcs/min production capacity.
Name | HASL Machine (Hot Air Leveling)
|
Model | HAL-2424
|
machine construction | The chassis is SS41,The outer body adopts SUS304#1,he main body of the tin tank is 10MMSUS316# |
Machine size | L1900mm*W1500mm*H2400mm
|
Machine weight | 1000kg
|
Solder Pot Capacity | 400KG
|
Max Working Area | 610*610mm
|
Min Working Area | 150*200mm
|
PCB Board Thickness | 0.8-3.2mm
|
production capacity | Below 600mm 6-8 pieces/minute, above 610mm 4-6 pieces/minute
|
· Solder temperature | 265-285 ° C (Max) adjustable
|
hot air temperature | 350℃-400℃ (air knife into the air taste temperature point) adjustable |
· Air pressure | 7-8Bar(Min) |
air consumption | 3-5 m3 / min
|
Tinning time | 0 -10 seconds adjustable
|
Air blow time | 0-5seconds adjustable
|
power | 20HZ/380V/63KW
|
After Sales Service
1.We guarantee that we will give you a clear reply within 24 hours.
2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.
3.If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.
4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.
5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.
