In the high-performance composites industry, Carbon Fiber Reinforced Polymer (CFRP) is the "gold standard" for its strength-to-weight ratio. However, machining carbon fiber—specifically drilling and routing—presents significant challenges: material delamination, rapid tool wear, and hazardous conductive dust.

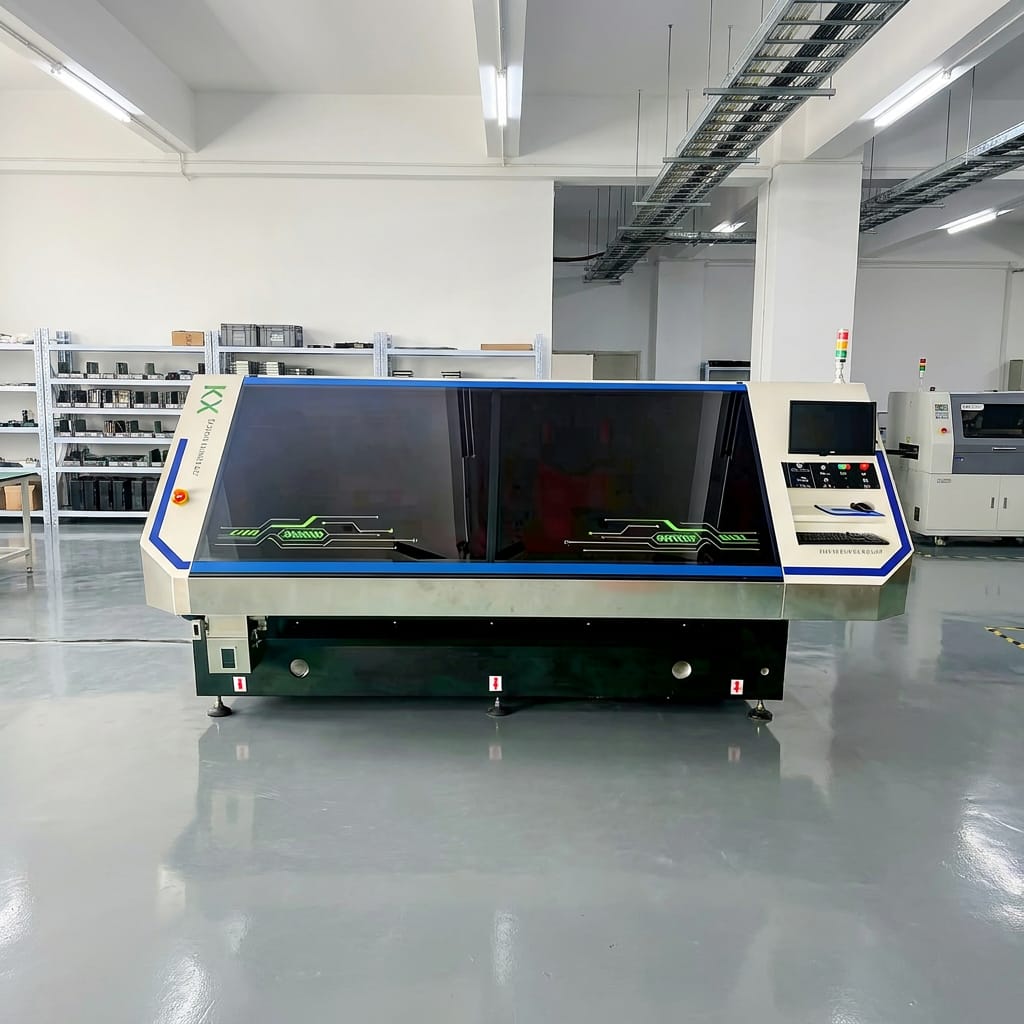

The KS-AS-4 Four-Head Automatic CNC Drilling and Milling Machine has emerged as a top-tier solution for these issues. Originally perfected for the rigorous PCB industry, its heavy-duty granite architecture and 60,000 RPM spindles make it the ideal investment for CFRP sheet fabricators.
Carbon fiber machining requires extreme rigidity. Even microscopic vibrations during a cut can lead to "splintering" or edge defects.
Natural Granite Body: Unlike traditional cast-iron frames, the KS-AS-4 features a Gantry, base, and table made of high-quality natural granite. Granite offers superior thermal stability and vibration dampening, ensuring the machine maintains its +/-0.005mm positioning accuracy even during high-speed operations.
Premium Motion Control: Equipped with Japanese THK/NSK linear guides and Taiwan-made silent ball screws, the machine delivers smooth, friction-free movement that extends the maintenance cycle and improves overall output quality.
The most common failure in carbon fiber processing is "delamination"—the separation of the fiber layers and resin.
High-Speed Advantage: The KS-AS-4 utilizes a high-power spindle reaching 60,000 RPM. This high cutting velocity ensures that the fibers are sheared cleanly before the resin can stress or peel. The result is a "mirror-like" edge finish that eliminates the need for manual secondary sanding.
Closed-Loop Servo System: Powered by a Delta Motor and Servo Control System, the machine operates on a full closed-loop logic. This means the software constantly monitors the spindle’s exact position and load, preventing "drift" during complex routing paths.
Carbon fiber dust is not only a health hazard but is also electrically conductive. If left unmanaged, it can infiltrate electronic cabinets and cause catastrophic short circuits.
Smart Vacuum Integration: The system features an intelligent vacuum management module. It synchronizes with the cutting head to capture 99% of dust at the source. This protects the machine’s internal components and ensures a clean, safe working environment for operators.
For manufacturers scaling from prototyping to mass production, the KS-AS-4 offers a massive leap in ROI.
Simultaneous Machining: With four independent heads working in sync, one KS-AS-4 unit delivers the output of four traditional single-head machines while occupying the same footprint.
Real-Time Tool Breakage Detection: Carbon fiber is highly abrasive and can snap small-diameter bits without warning. V10.0 software includes real-time tool breakage detection, automatically pausing the process to prevent damaged workpieces and wasted material.
Feature | Specification |
|---|---|
Control System | V10.0 (Windows-based Digital Module) |
Construction Material | High-Quality Natural Granite (Base, Gantry, Table) |
Spindle Speed | 60,000 RPM |
Positioning Accuracy | +/- 0.005 mm |
Repeatable Accuracy | 0.003 mm |
No-Load Speed | 45 m/min |
Tool Magazine | 10 PCS (Expandable up to 300 PCS) |
Machine Weight | 6000 KG (Heavy-Duty Stability) |
If your business is struggling with ragged edges, inconsistent holes, or high labor costs in carbon fiber processing, the KS-AS-4 is the answer. By combining the stability of granite with the speed of 60,000 RPM spindles, has created a machine that doesn't just cut carbon fiber—it masters it.
Interested in a Live Demo? Contact our technical team today to see how the KS-AS-4 can optimize your CFRP production line and reduce your cost-per-part.
