KX-650
The fully-automatic UV-LED exposure machine primarily utilizes UV-LED light sources to emit high-purity, high-intensity ultraviolet light for exposing surfaces coated with photosensitive materials. This equipment boasts advantages such as high precision, high efficiency, energy conservation, and environmental protection, and it is widely applied in fields such as PCB manufacturing, screen printing plate making, and optical component assembly.

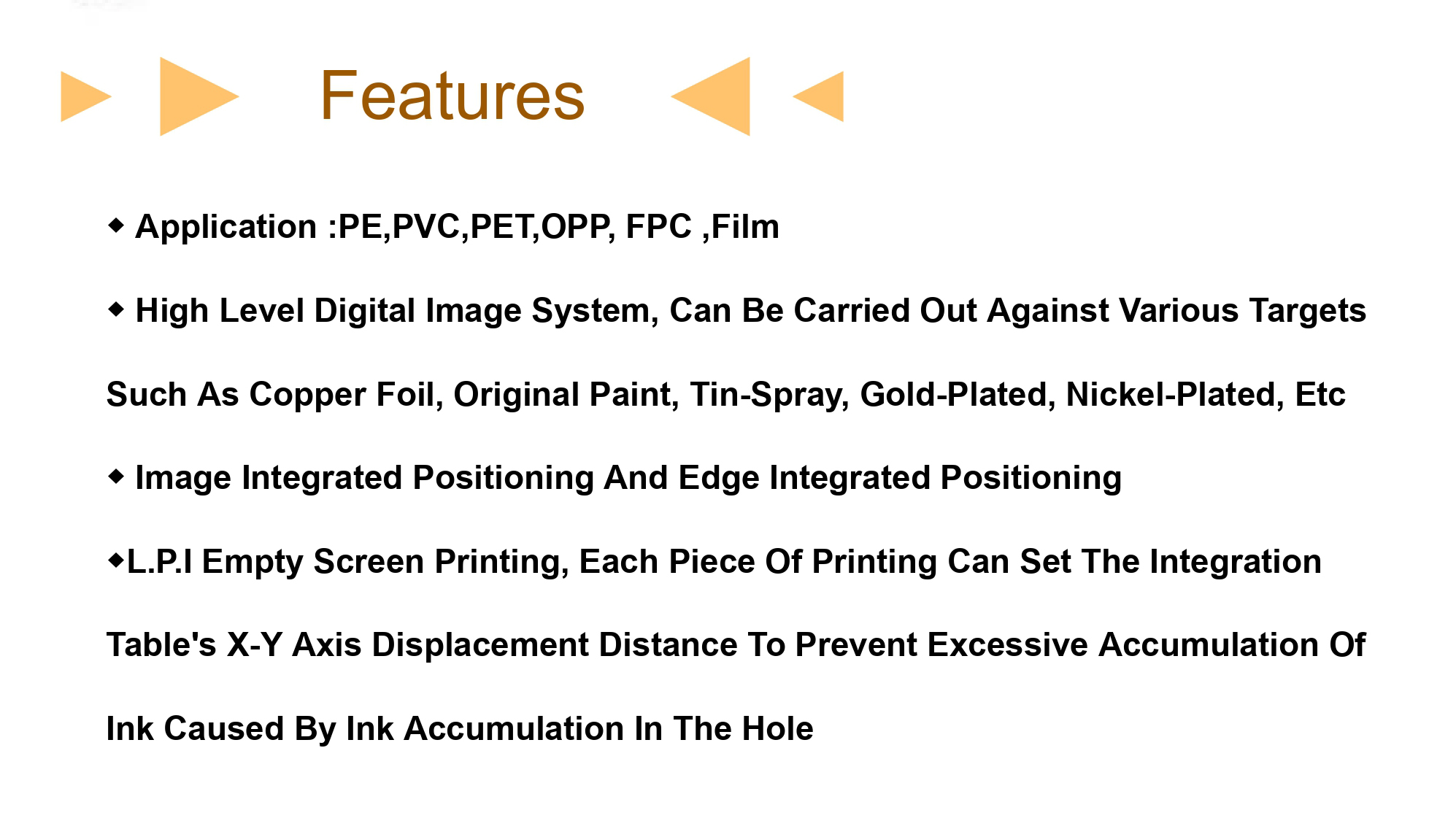

Features：
◆Application :PE,PVC,PET,OPP, FPC,Film
◆High Level Digital Image System, Can Be Carried Out Against Various Targets Such As Copper Foil, Original Paint, Tin-Spray, Gold-Plated, Nickel-Plated, Etc
◆Image Integrated Positioning And Edge Integrated Positioning
◆L.P.I Empty Screen Printing, Each Piece Of Printing Can Set The Integration Table'sX-Y Axis Displacement Distance To Prevent Excessive Accumulation Of Ink Caused By Ink Accumulation In The Hole

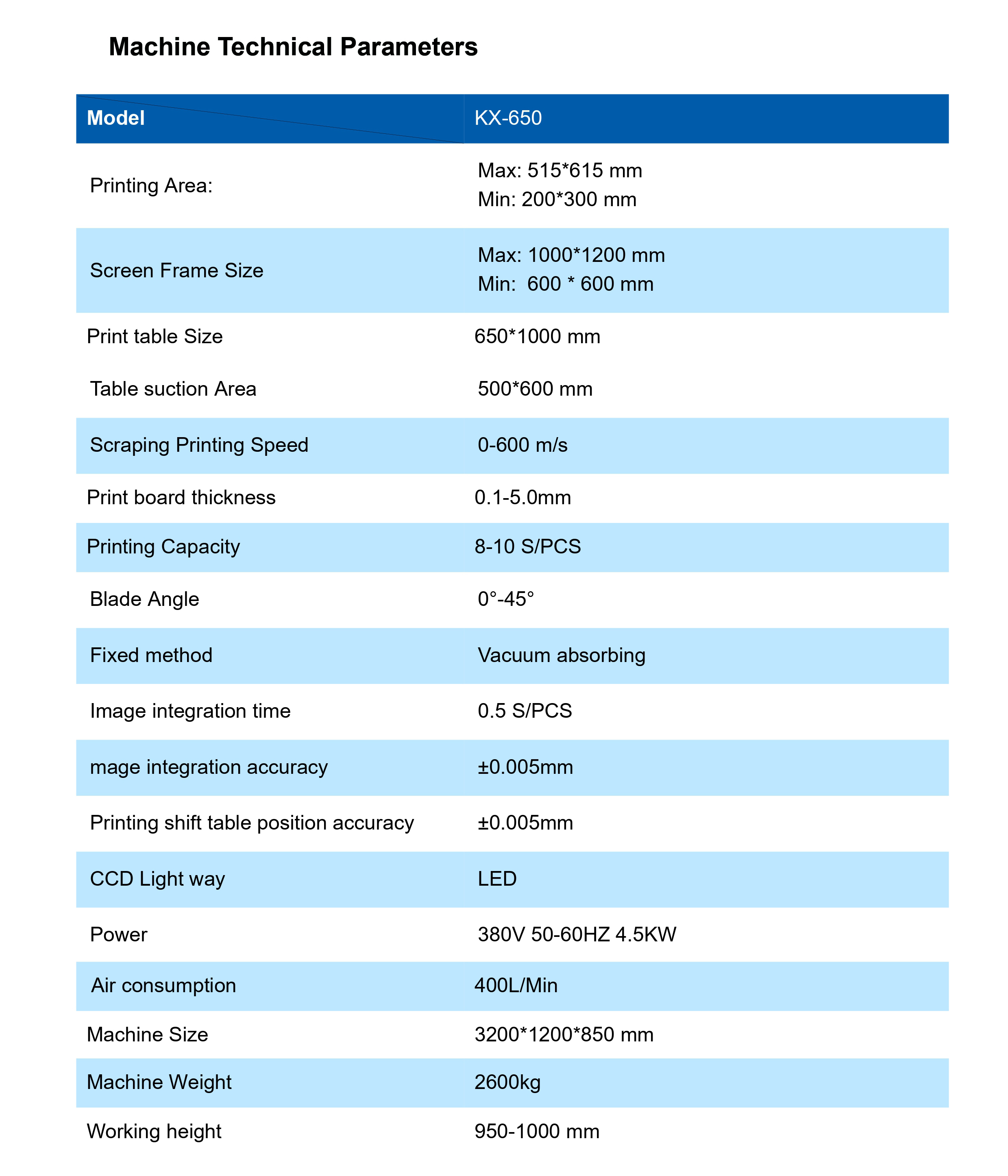

Machine Technical Parameters
| Model | KX-650 |
| Printing Area: | Max:515*615 mm |
| Min:200*300mm | |
| Screen Frame Size | Max:1000*1200mm |
| Min:600 *600mm | |
| Print table Size | 650*1000 mm |
| Table suction Area | 500*600mm |
| Scraping Printing Speed | 0-600m/s |
| Print board thickness | 0.1-5.0mm |
| Printing Capacity | 8-10 S/PCS |
| Blade Angle | 0°-45° |
| Fixed method | Vacuum absorbing |
| lmage integration time | 0.5 S/PCS |
| mage integration accuracy | ±0.005mm |
| Printing shift table position accuracy | ±0.005mm |
| CCD Light way | LED |
| Power | 380V 50-60HZ 4.5KW |
| Air consumption | 400L/Min |
| Machine Size | 3200*1200*850mm |
| Machine Weight | 2600kg |
| Working height | 950-1000mm |
