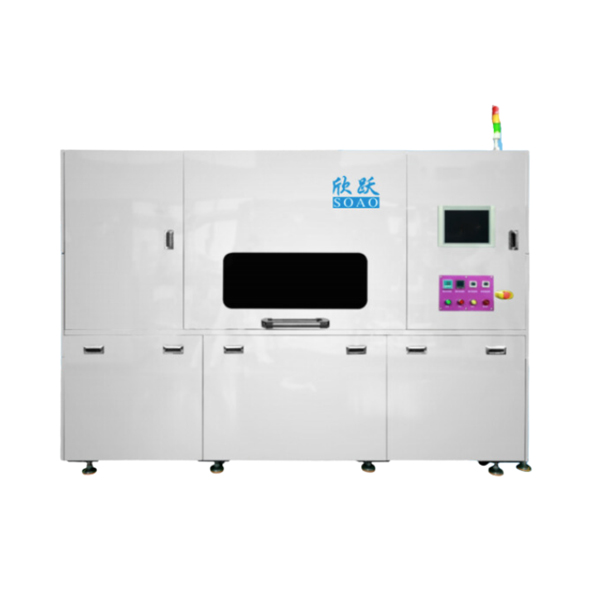

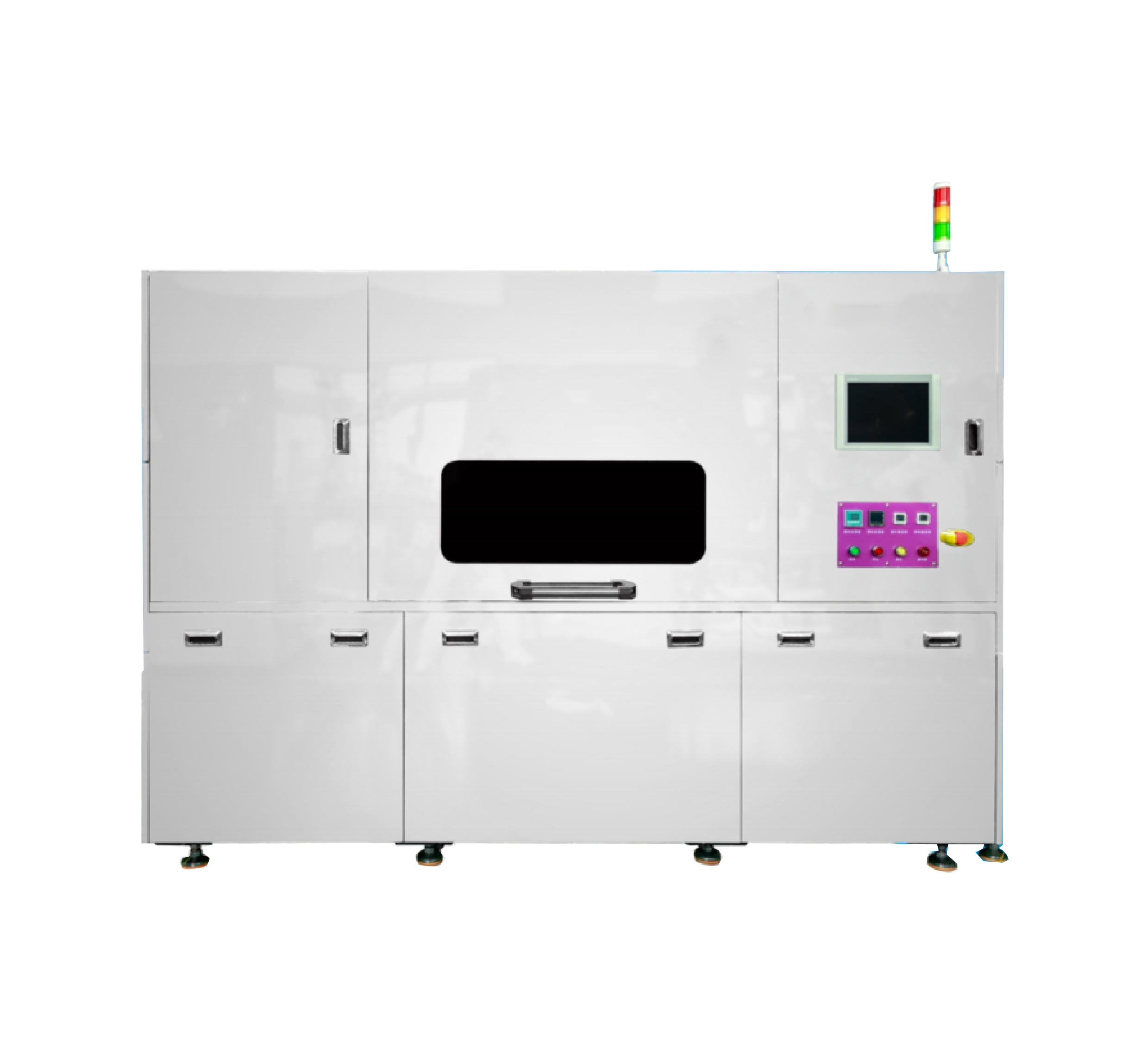

The fully-automatic UV-LED exposure machine primarily utilizes UV-LED light sources to emit high-purity, high-intensity ultraviolet light for exposing surfaces coated with photosensitive materials. This equipment boasts advantages such as high precision, high efficiency, energy conservation, and environmental protection, and it is widely applied in fields such as PCB manufacturing, screen printing plate making, and optical component assembly.

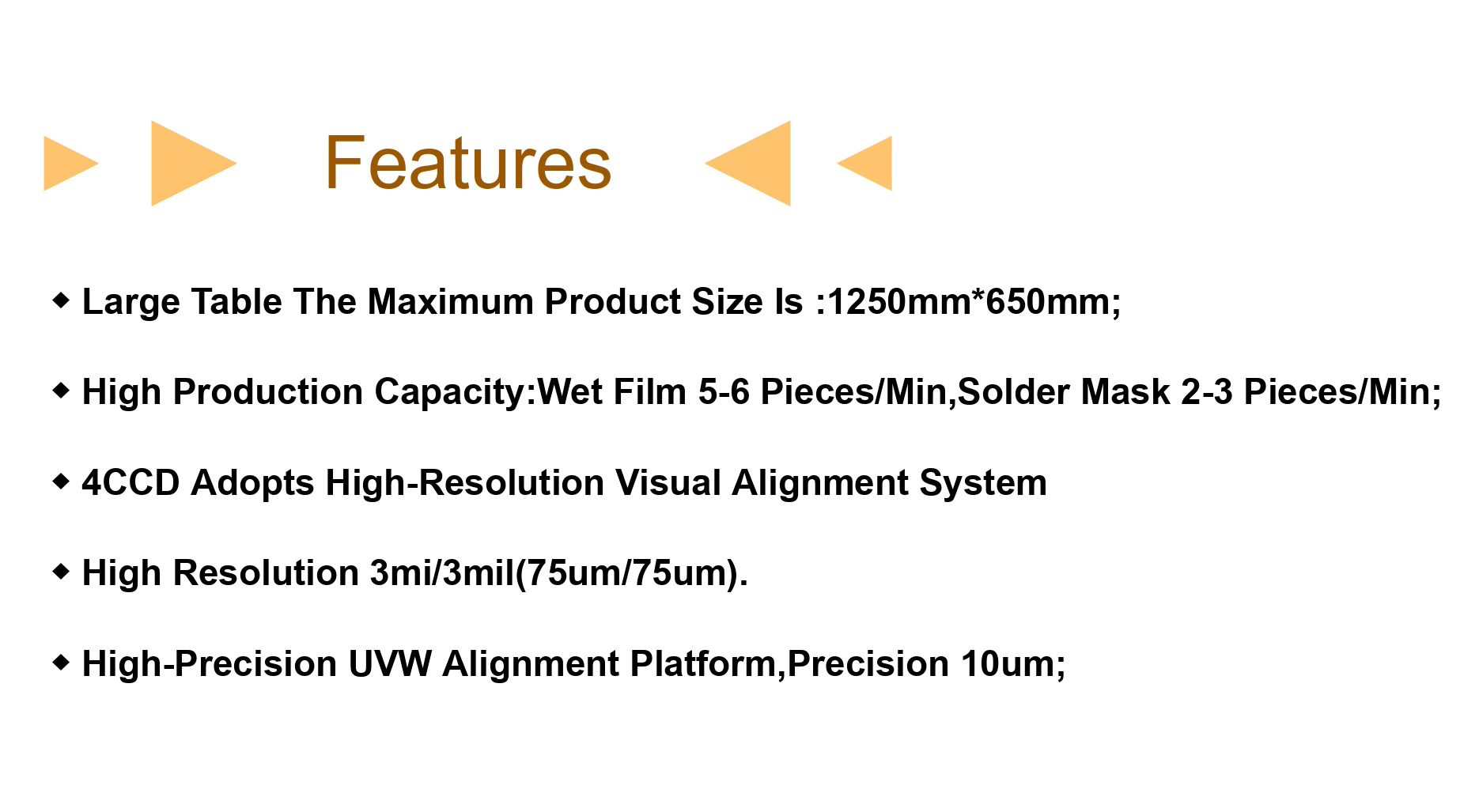

Features：
◆ Large Table The Maximum Product Size Is :1250mm*650mm;
◆ High Production Capacity:Wet Film 5-6 Pieces/Min,Solder Mask 2-3 Pieces/Min;
◆ 4CCD Adopts High-Resolution Visual Alignment System
◆ High Resolution 3mi/3mil(75um/75um).
◆ High-Precision UVW Alignment Platform,Precision 10um;

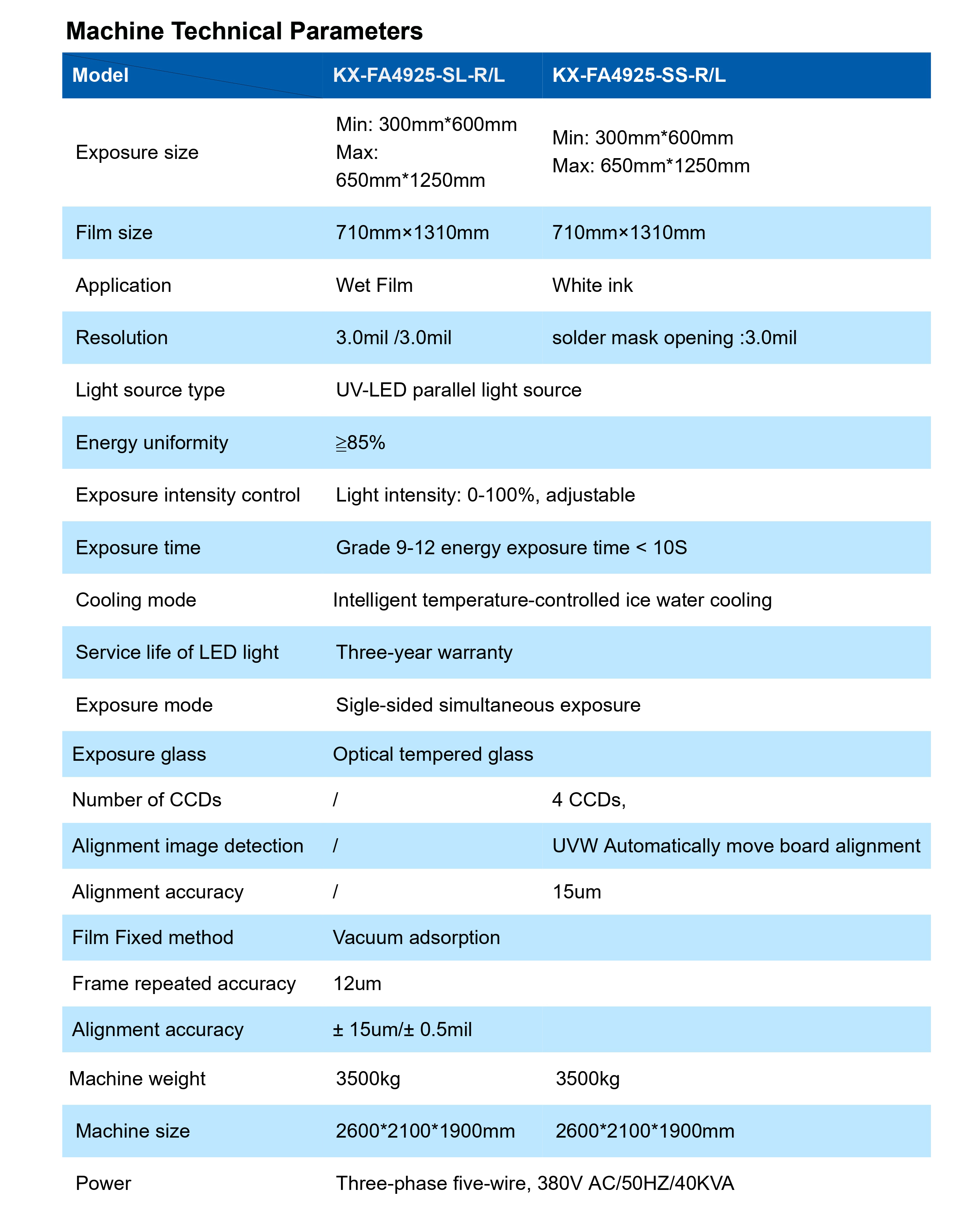

Machine Technical Parameters：
Model | KX-FA4925-SL-R/L KX-FA4925-SS-R/L |
| Exposure size Min | Min: 300mm*600mm Min: 300mm*600mm Max: Max: 650mm*1250mm 650mm*1250mm |
| 710mm×1310mm 710mm×1310mm |
Application | Wet Film White ink |
Resolution 3.0mil /3.0mil solder mask opening :3.0mil | |
Light source type | UV-LED parallel light source |
Energy uniformity | 三85% |
Exposure intensity control | Light intensity: 0-100%, adjustable |
Exposure time | Grade 9-12 energy exposure time < 10S |
Cooling mode | Intelligent temperature-controlled ice water cooling |
Service life of LED light | Three-year warranty |
Exposure mode | Sigle-sided simultaneous exposure |
Exposure glass | Optical tempered glass |
Number of CCDs | / 4 CCDs, |
Alignment image detection | / UVW Automatically move board alignment |
Alignment accuracy | / 15um |
Film Fixed method | Vacuum adsorption |
Frame repeated accuracy | 12um |
Alignment accuracy | ± 15um/± 0.5mil |
Machine weight | 3500kg 3500kg |
Machine size | 2600*2100*1900mm 2600*2100*1900mm |
Power | Three-phase five-wire, 380V AC/50HZ/40KVA |
