Flying-Probe Tester Machine Flying Probe Testing Machine for PCB Board Process

The flying probe tester has many advantages in PCB and PCBA testing by probing the high-voltage insulation and low-resistance conduction test of the circuit board, which is not only suitable for samples and small trial production, but also plays an important role in high-density circuit board testing, semiconductor testing and other fields
Size:
FPT
Availability:
Quantity:
Inquire Add to Basket

  • FPT V6

Flying-Probe Tester Machine Flying Probe Testing Machine for PCB Board Process

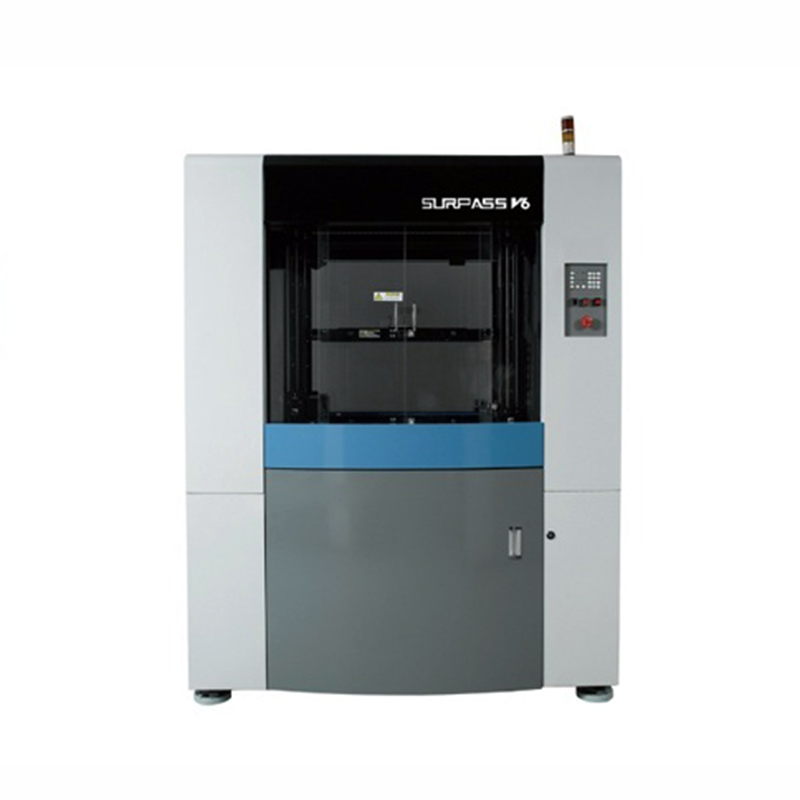

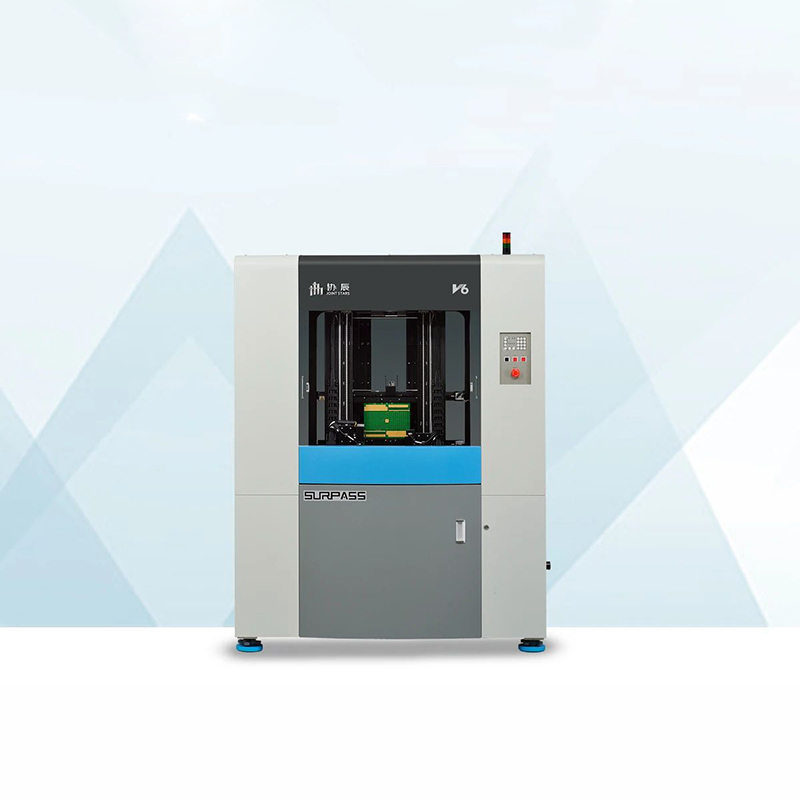

Flying Probe Tester V6

The flying probe tester has many advantages in PCB and PCBA testing by probing the high-voltage insulation and low-resistance conduction test of the circuit board, which is not only suitable for samples and small trial production, but also plays an important role in high-density circuit board testing, semiconductor testing and other fields


Product parameters

Model PCB Fly Probe Testing Machine
Testing Method resistance, phase-difference
Max. Testing Panel 610*500mm
Min. Testing Panel 35*65mm
Thickness of Panel 0.3-6mm
Min Pad Pitch 80μm
Min Pad Size 50μm
Number of Probes 4pcs (2 front 2 rear);
Number of CCD 4pcs (2 front 2 rear)
Repeat Accuracy ±3um
Resolution 2μm
Power Requirement AC220V, 8A
Air Pressure Required 0.5Mpa, 5.7L/min
Splint System Pneumatic Clamp
Insulation Voltage Test 250V (Optional: 500V)
Open-Circuit Current Test 2.65μA-250mA
Insulation Resistance 5MQ-100MΩ
Open Resistance 0.3Ω-8kΩ (Optional:4-wire:0.4mΩ-800KΩ)
Software developed by manufacturer
Application rigid panel
Machine Dimension 150*215*74cm
Machine Weight about 1000kg


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



Deliver Machine

11

Packing

2

Packing

3

Payment

4

Transport

Our PCB Machine Factory

1


222 OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
