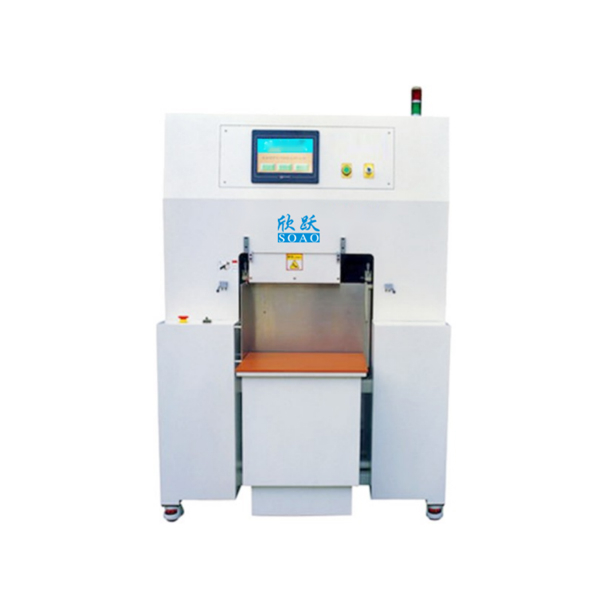

FULLY-AUTOMATIC PCB V-CUT Machine KX-5004/ 5006/ 5008F

◆ Application: FR4, Aluminum PCB,Ceramic Board, High TG Board

◆ Six Kinds Of Residual Thickness Can Be Set In The Same Board

◆ Test Function To Avoid Scrap Of Sheet Material Due To Improper Data Setting

◆ The Machine Has Low Noise, The V-CUT Line Without Burrs, Smoothly

◆ Small Footprint, Stable Fuselage, High Precision, No Deformation, Seismic
Availability:
Quantity:
Inquire Add to Basket

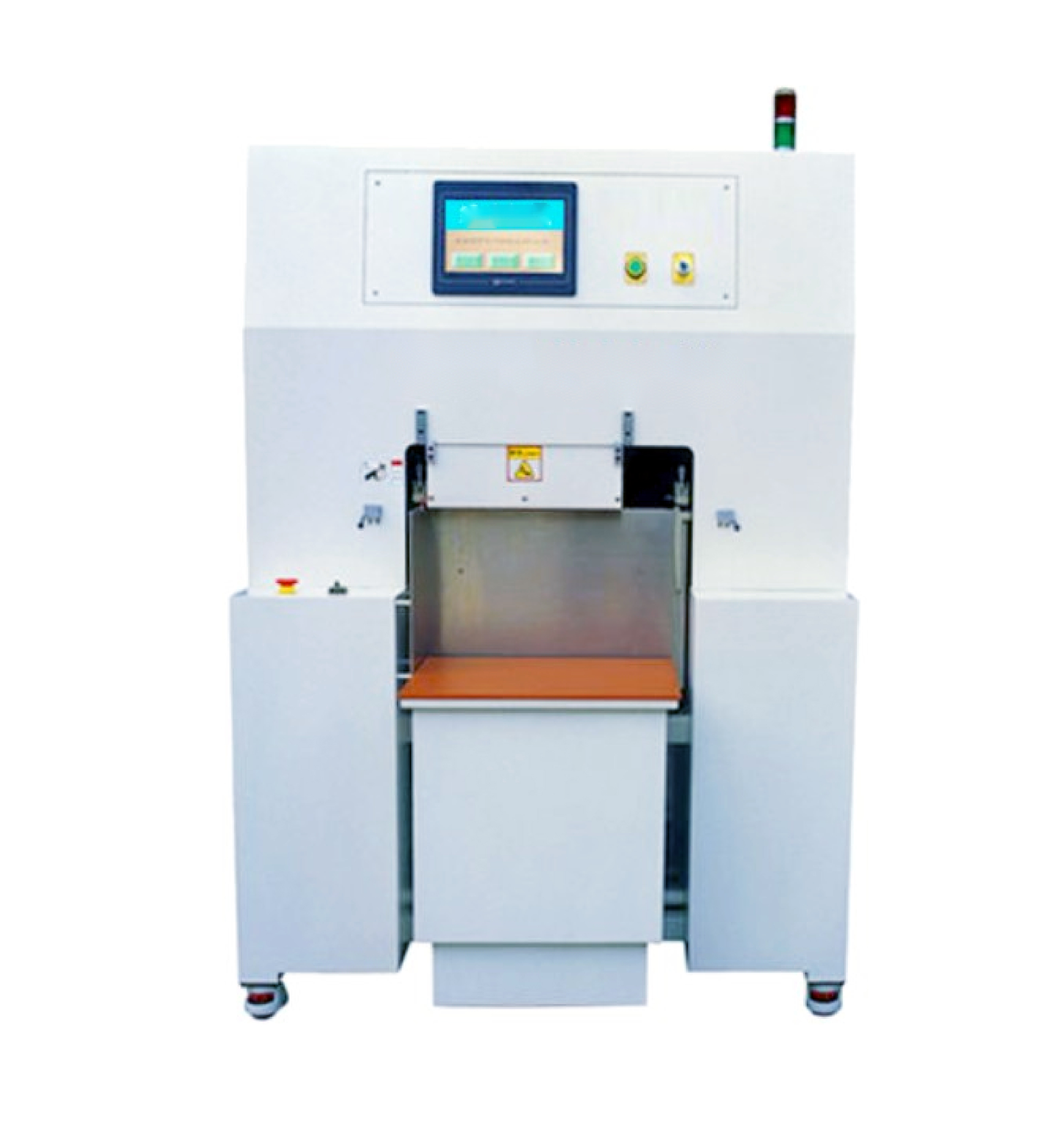

FULLY-AUTOMATIC PCB V-CUT  Machine KX-5004/ 5006/ 5008F

V-Scoring also named as V-grooving or V-cutting this kind of pre-cut circuit is needed to facilitate the operator to smoothly cut the original panel into a veneer.

1

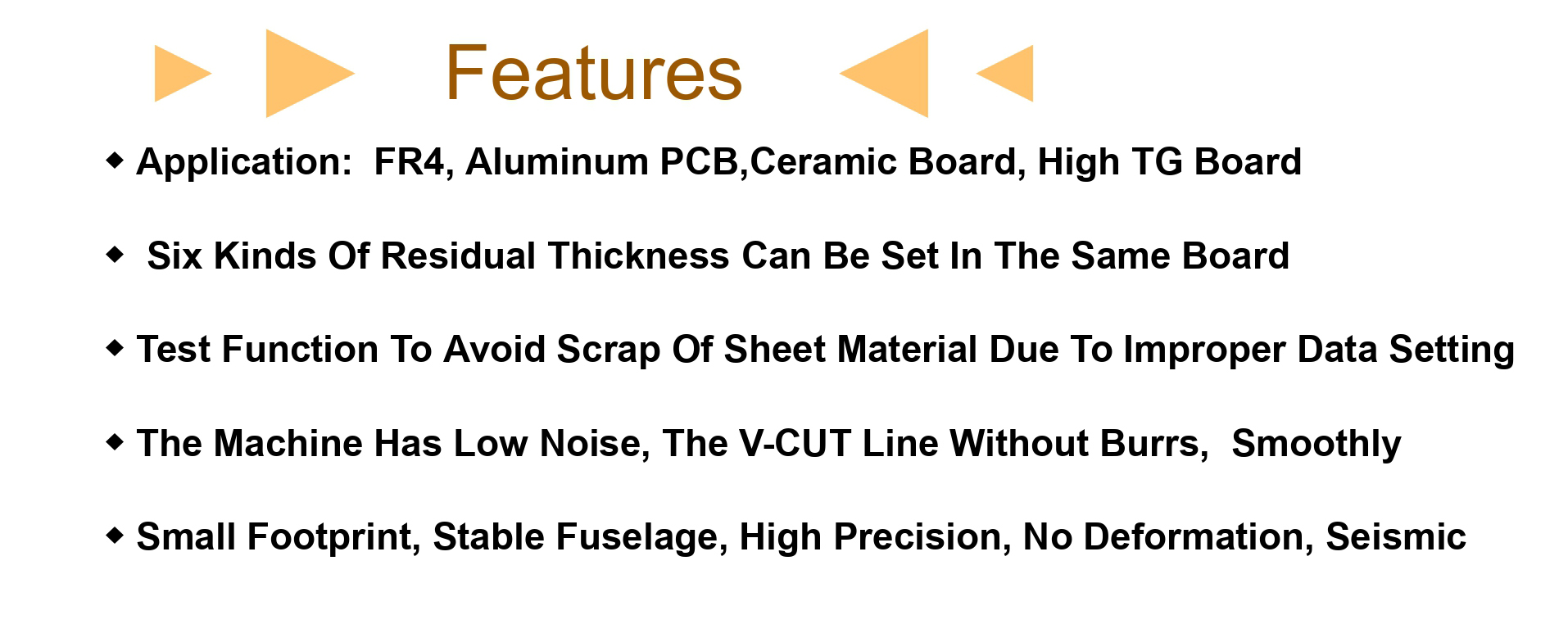

Features：

◆ Application:  FR4, Aluminum PCB,Ceramic Board, High TG Board

◆  Six Kinds Of Residual Thickness Can Be Set In The Same Board

◆ Test Function To Avoid Scrap Of Sheet Material Due To Improper Data Setting

◆ The Machine Has Low Noise, The V-CUT Line Without Burrs,  Smoothly

◆ Small Footprint, Stable Fuselage, High Precision, No Deformation, Seismic

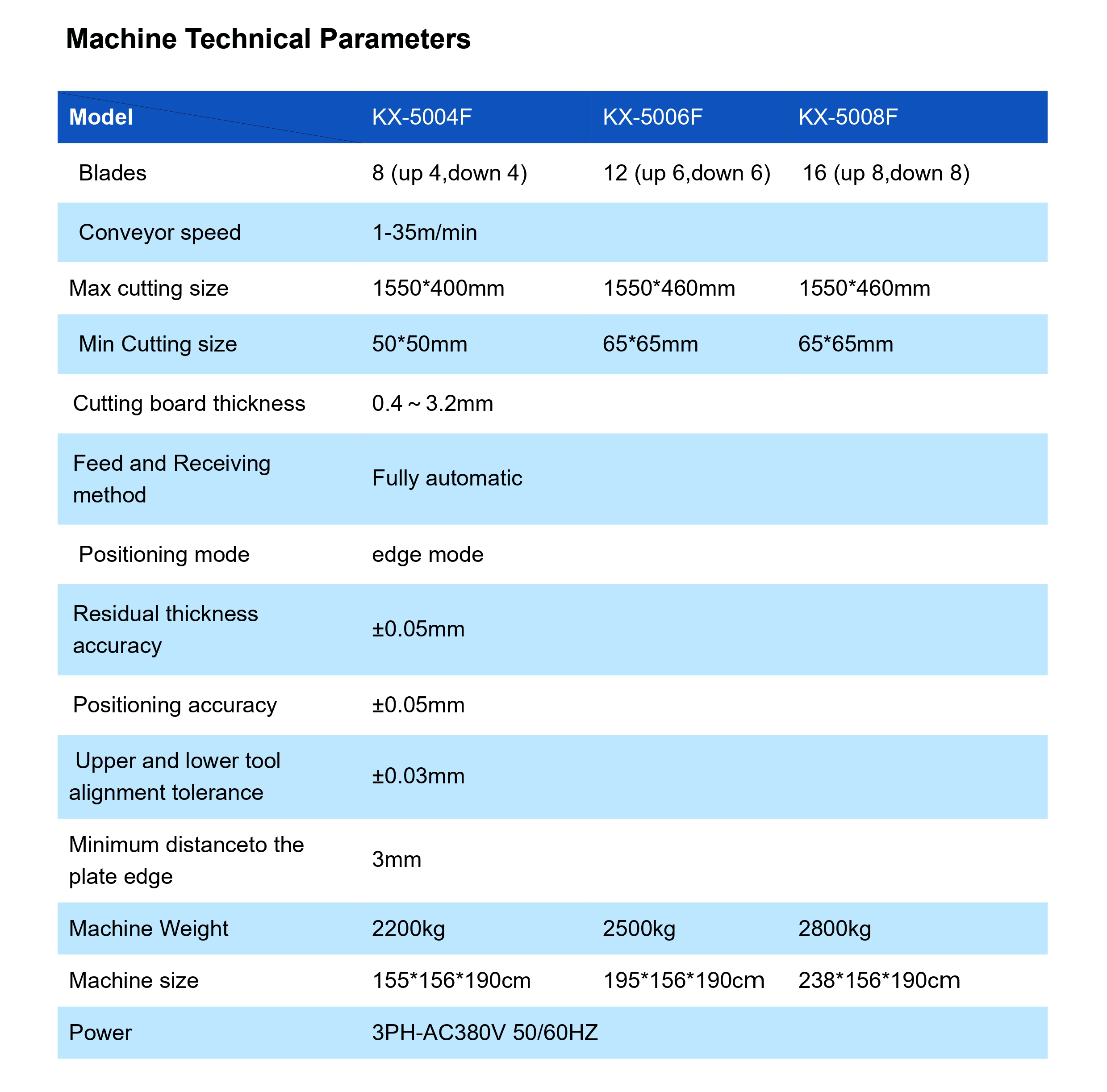

Machine Technical Parameters:

Model

KX-5004F

KX-5006F

KX-5008

Blades

8 (up 4,down 4)

  12 (up 6,down 6)

16 (up 8,down 8)

Conveyor speed

 1-35m/min

Max cutting size

1550*400mm

Min Cutting size

50*50mm

Cutting board thickness

0.4～3.2mm

Feed and Receiving metho

Fully automatic

Positioning mod

edge mode

Residual thickness accuracy

±0.05mm

Positioning accuracy

±0.05mm

Upper and lower tool alignment tolerance

±0.05mm

Minimum distanceto the

plate edge

3mm

Machine Weight

2200kg

2500kg

3200kg

Machine size

1550*1560*1900mm

1950*1560*1900mm

2380*1560*1900mm

Power

3PH-AC380V 50/60HZ

Blade size

 Ф 120*25.4*2.0*30T Or 20T


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



222 OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
