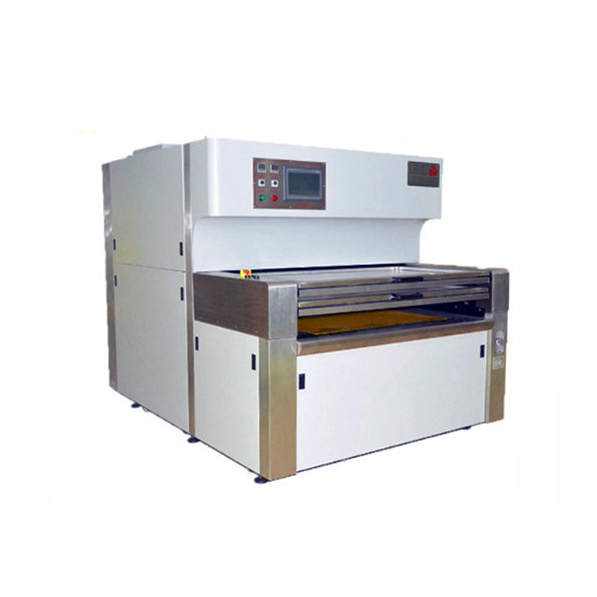

Features：
◆ Double-Side Exposure With High Output,Capacity 2-3pcs/Min;
◆ High-Precision Optical System
◆ 8CCD Adopts High-Resolution Visual Alignment System
◆ High-Precision UVW Alignment Platform,Precision 10um;
◆ Suitable For High Precision Double-Sided Multi-Layer Board
GUANGGONG XINYUE
Machine Technical Parameters：
Model | KX-SA2421-DS KX-SA2824-DS |
| Exposure size | Min:10" * 12" Max:21.5" * 24.5" Min:10" * 12" Max:24" * 28" |
Film size | 24" X 26" 26" X 30" |
Ink can be exposured | Green ,Black ,white , blue,red oil |
Solder mask bridge | Solder mask bridge :3.0mil/ solder mask opening :3.0mil |
Board thickness range | 0.1mm-3.5mm (including copper thickness) |
Tolerable board weight | <2.0 kg |
Light source type | UV-LED parallel light source |
Energy uniformity | 三85% |
Exposure intensity control | Light intensity: 0-100%, adjustable |
Exposure time | Grade 9-12 energy exposure time < 10S |
Cooling mode | Intelligent temperature-controlled ice water cooling |
Service life of LED light | Three-year warranty |
Exposure mode | Double-sided simultaneous exposure |
Exposure glass | Optical tempered glass |
Number of CCDs | 8 CCDs, moving freely (with switchable and selectable targets |

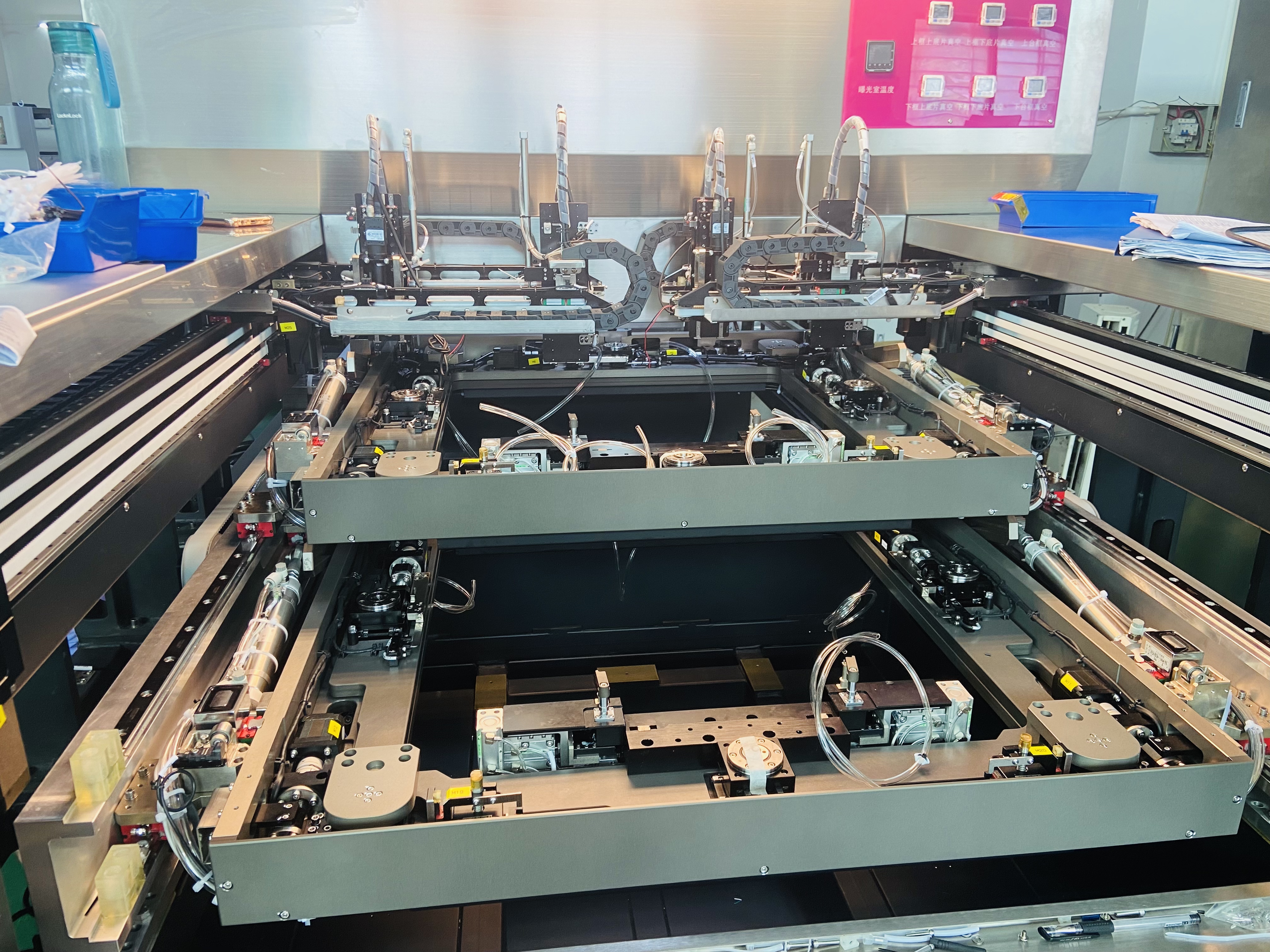

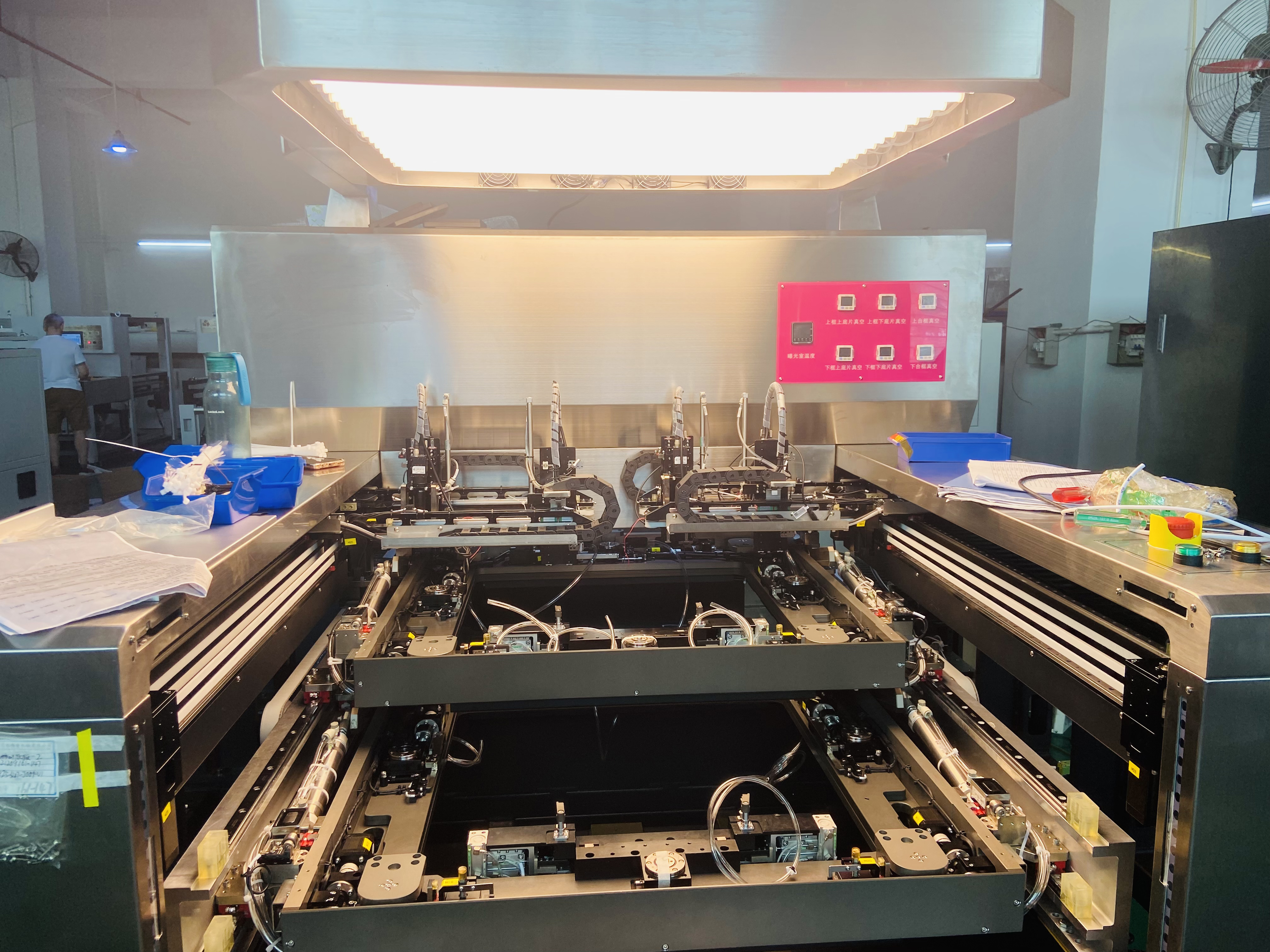

Alignment method | Dual-frame operation, dual-UVW platform with automatic movement and alignment |
Film Fixed method | Vacuum adsorption |
Sight glass range | 7mm × 5mm |
Alignment accuracy | ± 12um/± 0.5mil |
Machine weight | 1600kg 1800kg |
Machine size | 2760*1640*2040mm 2800*1740*2040mm |
Power | Three-phase five-wire, 380V AC/50HZ/15KVA |
