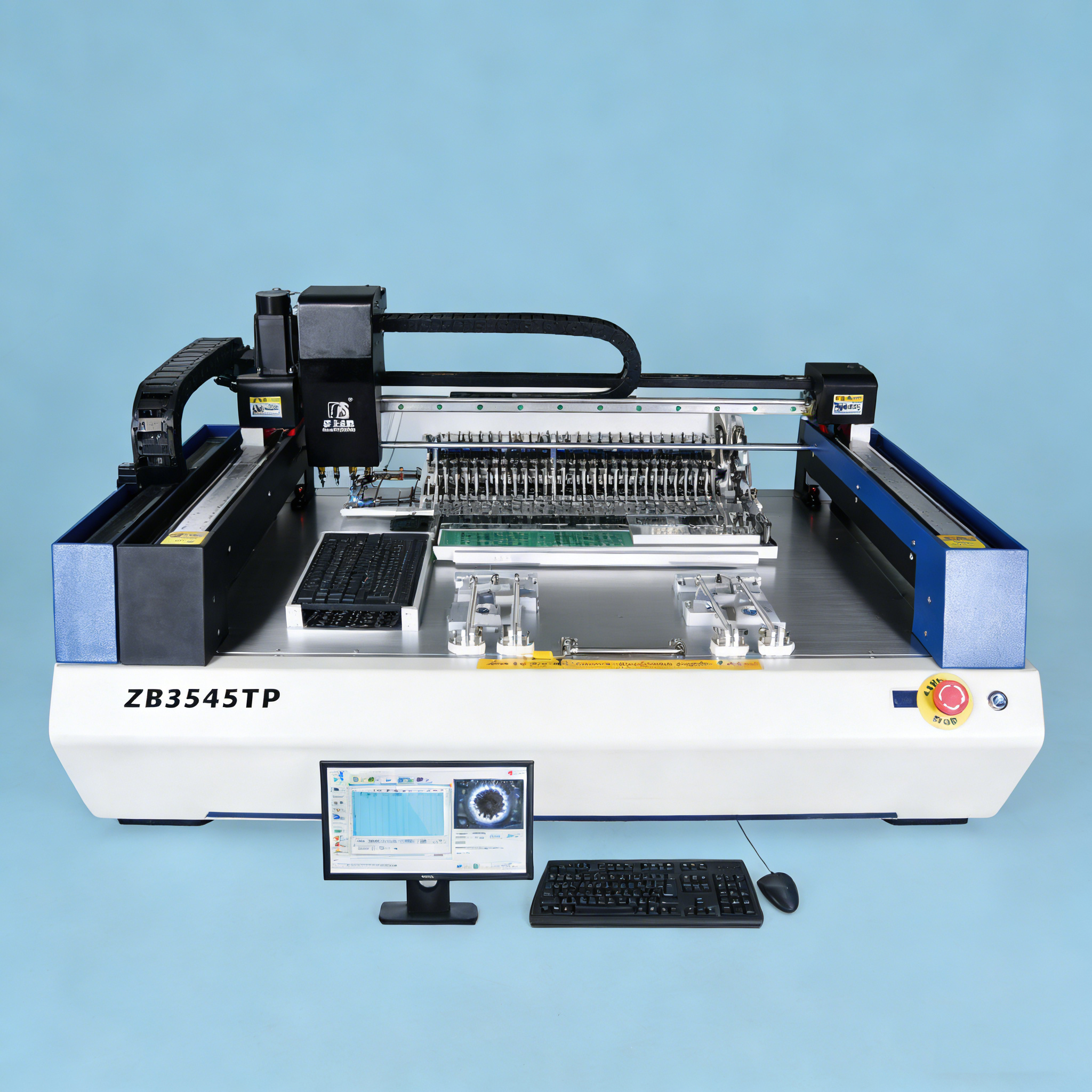

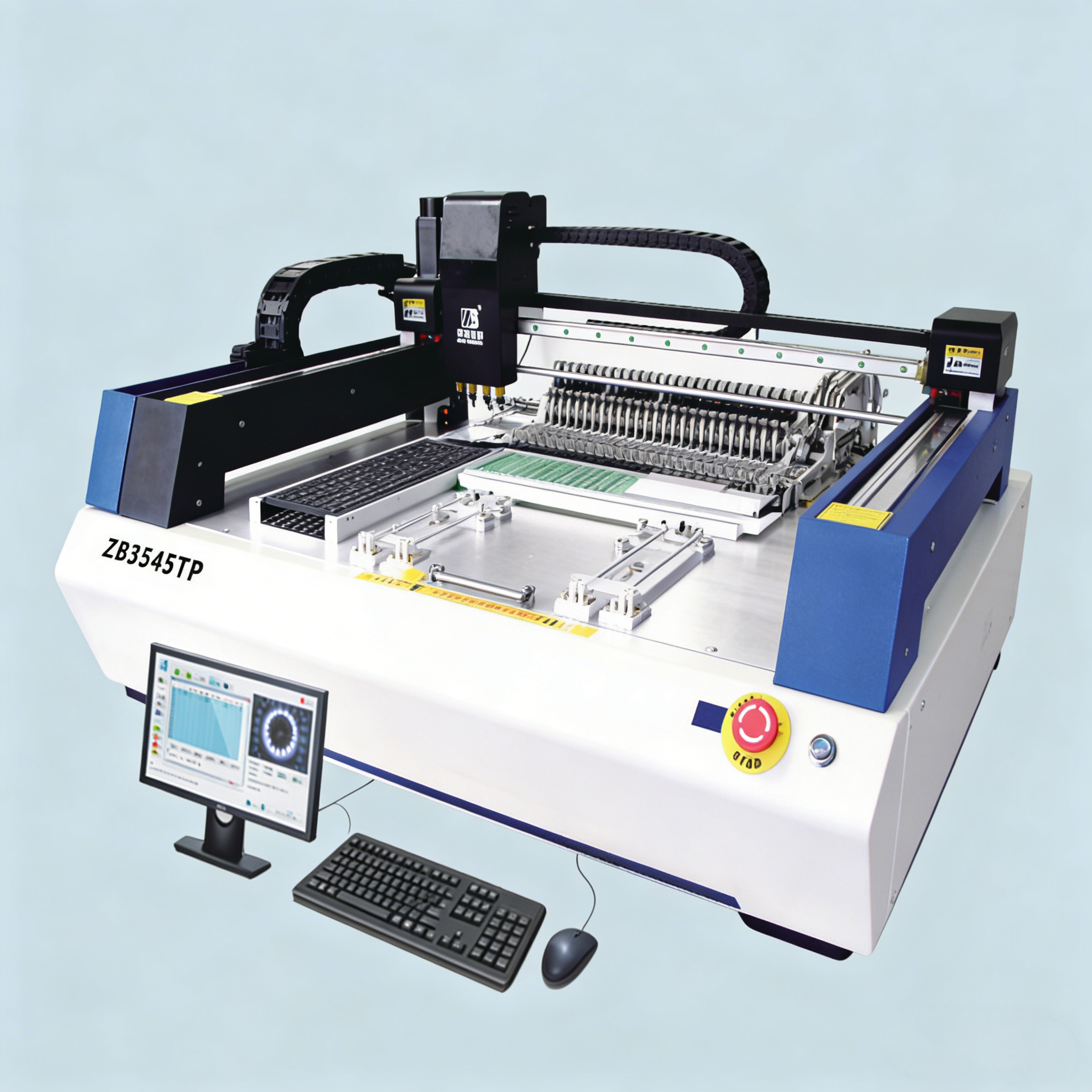

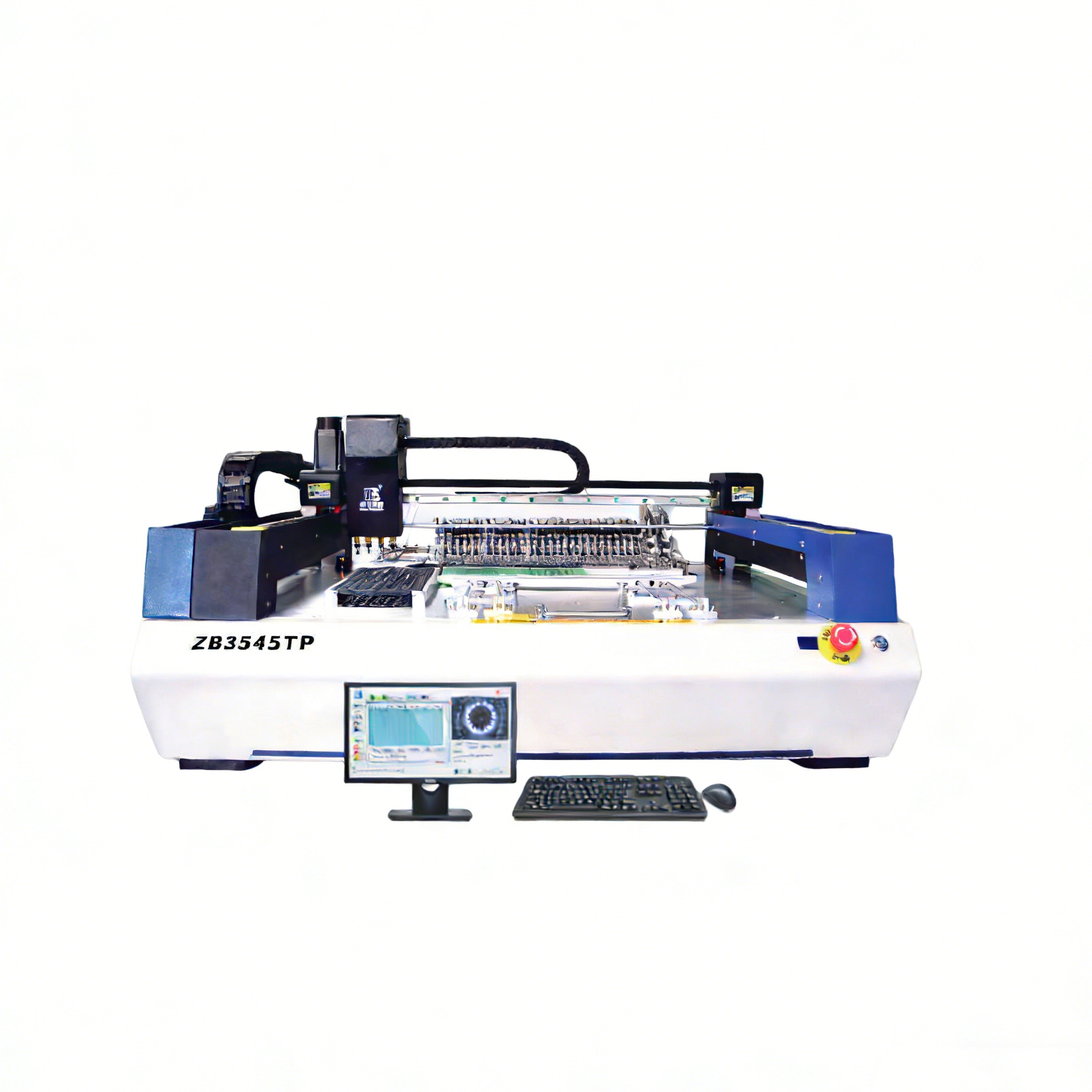

Desktop Pick And Place Machine for PCB Board

The ZB3545TP Taping Machine comes equipped with a built-in WIN7 industrial control computer and a 19-inch display, and features a multi-group CCD industrial visual recognition and correction system that enables 4-head simultaneous placement. Its transmission mechanism is driven by linear guide rails and Japanese-imported belts, ensuring long-term, high-precision, and stable operation. Supported by 38-position YAMAHA pneumatic feeders, it is compatible with CSV and TXT coordinate file import and editing, can accommodate PCBs up to 350*450mm, and is suitable for high-precision placement of standard components, LED lamps, ICs, BGA, and other elements, making it ideal for R&D trial production, small-batch, and mass production scenarios
Availability:
Quantity:
Inquire Add to Basket

  • ZB3545TP


Desktop Pick And Place Machine for PCB Board

The ZB3545TP Taping Machine comes equipped with a built-in WIN7 industrial control computer and a 19-inch display, and features a multi-group CCD industrial visual recognition and correction system that enables 4-head simultaneous placement. Its transmission mechanism is driven by linear guide rails and Japanese-imported belts, ensuring long-term, high-precision, and stable operation. Supported by 38-position YAMAHA pneumatic feeders, it is compatible with CSV and TXT coordinate file import and editing, can accommodate PCBs up to 350*450mm, and is suitable for high-precision placement of standard components, LED lamps, ICs, BGA, and other elements, making it ideal for R&D trial production, small-batch, and mass production scenarios.

23

文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



222 OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
