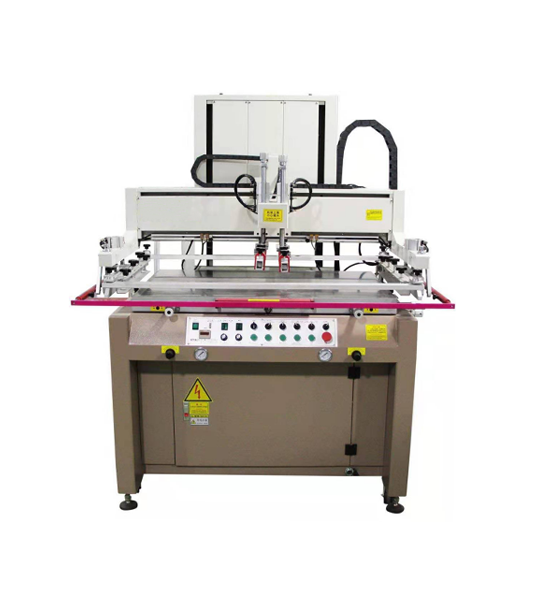

Circuit Board Printer Solder Paste Screen Printer Silk Screen Printing Machine for PCB Board

◆ Application: Single Side,Double Side PCB, Words Ans Solder Mask Printing
◆ Inverter Control Up And Down Gear Motor, Fast, Stable.
◆ Printing Methods Using Frequency Conversion Motor, Squeegee, Ink Speed Fast, Easily Adjust, Smooth And Powerful
◆ Printing Precision:±0.03mm
Availability:
Quantity:
Inquire Add to Basket

  • Screen Printing Machine

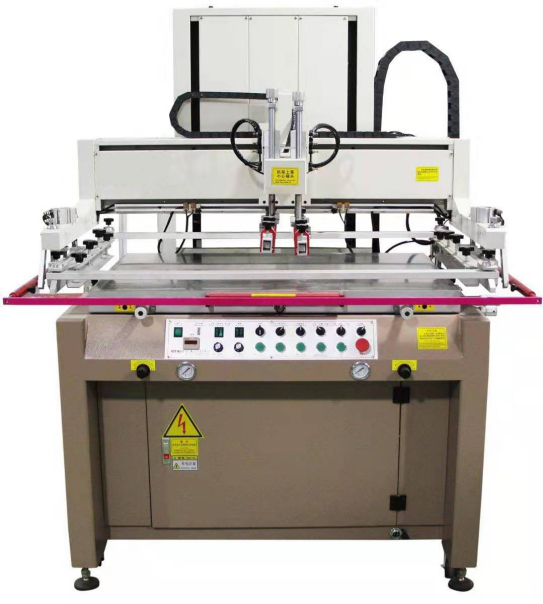

Solder Paste Screen Printer Silk Screen Printing Machine

PCB (Printed Circuit Board) screen printing machine is a specialized piece of equipment used in the electronics manufacturing industry to apply solder paste, adhesives, or other coatings onto PCBs through a stencil or screen. This process is a critical step in the surface-mount technology (SMT) assembly process, ensuring precise deposition of materials onto the PCB pads.

PC

B

◆ Application:  Single Side,Double Side PCB, Words Ans Solder Mask Printing

◆  Inverter Control Up And Down Gear Motor, Fast, Stable.

◆ Printing Methods Using Frequency Conversion Motor, Squeegee, Ink Speed Fast, Easily Adjust, Smooth And Powerful

◆ Printing Precision:±0.03mm

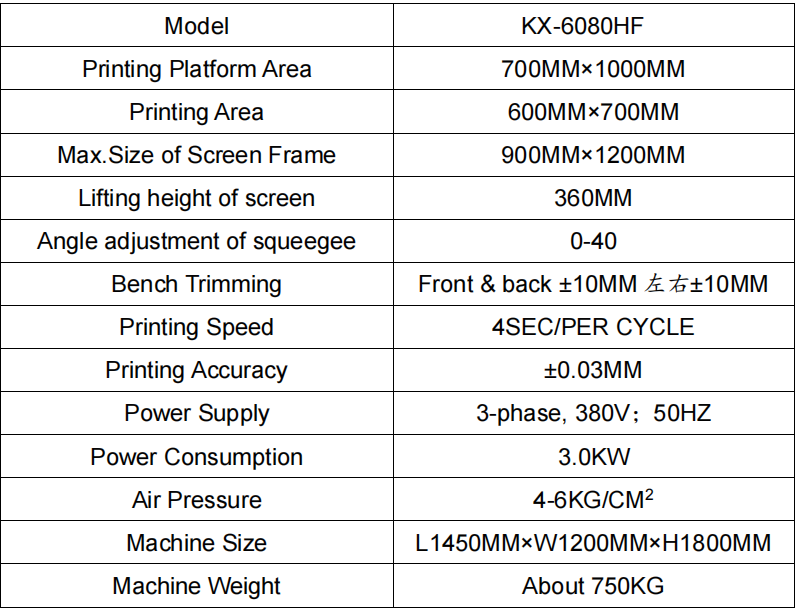

Silk Screen Printing Machine Machine Technical Parameters:

Model

KX-6080

KX-60120               KX-60150


Printing Area:


600*800 mm


600*1200mm          600*1500mm


Screen Frame Size


900*1200mm


900*1800mm          900*1800mm

Print table Size

700*1000mm

700*1500mm          700*1800mm


Printing Speed

4sec/per cycle


Blade Angle


0°-40°

Screen shift height


360mm


Printing accuracy


±0.03mm

Printing table adjustment

front and

back ±10mm  /  left and right :±10mm


Power


380V 50-60HZ 3.0KW

Air Pressure

4-6kg/cm2

Machine Size

1600*1200*1900mm

2100*1200*1800       3200*1500*1800 mm

Machine Weight

700kg

950kg                            2600kg



文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.







222

OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
