CNC V-Cut Machine for PCB Board

V-Scoring also named as V-grooving or V-cutting this kind of pre-cut circuit is needed to facilitate the operator to smoothly cut the original panel into a veneer.
Availability:
Quantity:
Inquire Add to Basket

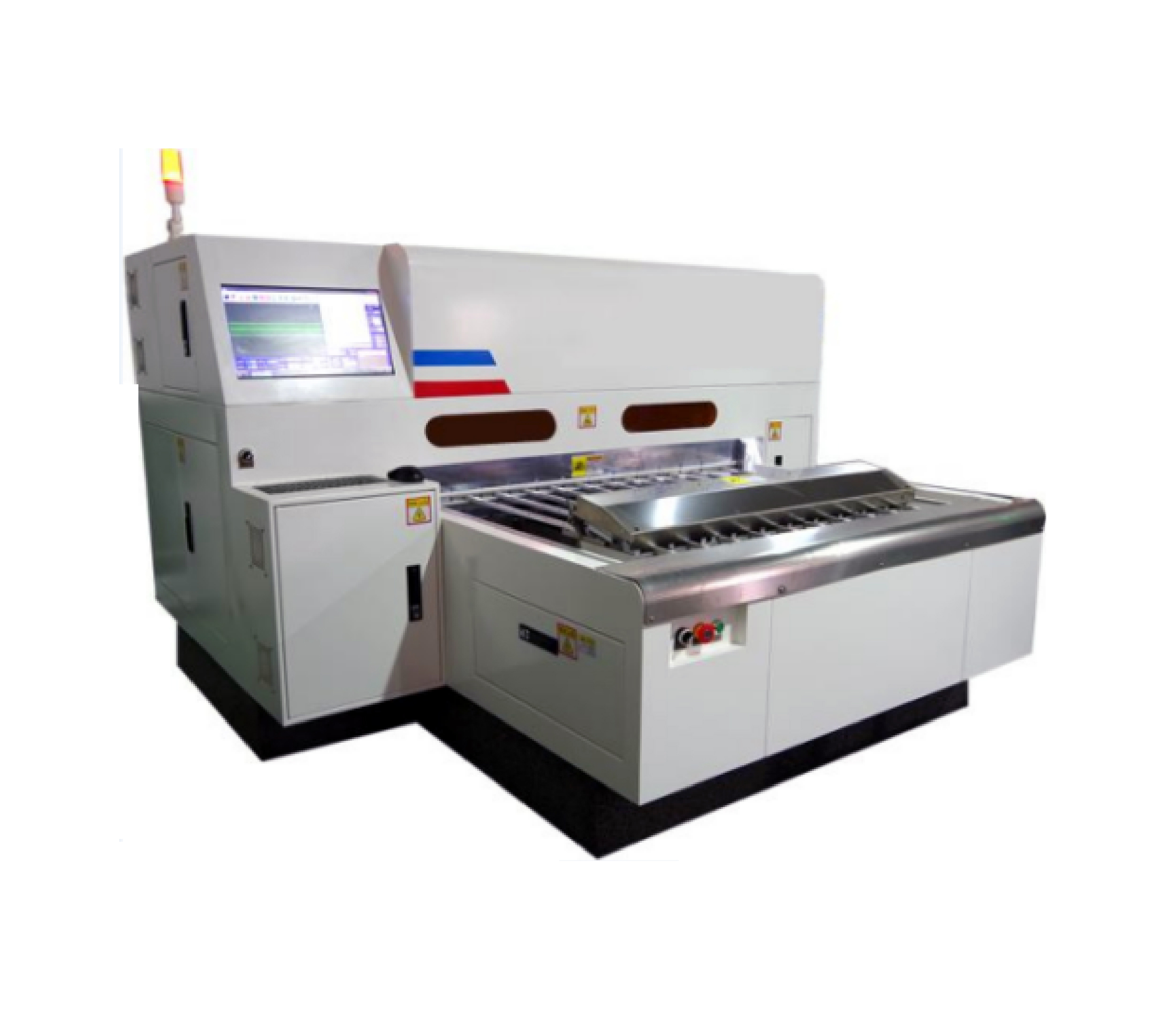

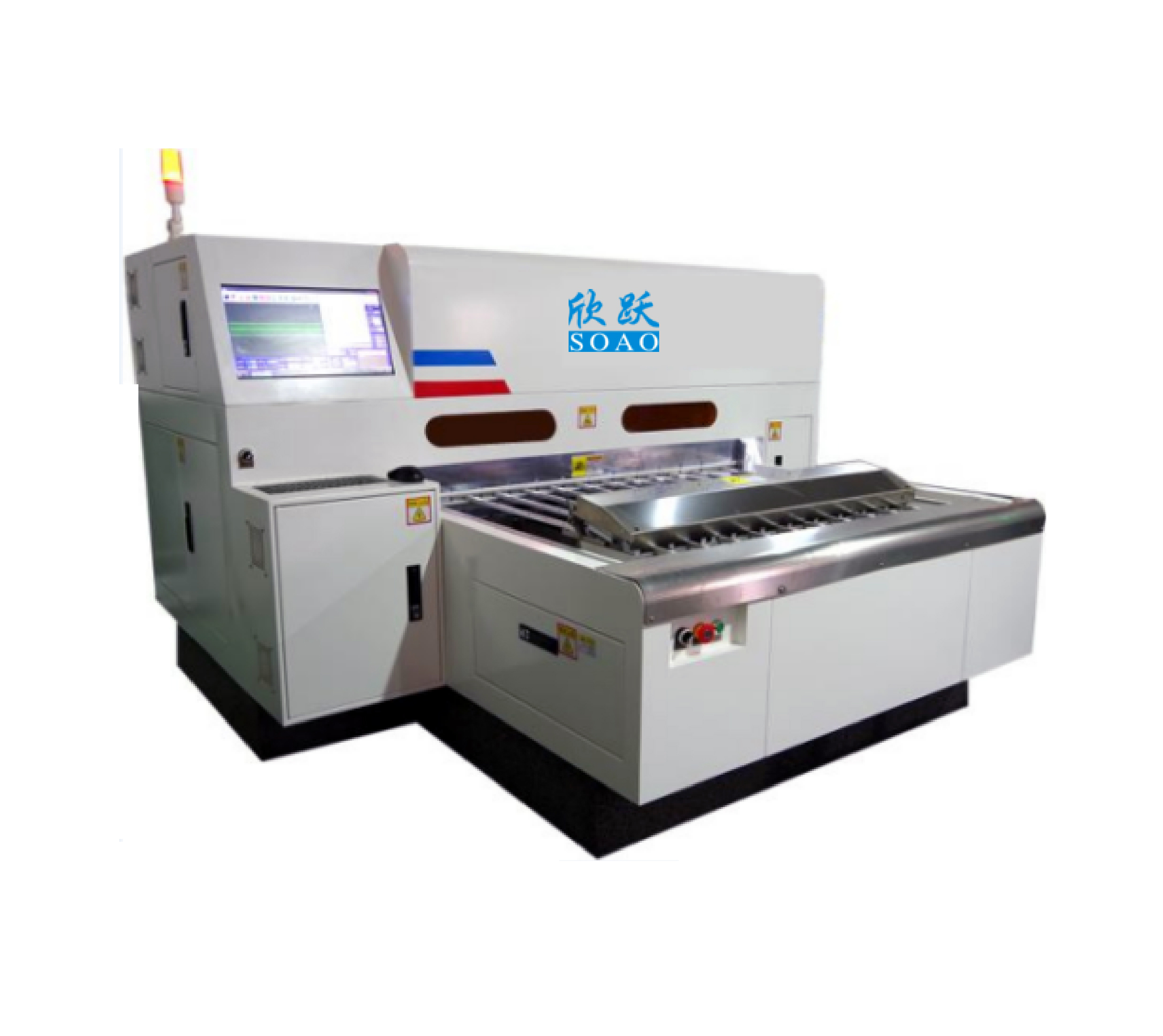

CNC V-Cut Machine for PCB Board


V-Scoring also named as V-grooving or V-cutting this kind of pre-cut circuit is needed to facilitate the operator to smoothly cut the original panel into a veneer.

1

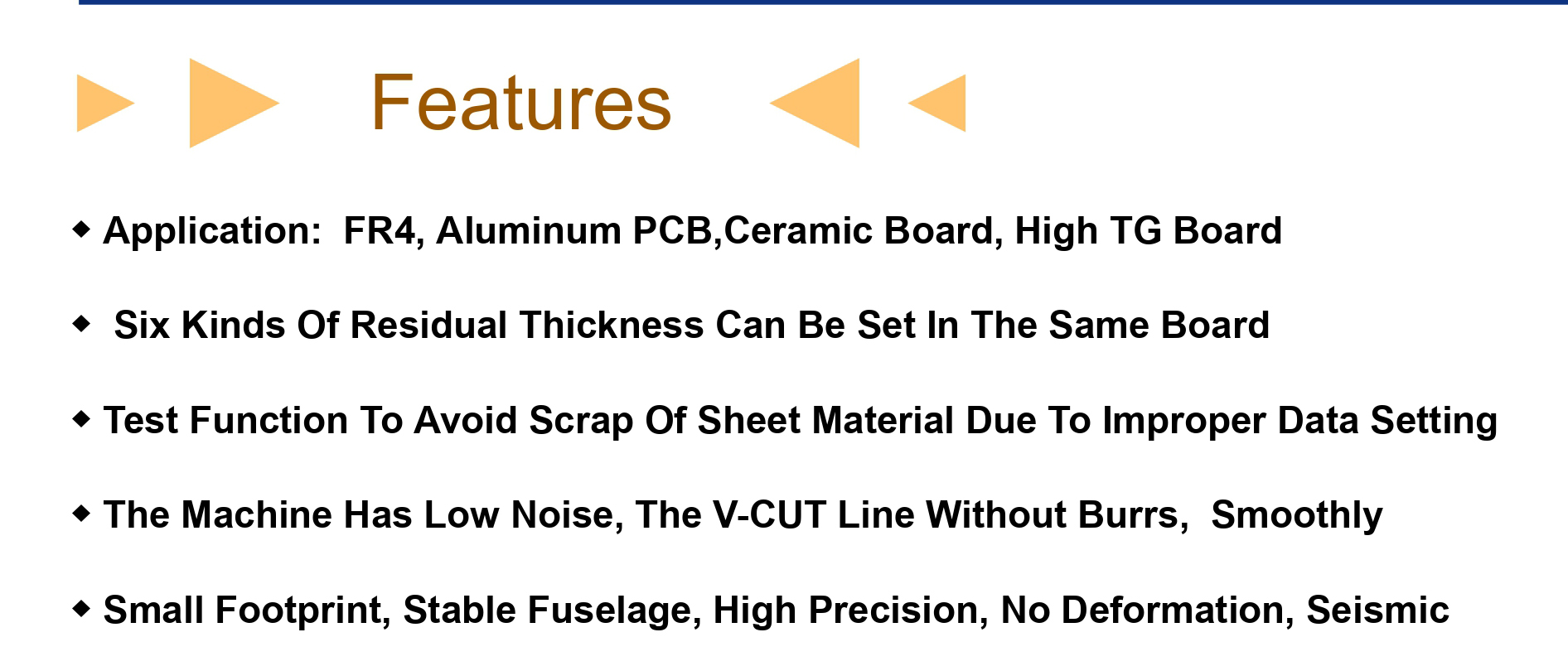

Machine Features:

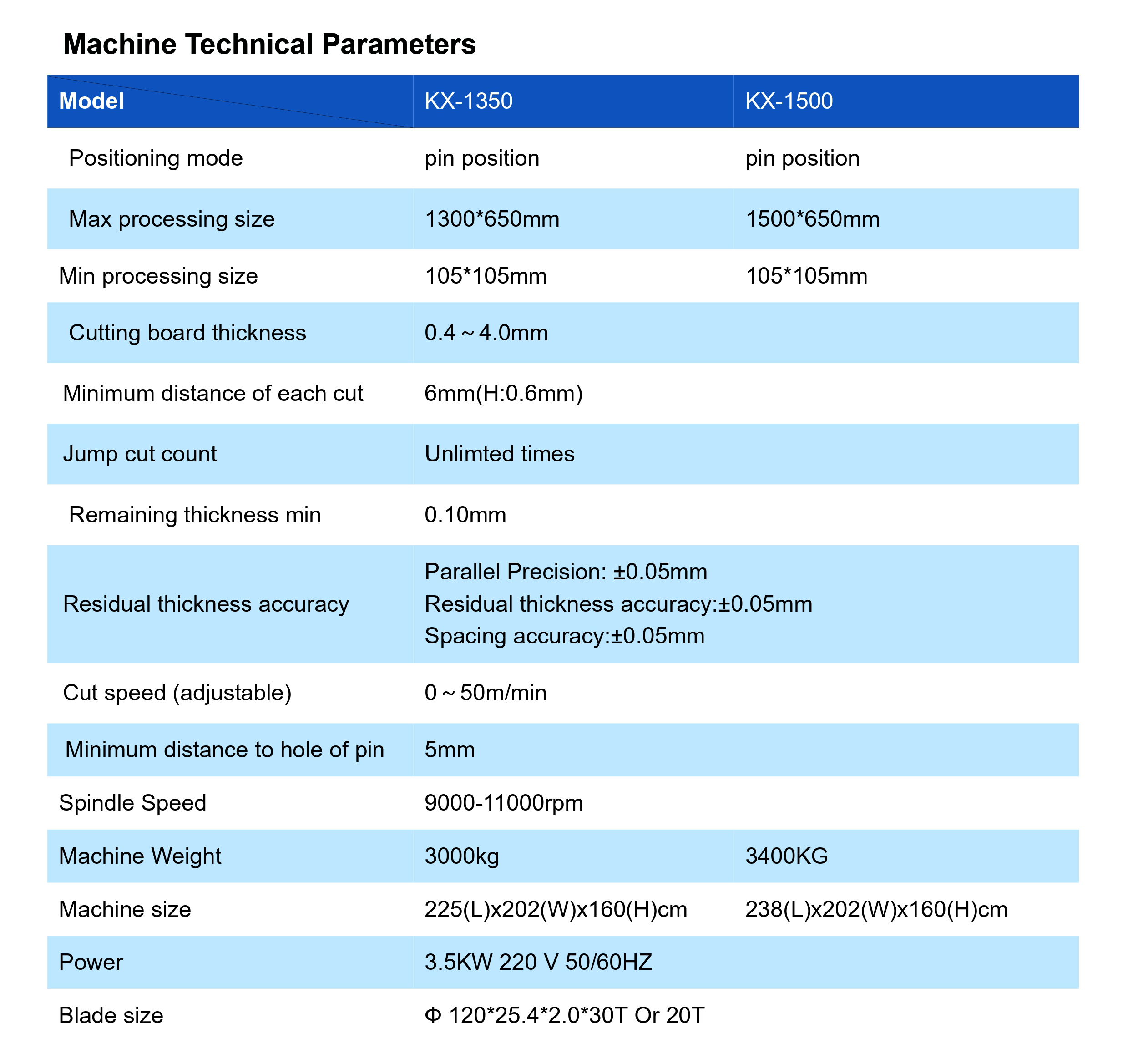

1. Different types machine can be chosen according to your Panel size KX-680/KX-1350/KX-1500

2.Spindle speed: 8000-10000rpm

3 .Automatic stripping function

4 .Machine has a test function to avoid the scrap of the board due to improper data setting

5. Machine with anti-collision blade function, reduce consumables loss

6. The minimum distance of each of with PIN machine is 6mm, and jump cut is unlimited

1



1


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.



222 OEM/ODM SERVICES

Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.

As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.

We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
