4 Spindle Routing Machine PCB Making Machine PCB Process Equipment

The four-axis PCB milling machine is a professional equipment used for precision processing in the manufacturing process of printed circuit boards (PCBs). With four independently controllable axes, it is capable of performing more complex and delicate processing operations, meeting the requirements for high precision, high efficiency, and high stability in PCB manufacturing.
Availability:
Quantity:
Inquire Add to Basket

  • R14

4 Spindle Routing Machine PCB Making Machine PCB Process Equipment

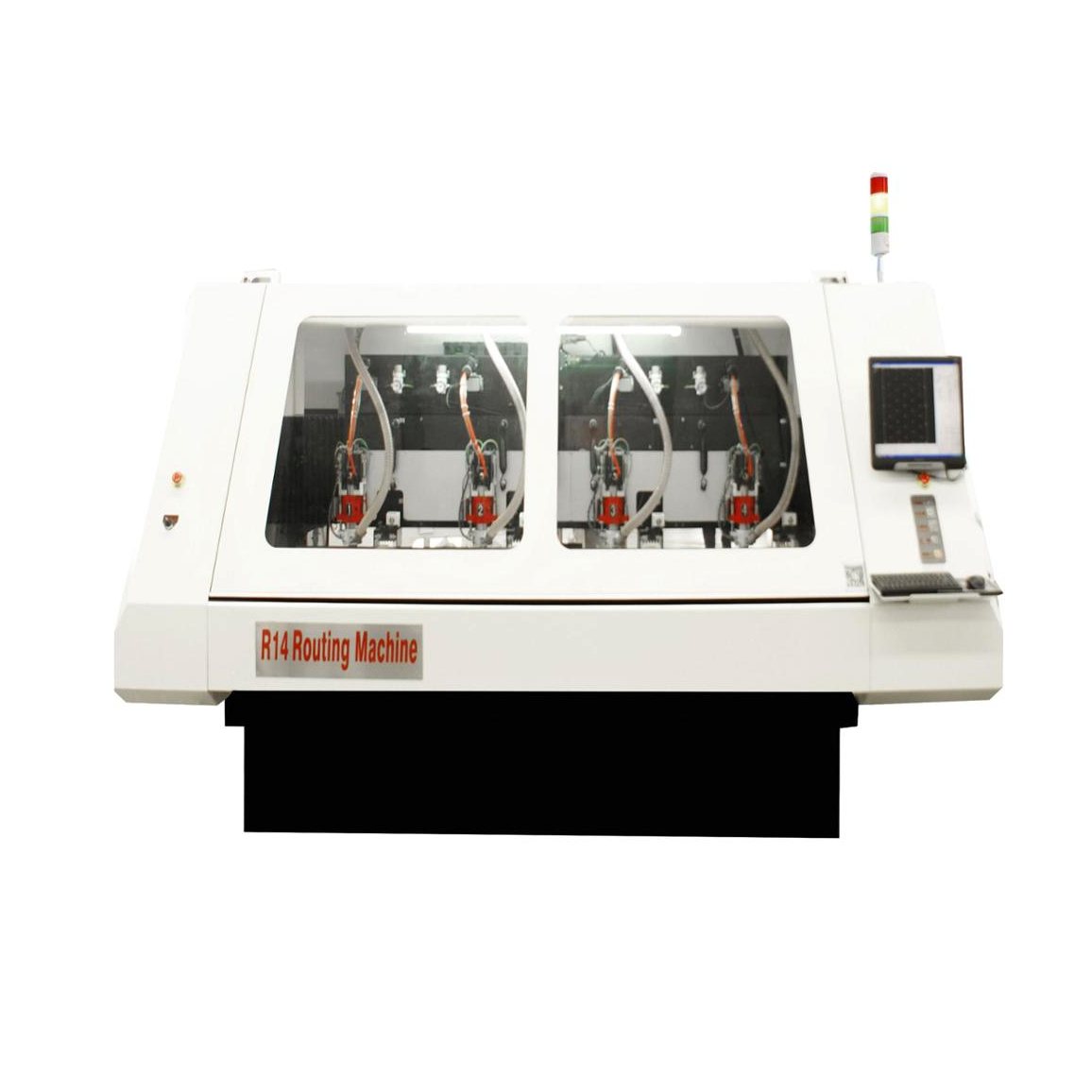

PCB CNC Routing machines, for PCB manufacturers to achieve better results with high throughput, high accuracy and high quality.PCB router, also known as PCB curve board separator or stamp hole PCB separator, is mainly used for separating PCBs (printed circuit boards) with stamp hole connections. It precisely cuts through the PCBs with routers to ensure their quality and shape meet requirements, serving as an indispensable device in the electronics manufacturing industry.

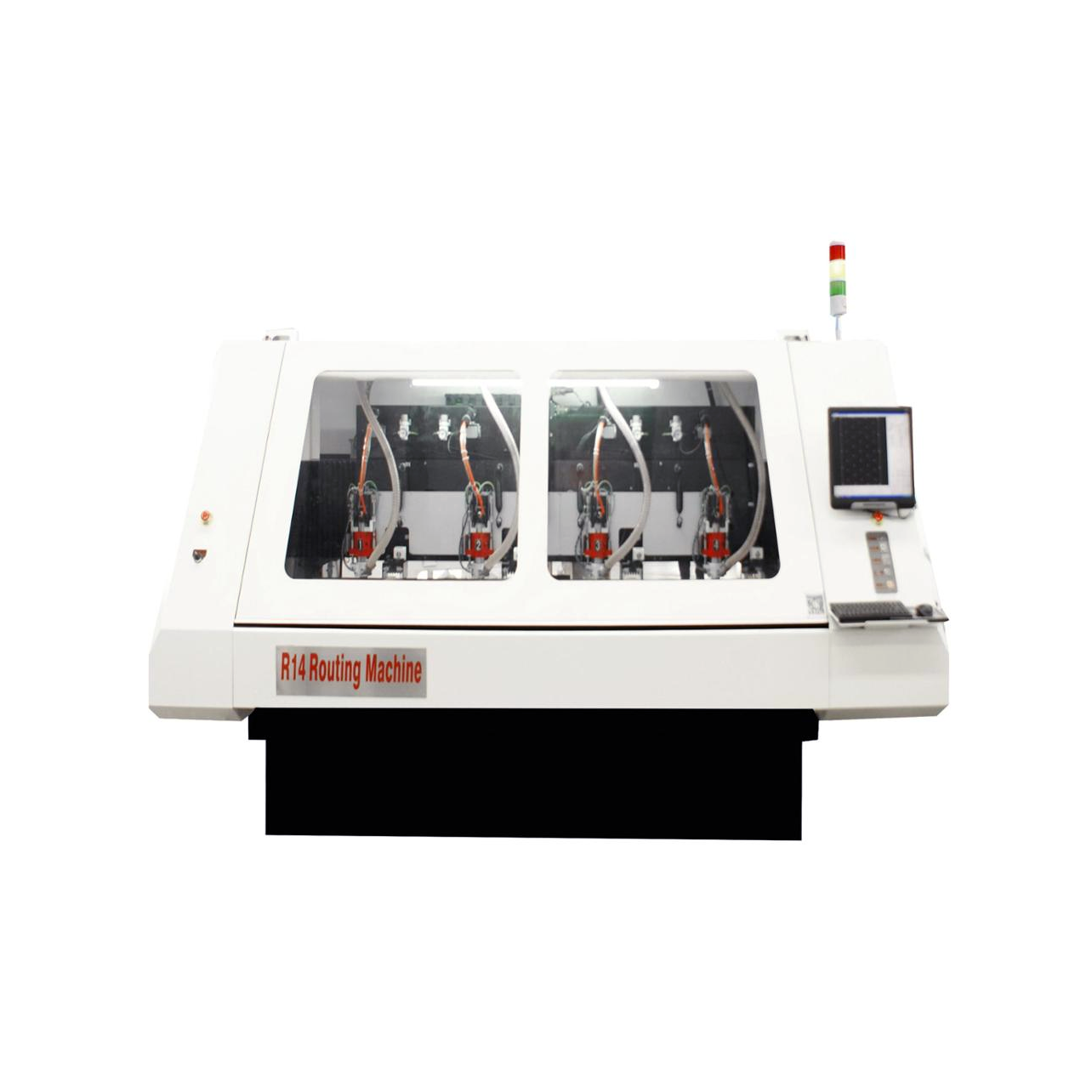

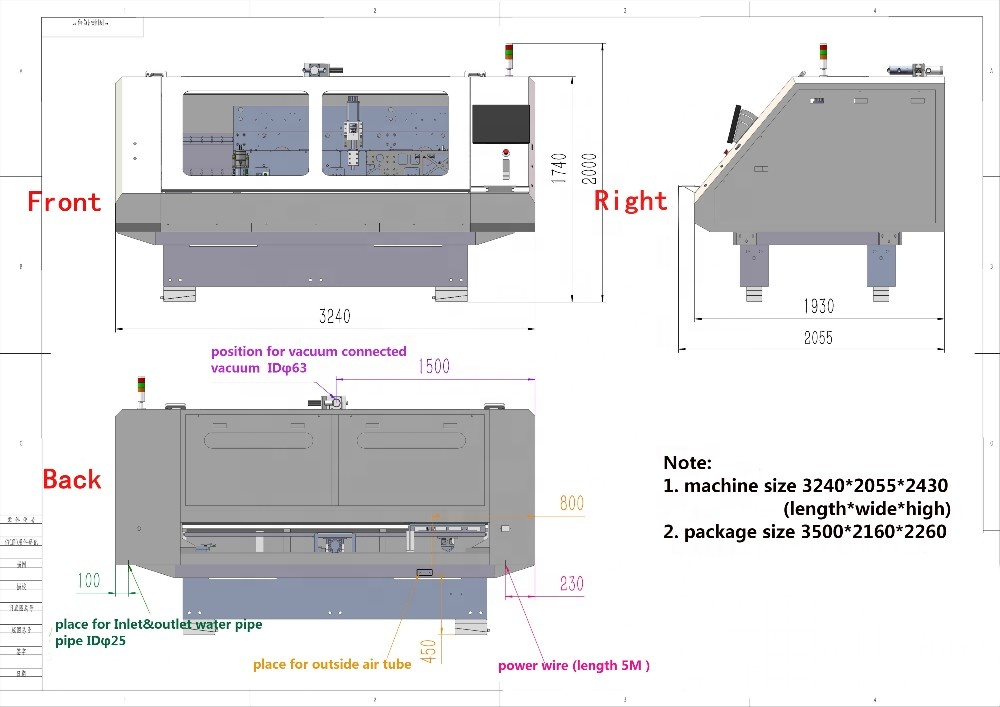

HLB1zZQQSCzqKHLB1_i7KSAvoK1RjS


1

Auto pinning

2

Auto de-pinning

3

Auto stripping

4

BBD function

5

168 pins /axis

6

100 tools/ axis


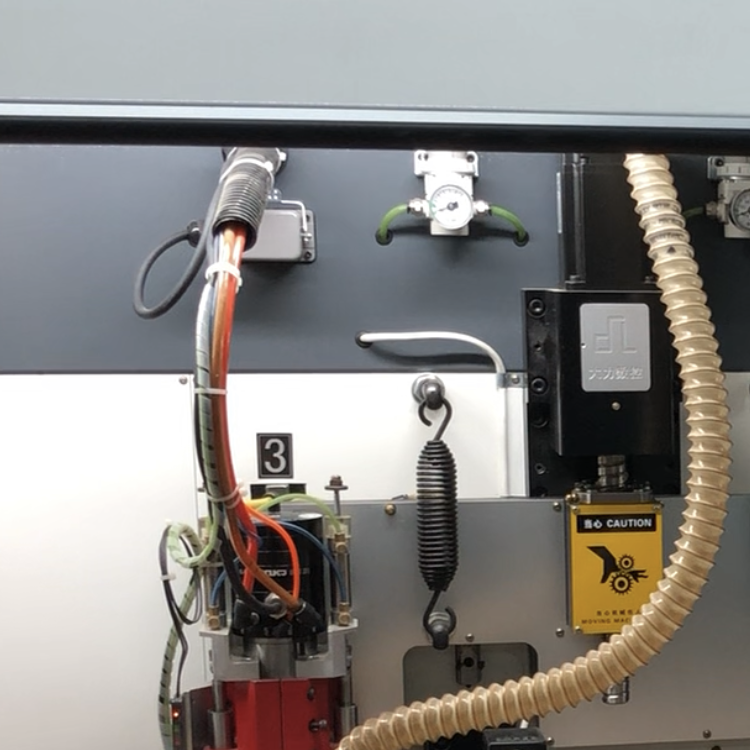

Feature

  1. DAKE 60000 Rpm Spindle

  2. 66 Tools /Axis, Euro Magazines Or 100 Tools /Axis JIS Standard;

  3. Auto Pinning & De-Pinning Function;

  4. Real Time BBD Function ,Tool Diameter And Length Detection;

  5. Auto Tool Change System As Drilling Machine


Machine Technical Parameters

Model KX-R14KL
Number Of Z Axis 2
Number Of Spindles 4
Processing Area Of Each Axis 680mm*830mm
Spindle Rpm 60000 Rpm
Spindle power 1.8kw
spindle collet Dia 3.175mm
Routing Diameter Range 0.6-3.175mm
X Y Axis Speed 35m/Min
Z Axis Speed 25m/Min
Z-axis cutting speed 0-6m/min
Position Accuracy ±0.01mm
Repeatability Accuracy ±0.005mm
Routing Accuracy ±0.05mm
Power 5KW
Air Requirements 0.7MPa-0.8MPa
Cooling Water Temperature 18-25
Humidity 50%-75%
Machine Size 3.45mx2.18mx1.6m
Machine Weight 3500kg
Processing file format Excellon、WK、Protel、S&M1000/3000/5000


文心一言AI作图_20241224155738

After Sales Service

1.We guarantee that we will give you a clear reply within 24 hours.

2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

3.If the malfunction is caused by improper operation on software and other soft faults, we will  help solve the problem on line.

4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.

5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.
