R14KL
SOAO

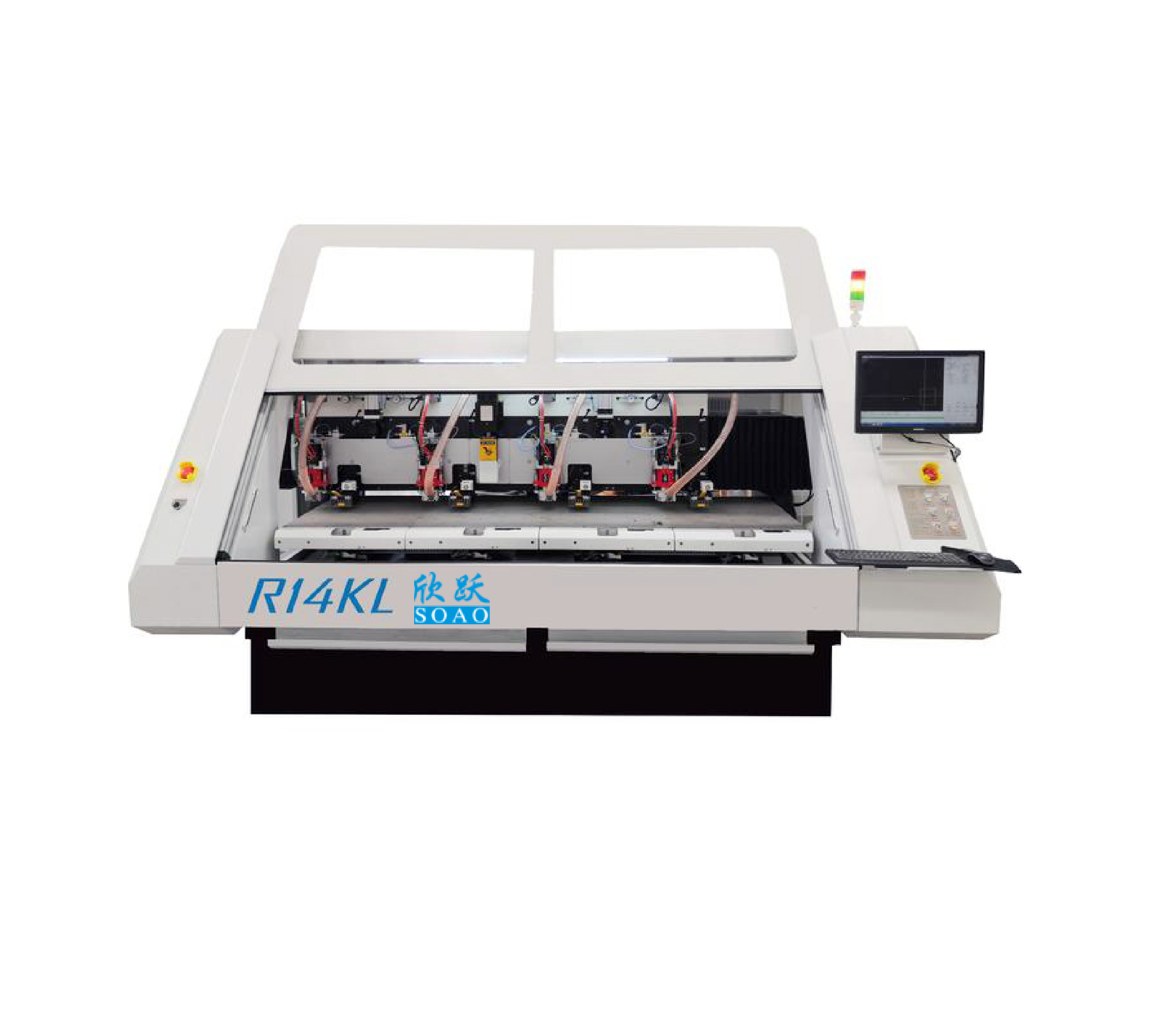

4 Spindle Routing Machine 1.8kw 6000rpm routing machine pcb equipment
PCB CNC Routing machines, for PCB manufacturers to achieve better results with high throughput, high accuracy and high quality.PCB router, also known as PCB curve board separator or stamp hole PCB separator, is mainly used for separating PCBs (printed circuit boards) with stamp hole connections. It precisely cuts through the PCBs with routers to ensure their quality and shape meet requirements, serving as an indispensable device in the electronics manufacturing industry.
Auto pinning
Auto de-pinning
Auto stripping
BBD function
168 pins /axis
100 tools/ axis
Feature

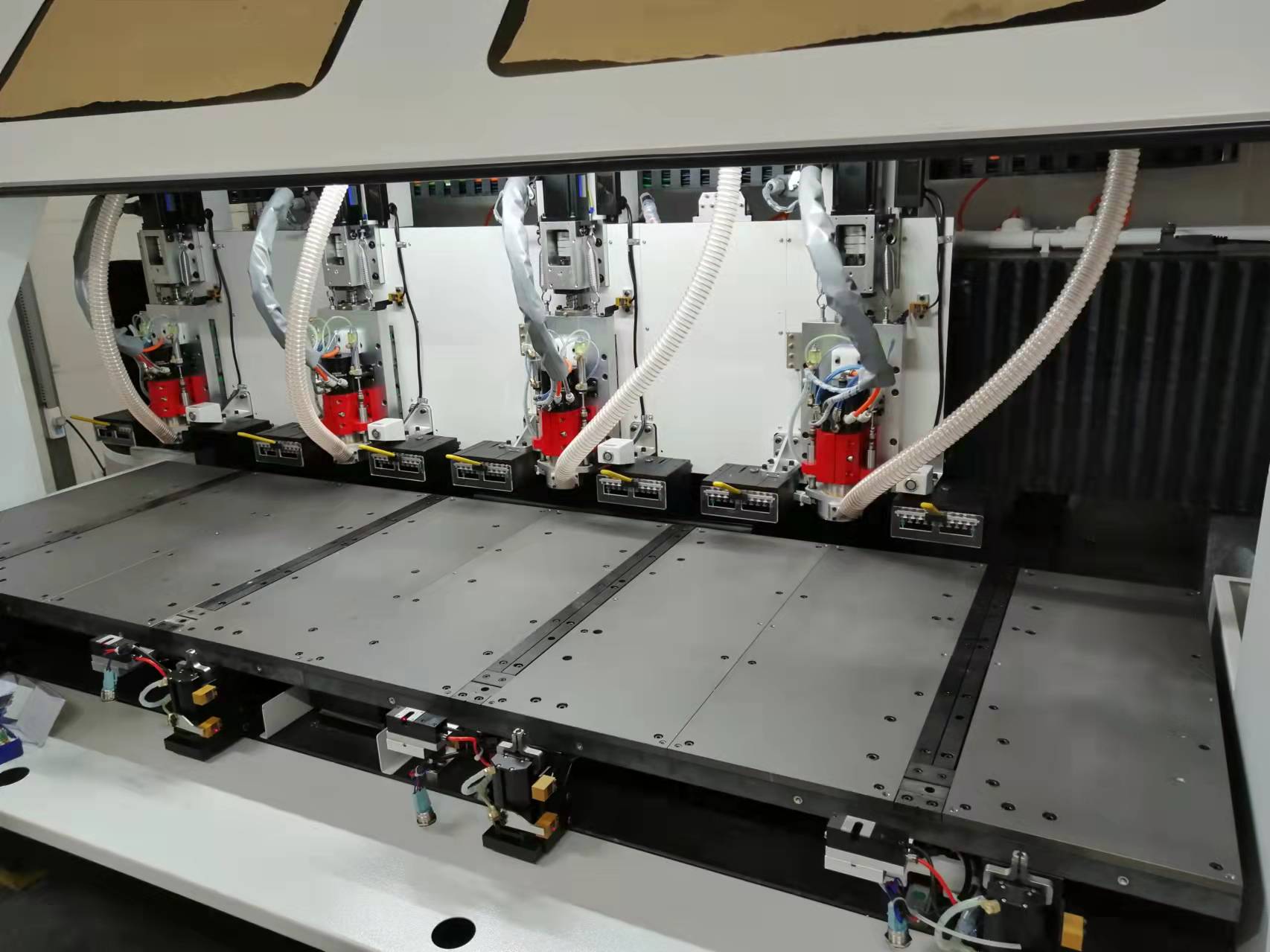

DAKE 60000 Rpm Spindle
66 Tools /Axis, Euro Magazines Or 100 Tools /Axis JIS Standard;
Auto Pinning & De-Pinning Function;
Real Time BBD Function ,Tool Diameter And Length Detection;
Auto Tool Change System As Drilling Machine
Machine Technical Parameters
| Model | KX-R14KL |
| Number Of Z Axis | 2 |
| Number Of Spindles | 4 |
| Processing Area Of Each Axis | 680mm*830mm |
| Spindle Rpm | 60000 Rpm |
| Spindle power | 1.8kw |
| spindle collet Dia | 3.175mm |
| Routing Diameter Range | 0.6-3.175mm |
| X Y Axis Speed | 35m/Min |
| Z Axis Speed | 25m/Min |
| Z-axis cutting speed | 0-6m/min |
| Position Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Routing Accuracy | ±0.05mm |
| Power | 5KW |

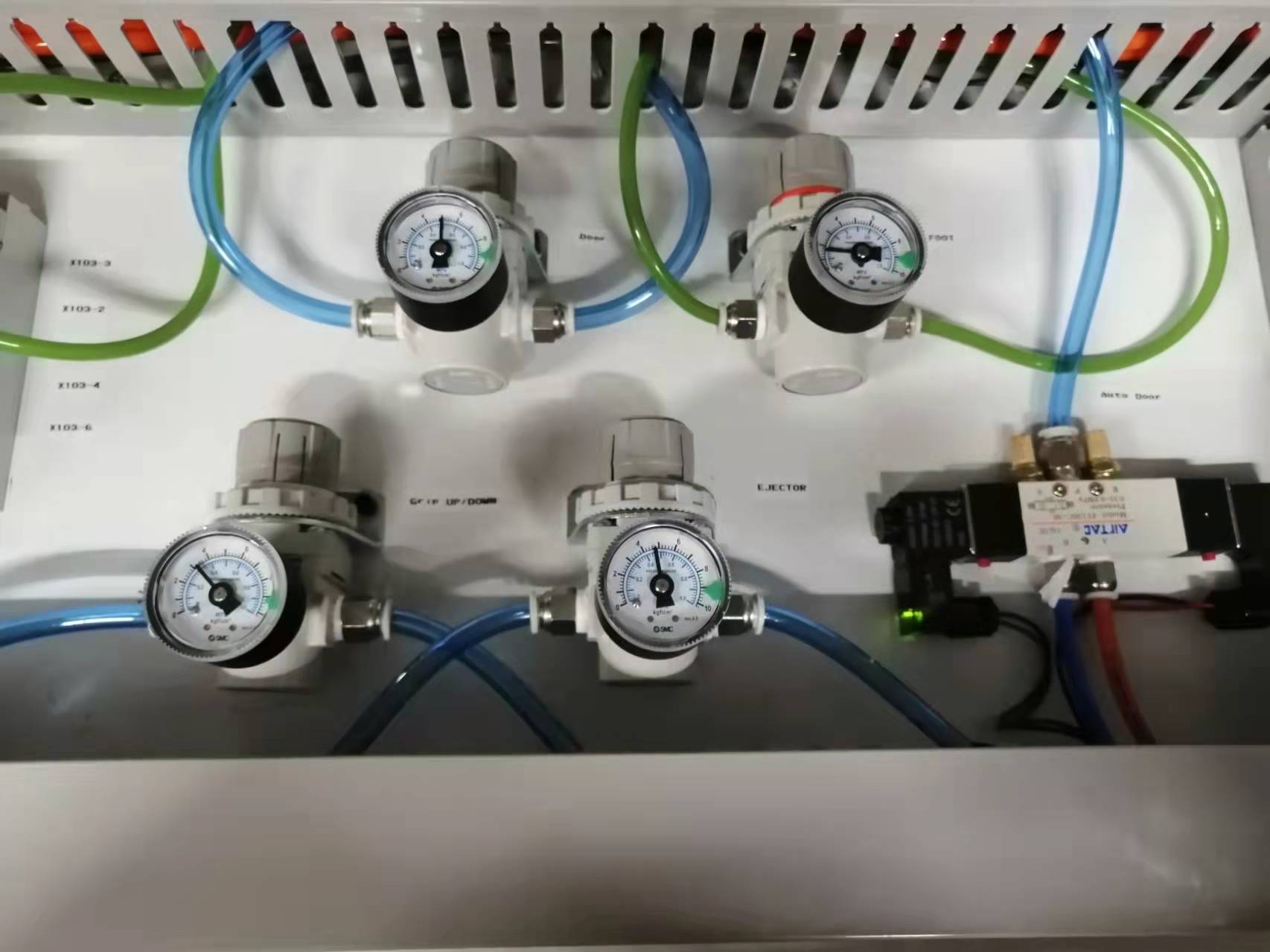

| Air Requirements | 0.7MPa-0.8MPa |
| Cooling Water Temperature | 18-25 |
| Humidity | 50%-75% |
| Machine Size | 3.45mx2.18mx1.6m |
| Machine Weight | 3500kg |
| Processing file format | Excellon、WK、Protel、S&M1000/3000/5000 |

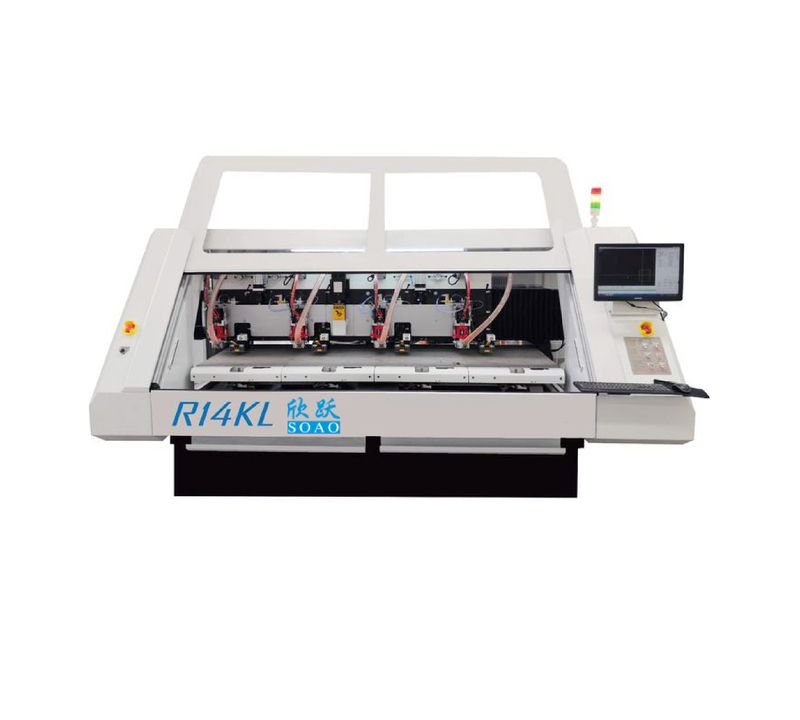

4 Spindle Routing Machine 1.8kw 6000rpm routing machine pcb equipment
