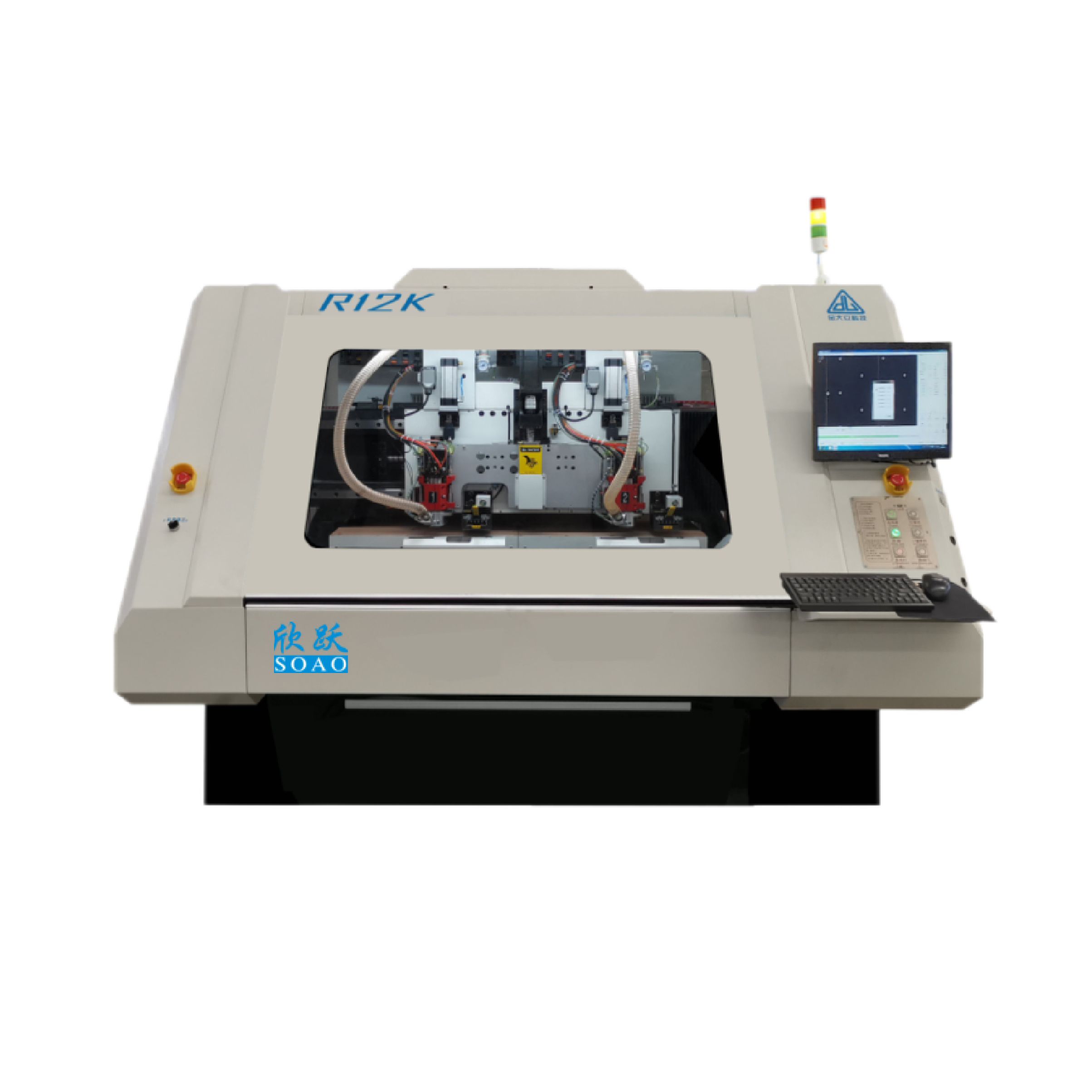

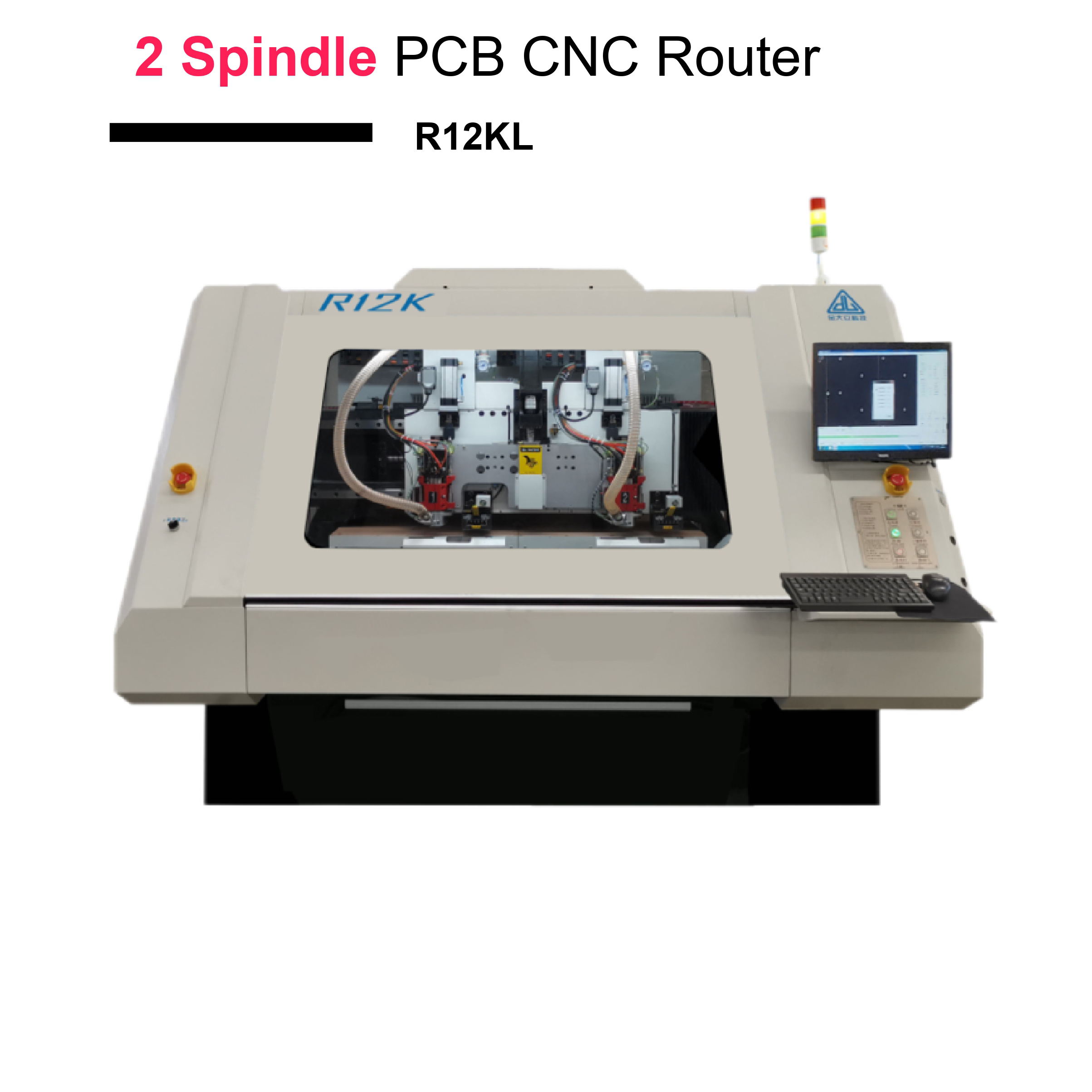

2 Spindle Routing Machine 5kw 60000rpm routing machine
PCB CNC Routing machines, for PCB manufacturers to achieve better results with high throughput, high accuracy and high quality.PCB router, also known as PCB curve board separator or stamp hole PCB separator, is mainly used for separating PCBs (printed circuit boards) with stamp hole connections. It precisely cuts through the PCBs with routers to ensure their quality and shape meet requirements, serving as an indispensable device in the electronics manufacturing industry.

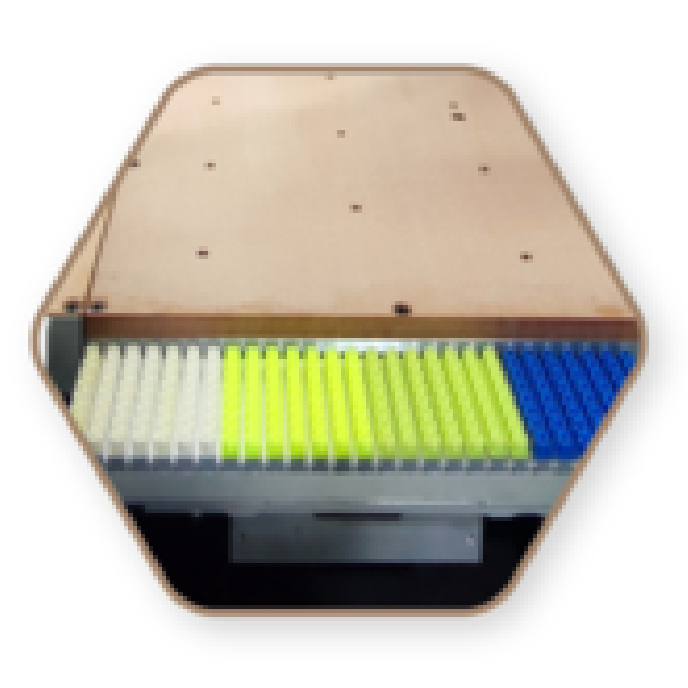

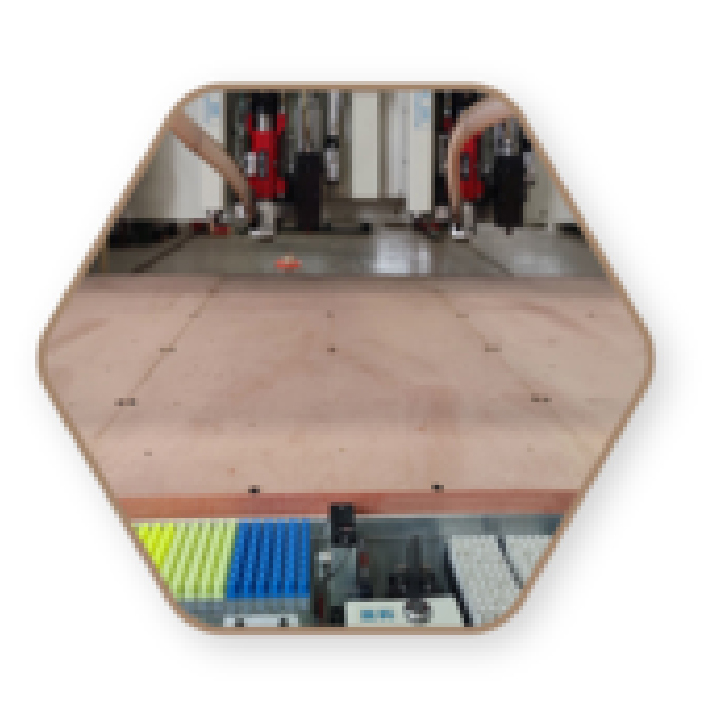

Auto pinning
Auto de-pinning
Auto stripping

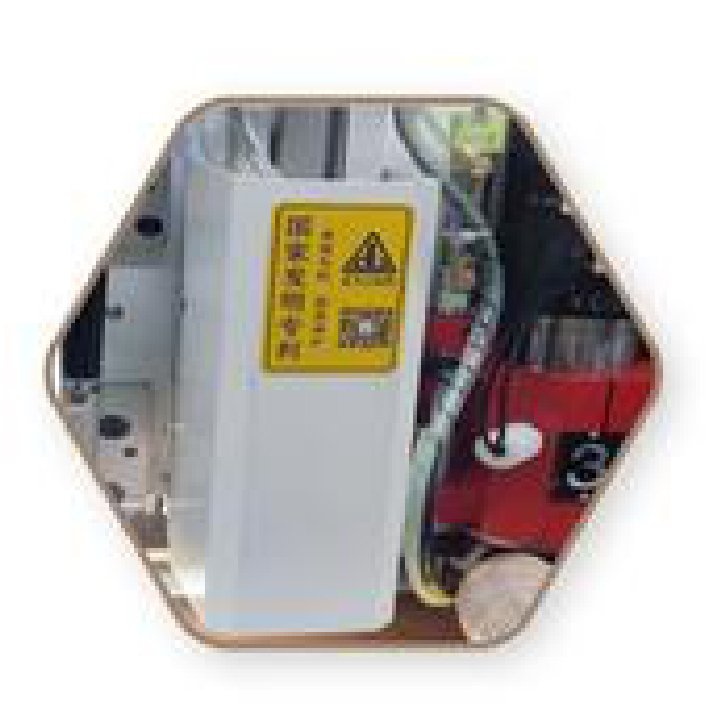

BBD function

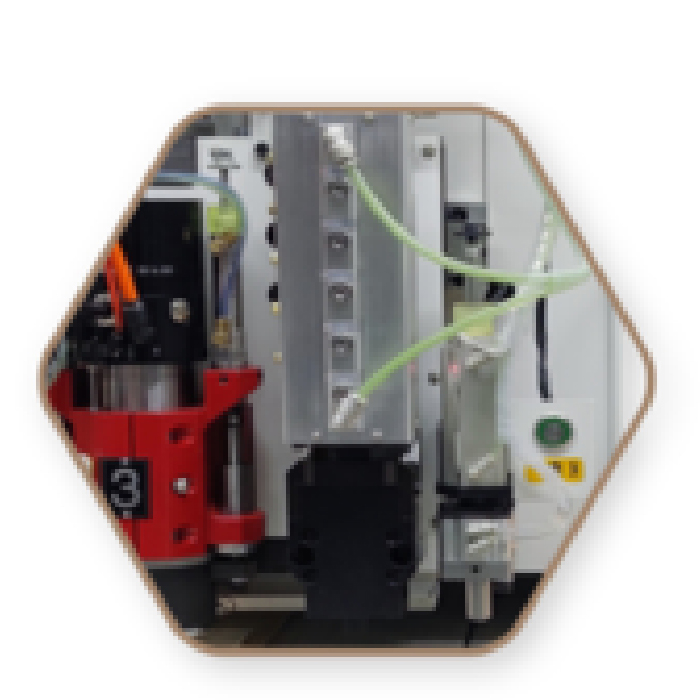

168 pins /axis

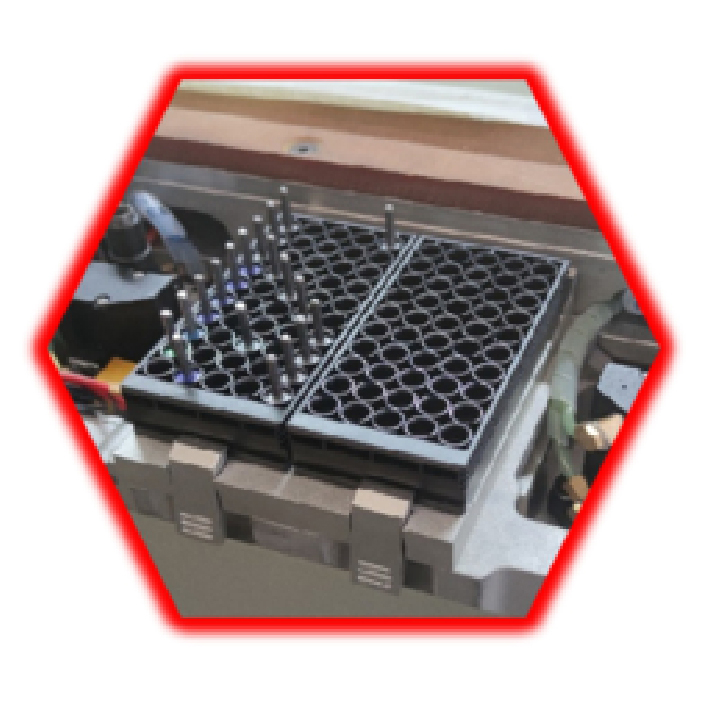

100 tools/ axis

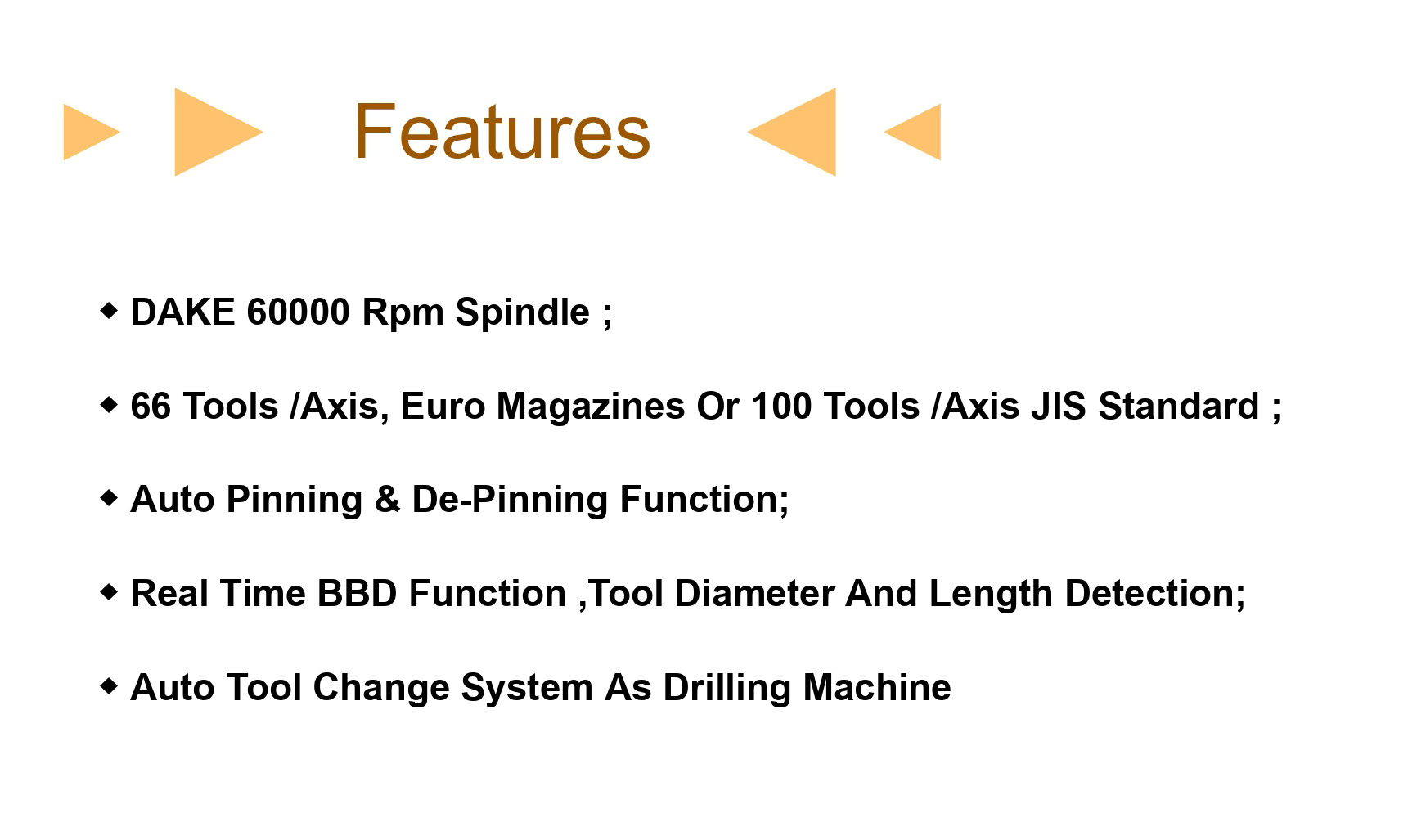

Features

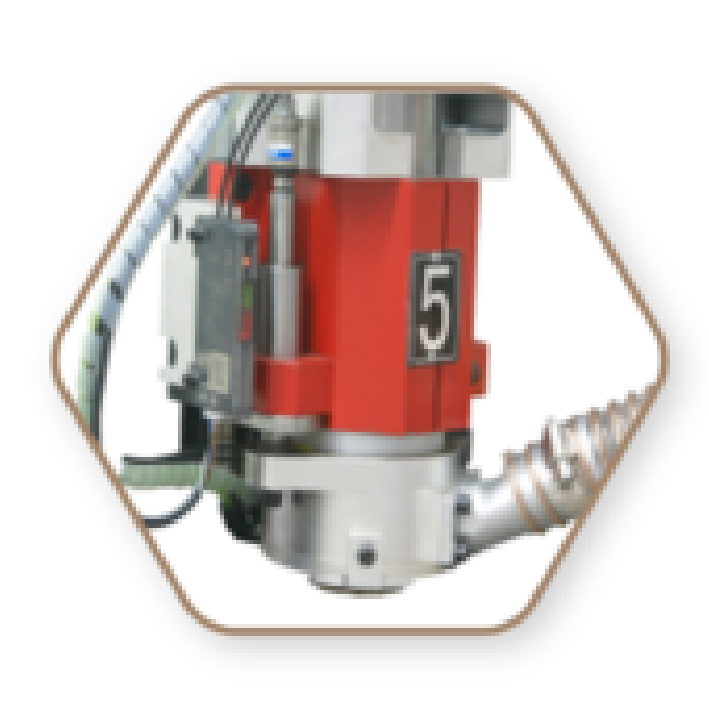

DAKE 60000 Rpm Spindle ;
66 Tools /Axis, Euro Magazines Or 100 Tools /Axis JIS Standard ;
Auto Pinning & De-Pinning Function;
Real Time BBD Function ,Tool Diameter And Length Detection;
Auto Tool Change System As Drilling Machine

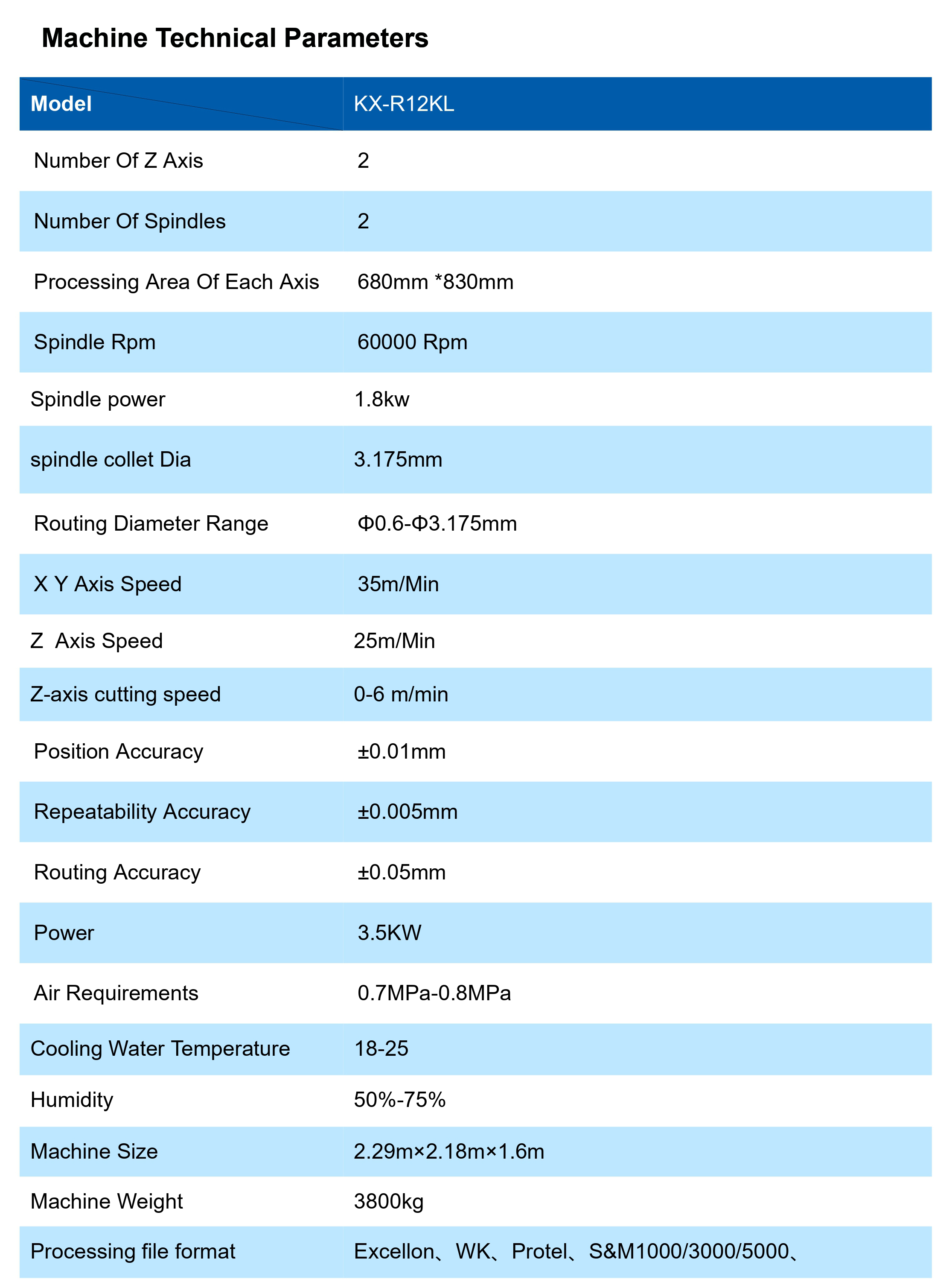

Main Parameters
No. of Z axis | 2 |
No. of Spindle | 2 |
Processing area of each axis | 680mm×830mm |
XYZ axial movement stroke | 700mm×825mm×55mm |
Number of tools per axis | 66个 |
Drilling diameter | φ0.5-φ6.35mm |
Milling diameter | φ0.6-φ3.175mm |
XY Axial max. movement speed | 35m/min |
Z Axial max. movement speed | 25m/min |
System resolution ratio | 0.001mm |
Positioning Accuracy | ±0.01mm |
Repeatability Accuracy | ±0.005mm |
Routing precision | ±0.05mm |
Power requirements | 380V/50Hz(±5%) |
Compressed air requirement | 300L/min |
Cooling water requirement | 18℃-25℃ |
Environmental temperature | 20℃-25℃ |
Ambient humidity | 50%-75% |
Noise | ≤75dBA |

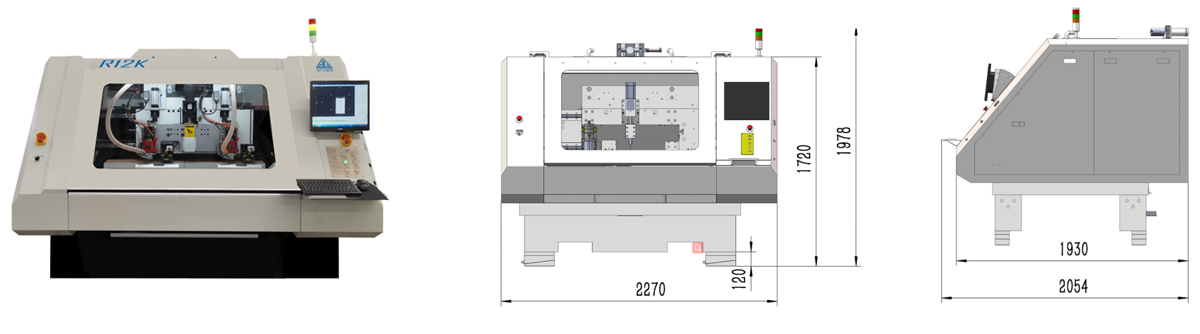

Machine measurement(L×W×H) | 2.29m×2.18m×1.60m |
Machine weight | 3800kg |
After Sales Service
1.We guarantee that we will give you a clear reply within 24 hours.
2.Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.
3.If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.
4.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone.
5.The equipment comes with a one-year warranty service, with local service providers responsible for on-site repairs. The service areas cover the United States, India, and Thailand.
Packing
Packing
Payment
Transport
OEM/ODM SERVICES
Since2006, GUANGDONG XINYUE INTELLIGENT TECHNOLOGY CO., LTD. has provided high-quality products and services to many well-known PCB manufacturers. Such as Unimicron, Kingwong, APEX,Wuerth,CEE PCB etc.
As one of the largest and most experienced "one-stop' solution companies in the PCB industry, we design, manufacture,as well as integrate resources that make your PCB drilling and routing process running trouble-free.
We Mainly Offer :PCB Dry Process Equipment,PCB Wet Process Euipment,PCB Testing Equipment,CNC Center,PCB Machine Accessories and PCB Backup Board.
